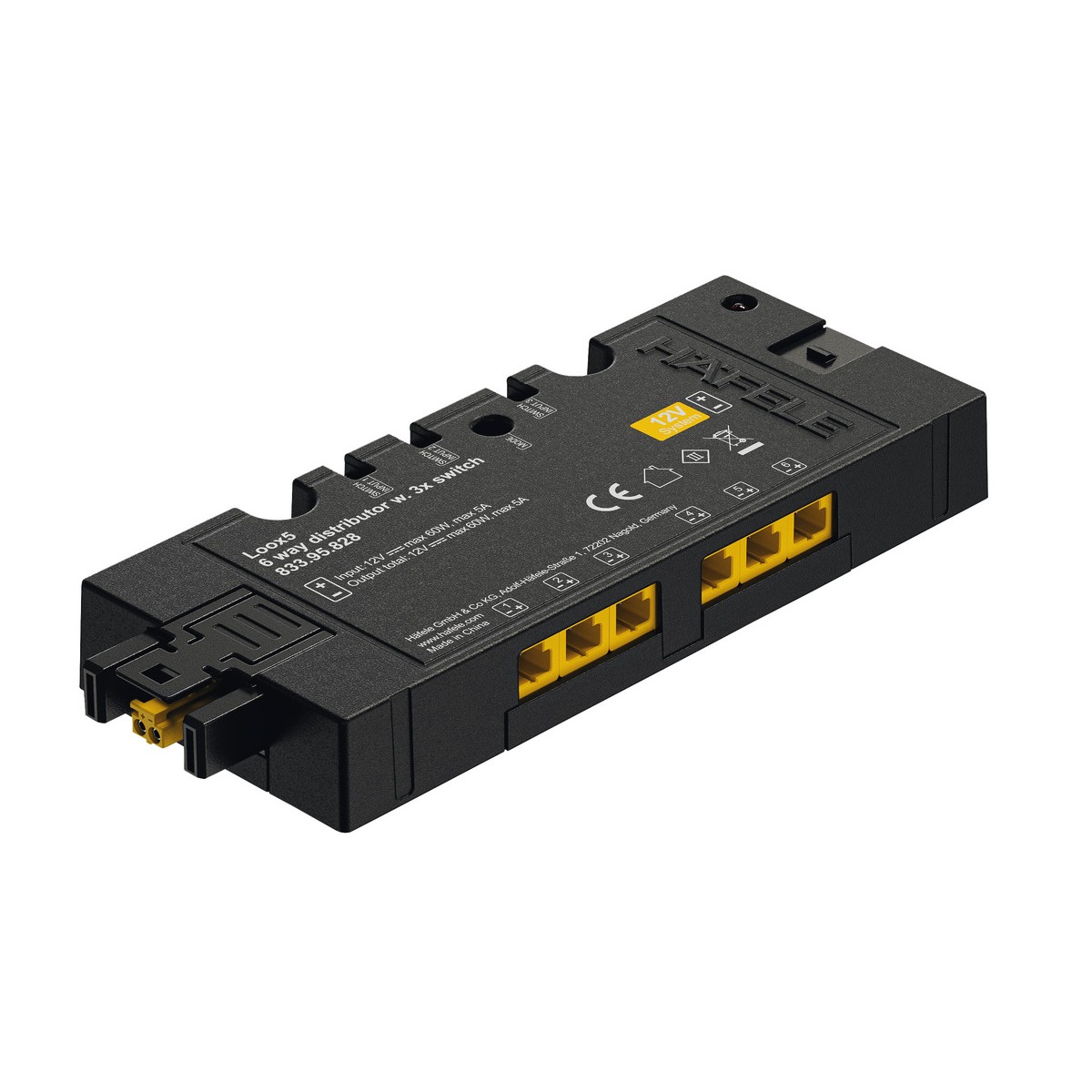

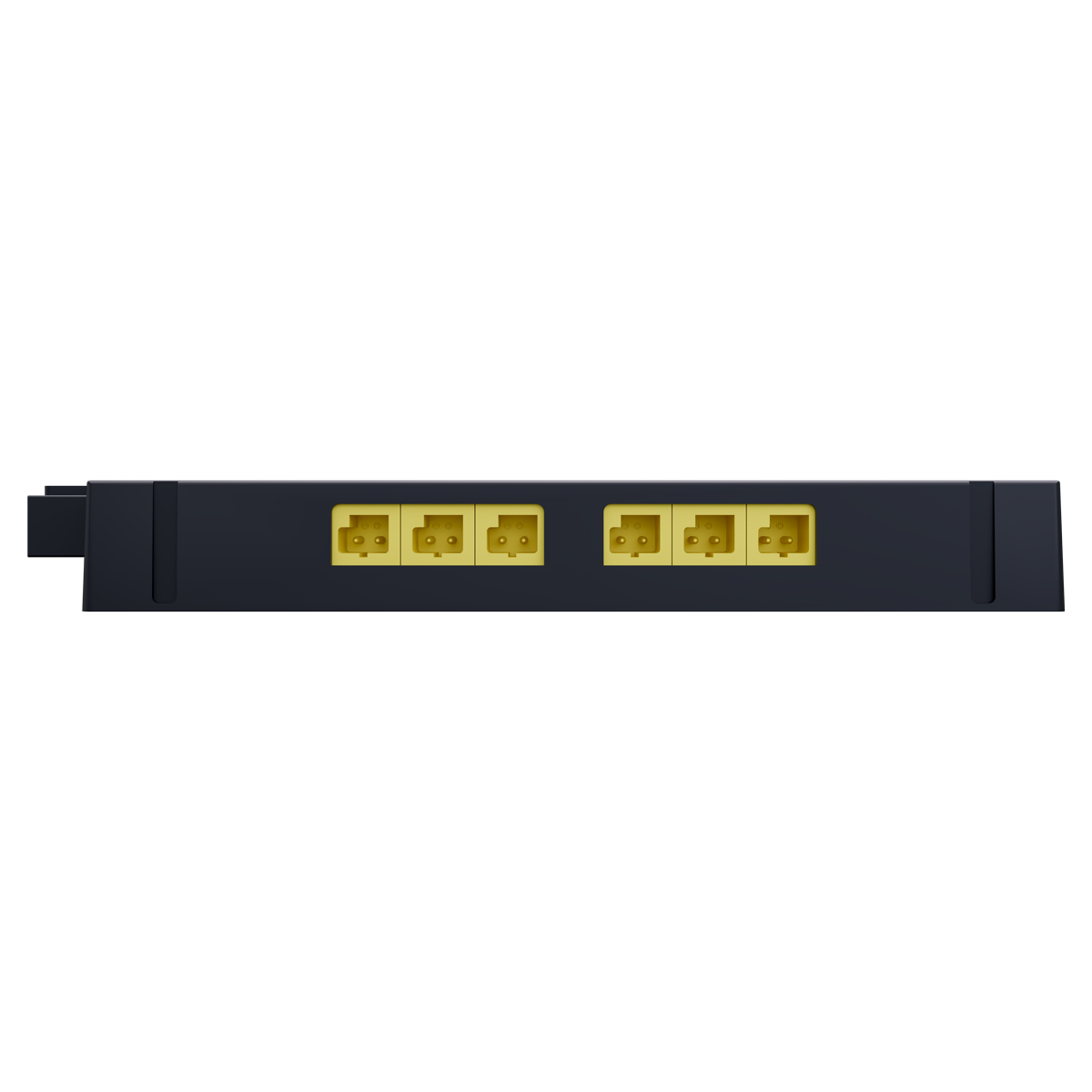

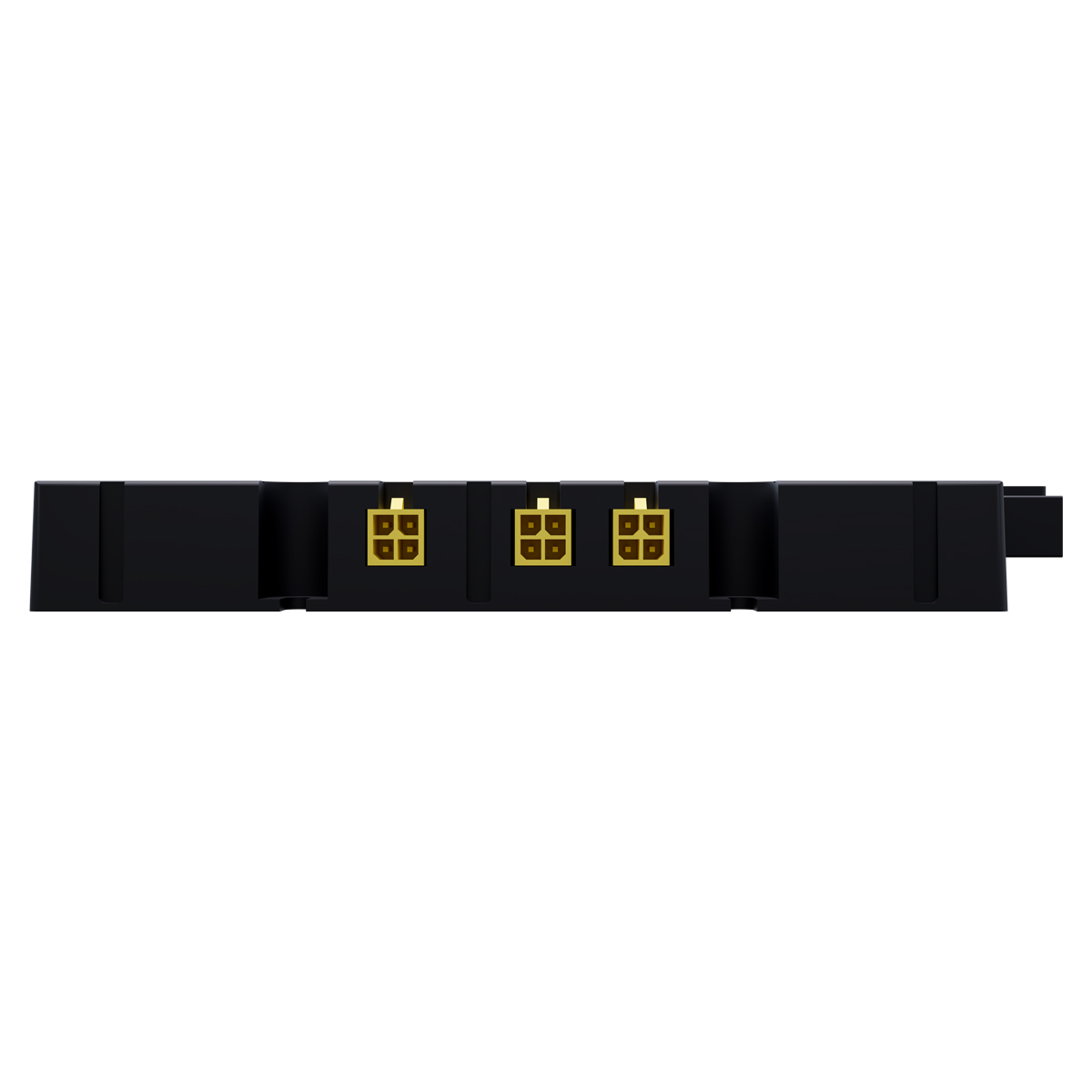

Box To Box 6-Way Distributor With 3-Way Switching Function

Box To Box 6-Way Distributor With 3-Way Switching Function For Use With Loox5 12 V Drivers And Lights.

• Voltage: 12V
• Material: Plastic
• Guarantee: 7 years
• Maximum output: 60W

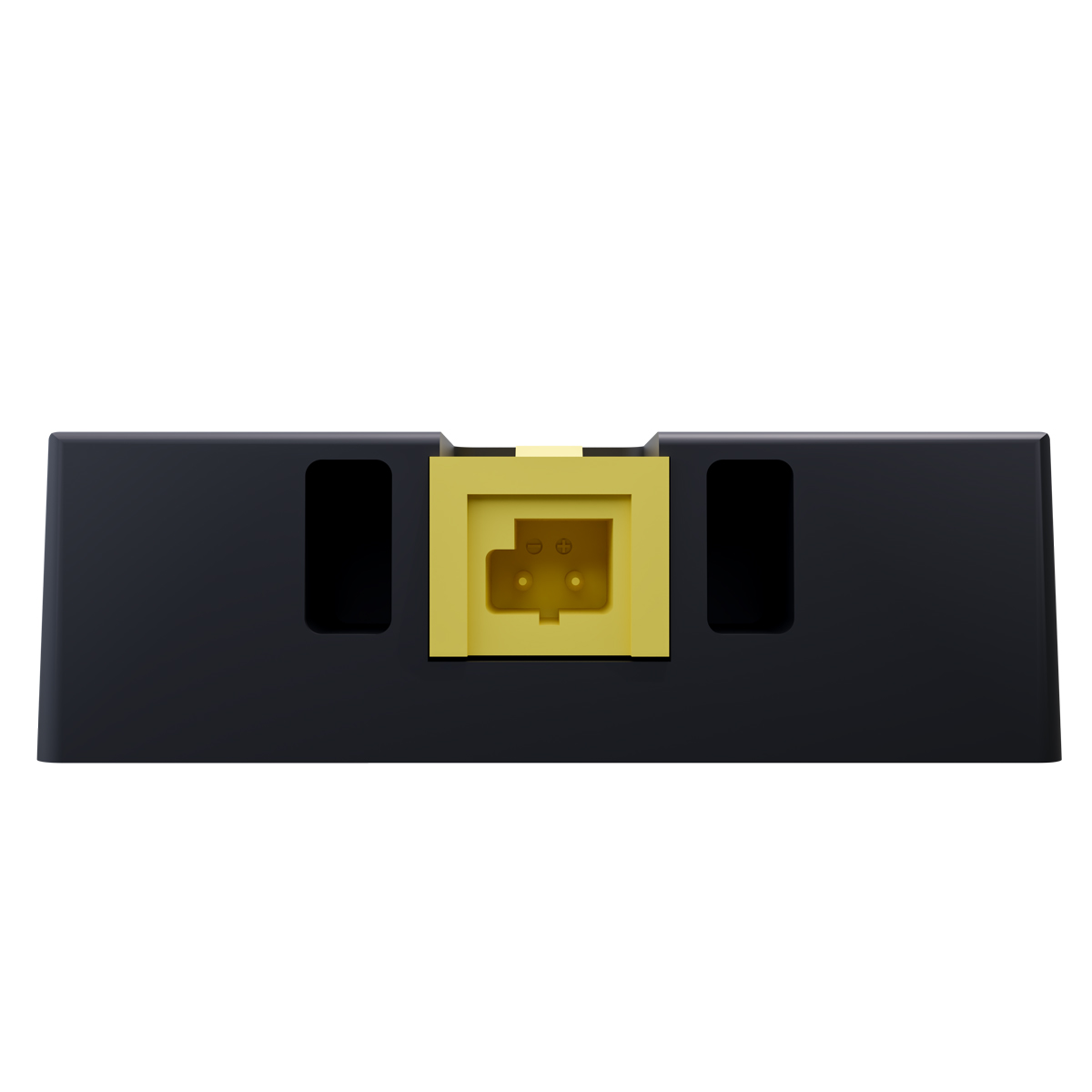

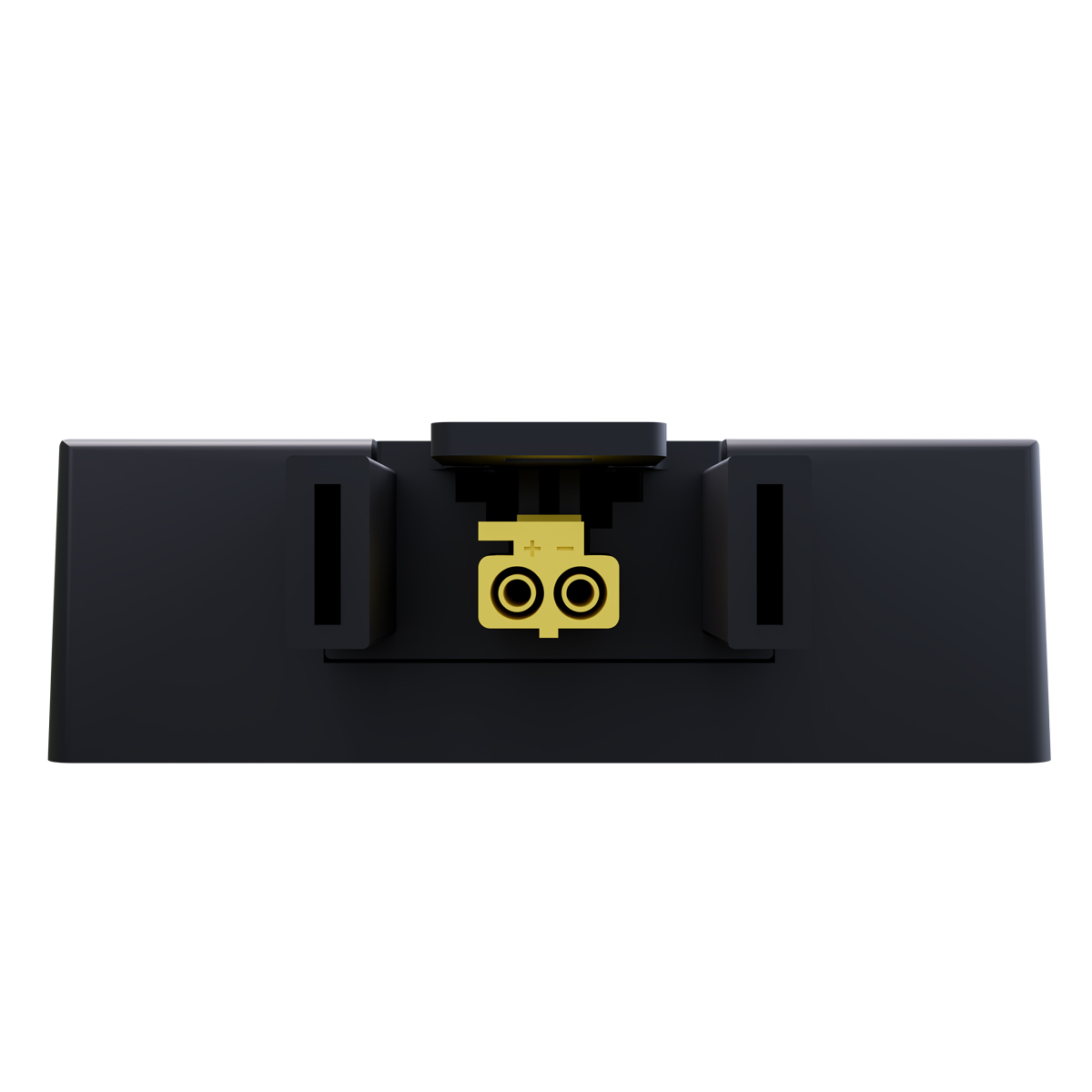

• Plug connection box-to-box
• Installation: For glue or screw fixing
• Multiple distributor types can be connected to the driver
• Permanent soft on/off function, independent of the switch that is used

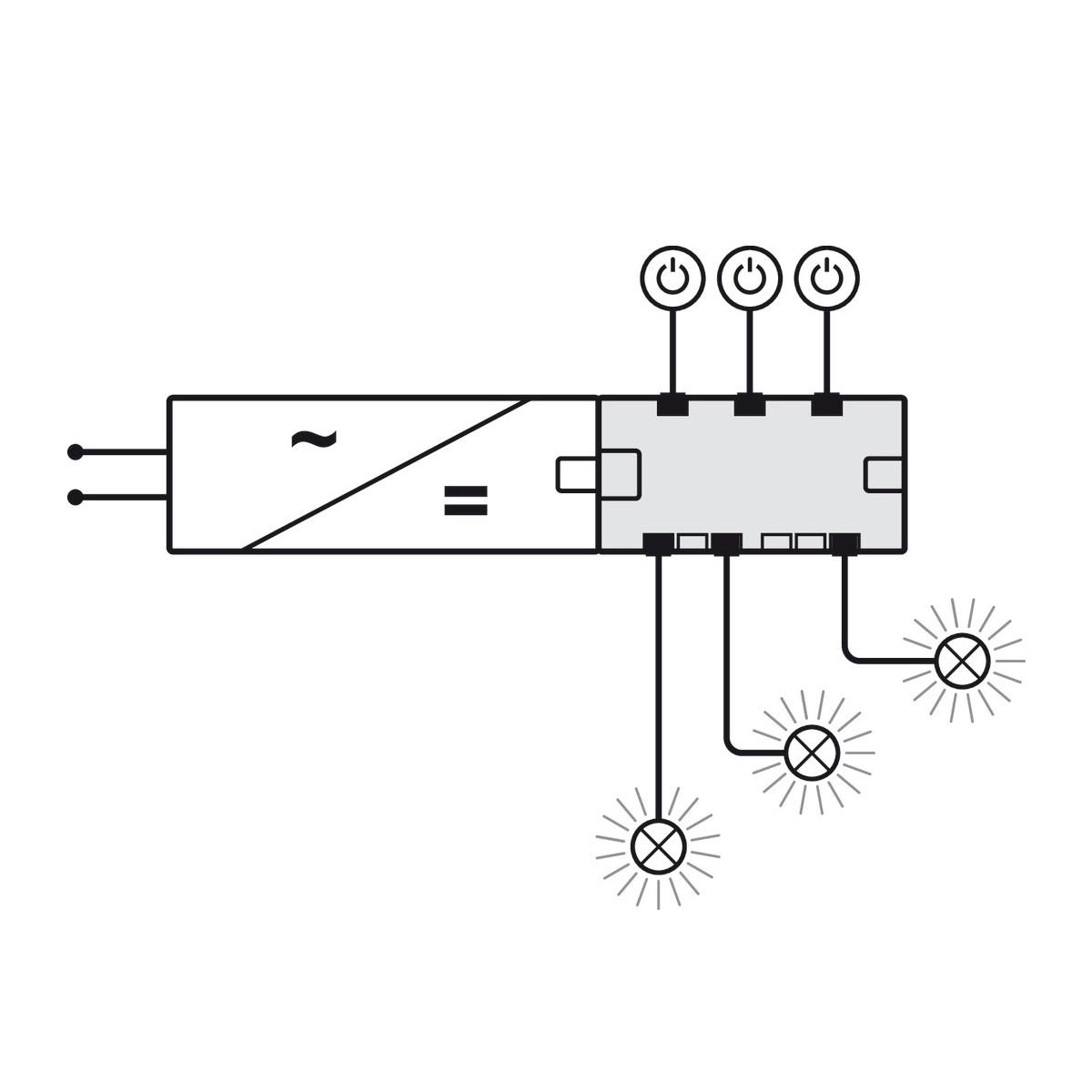

• The connection of the distributors with the driver can be done via a box to box plug-in connection or via an extension lead

Operating modes
3 operating modes:

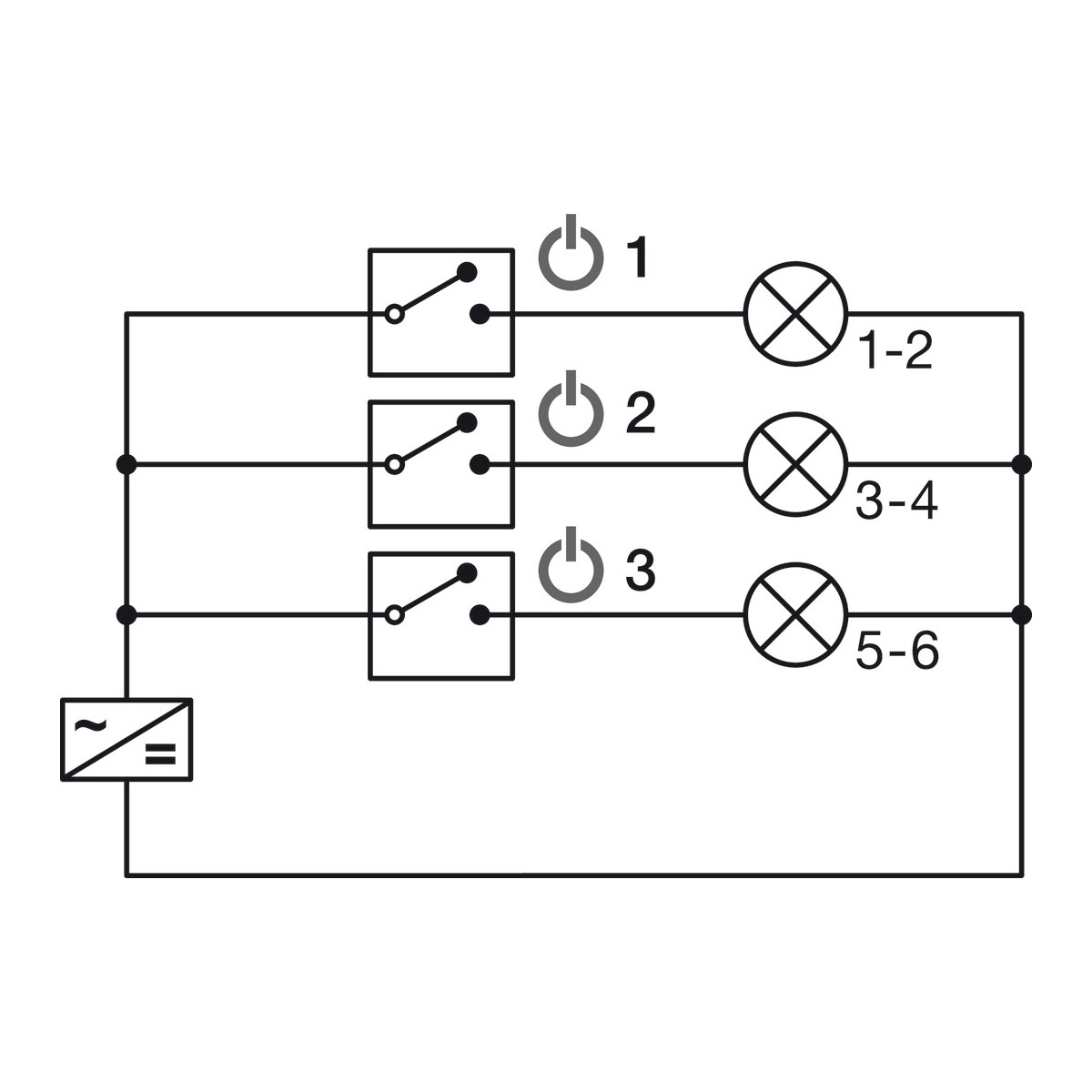

• Group connection (Red feedback LED)
  • Switch 1 = outputs 1 and 2
  • Switch 2 = outputs 3 and 4
  • Switch 3 = outputs 5 and 6

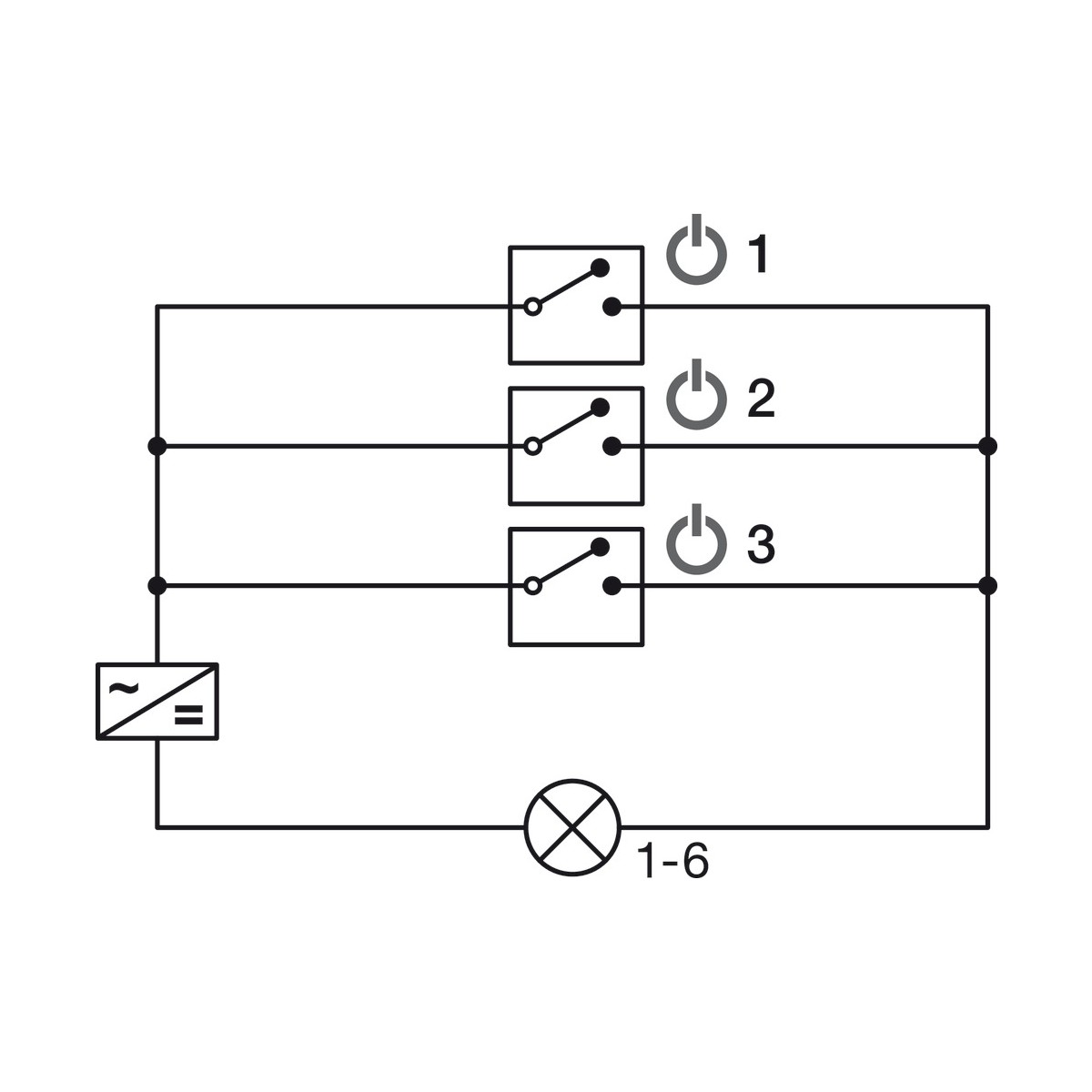

• OR circuit (Blue feedback LED)
  • Switching on using switch 1, 2, or 3.
  • To switch off, all switches that are switched on are operated again
    • No dimmer may be used in the OR circuit operation mode!

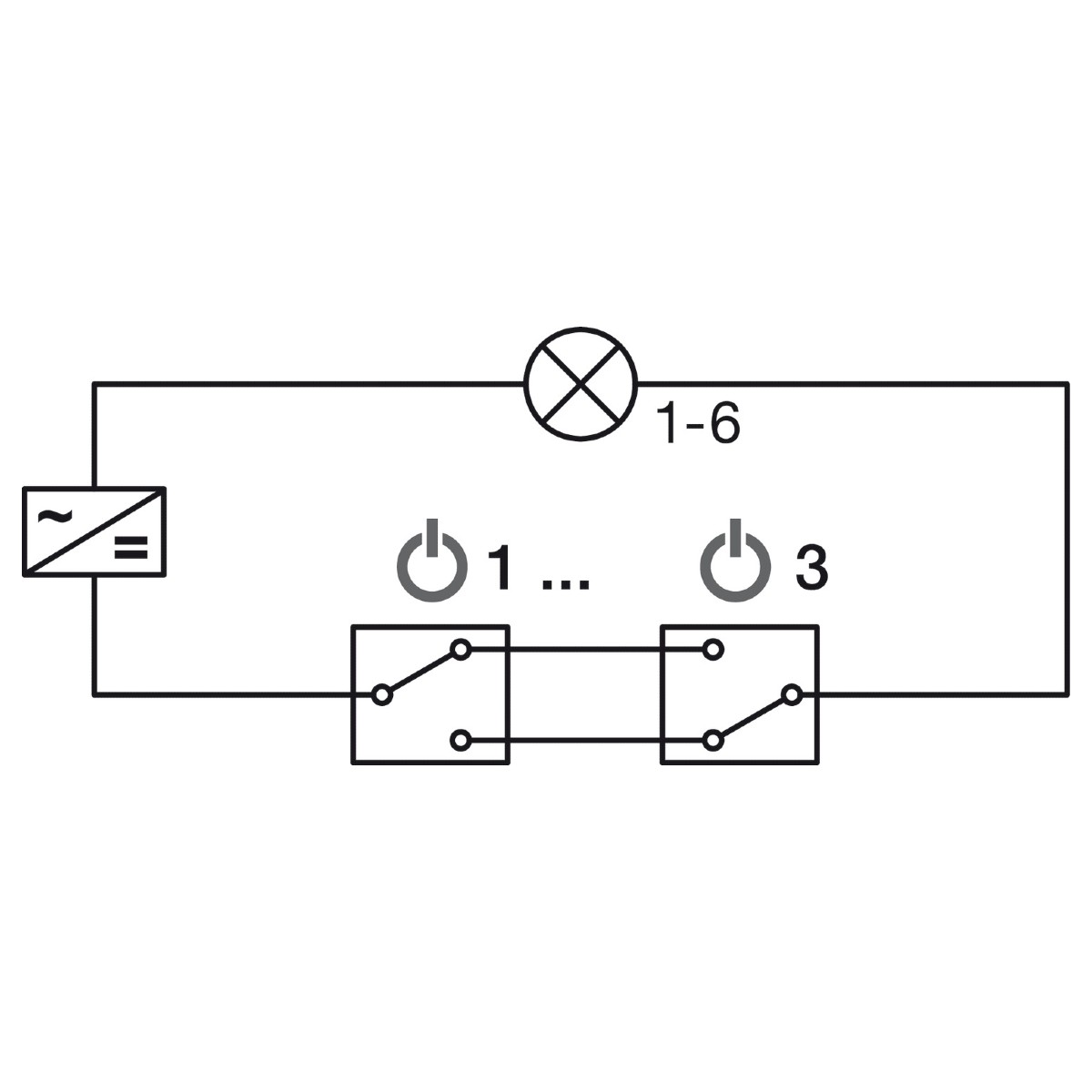

• Digital cross-circuit (Green feedback LED)
  • Operate one switch (1, 2, or 3) to switch all outputs on/off

Dimensions

• Length: 120mm
• Width: 50mm
• Height: 16mm
