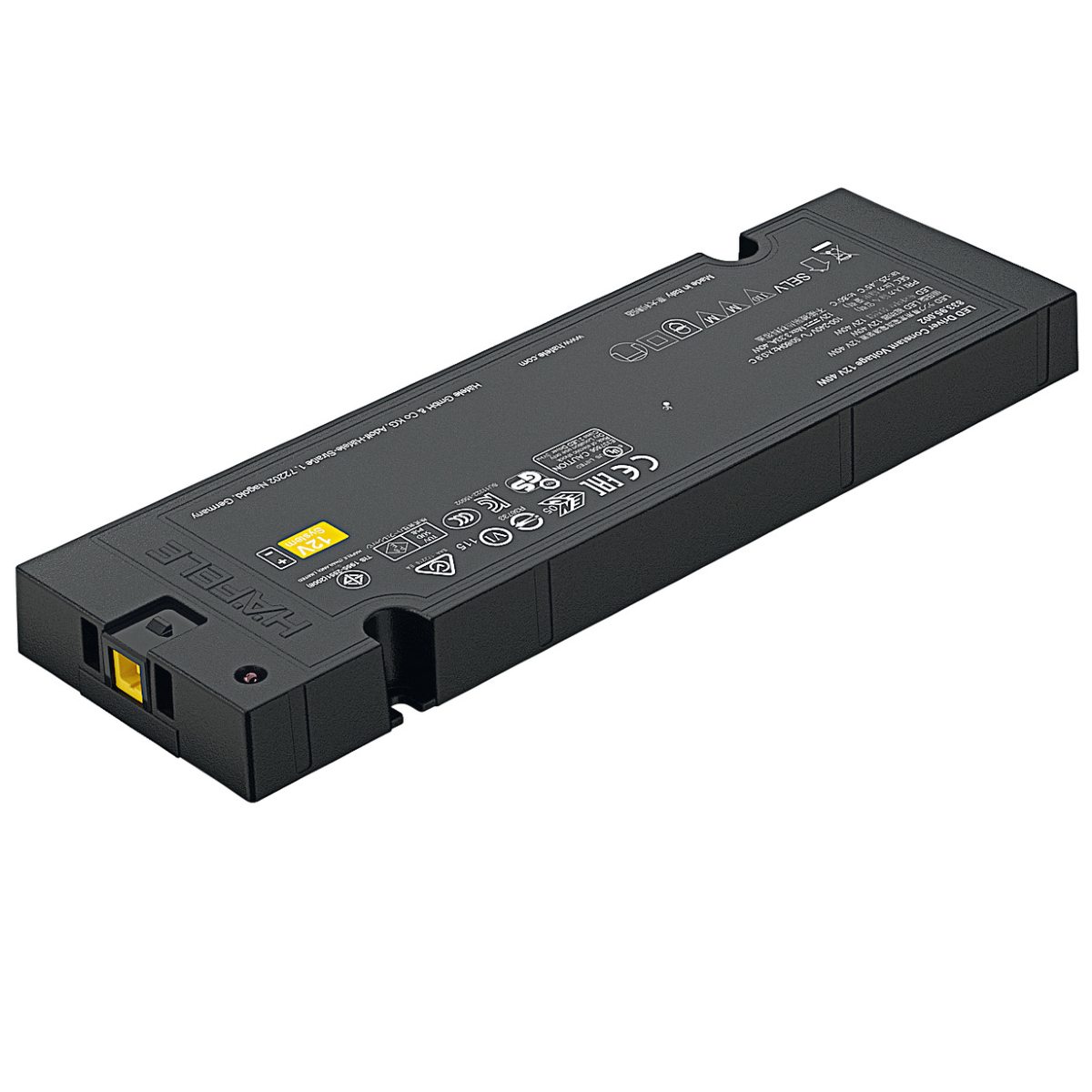

12V Constant Voltage Driver IP20

5208-001
Price from: £37.12inc VAT
+

12v driver for Loox5 led lights for connecting loox5 lights and accessories.

  • Colour: black
  • Material: plastic
  • Guarantee: 7 years
  • Lifetime: >50.000 h
  • Output voltage: DC 12V
  • Output wattage: 40W or 60W
  • Version: with overload protection
  • Input voltage: 100–240V~; 50–60Hz
  • Ambient temperature: –25 to +45°C

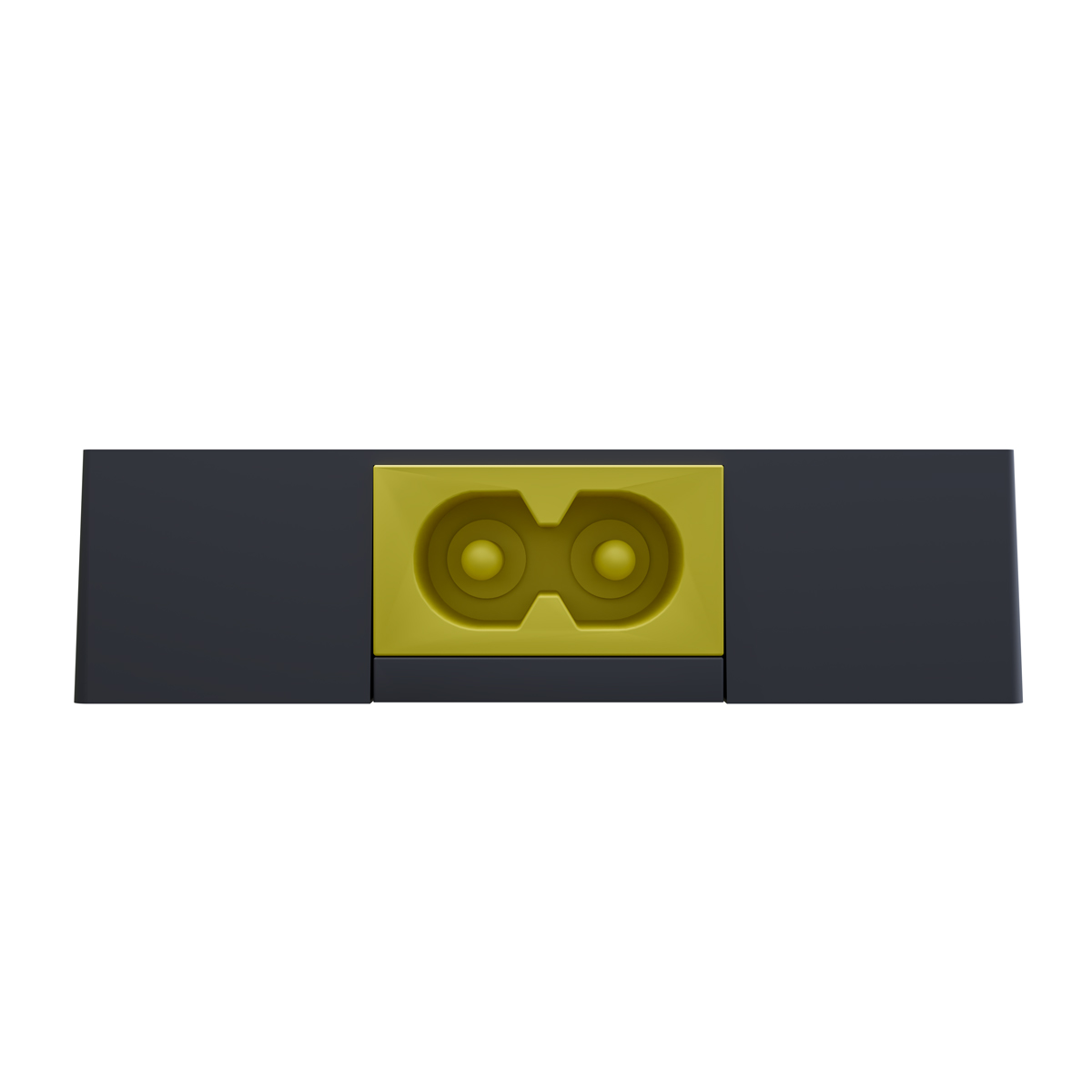

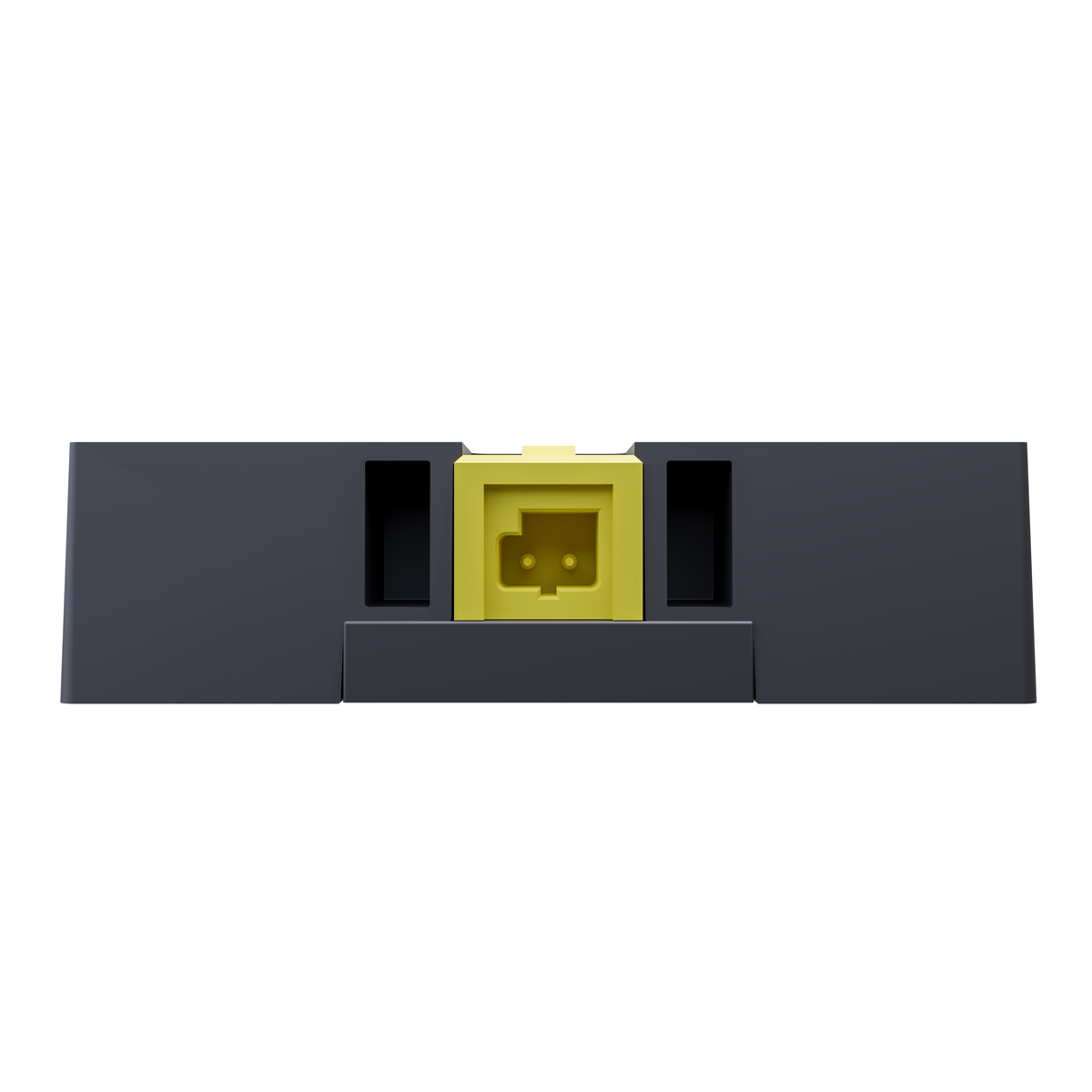

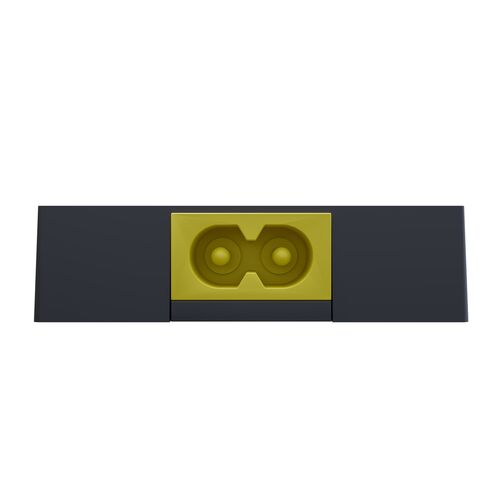

  • Number of connections: 1 x socket Loox5 12V
  • To be used with lights to constant voltage 12V

Dimensions:

  • 40W
    • Width: 60mm
    • Height: 16mm
    • Length: 191mm
  • 60W
    • Length: 230mm
    • Width: 70mm
    • Height: 16mm

Supplied with mounting accessories

Please note that:

  • There is a recommended 10mm clearance to provide for sufficient air supply and circulation at the mounting location of the driver.
  • The maximum lead length for the Loox5 driver to the light is 10 m. Long cable lengths in combination with large loads (strip light lengths) can result in voltage losses in the cable. These lead to a visible loss of brightness in the lights. The illuminance listed with the lights had been determined with the rated output voltage of the driver (12V or 24V)
  • Please be aware the main lead, distributor and other accessories need to be ordered separately - please check the "related products" section.
Type:
40W
