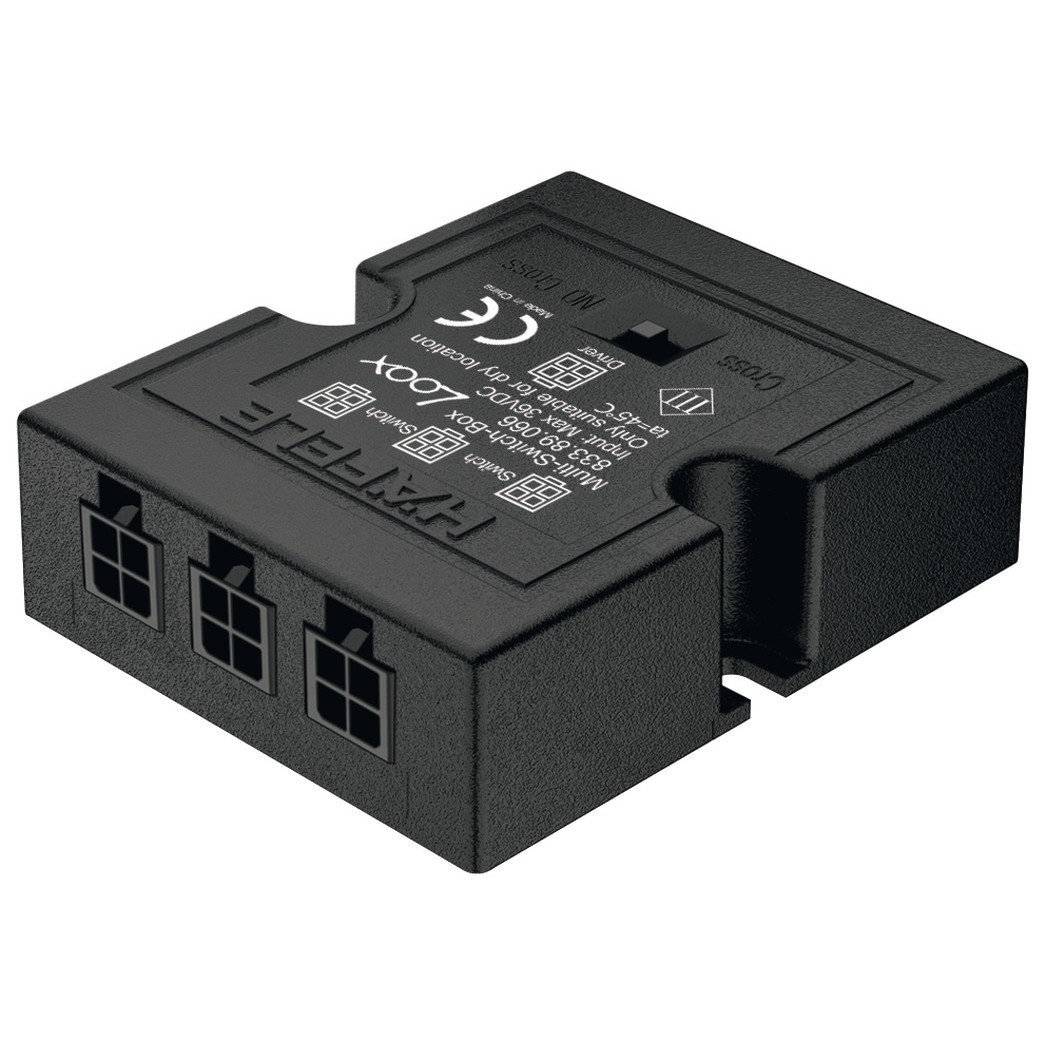

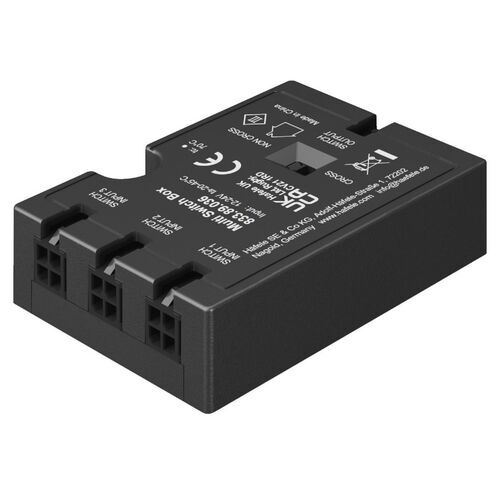

Loox5 LED Multi Switch Box, For Operating 1 Driver With Up To 3 Switches

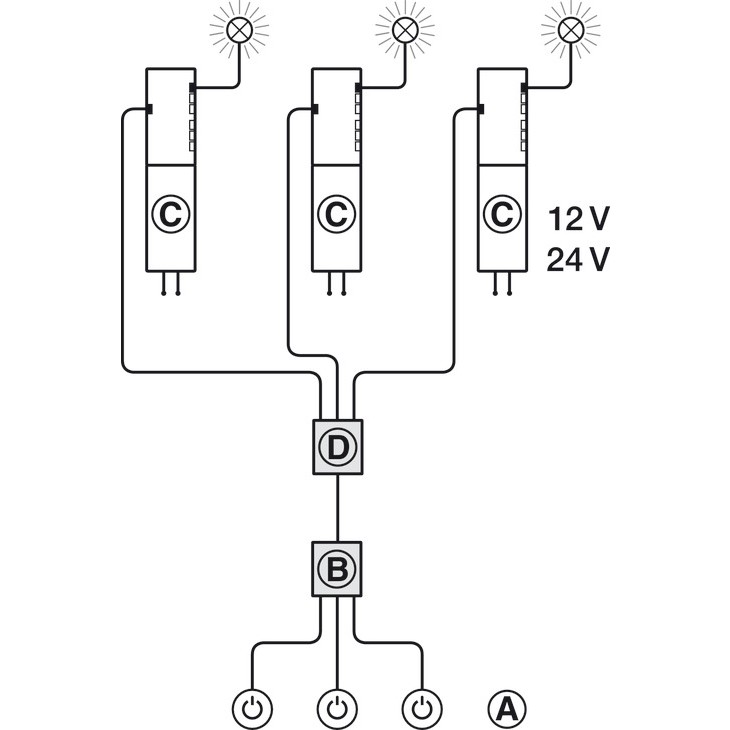

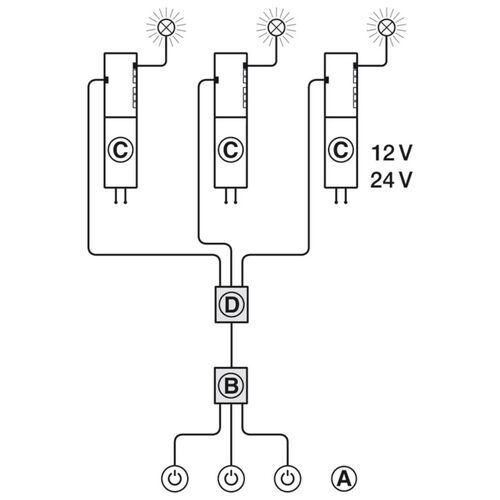

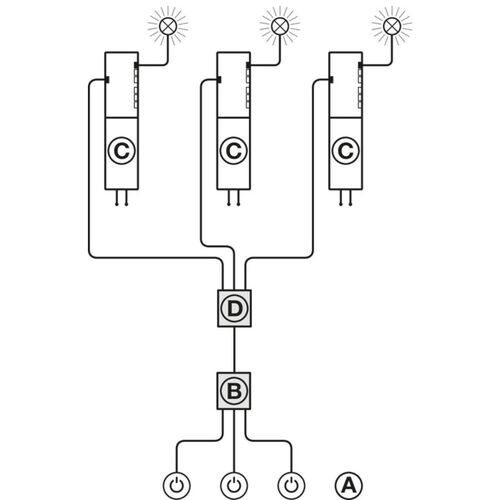

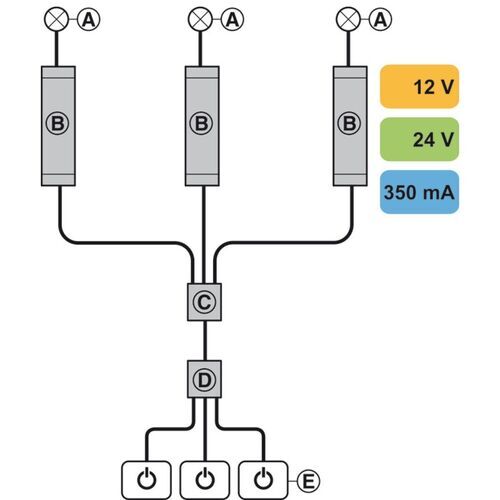

LED Multi Switch Box, For Operating 1 Driver With Up To 3 Switches. Allows The LED Driver Or Distributor With Switching Function To Be Switched On And Off From Different Positions.

• Operation mode
  • With cross circuit
  • Deactivated cross-circuit
• IP20 Degree of protection
• Guarantee: 7 years
• Material: Plastic
• Colour/Finish: Black
• Dimensions:
  • Length: 55mm
  • Width: 45mm
  • Height: 16mm
• Supplied with a 1-meter lead and fixings

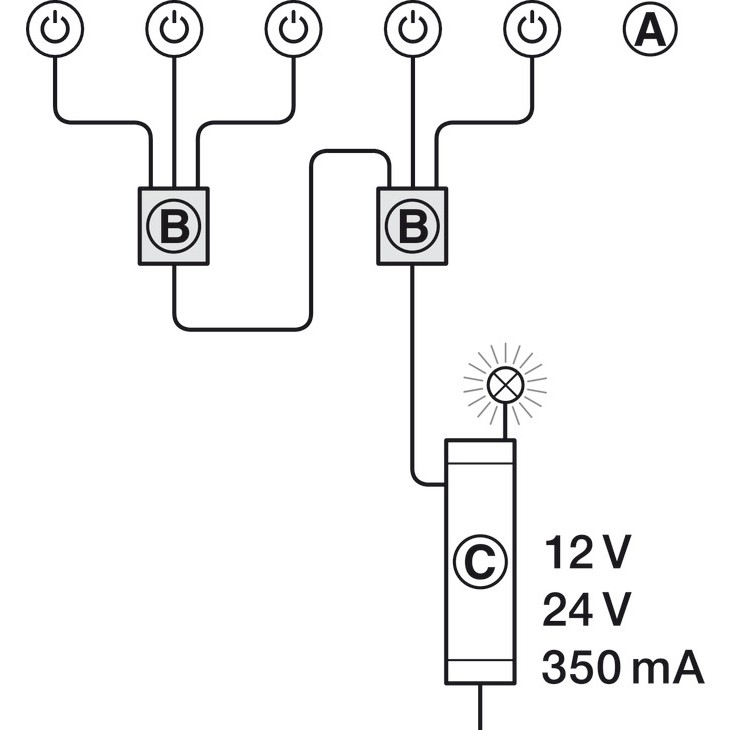

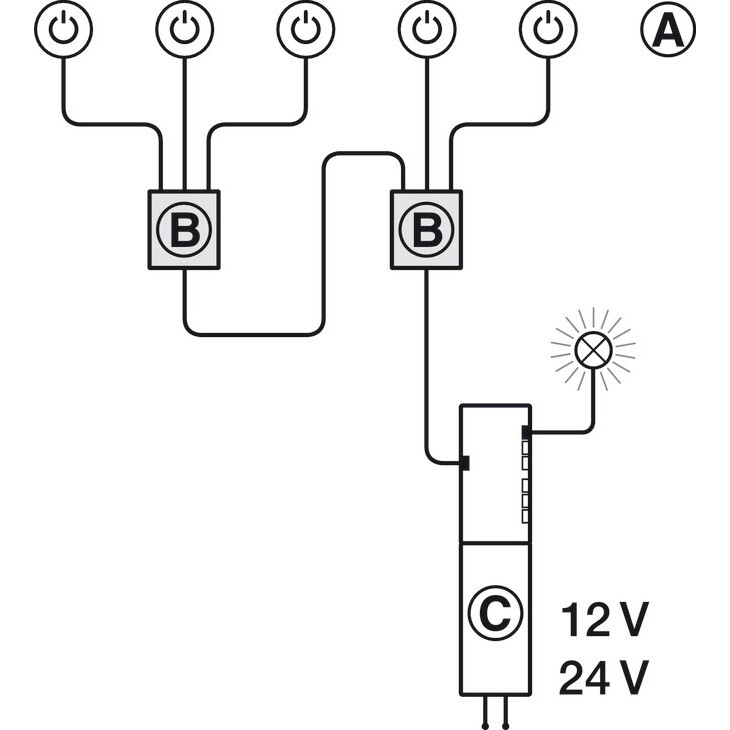

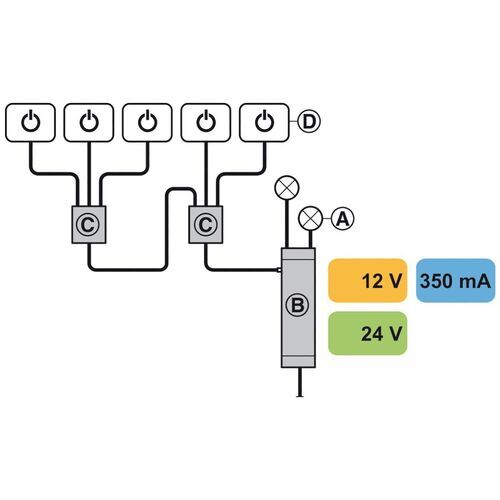

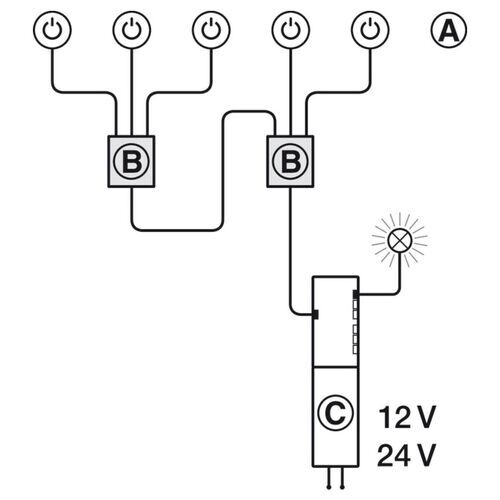

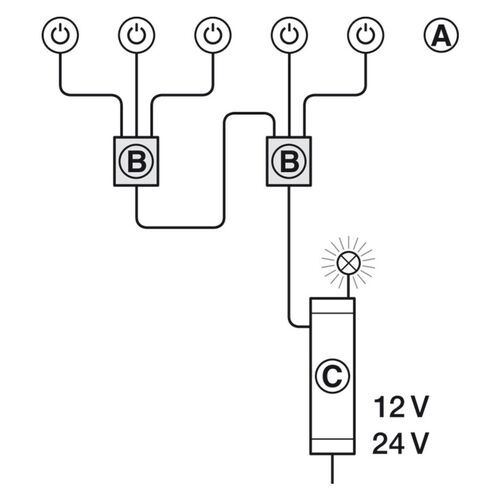

• 2 multi switch boxes can be paired and used with 5 switches
• Cannot be used in combination with dimmer 5232-001 or 5703-001

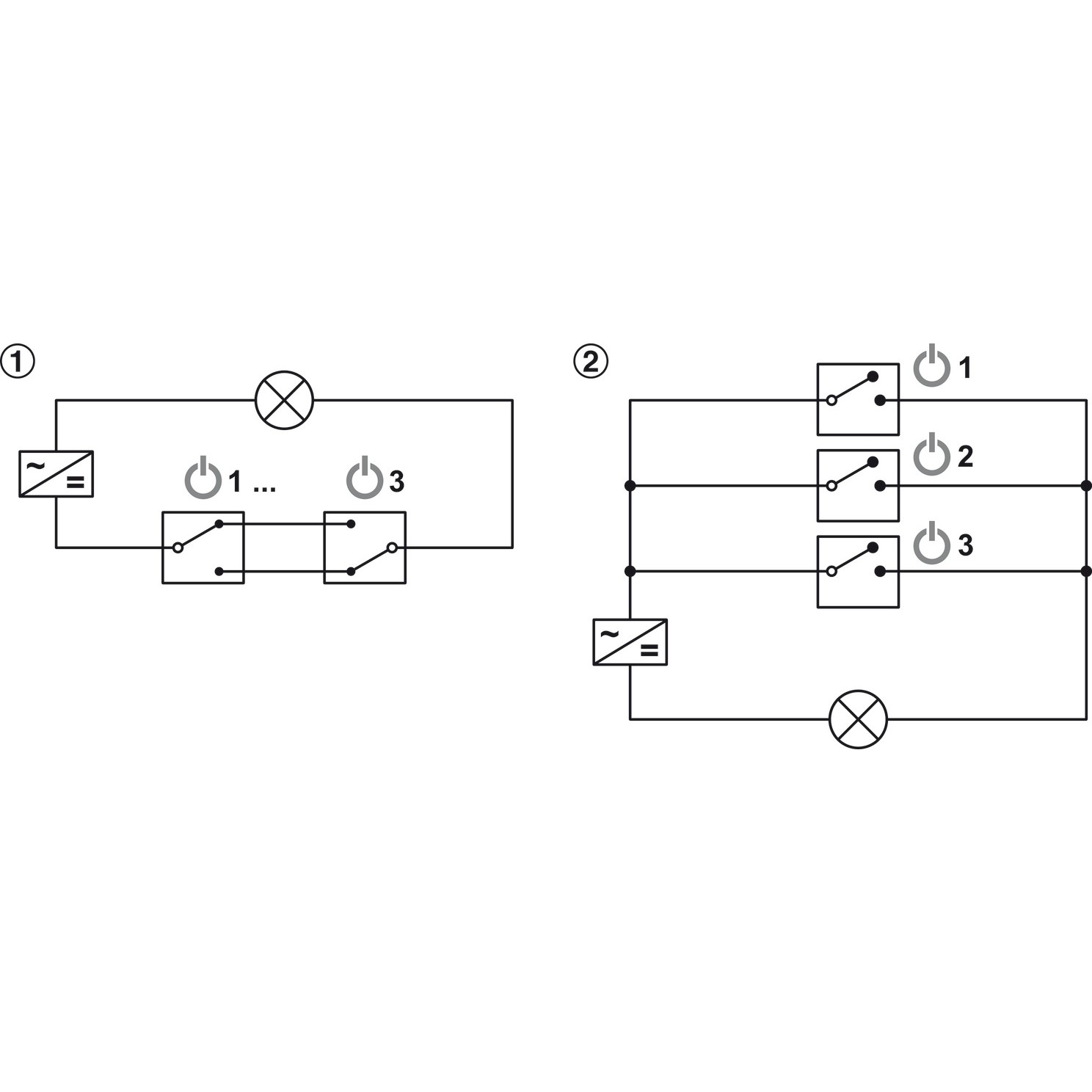

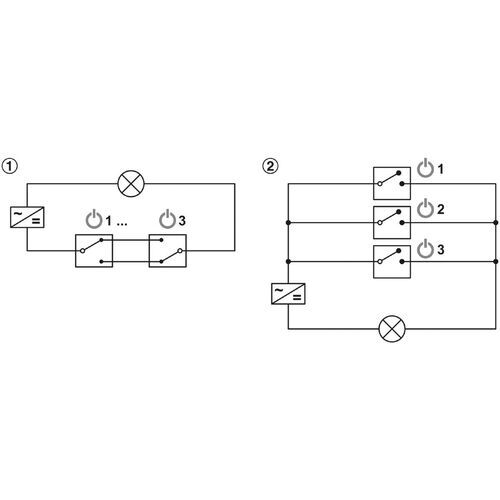

2 operating modes can be selected using an integrated toggle switch:

• Cross circuit: On/off switching at different switches
• OR Circuit: Switching on and switch 1, 2, or 3. For switching off, all switches that there switched on have to be actuated again
