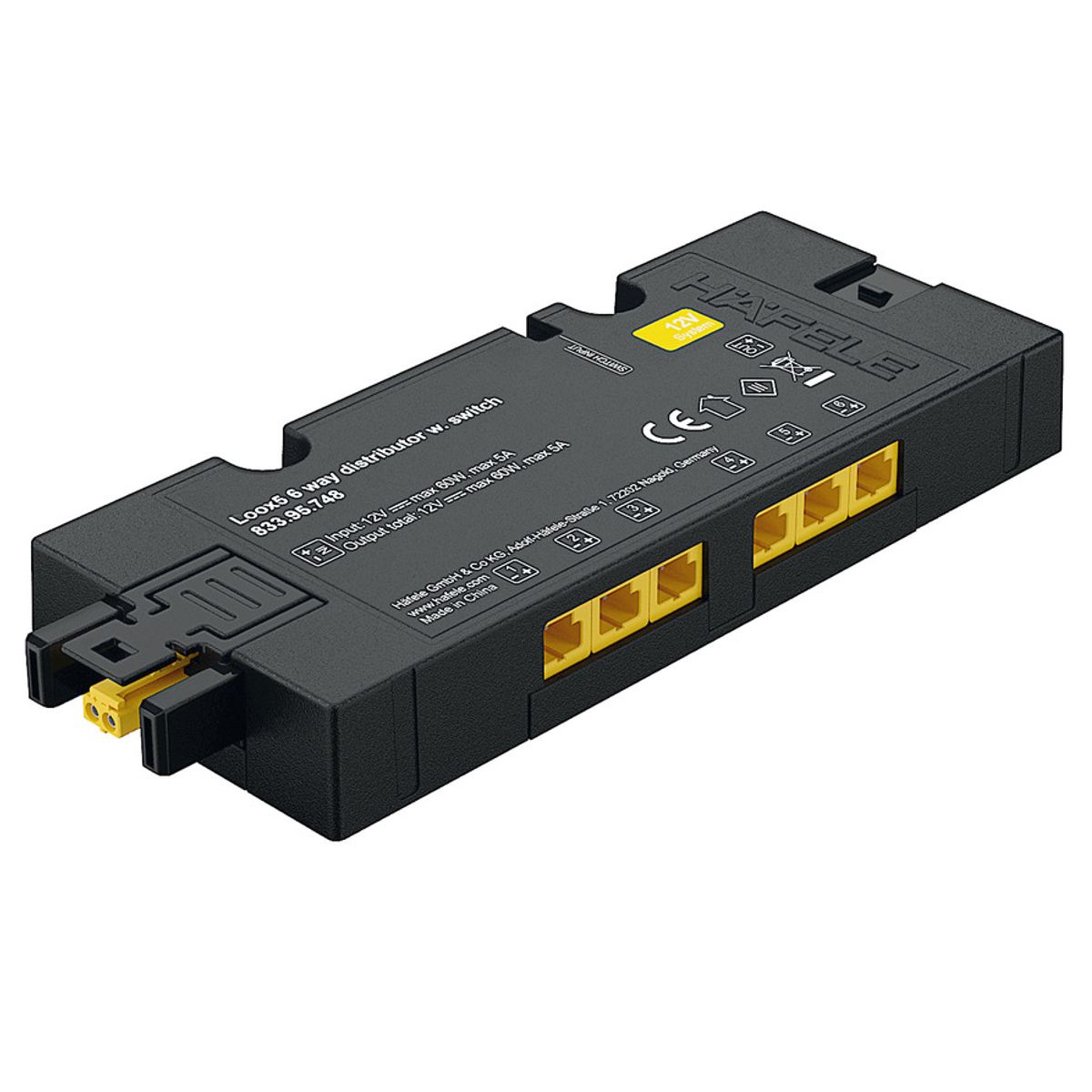

Box To Box 6-Way Distributor

5214-001
Price from: £8.56inc VAT
+

Box to box 6-way distributor for use with 12V Loox5 lights and drivers.

  • Voltage: 12V
  • Material: plastic
  • Guarantee: 7 years
  • Maximum output: 60W
  • Plug connection box-to-box
  • With or without switching functions available
  • Multiple distributor types can be connected to the driver

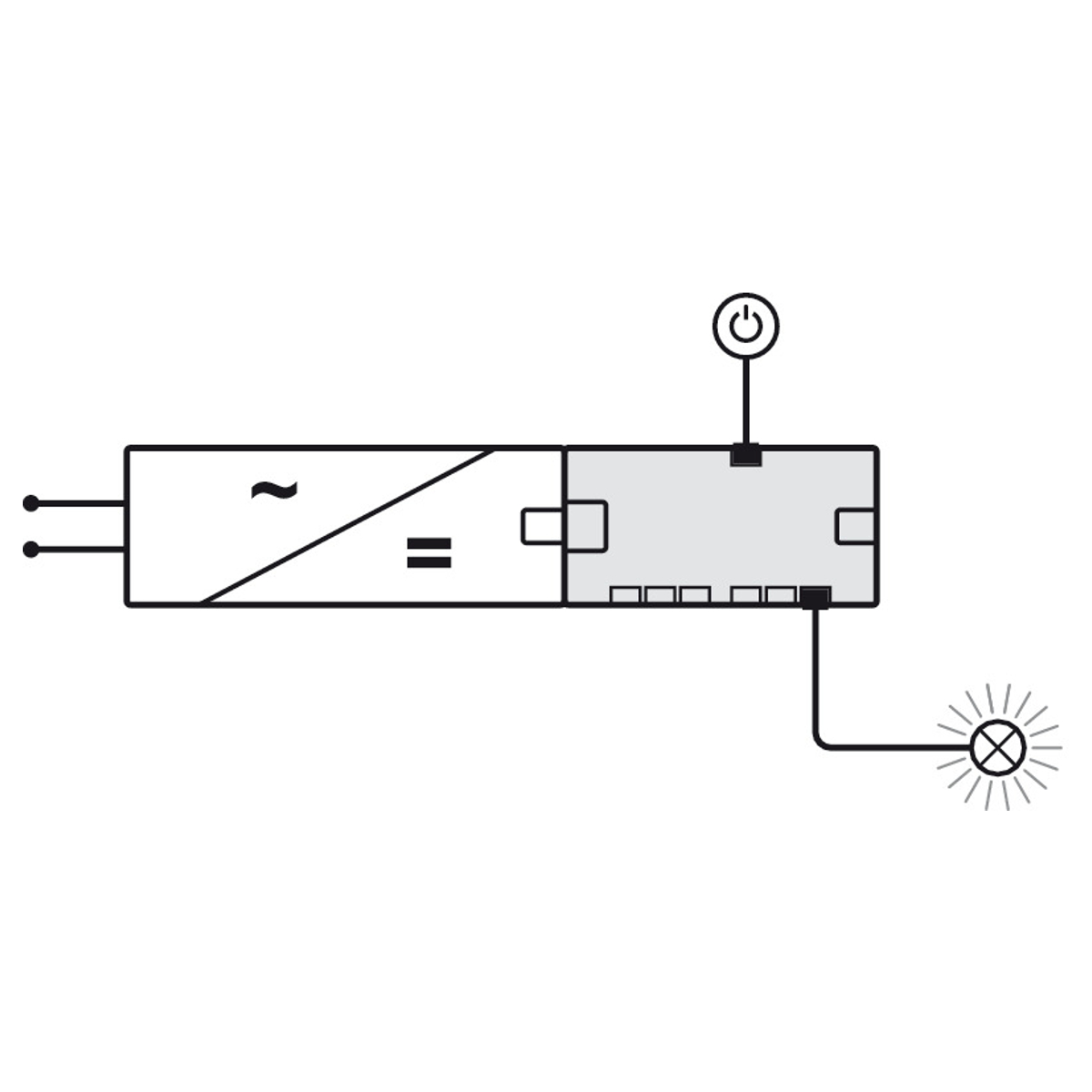

  • The connection of the distributors with the driver can be done via a box to box plug-in connection or via an extension lead

Connections amount:

  • With switching function

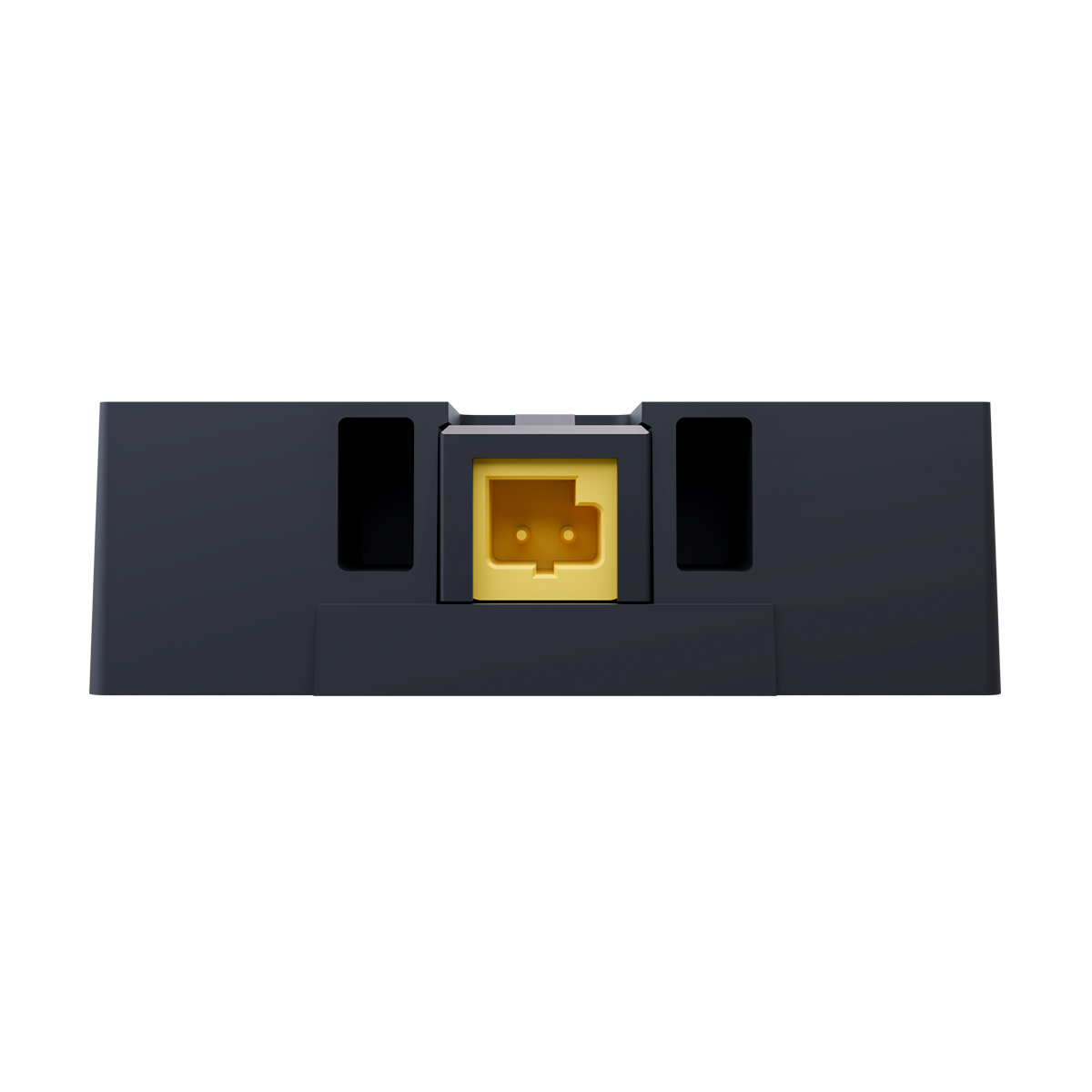

    • 1x Input port with a box-to-box plug

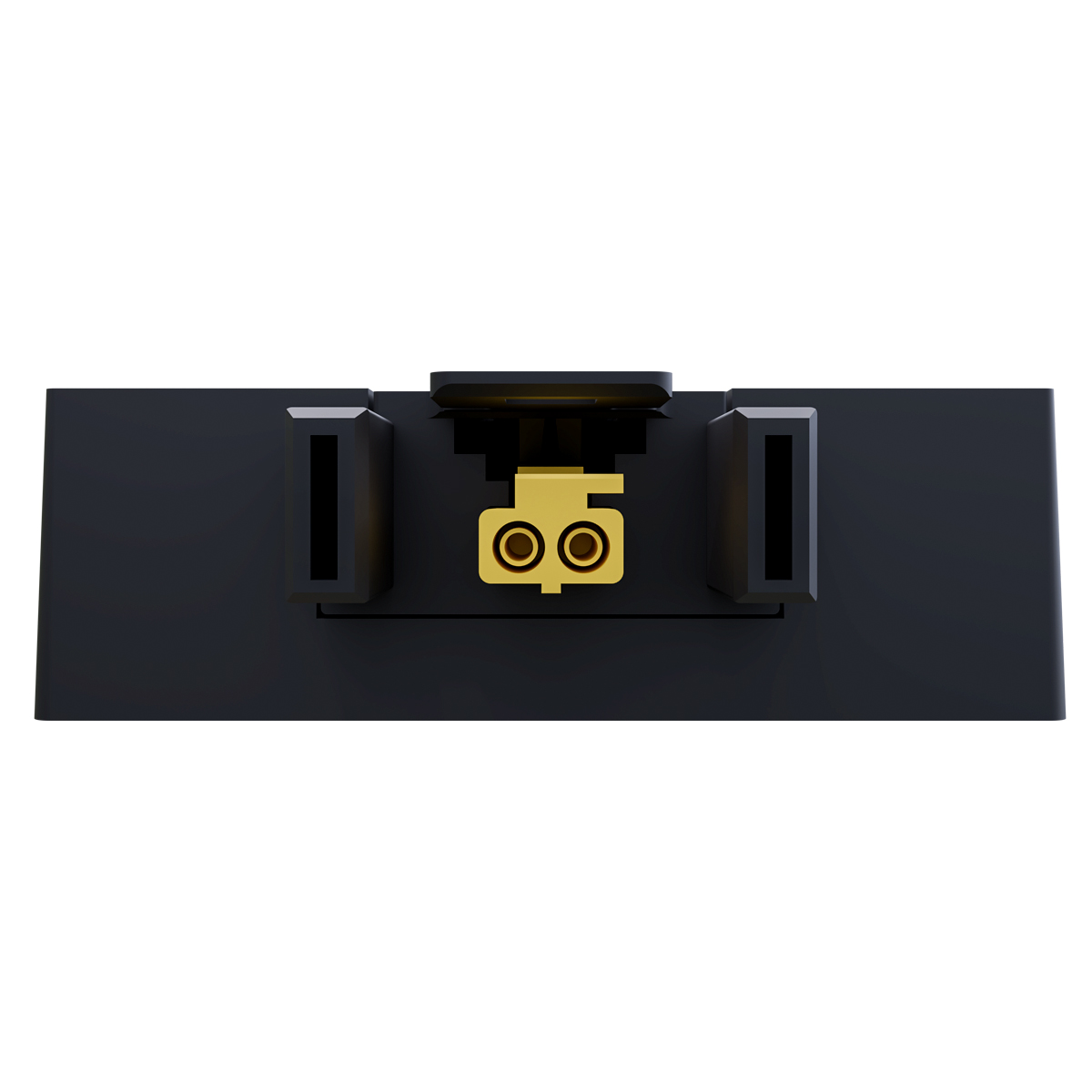

    • 1x Output port with a box-to-box socket

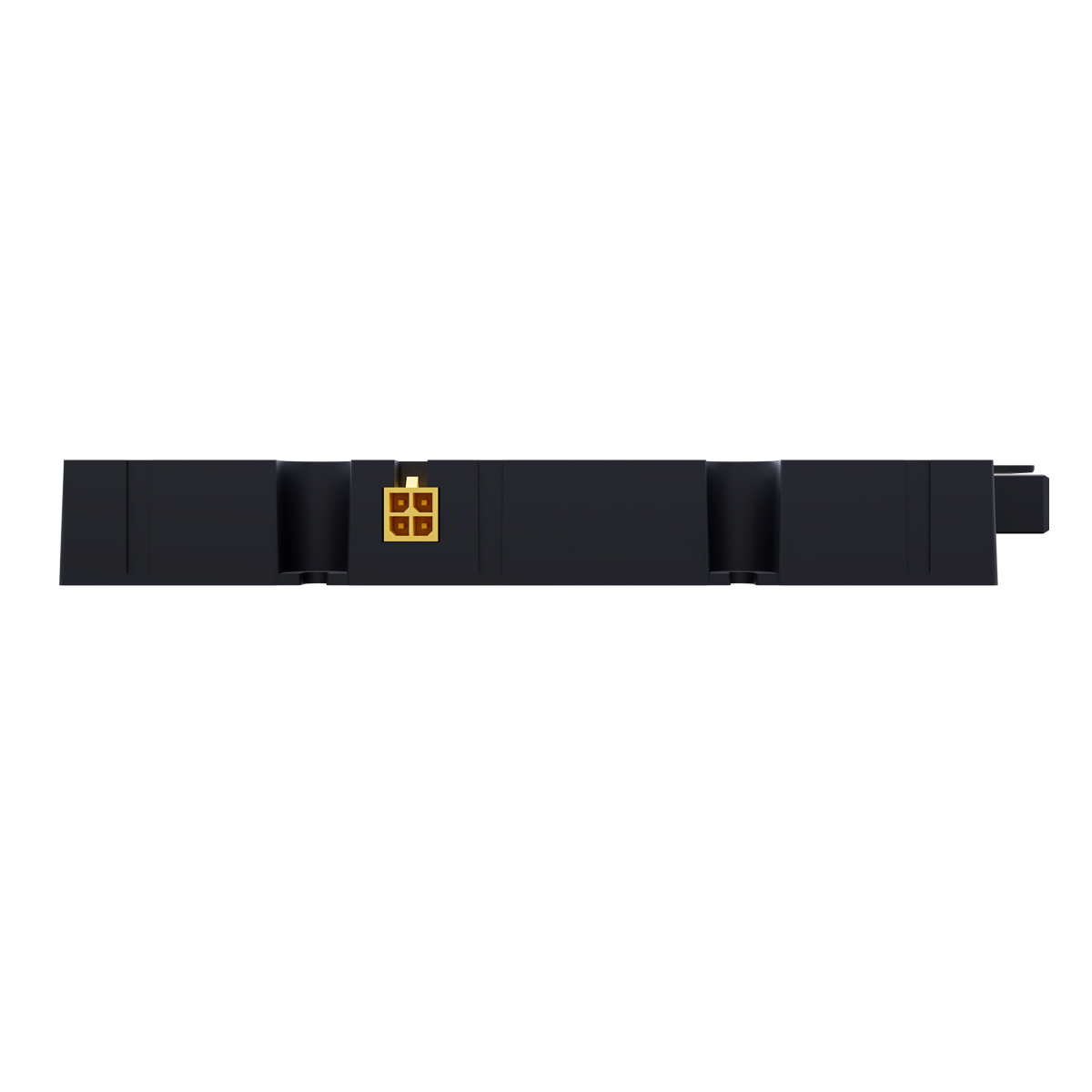

    • 1x Input port switch socket

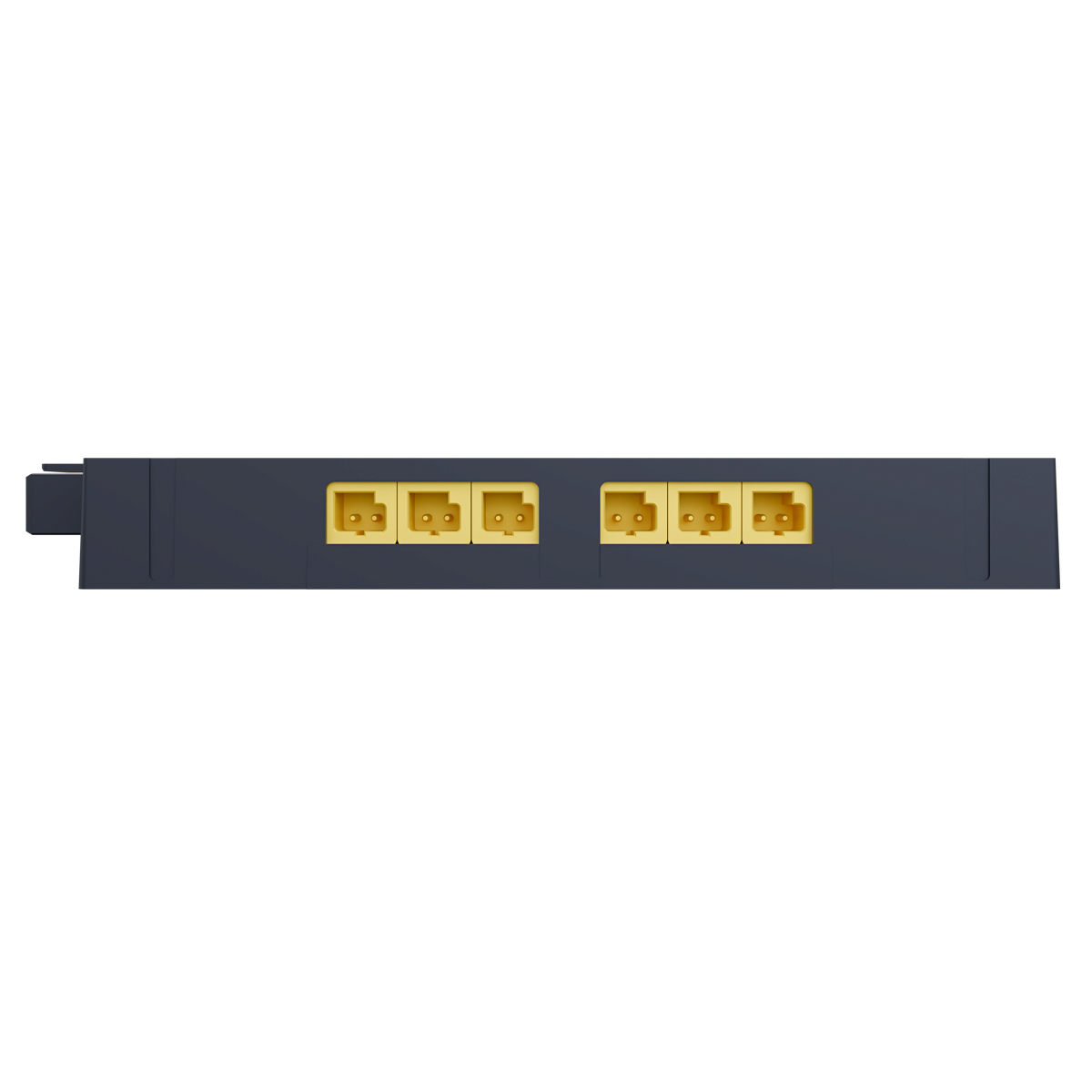

    • 6x Output ports consumer sockets
  • Without switching function
    • 1x Input port with a box-to-box plug
    • 1x Output port with a box-to-box socket
    • 6x Output ports consumer sockets

Dimensions:

  • With switching function
    • Width: 50mm
    • Height: 16mm
    • Length: 120mm
  • Without switching function
    • Width: 50mm
    • Height: 16mm
    • Length: 130mm
Type:
With Switching Function
