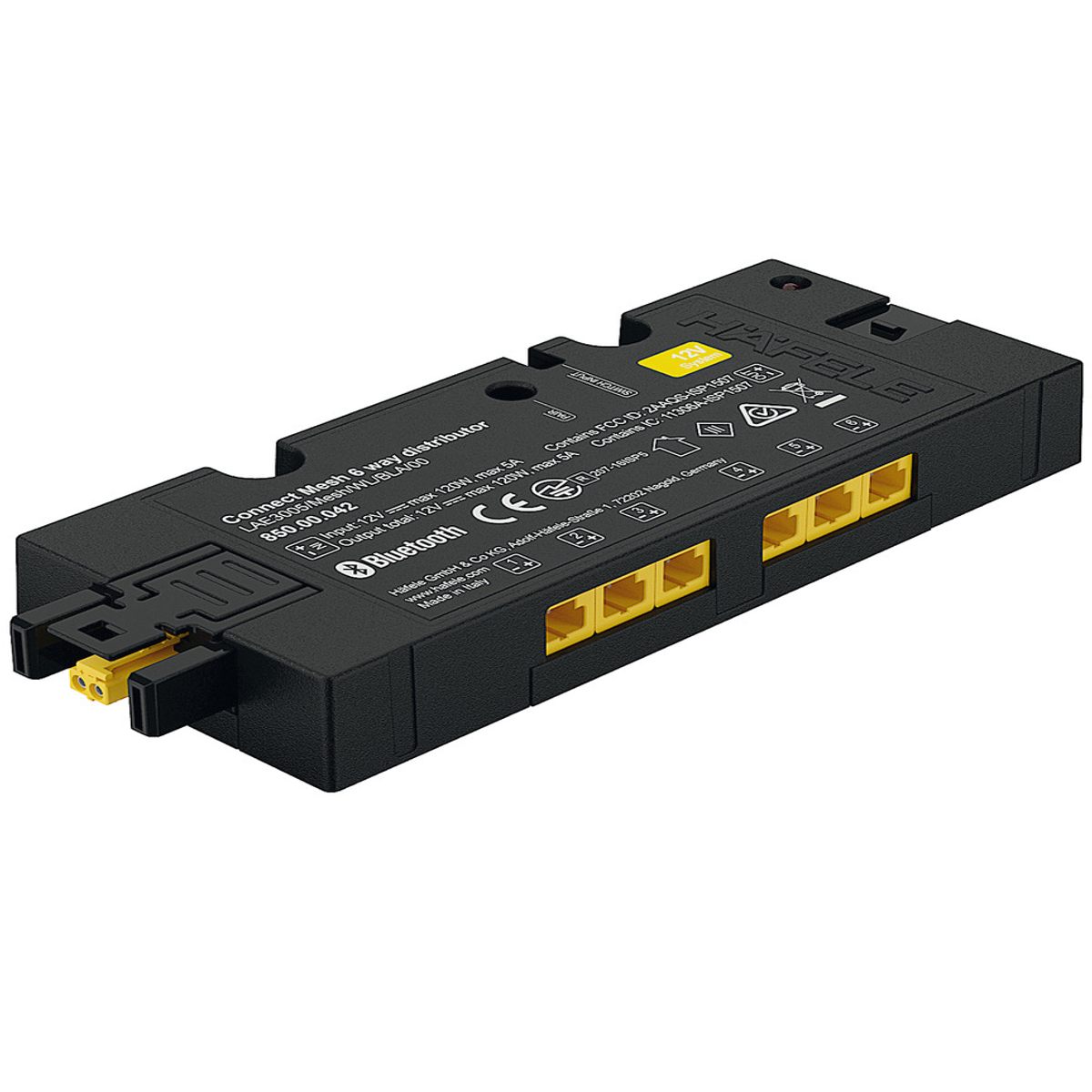

Connect Mesh Box To Box 6-Way Distributor (Bluetooth)

Price: £93.25inc VAT

Box To Box 6-Way Distributor With Programmable Switch Input For Use With 12V Loox5 Lights And Drivers.

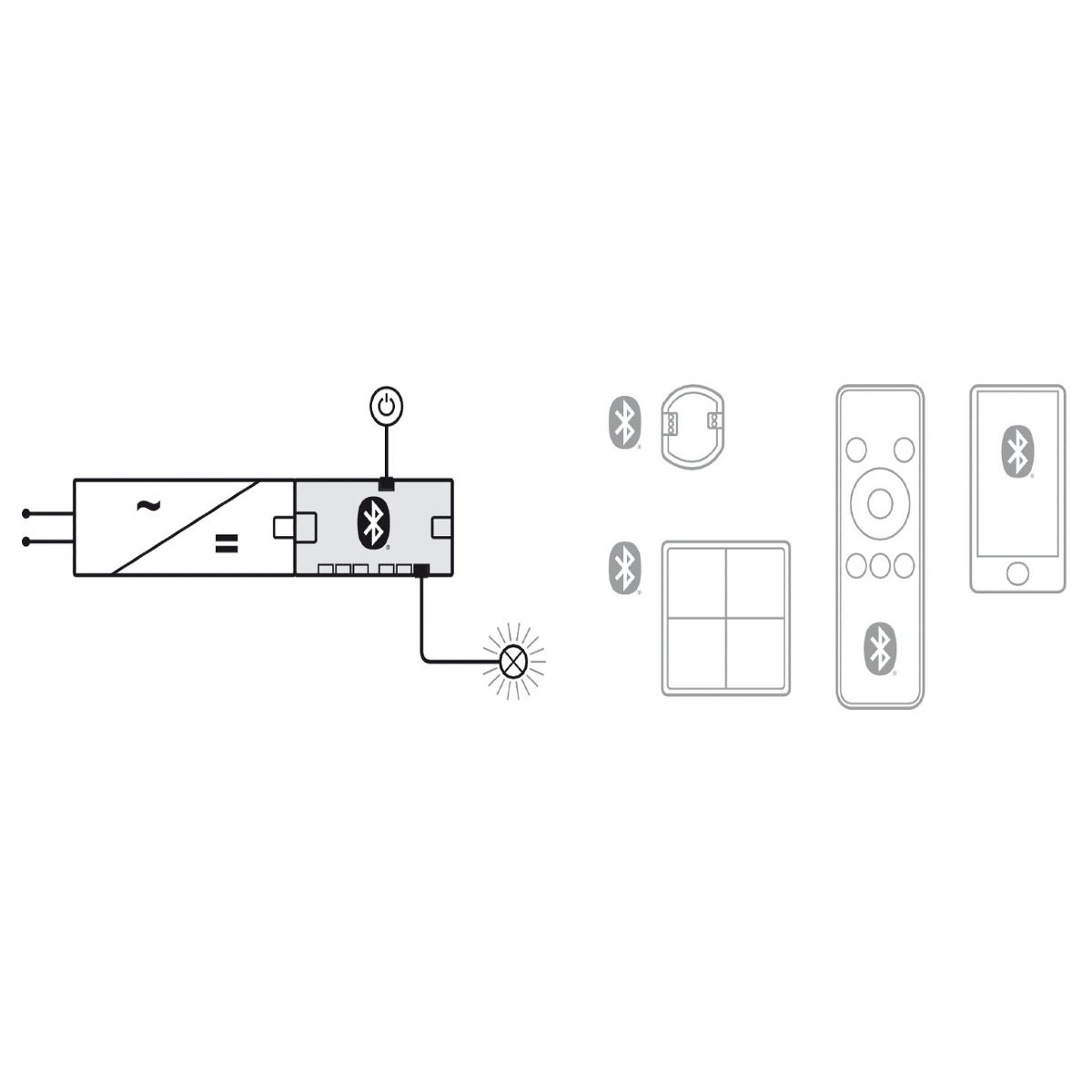

For on/off switching and dimming (0-100%) of monochrome lights; or, in conjunction with adapters, for the operation of multi-white lights, RGB lights, and electrically operated fittings.

  • Plug connection box-to-box
  • Multiple distributors can be connected to the driver
  • Each output port can be controlled individually
  • The connection of the distributors with the driver can be done via a box-to-box plug-in connection or via an extension lead
  • With or without switching functions available
  • Voltage: 12V
  • Maximum output: 60W
  • Guarantee: 7 years
  • Material: plastic

Connections amount:

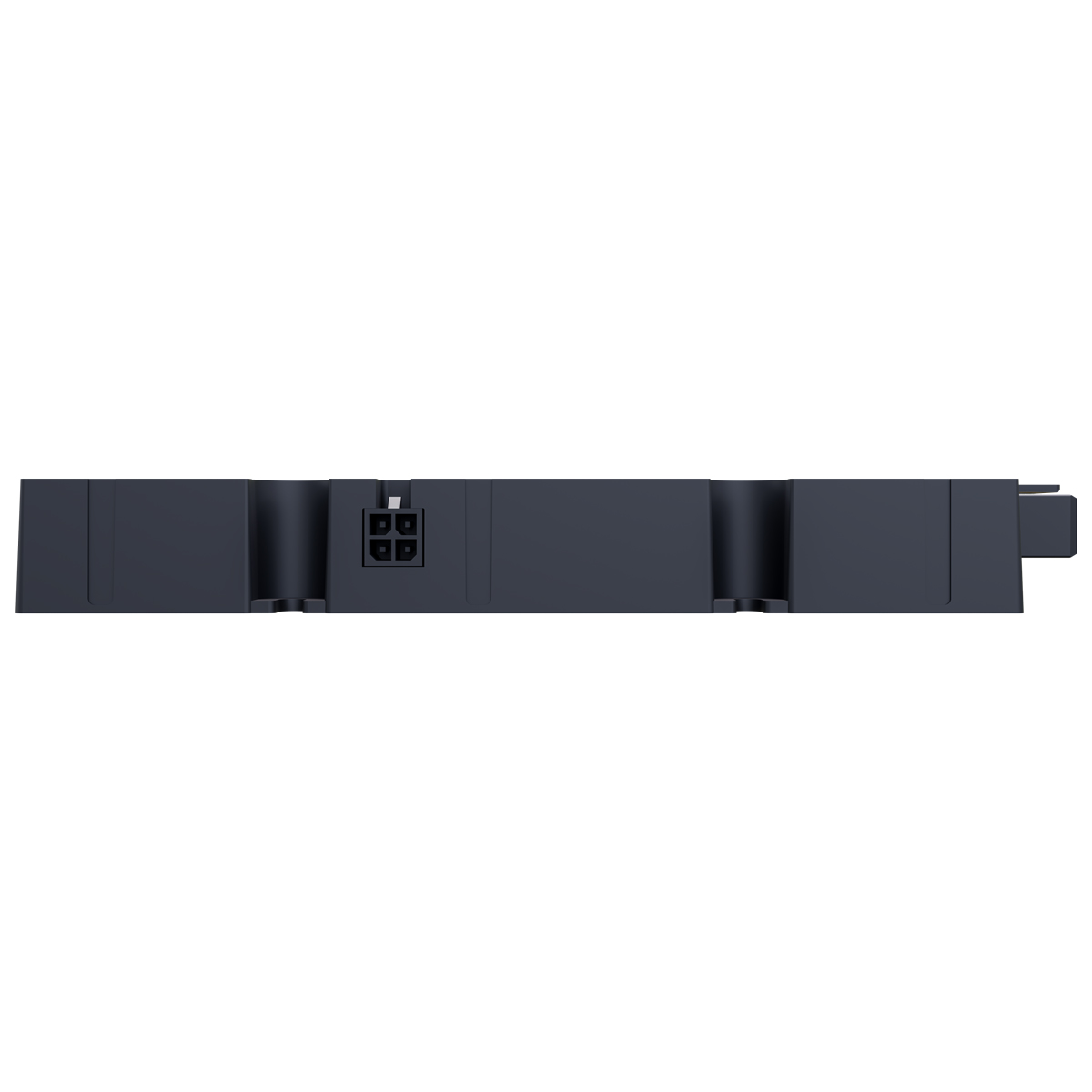

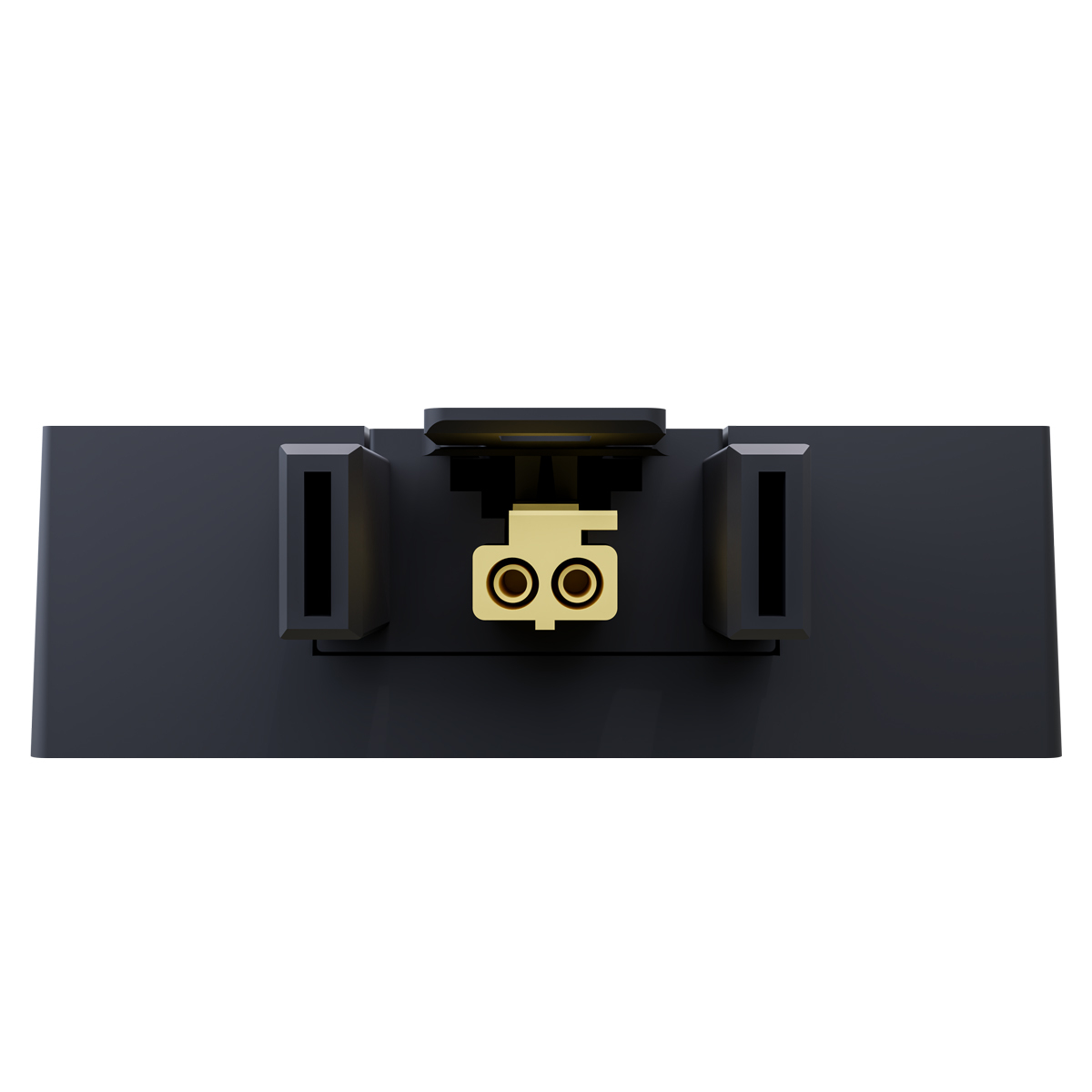

  • 1x Input port with a box-to-box plug

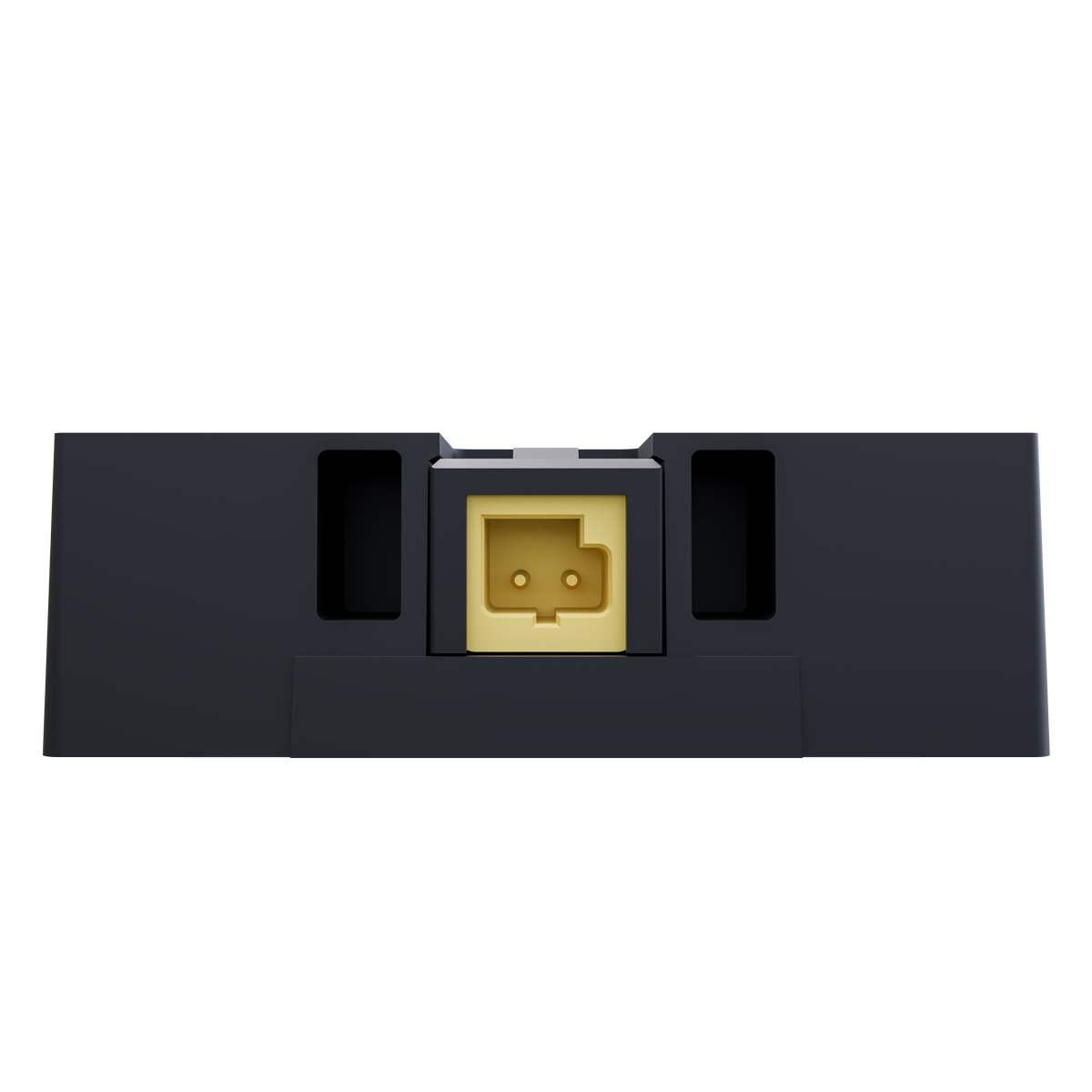

  • 1x Output port with a box-to-box socket
  • 1x Input port switch socket

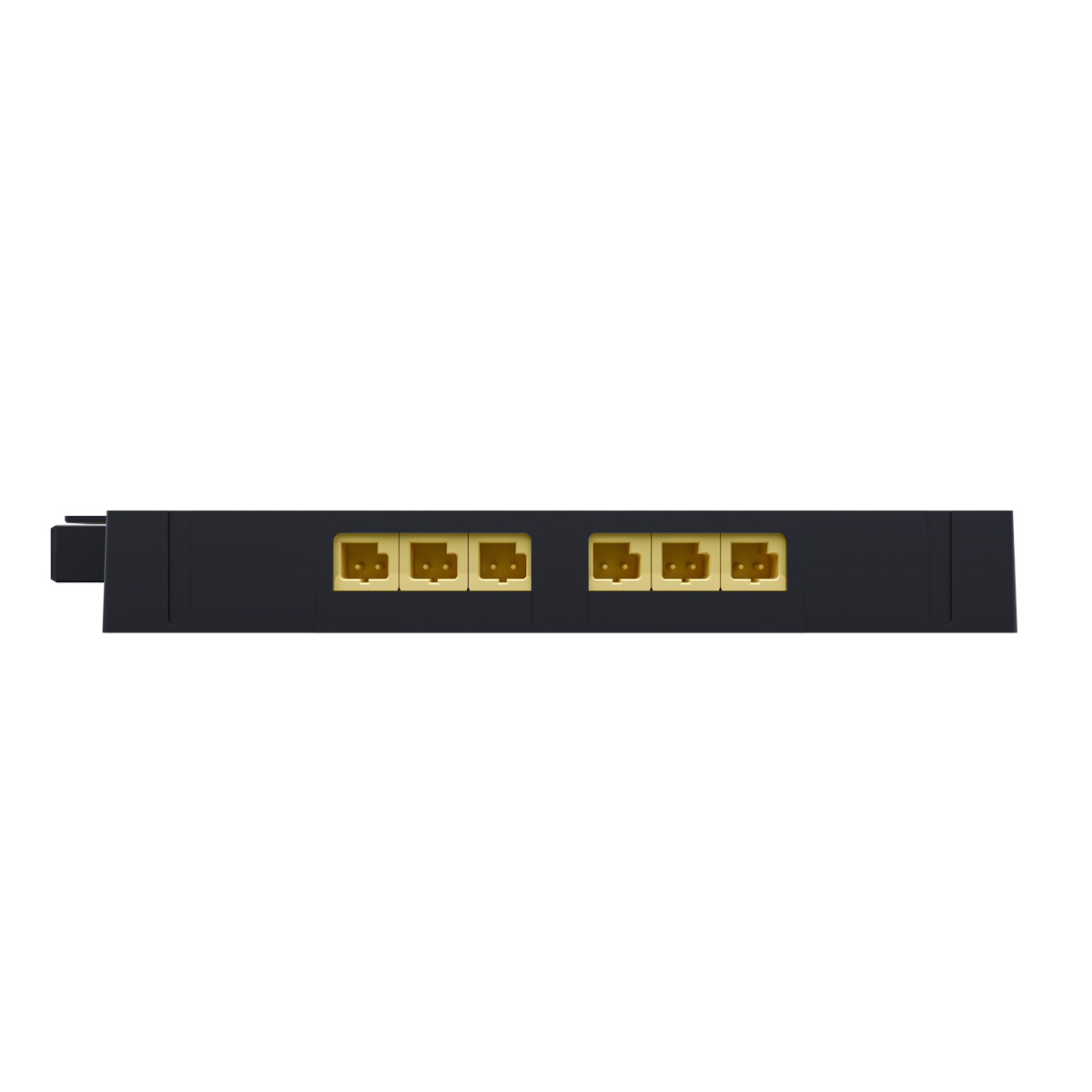

  • 6x Output ports consumer sockets


  • Length: 120mm
  • Width: 50mm
  • Height: 16mm

  Multi-white or RBG lights adapters, remote control and wall-mounted push button are available upon request.

With Switching Function
