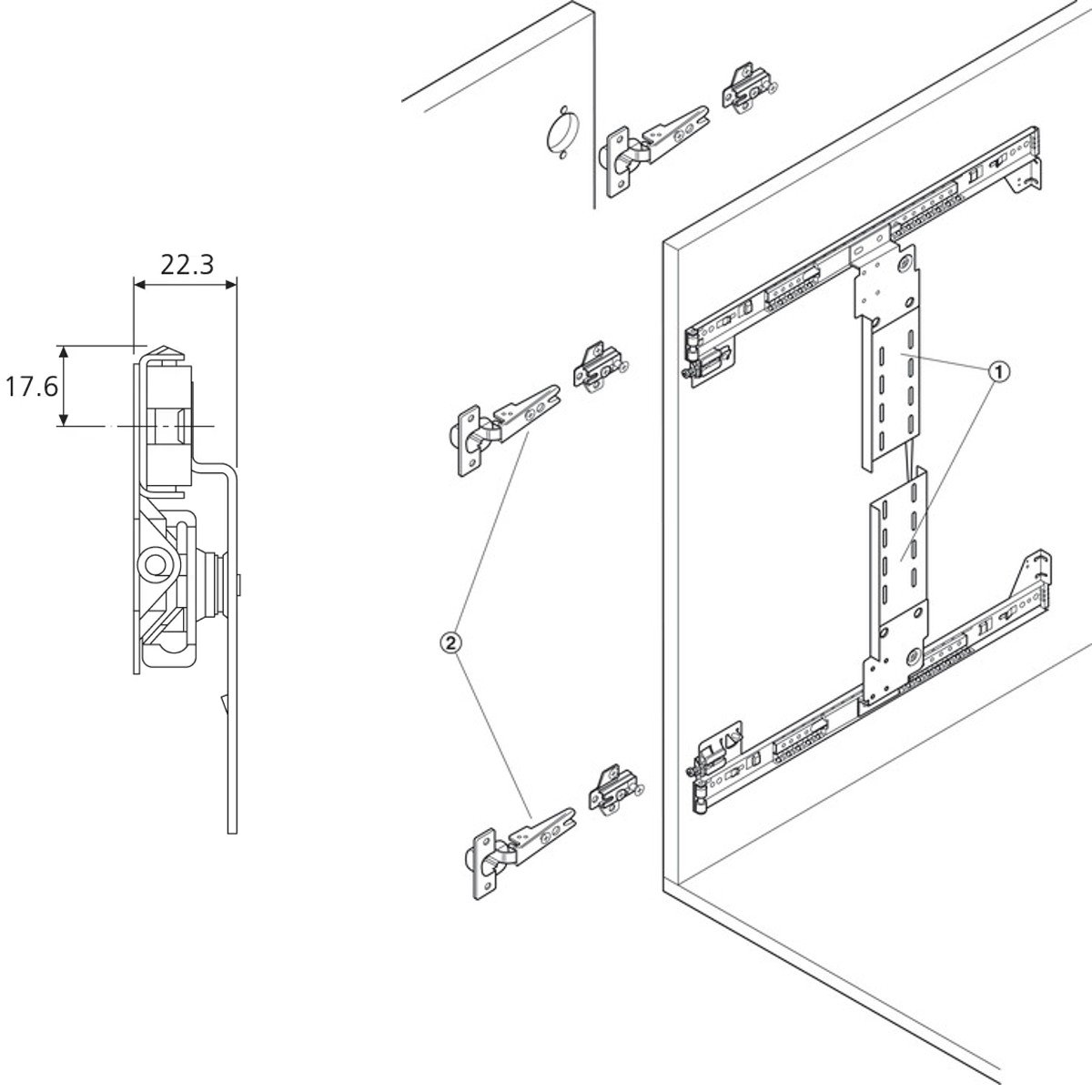

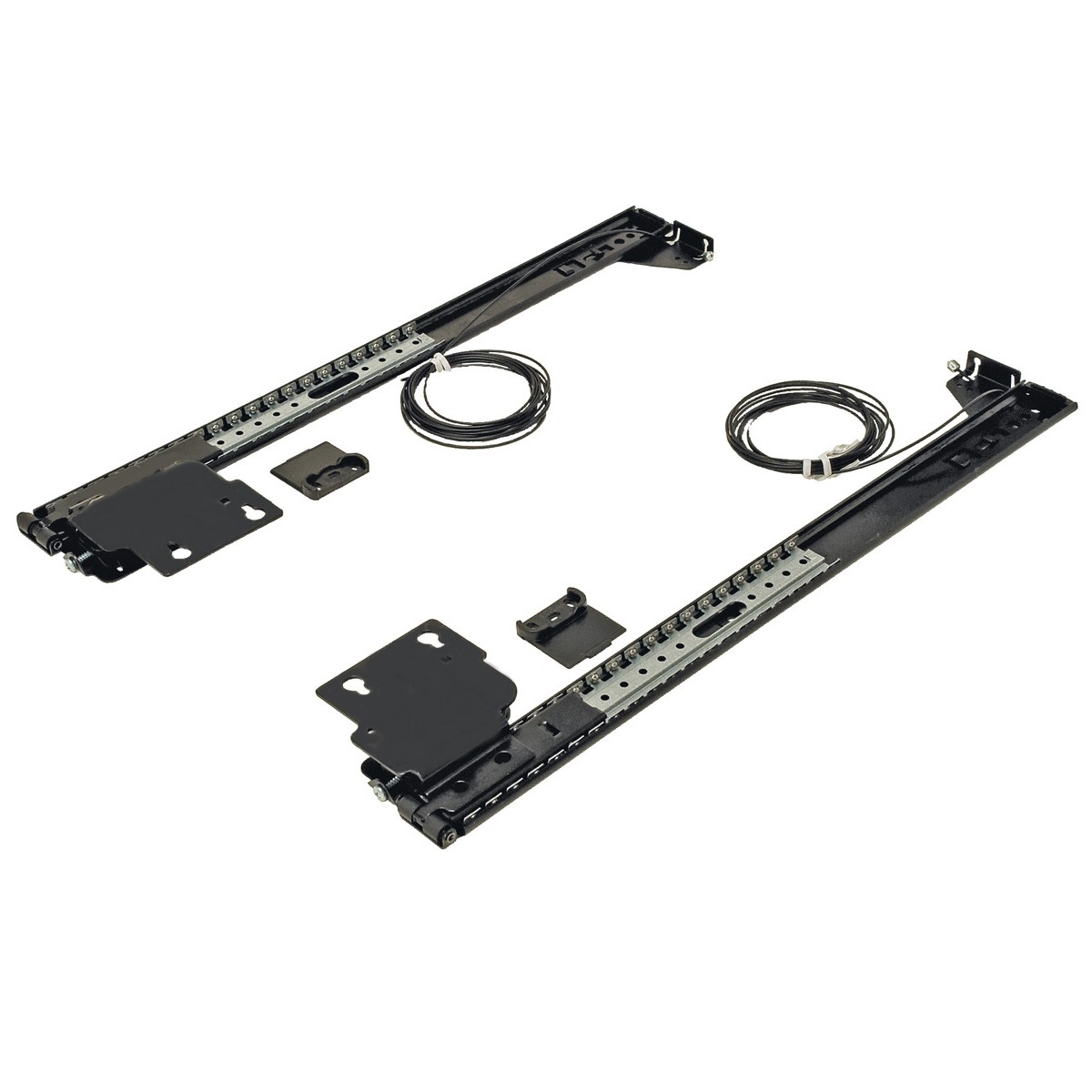

Accuride 1432 Pivot Sliding Door Gear

4156-001
Price from: £121.46inc VAT
+

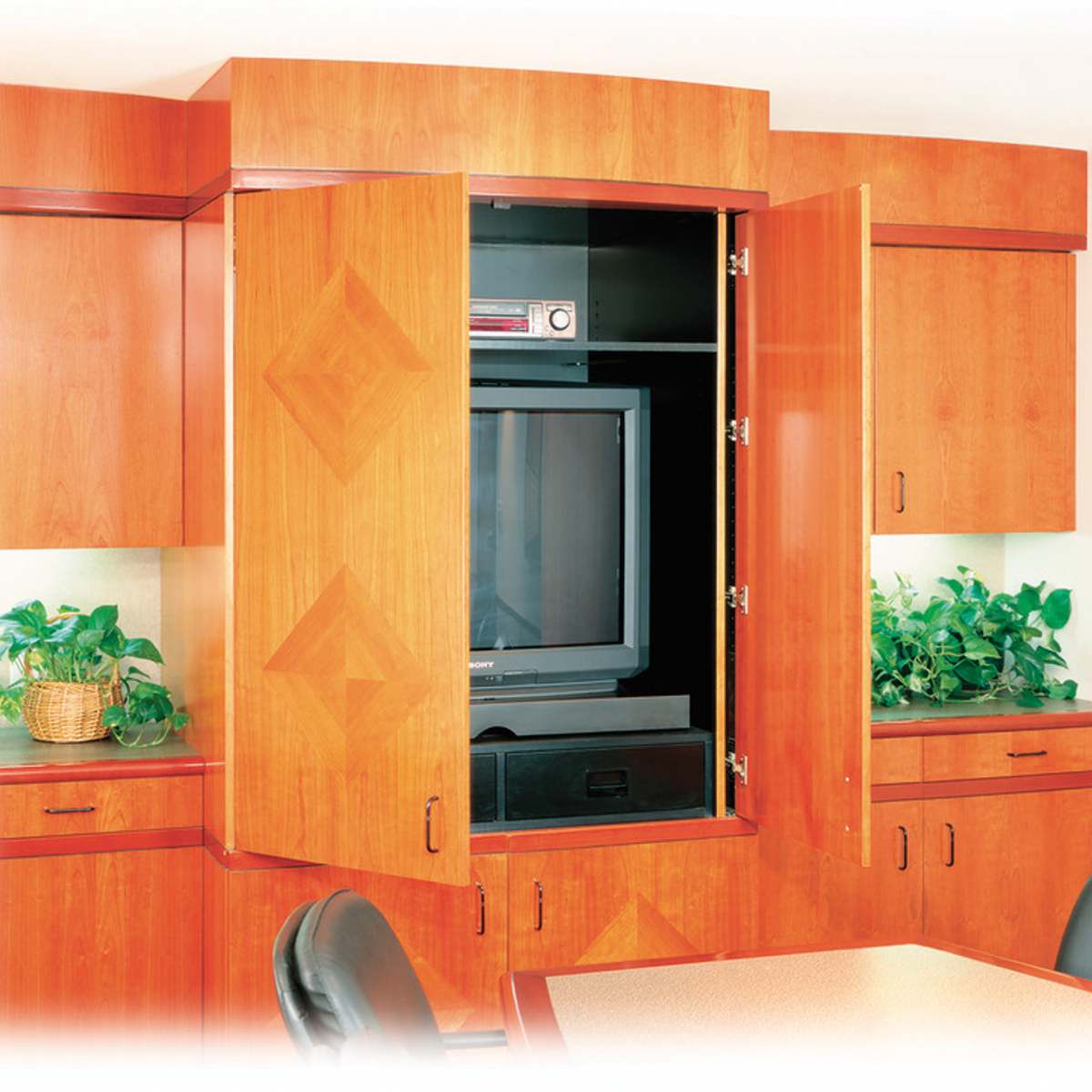

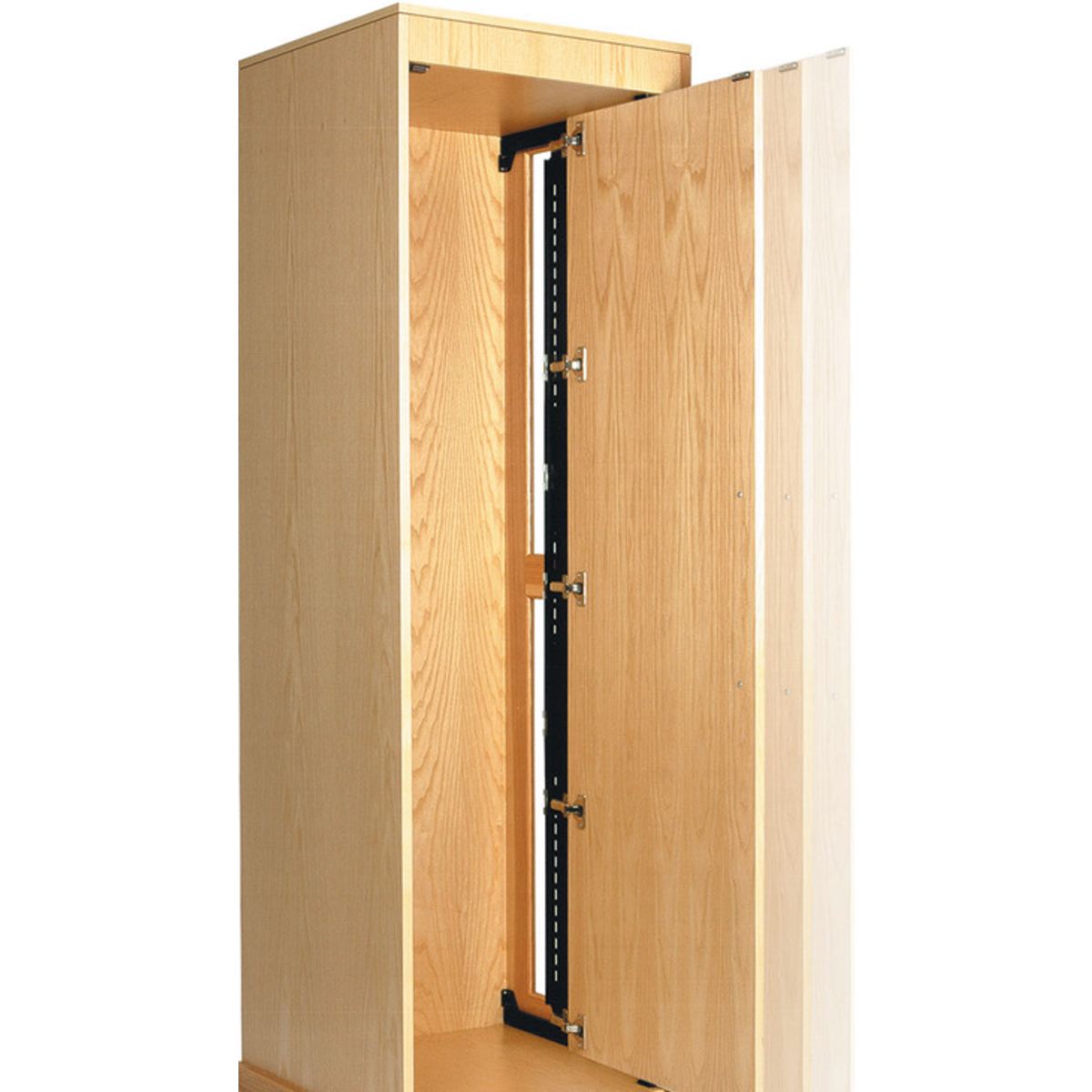

Accuride 1432 Pivot Sliding Door Gear - dedicated for hideaway cabinet pocket door. Widely used in media cabinets and concealed storage.

  • Vertical mounted only
  • Made out of: mild steel
  • Runner thickness: 22.3mm
  • Maximum door weight: 34kg
  • For door widths: 255-660mm
  • For door height: 915-2300mm
  • For overlay or inset application
  • System runs on ball bearing runners
  • One set of runners is sufficient for one door only
  • Synchronised runners for effortless and smooth operation
  • Door thicknesses:
    • Inset: 19-32mm
    • Overlay: 19mm

Please note that:

  • The extension length indicates how much the door will hide inside the pocket
  • Please make sure the cabinet is deep enough to accommodate the slider 'Length'
  • Partial overlay doors: The pocket door runner should be the length of the cabinet depth or less, the calculation is
    • Cabinet depth – 3mm clearance = runner length (or shorter)
  • Inset doors: You will need to allow space for the door inside the cabinet, the calculation is:
    • Cabinet depth – door thickness – 3mm clearance = runner length (or shorter)
  • Hinges and hinge plates must be purchased separately
  • Blum overlay hinges can only be used to achieve an inset application for 19-22mm door thickness only

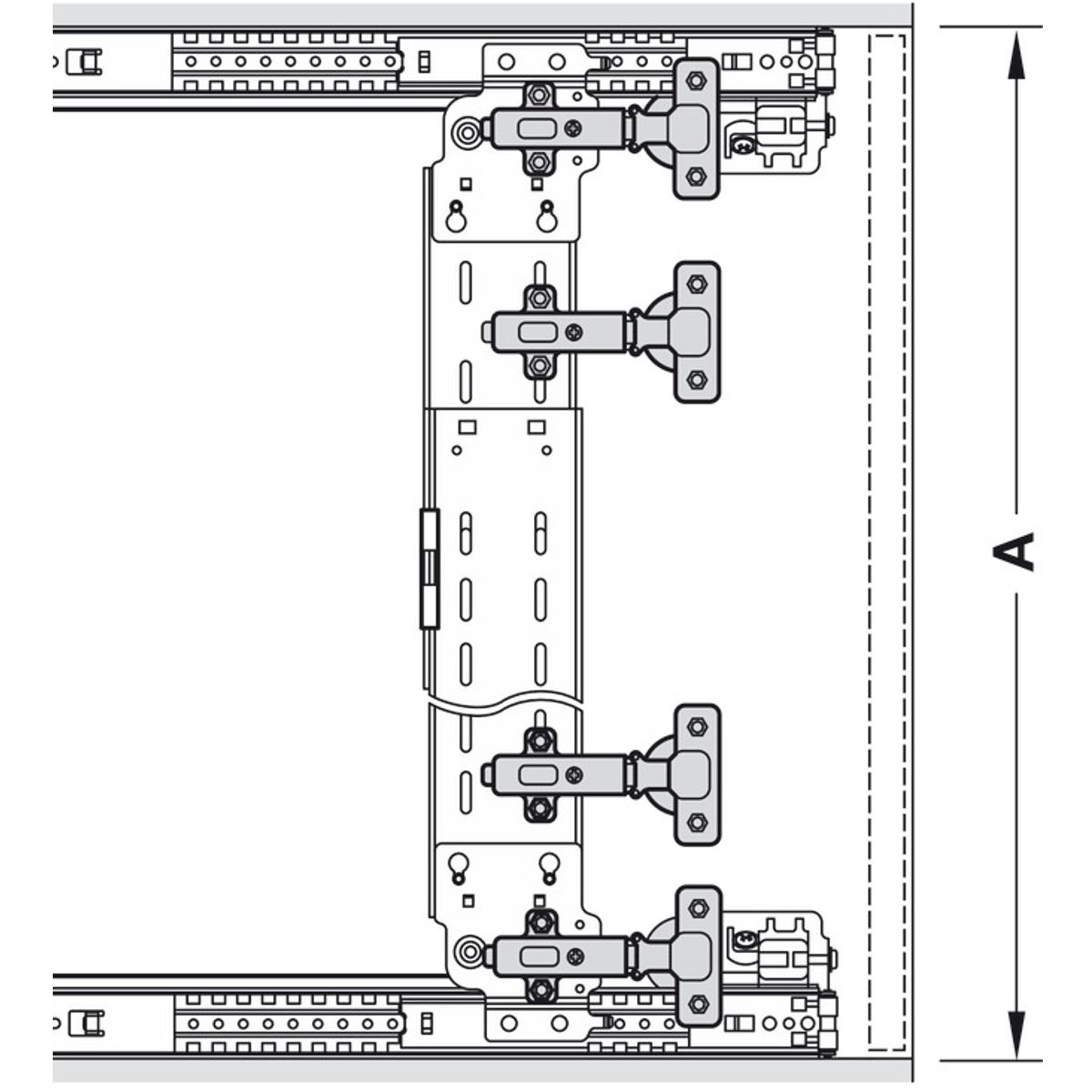

The number of hinges required per door height:

  • 915-1193mm (3 hinges)
  • 1194-1498mm (4 hinges)
  • 1499-1803mm (5 hinges)
  • 1804-2300mm (6 hinges)

The number of hinge plate sets required:

  • 2 sets for 2 doors 915-1422mm tall
  • 3 sets for 2 doors 915-2000mm tall
  • 4 sets for 2 doors 2001-2300mm tall

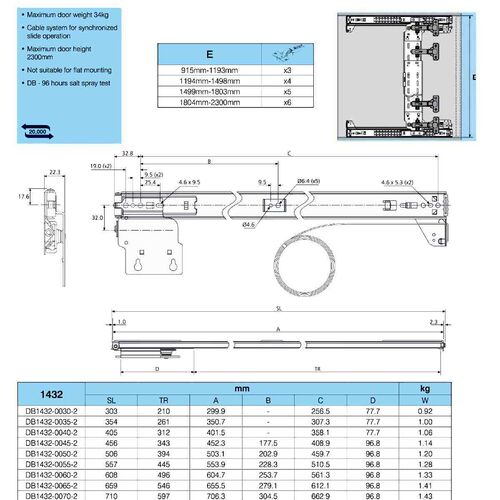

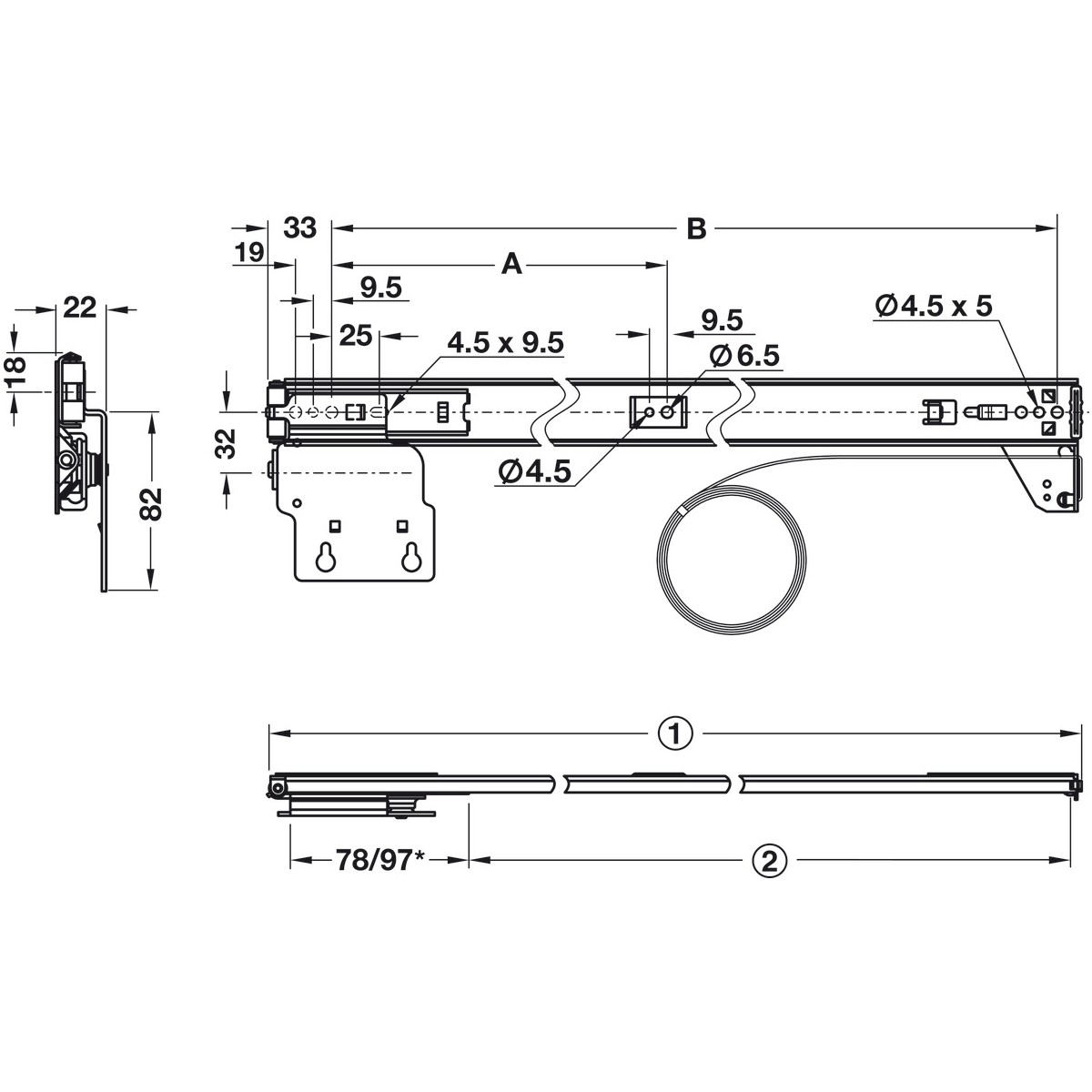

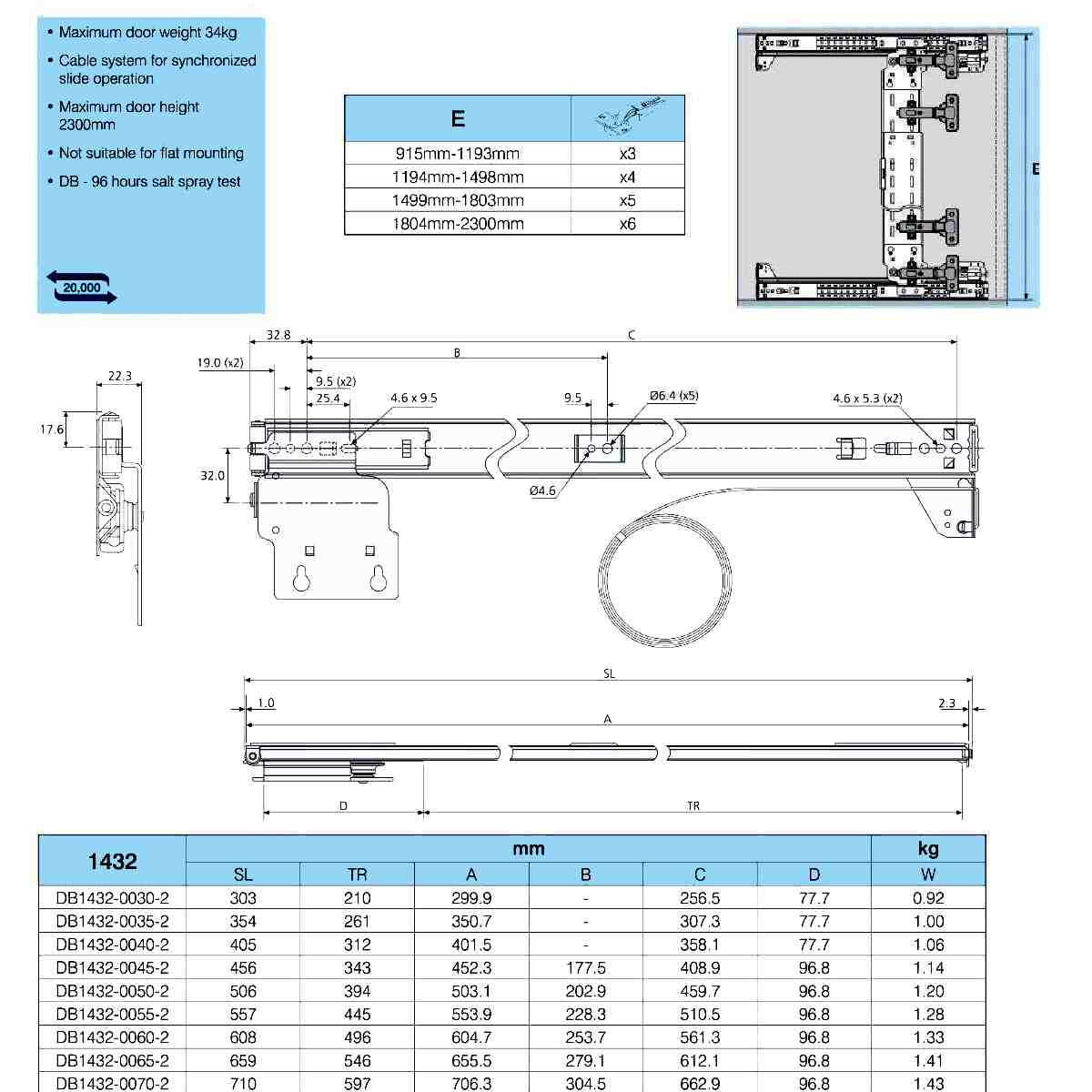

Length:
303mm
Extension Length:
210mm

Sliding Systems

Dedicated for:
  • Cabinet Pocket Doors
Maximum Door Weight :
34kg
System Type:
Pivot
