Hinge Carrier Plates Set

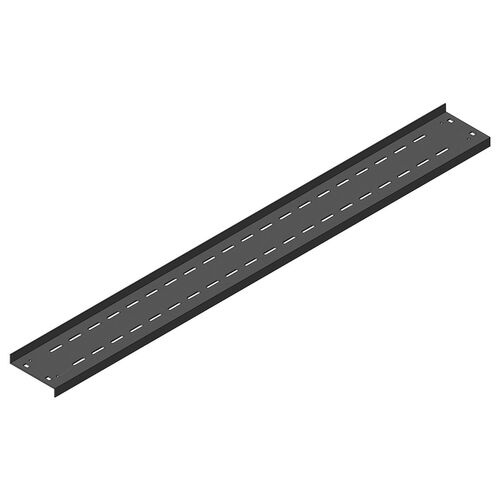

The hinge carrier plates set is designed for use with the Accuride 1432. This kit is crucial for ensuring smooth and synchronized movement of the door slide. It includes two 730mm long black hinge carrier strips, three stainless steel connector clips, and assembly hardware. The hinge carrier strips provide a mounting platform for multiple hinges and cover the synchronization cables, protecting them and keeping them out of sight.

• Width: 76mm
• Length: 730mm
• Made out of steel
• Finnish: black painted
• Suitable for Accuride 1432 door mechanism
• Can be used with inset and overlay Accuride hinges

Set contains:

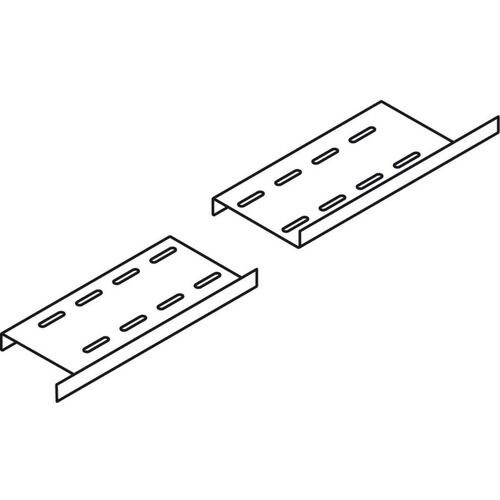

• 3 x connector clips
• 2 x hinge carrier plates

The number of sets required:

• 2 sets for 2 doors 915-1422mm tall
• 3 sets for 2 doors 1423-2000mm tall
• 4 sets for 2 doors 2001-2300mm tall

Please note that:

• Sliding door gear and hinges must be ordered separately
