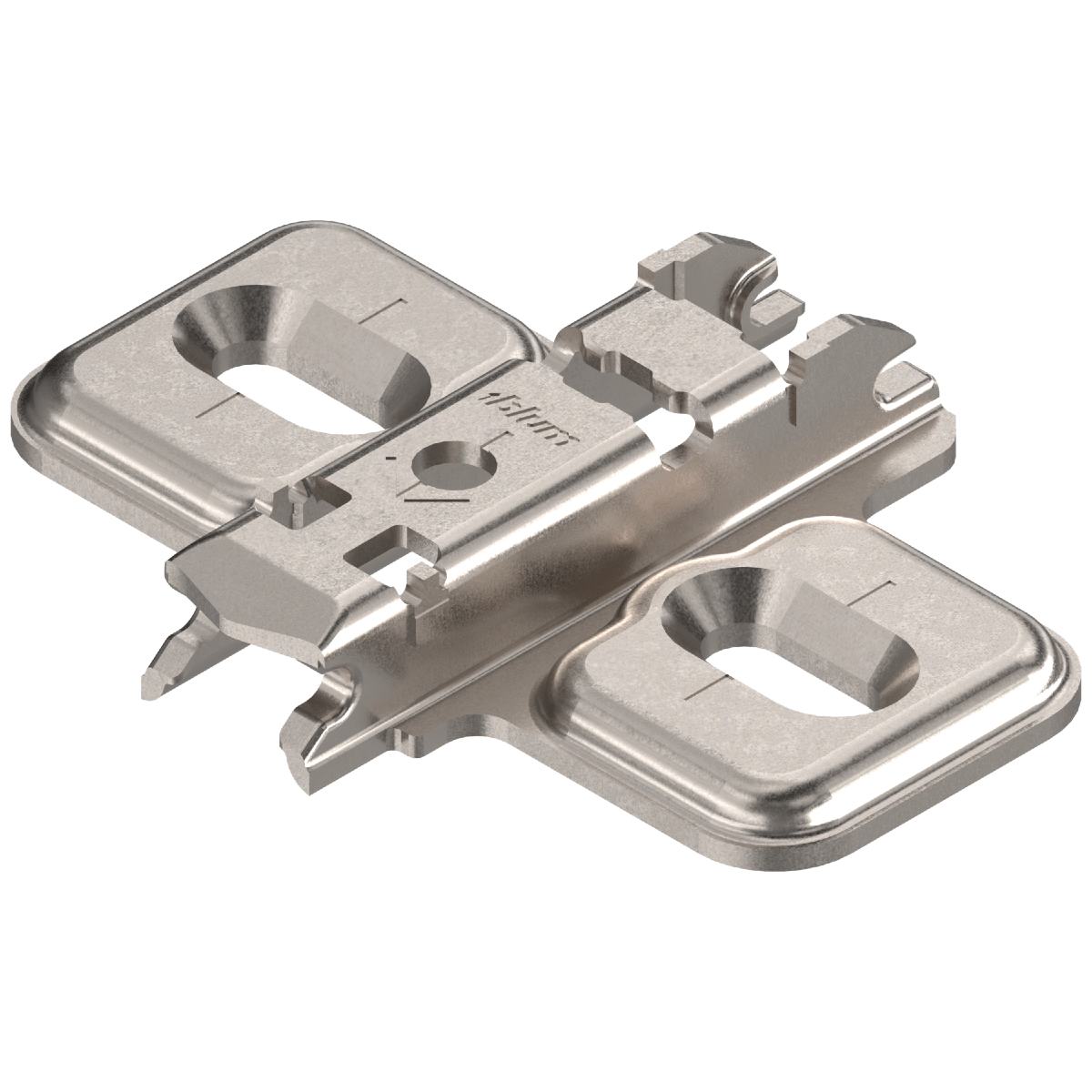

The Blum clip hinge mounting plate 173L6100 is a component used in cabinetry to attach the hinge to the cabinet door and frame. It’s designed for easy installation and removal, allowing the door to be quickly affixed or detached.
- Mounting plate 173L6100
- Mounting plate system: Clip
- The shape of the mounting plate: cruciform
- Spacing: 0mm
- Material: steel
- Finish: nickel plated
- Fixing: for chipboard screws

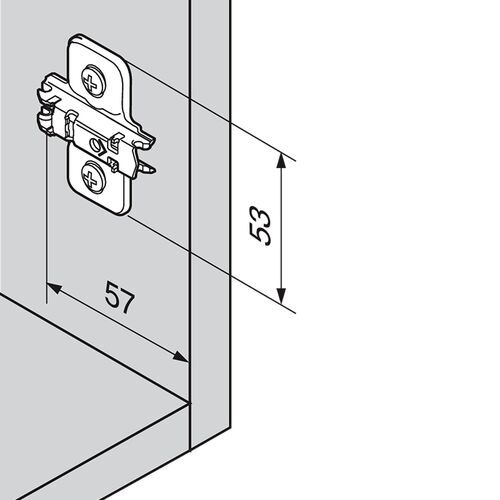

- Distance between fixing positions: 32mm
- Distance cabinet front edge to first fixing position: 37mm
- Mounting plates height adjustment: with elongated hole
