Overlay Hinge Set For Accuride 1432

Price: £9.17inc VAT

Hinge set for Accuride 1432 pivot sliding door gear for overlay door application for 19mm thick doors. This hinge kit is used with 1432 pocket door slides and is ideal for creating a seamless door movement and installation experience.

  • Cup drilling: 40mm
  • Installation: screw fixing
  • Maximum door thickness: 19mm

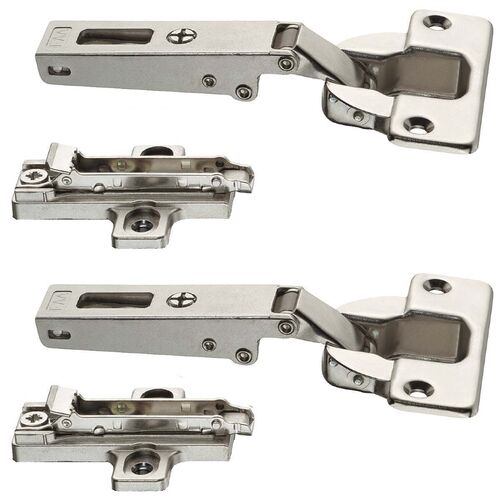

Set contains:

  • 2 x zinc clip-on hinges
  • 2 x 3mm mounting base plates

The number of hinges required per door height:

  • 915-1193mm (3 hinges)
  • 1194-1498mm (4 hinges)
  • 1499-1803mm (5 hinges)
  • 1804-2300mm (6 hinges)

Please note that:

  • Screws are not provided
  • Sliding door gear and carrier plates need to be purchased separately
For Door Thickness:

Sliding Systems

Dedicated for:
  • Cabinet Pocket Doors
Maximum Door Weight :
System Type:
