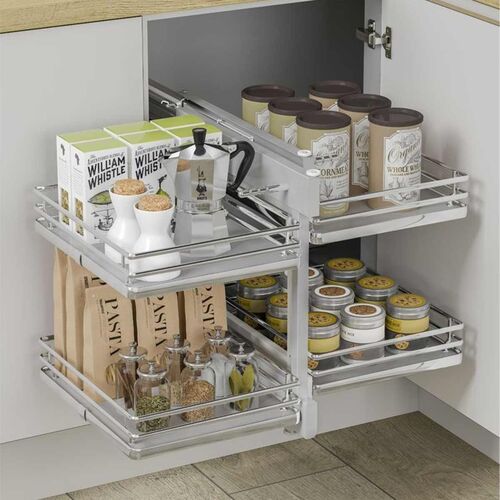

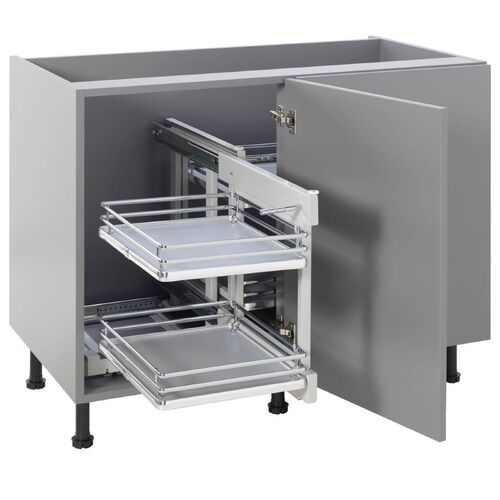

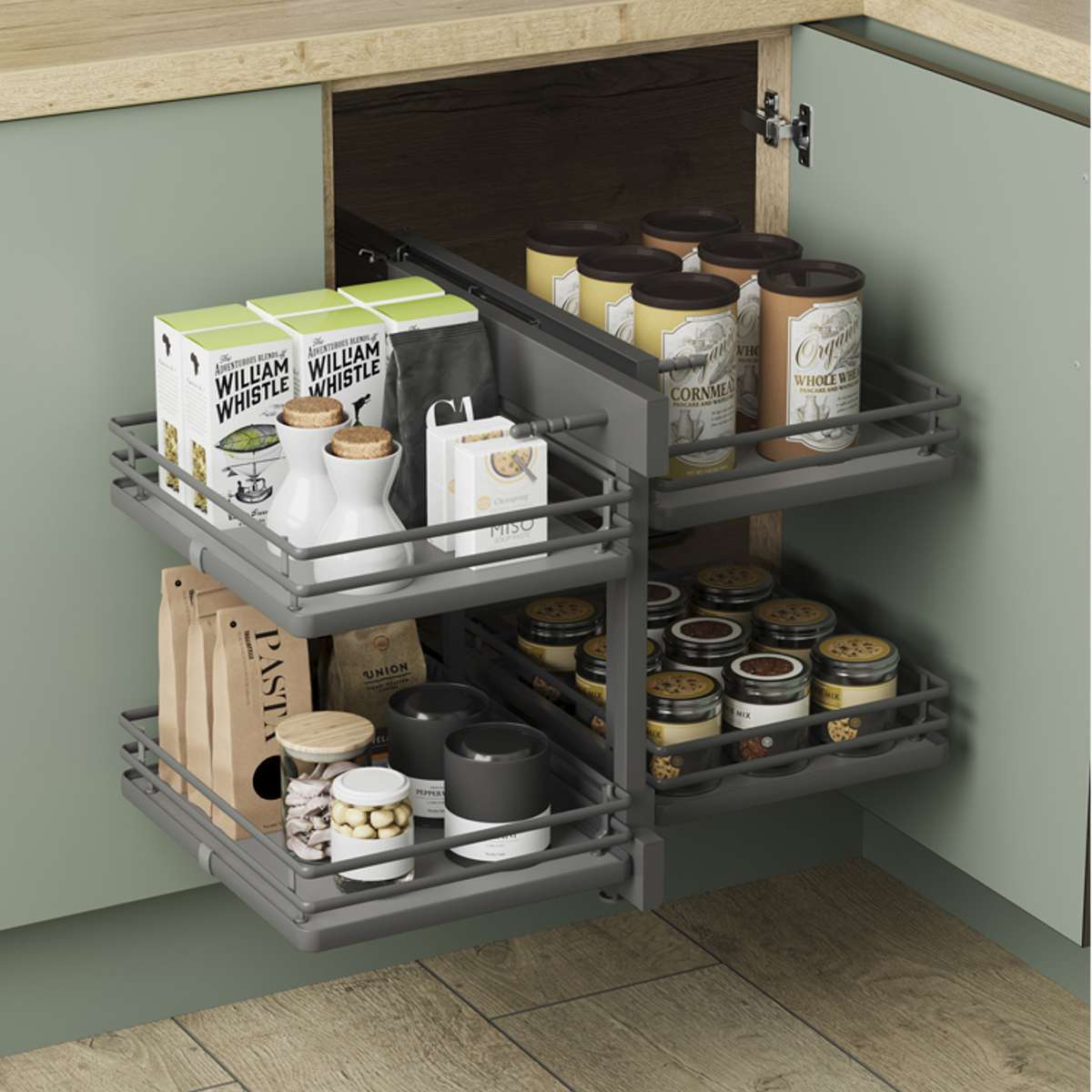

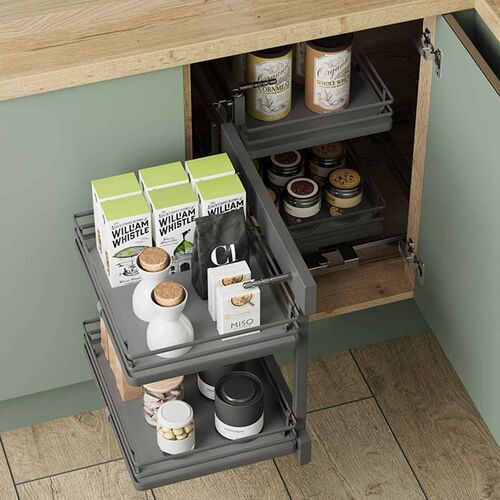

Universal (RH or LH) Blind Corner Optimiser With Wipe Clean Anti-Slip Base Trays For 800, 900 and 1000mm Cabinets
- No Assembly To Door Required
- Easy Installation, Effortless Operation

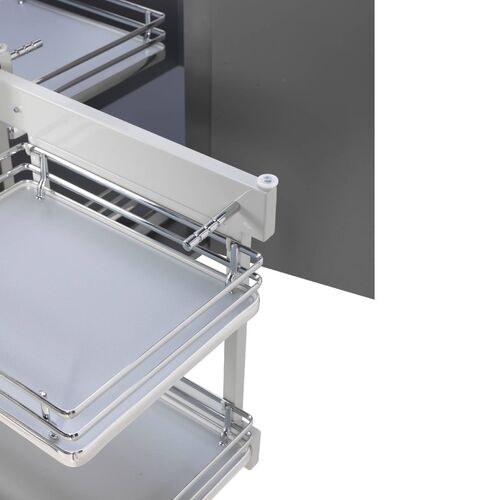

- Stylish Handle Allows Easy Extraction

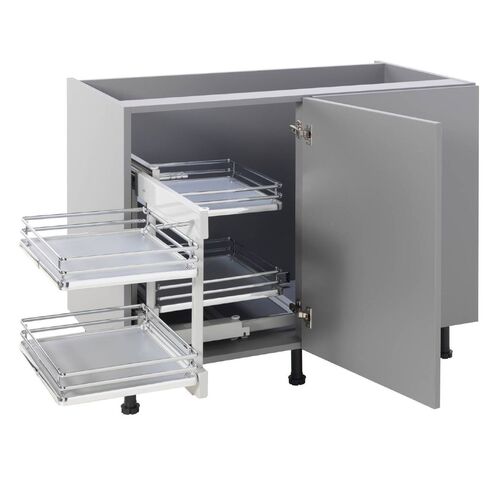

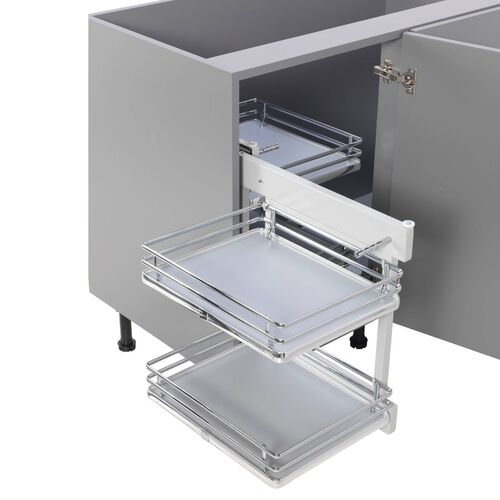

- All Trays Pull-Out From Cabinet Giving Easy Access
- Optimum Usage Of Space With Ease Of Access
- Can Be Used With Or Without Corner Post *
- Wipe Clean Anti-Slip Base To Trays
- Basket Capacity: 10kg
- Total Capacity: 40kg
- Minimum Internal Depth - 465mm Front To Back; Cabinets With Hinge Post: 440mm Between Hinge Post And Back Panel

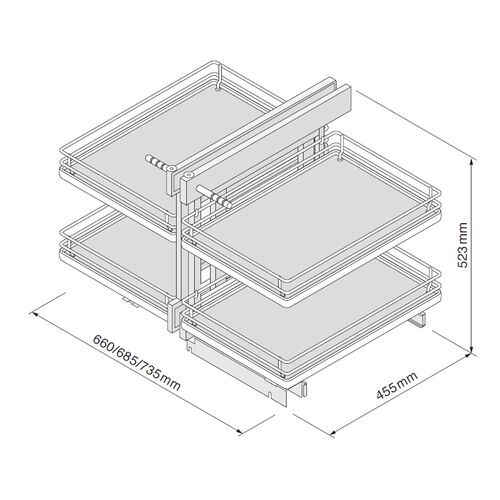

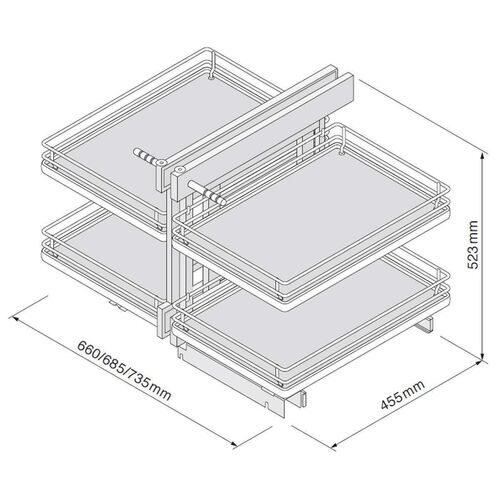

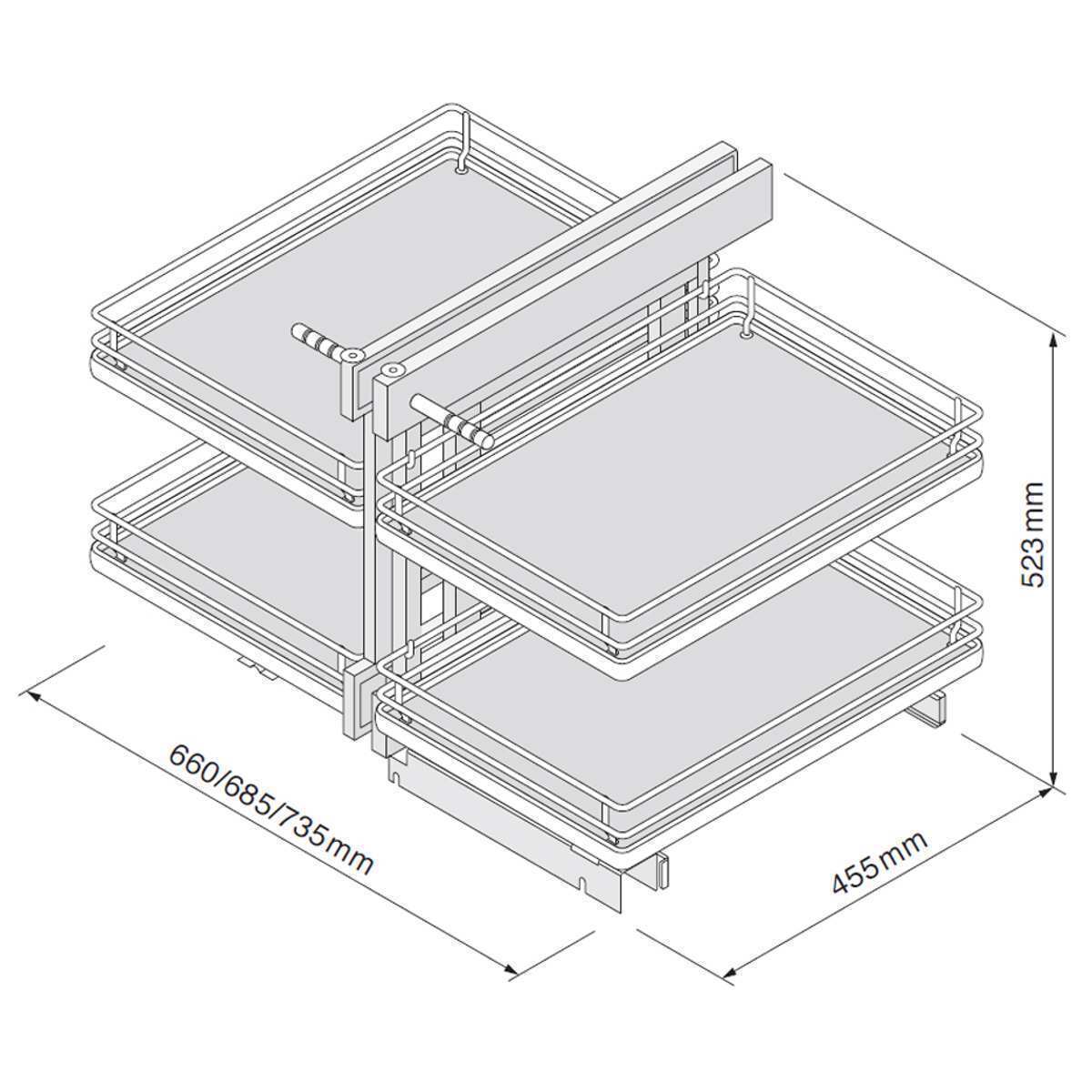

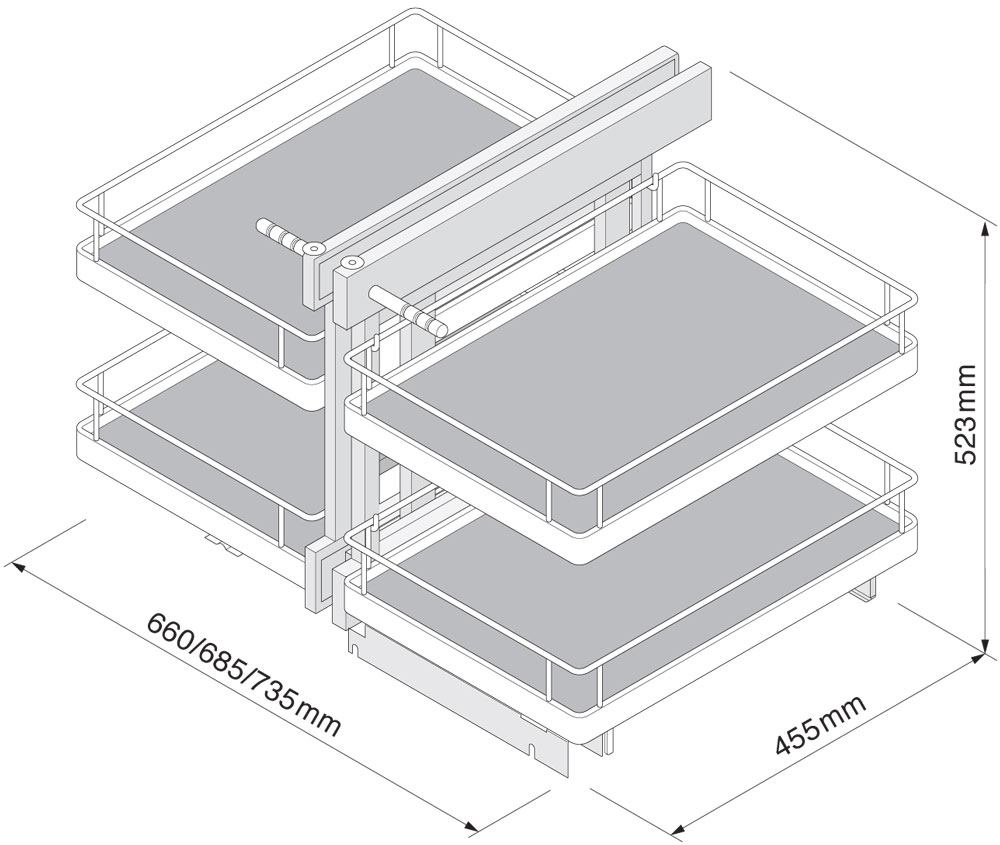

Specifications:
800mm- Length 660mm Width 455mm Height 523mm,
Tray Dimensions : 4 x W280mm x L375mm
900mm- Length 685mm Width 455mm Height 523mm
Tray Dimensions: 4 x W300mm x L375mm
1000mm- Length 735mm Width 455mm Height 523mm
Tray Dimensions: 2 x W350mm x L375mm Plus 2 x W300mm x L375mm
Distance From Base Of The Carcass To The Bottom Of The Lower Basket - 115mm
Distance From Base Of The Carcass To The Bottom Of The Upper Basket - 370mm
Height Of The Basket - 75mm
Distance from the top of the vertical frame to the top of the top basket is 75mm, but to the bottom of the top basket is 150mm
Clearance Between The Basket And Front Of The Cabinet Next To It When Unit Retracted - 100mm
Distance Between The Far Side Of The Basket To The Side Of The Cabinet When Extracted
- 800mm = 255mm
- 900mm = 265mm
- 1000mm = 265mm
Magic Corners
Measured at the narrowest point of the cabinet between centre post and back panel.
System have to operate without any obstructions.
If depth of the cabinet is insufficient there are amendments to the cabinet that might be done:
- moving back panel further back
- removing centre post (corner post) and mounting doors on 190 degree hinges
- mounting door to the basket if possible
- Solid Base
