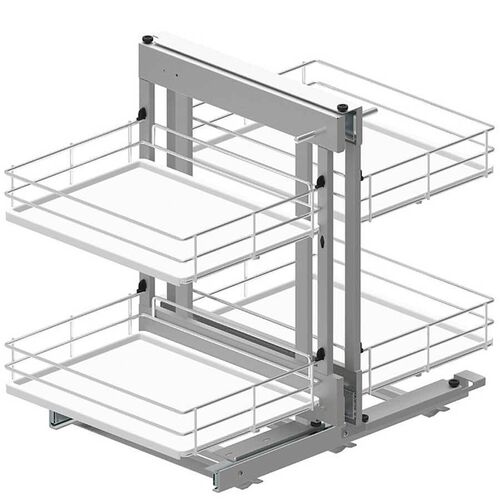

Maxima/Evo Magic Basket Corner

0270-001
from: £343.99inc VAT
+

Magic Basket Corner to fit 800, 1000 or 1200mm cabinet

  • Full extension Soft Close runners
  • Available with chrome baskets or solid base trays
  • Manufactured in EU

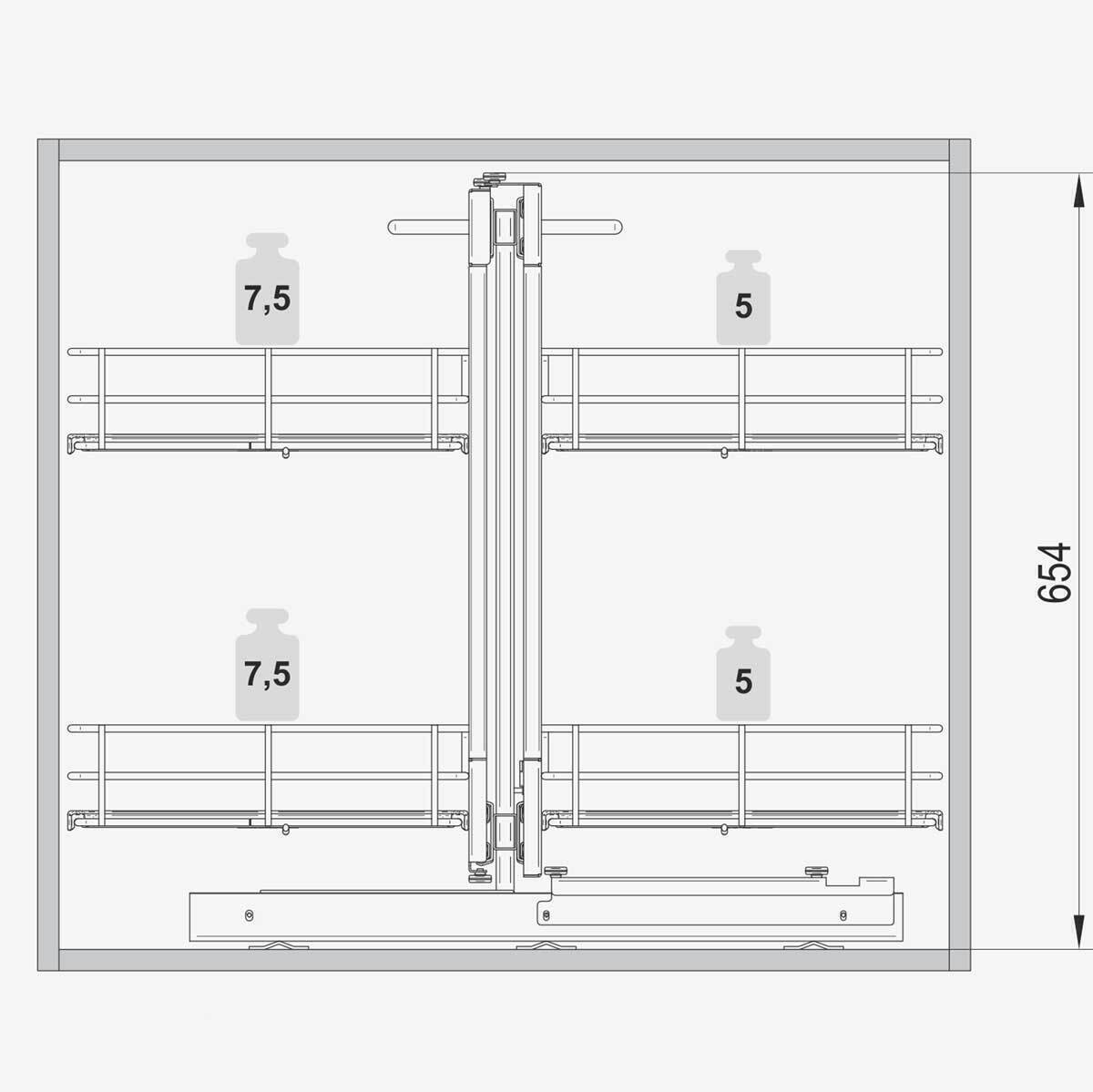

  • Minimum cabinet internal height required: 654mm

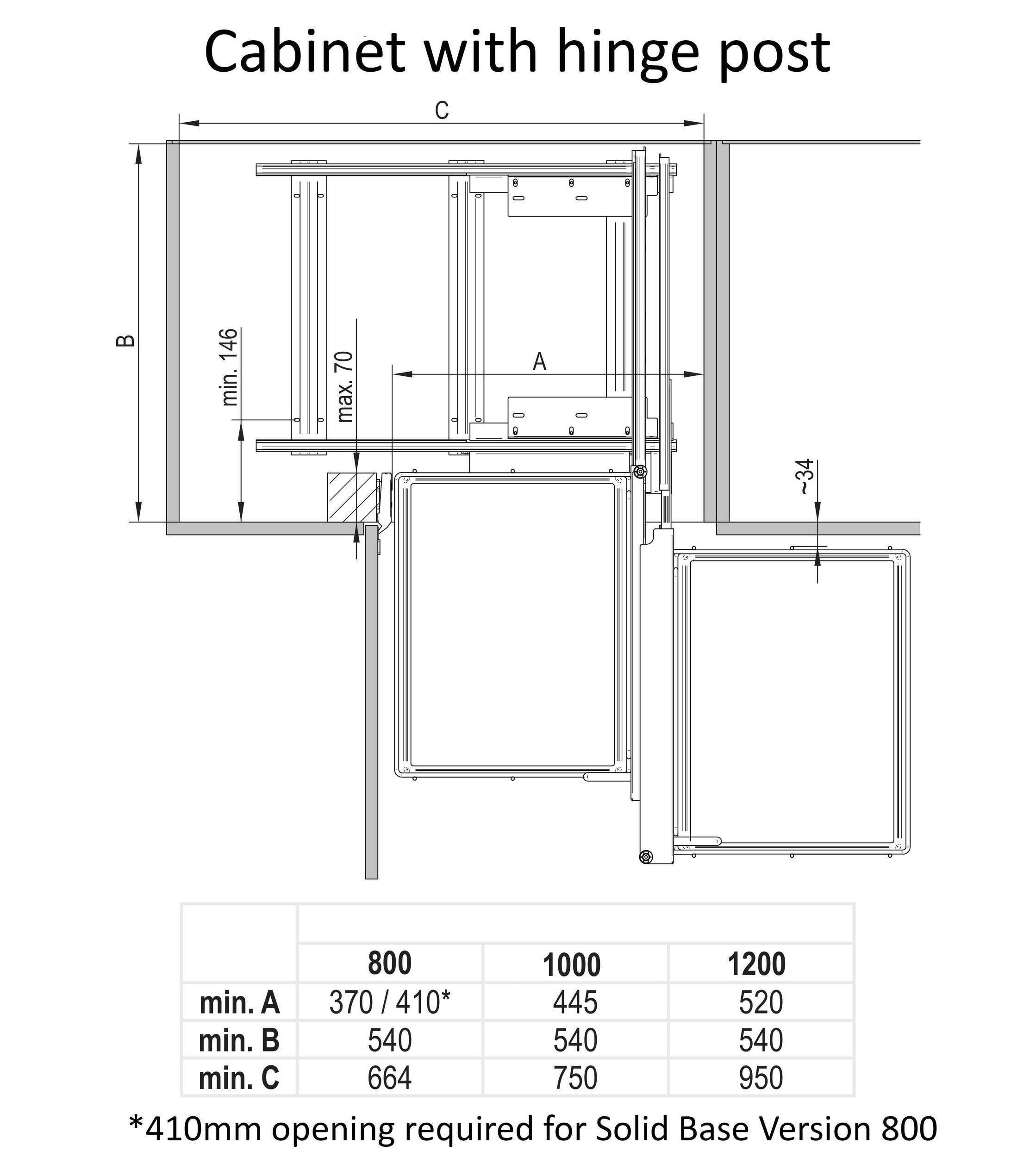

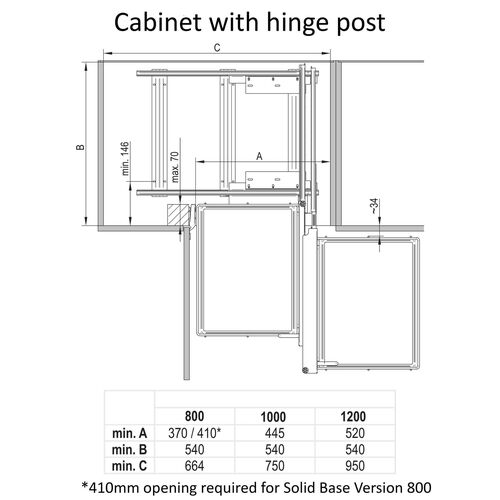

  • Minimum internal depth 540mm (allows for the centre post up to 70mm deep)
  • Maximised storage and easy access
  • Cabinet requirements in table below:
Cabinet min. door
aperture required
min cabinet

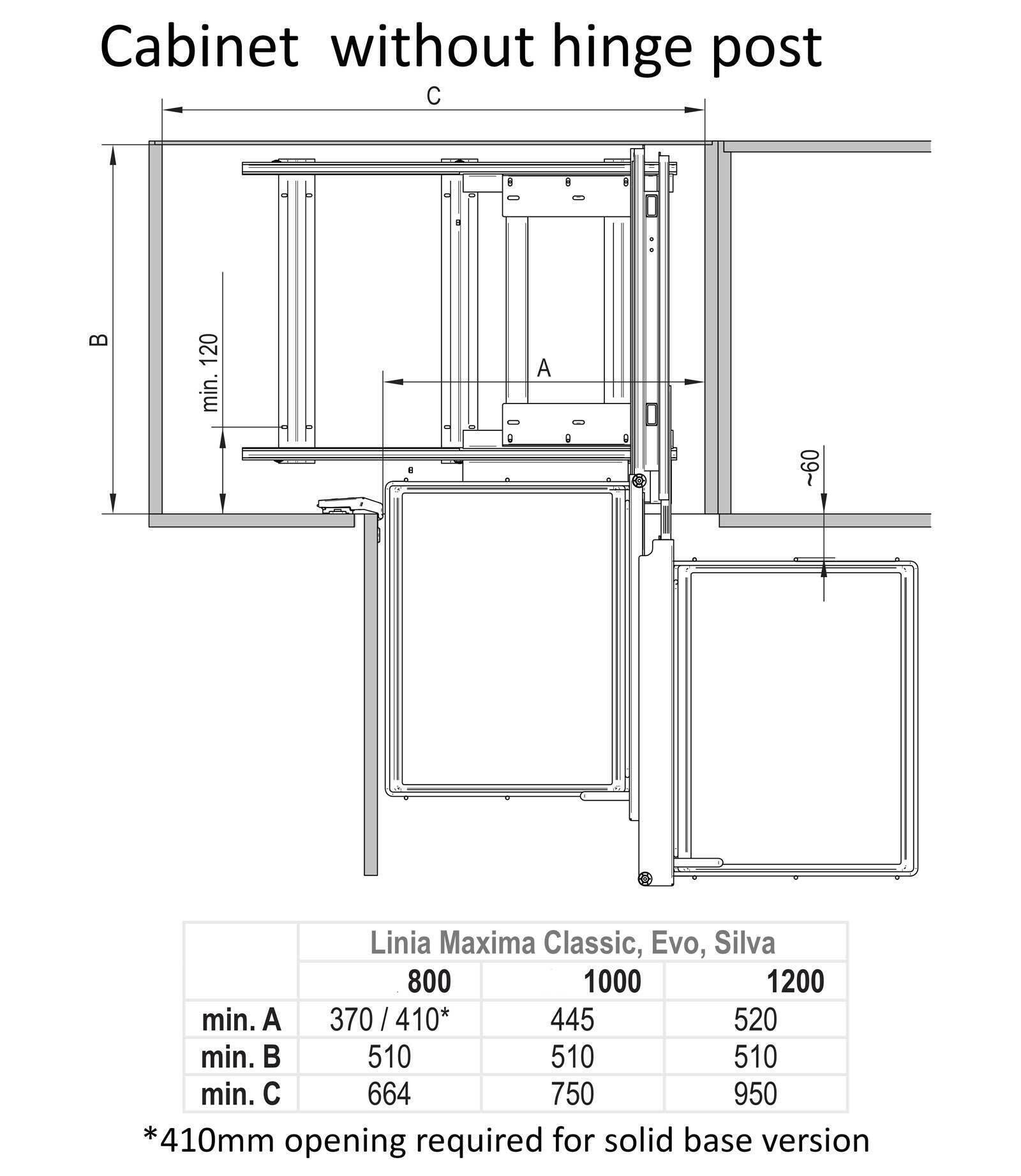

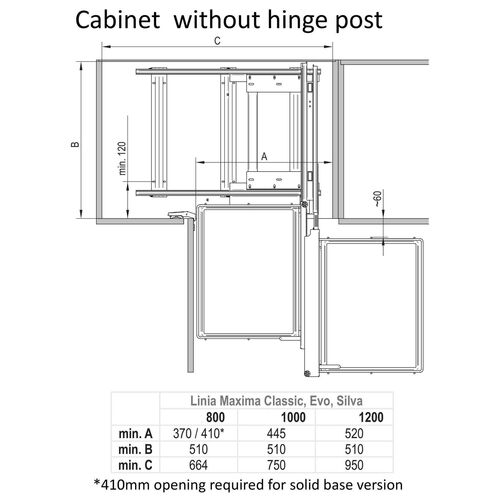

depth required (please check tech drawing )
800 mm 410 mm 540 mm
1000 mm 445 mm 540 mm
1200 mm 520 mm 540 mm

Fitting Instruction (Left Hand) (Corner_Comfort_Maxima_II_Lewy_800-1200__instrukcja_montażu.pdf, 540 Kb) [Download]

Fitting Instruction (Right Hand) (Corner_Comfort_Maxima_II_Prawy_800-1200__instrukcja_montażu.pdf, 522 Kb) [Download]

Magic Corners

Closing Mechanism:
Soft Close
Maximum Load :
30kg
Minimum Internal Cabinet Depth :
480mmmm
Product short Name:
Magic Basket
System Type:
Magic Corner
Type of baskets:
  • Solid Base
  • Chrome Linear Wire

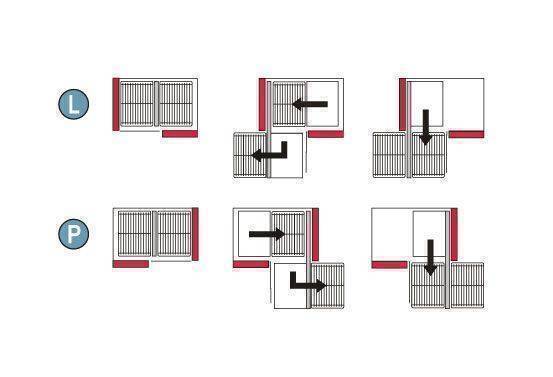

Version :
  • Left hand version
  • Right hand version
Cabinet external size :
  • 800mm
  • 1000mm
  • 1200mm
