Left Or Right Hand Swing Out Wari Corner Storage Unit Complete Set, Pull-Out Action With Soft Close. Made In Germany By Vauth Sagel.
- Steel mesh chrome storage baskets
- For minimum cabinet width of 800mm or 900-1000 mm
- Manufactured in Germany
- Supplied with 10 years Warranty
- Built-in soft-close
- Minimum internal height: 530mm
- Minimum internal depth: 485mm
- Base mounting
- Front door fixing
- Basket capacity: 8kg

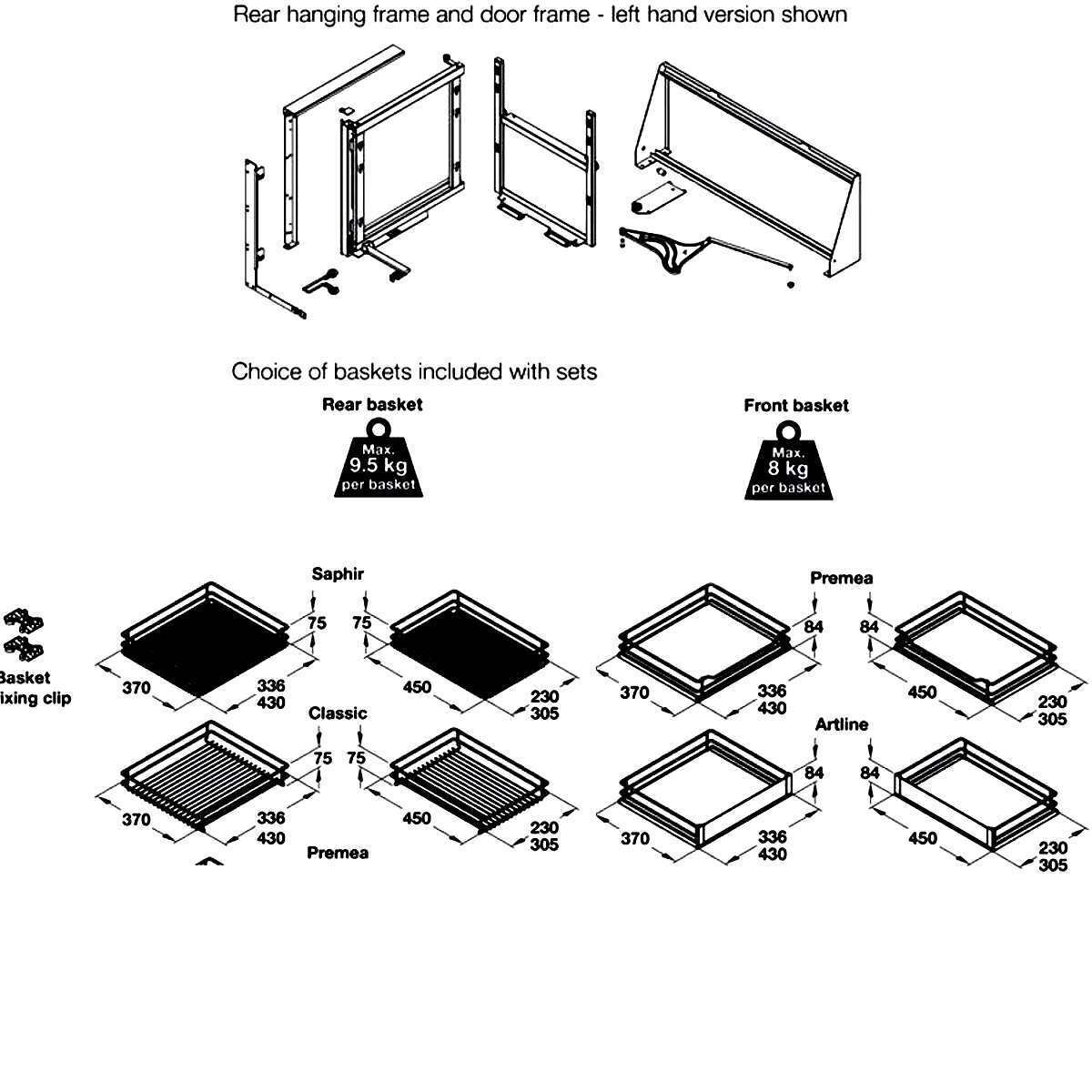

Set Includes:
- 1x frame set
- Rear hanging frame and base mounting track; silver epoxy coated tubular steel
- Door frame with pivot; silver epoxy coated tubular steel
- Back frame; silver epoxy coated tubular steel
- Door frame follower; fibre glass improved plastic
- Door panel hanging plates; a silver coloured steel, 3-way adjustable, 800mm version to suit 400mm door widths, 900mm version to suit 450/500/600mm door widths
- Fixing screws and fitting instructions
- 2x steel mesh chrome storage baskets (rear)
- 2x steel mesh chrome storage baskets (door)
Cabinet Size:
800mm (400mm Door)
Basket Type:
Linear Wire Chrome

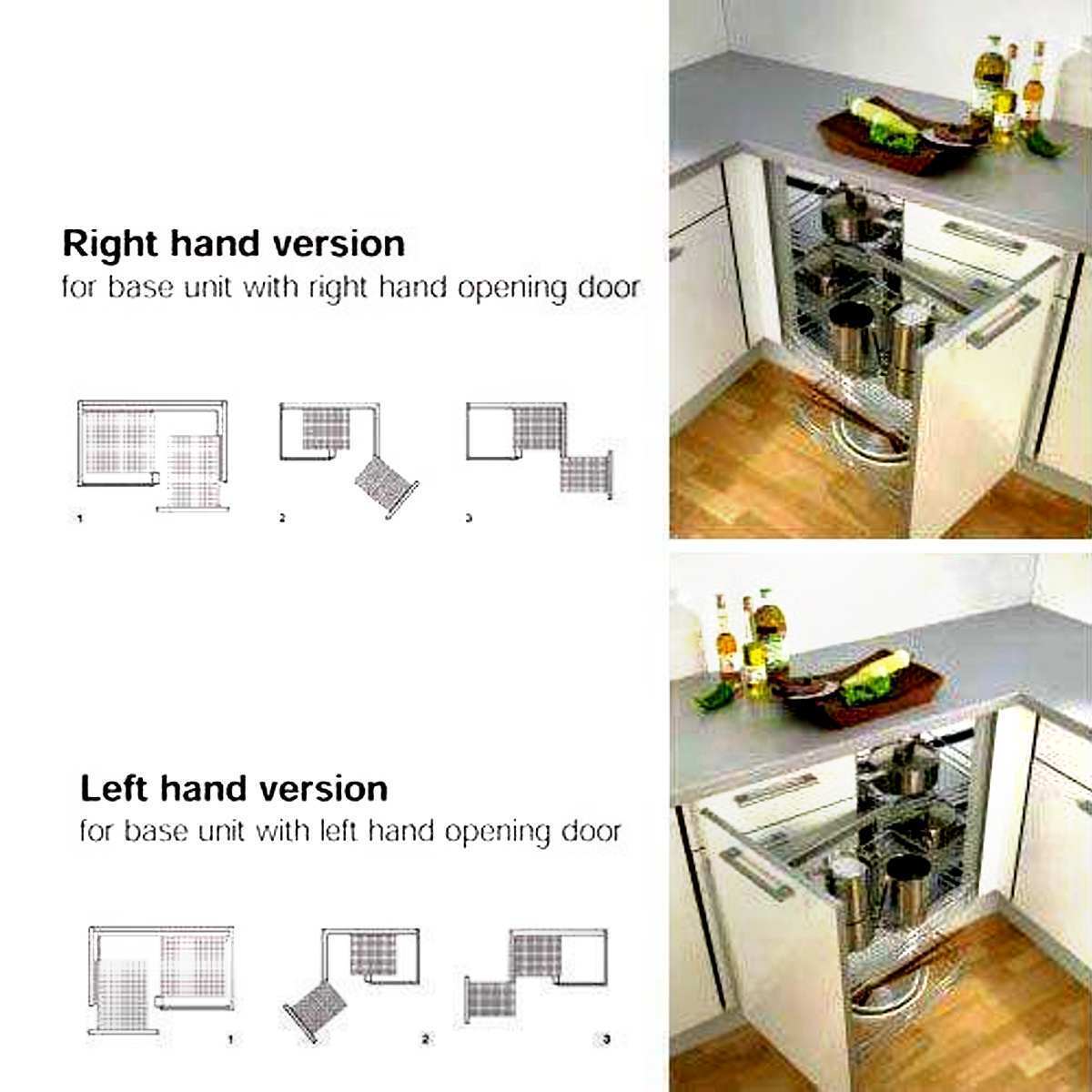

Version:
Right
Magic Corners
Closing Mechanism:
Soft Close

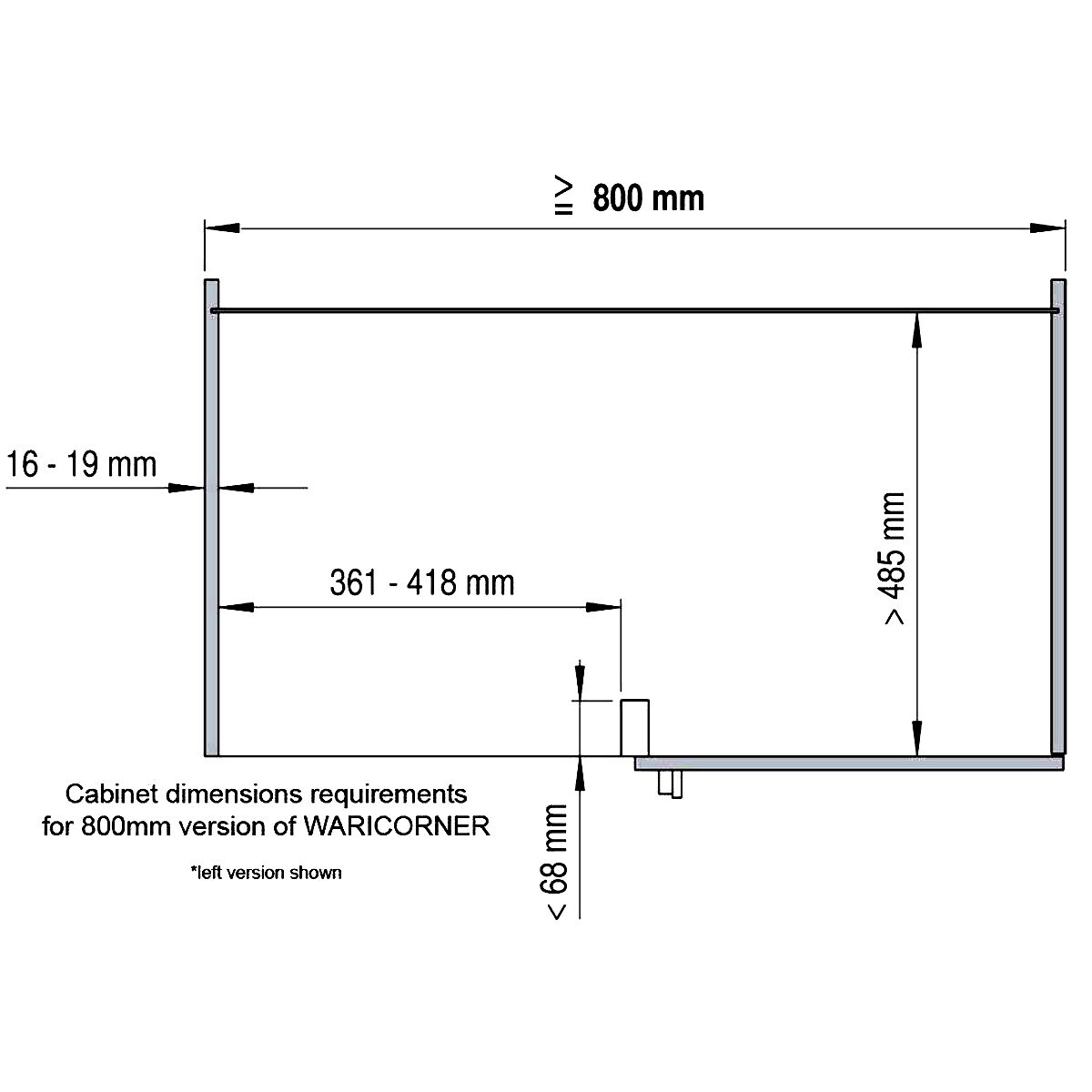

Minimum Internal Cabinet Depth
:
Measured at the narrowest point of the cabinet between centre post and back panel.
System have to operate without any obstructions.
If depth of the cabinet is insufficient there are amendments to the cabinet that might be done:
- moving back panel further back
- removing centre post (corner post) and mounting doors on 190 degree hinges
- mounting door to the basket if possible
485mm
Product short Name:
Vauth-Sagel
System Type:
Magic Corner
Type of baskets:
- Chrome Linear Wire
