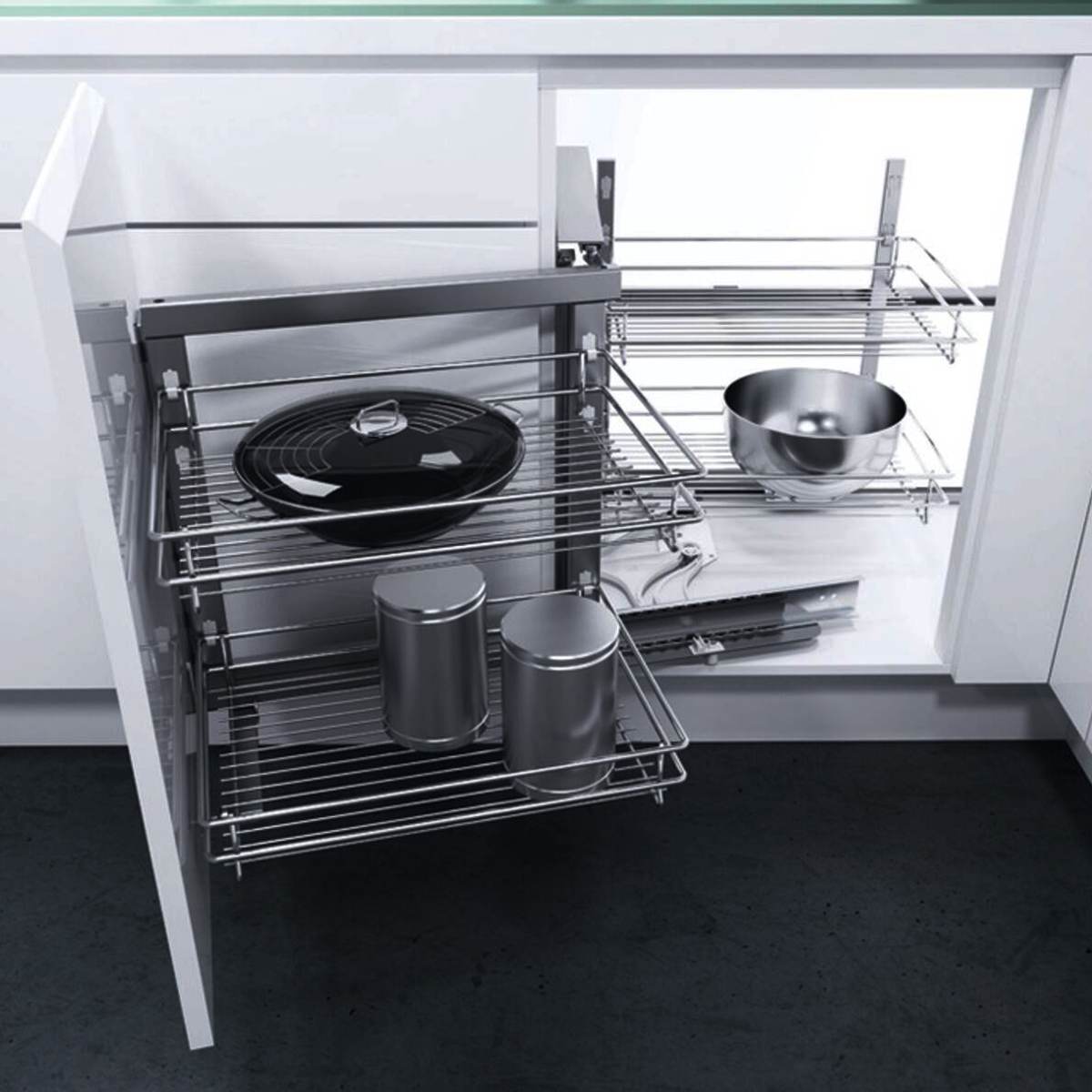

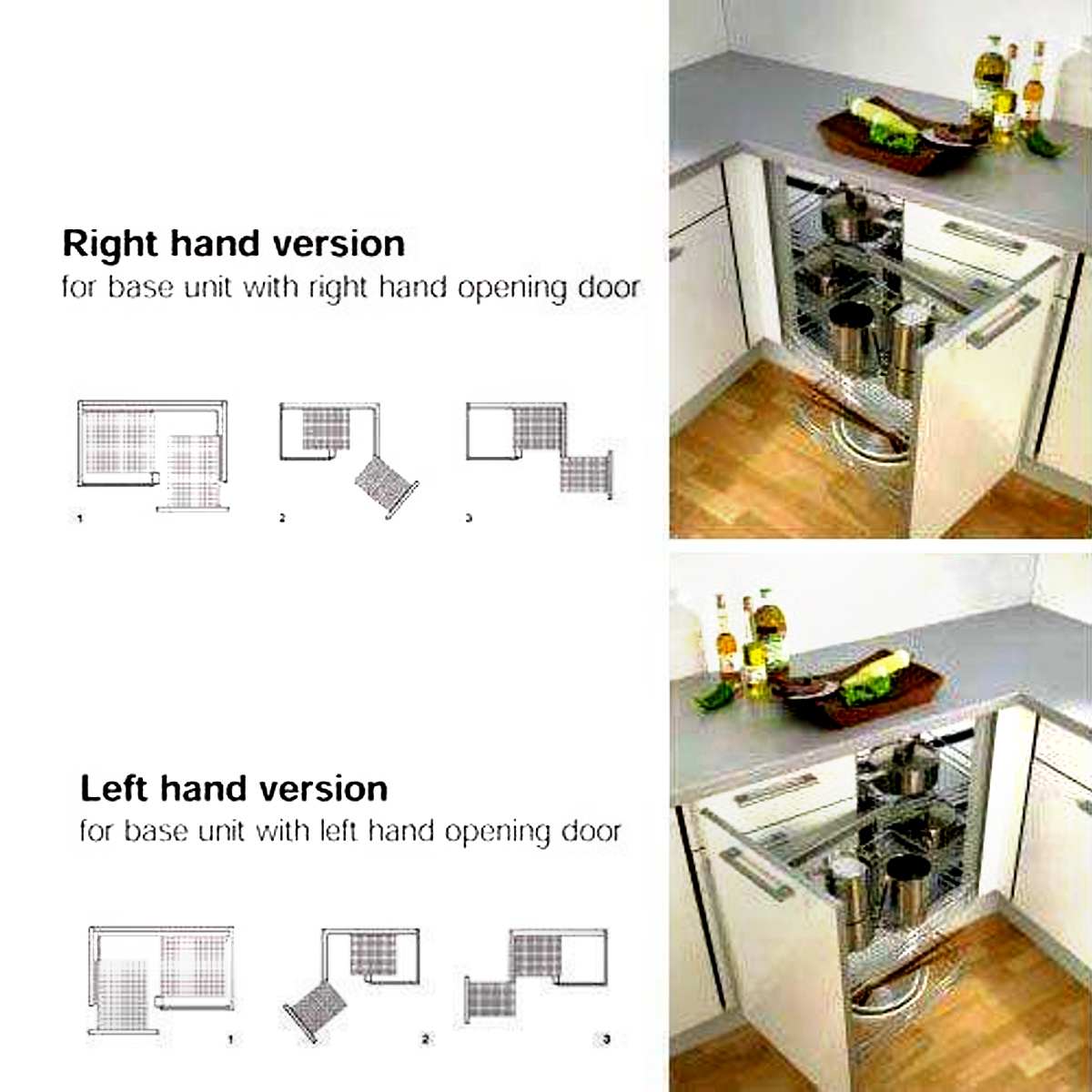

Left Or Right Hand Swing Out Wari Corner Kitchen Storage Unit Complete Set, Pull-Out Action With Soft Close. Made In Germany By Vauth Sagel.
- Powder-coated silver baskets
- Suitable for 800/900/1000mm cabinets
- Manufactured in Germany
- Supplied with 10 years warranty
- Built-in soft-close
- Minimum internal height required: 530mm
- Minimum internal depth required: 485mm
- 800mm version to suit 400mm door widths
- 900mm version to suit 450/500/600mm door widths
- Maximum load capacity: 9.5kg (at rear)
- Maximum load capacity: 8kg (at front)

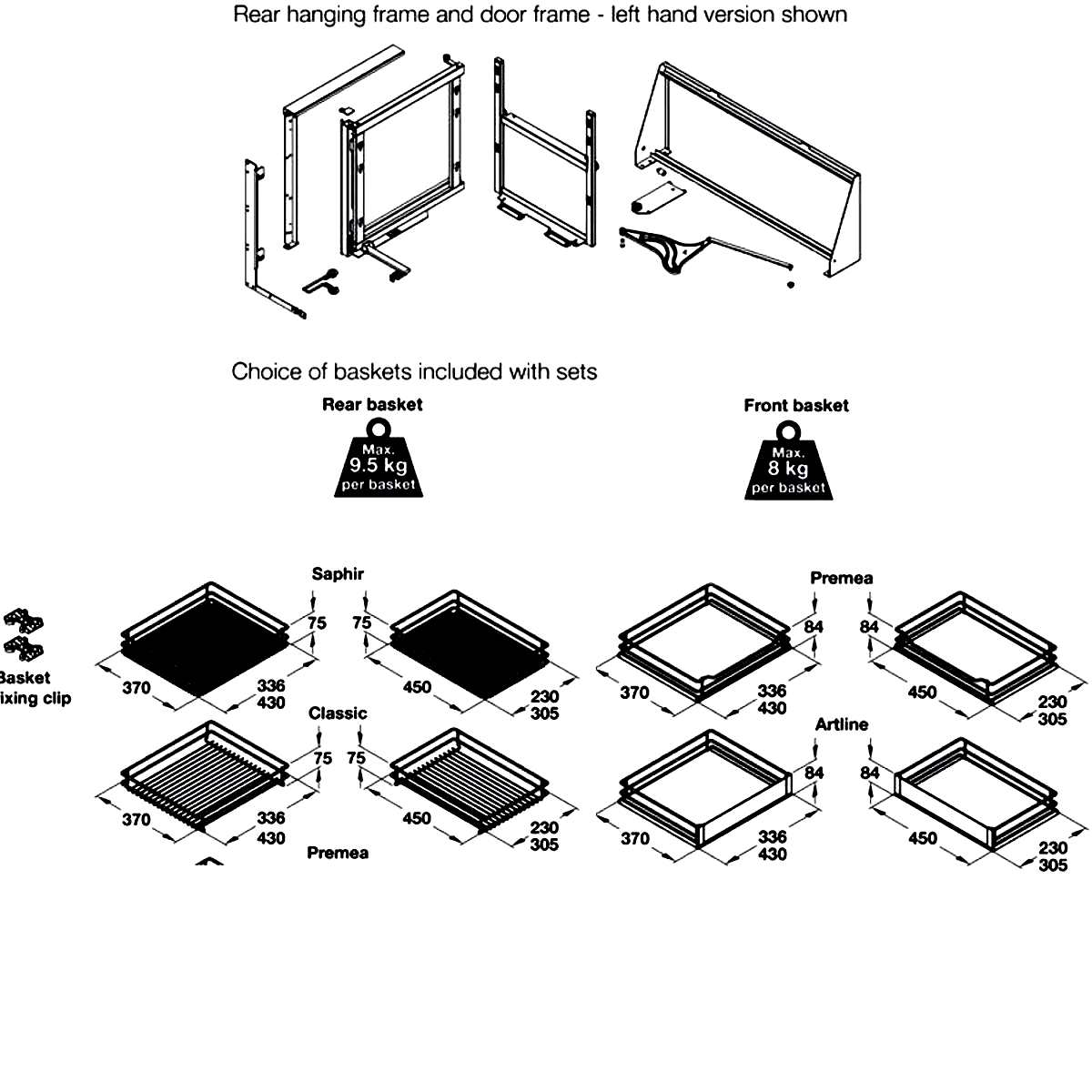

Set includes:
- 1x frame set
- Rear hanging frame and base mounting track in silver epoxy-coated tubular steel
- Door frame with pivot in silver epoxy-coated tubular steel
- Back frame in silver epoxy-coated tubular steel
- Door frame follower in fibreglass improved plastic
- Door panel hanging plates in a silver coloured steel, 3-way adjustable
- Fixing screws and fitting instructions
- 2x powder-coated silver storage baskets (rear)
- 2x powder-coated silver storage baskets (door)
Cabinet Size:
800mm (400mm Door)
Basket Type:
Linear Wire Silver
Version:
Left
Magic Corners
Closing Mechanism:
Soft Close

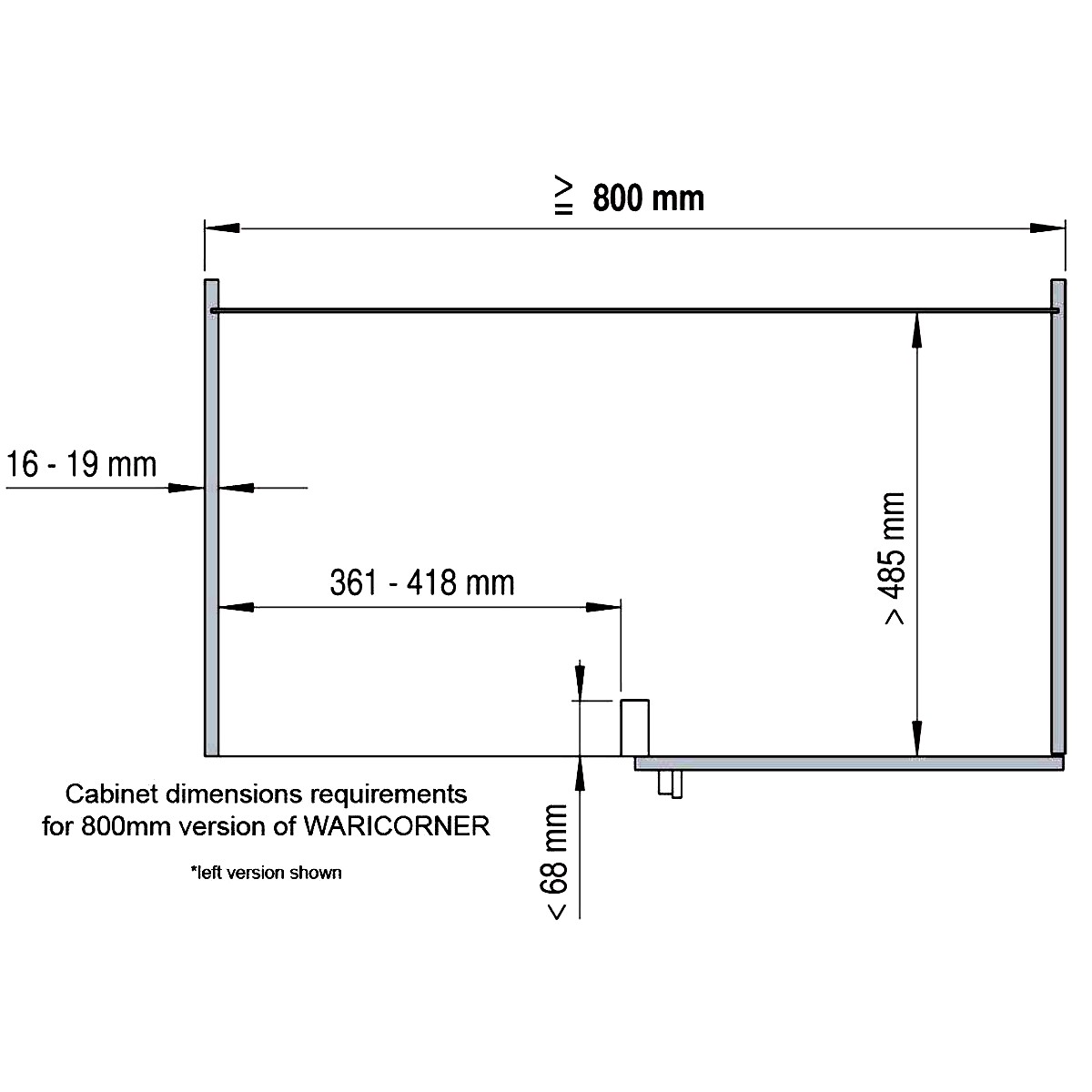

Minimum Internal Cabinet Depth
:
Measured at the narrowest point of the cabinet between centre post and back panel.
System have to operate without any obstructions.
If depth of the cabinet is insufficient there are amendments to the cabinet that might be done:
- moving back panel further back
- removing centre post (corner post) and mounting doors on 190 degree hinges
- mounting door to the basket if possible
485mm
Product short Name:
Vauth-Sagel
System Type:
Magic Corner
Type of baskets:
- Silver Linear Wire
