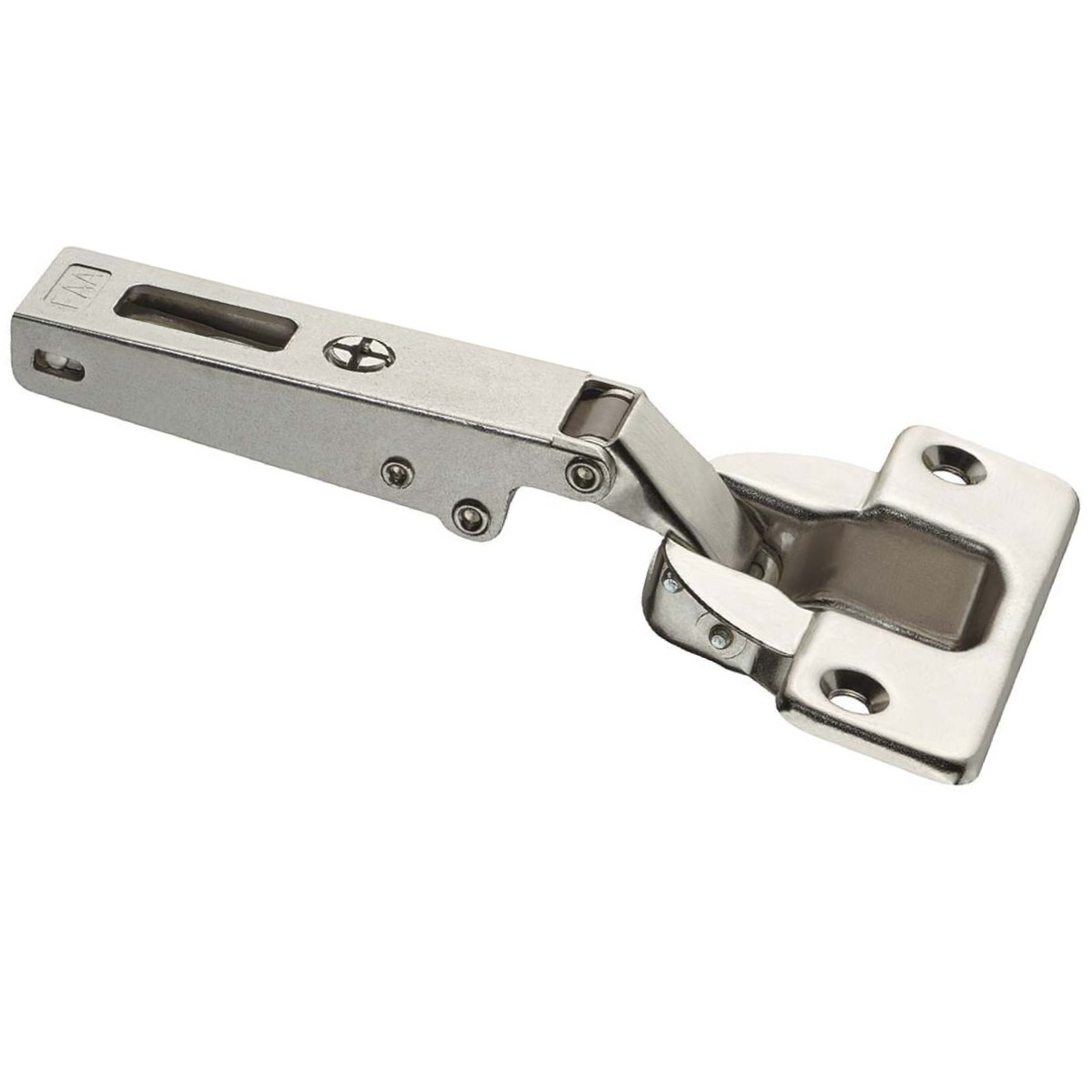

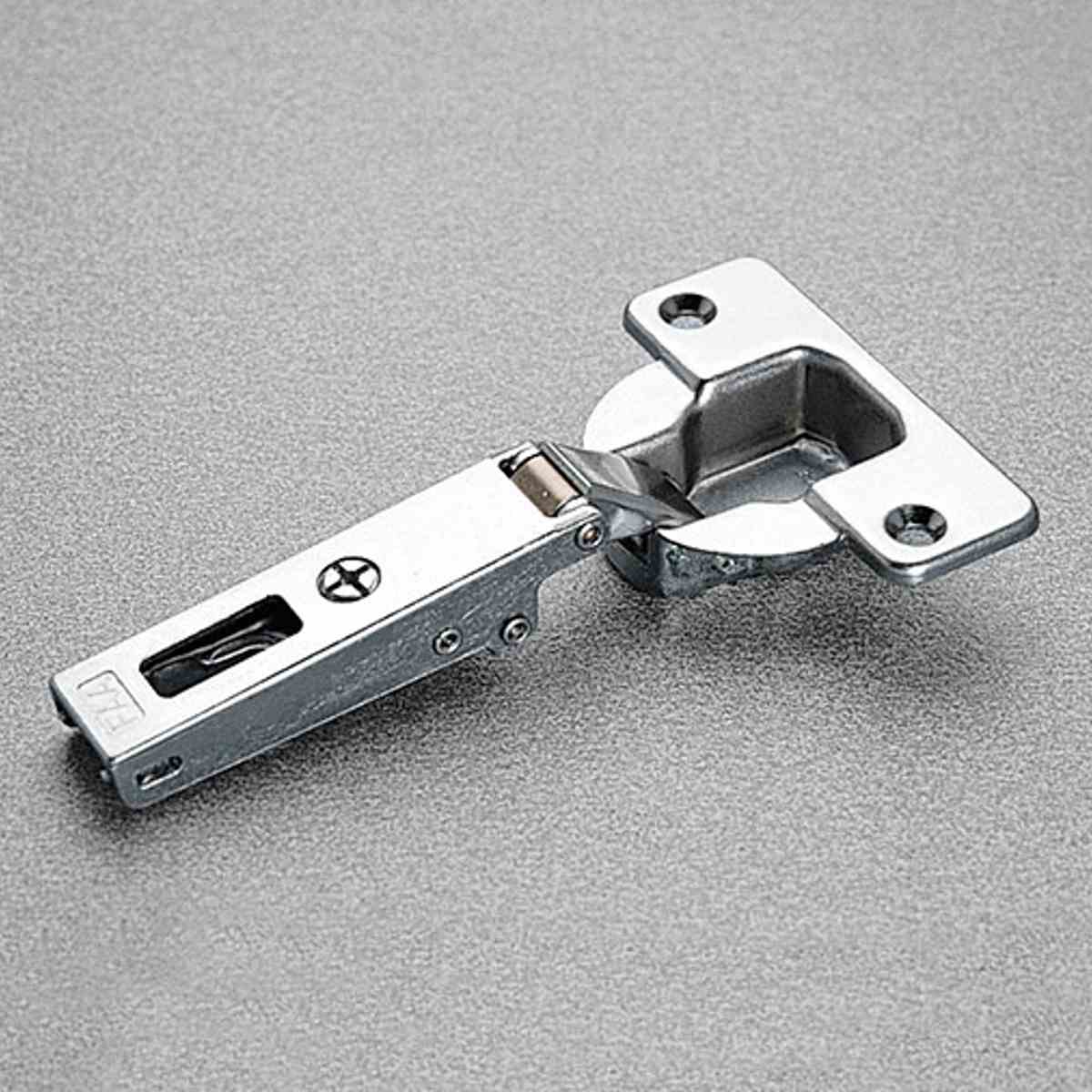

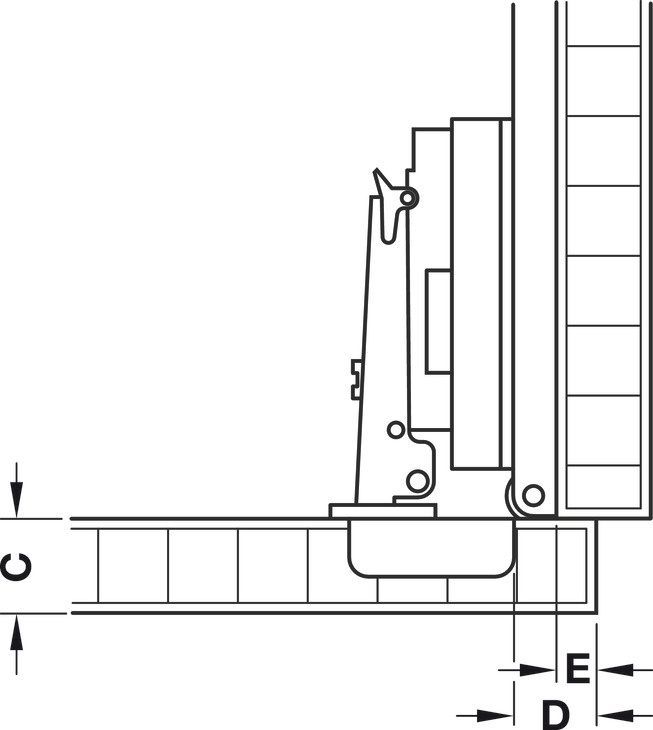

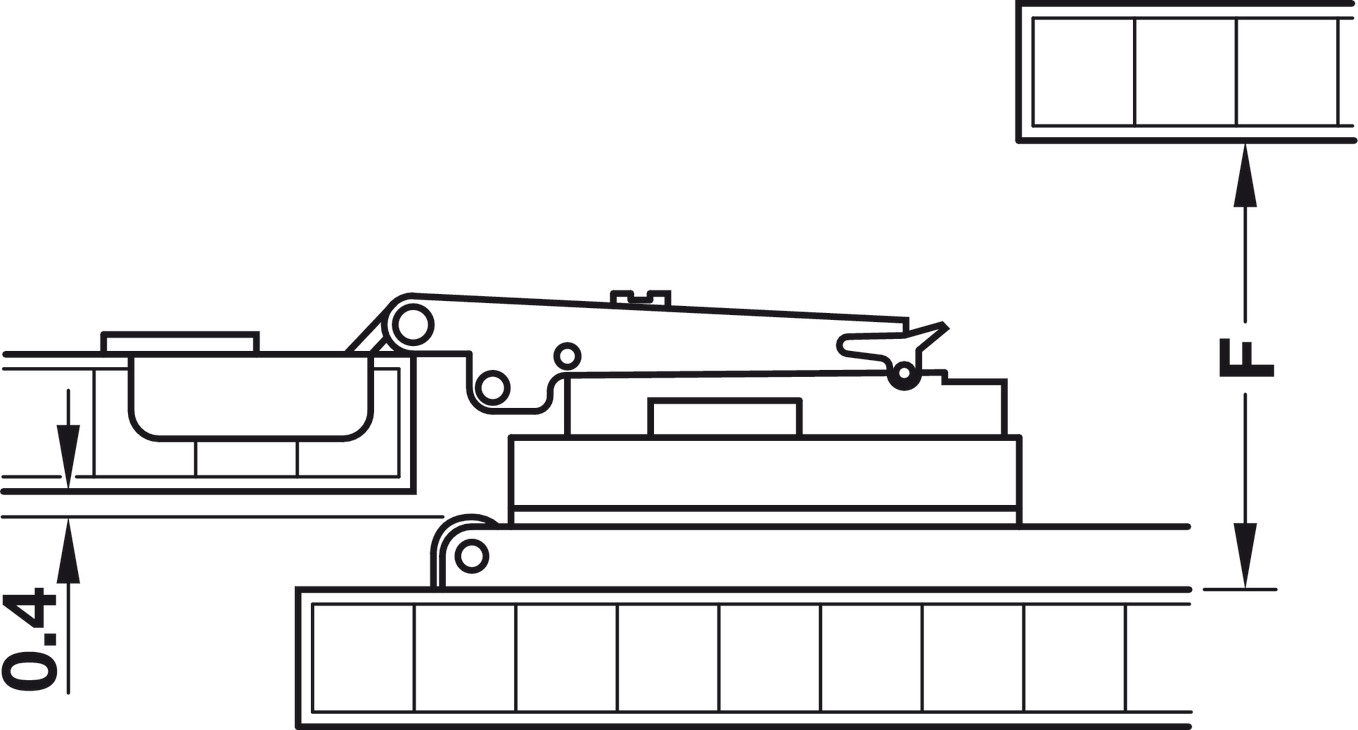

The Salice CNA7A99 sprung hinge features a 40mm cup with a 94° full overlay application. Its 0mm cranked arm is ideal for heavier or thicker doors. The cup drilling depth is 13mm, and it works seamlessly with Salice mounting brackets.
- Sprung
- 0mm cranked arm
- Cup drilling: 40mm
- Full overlay application
- Installation: screw fixing

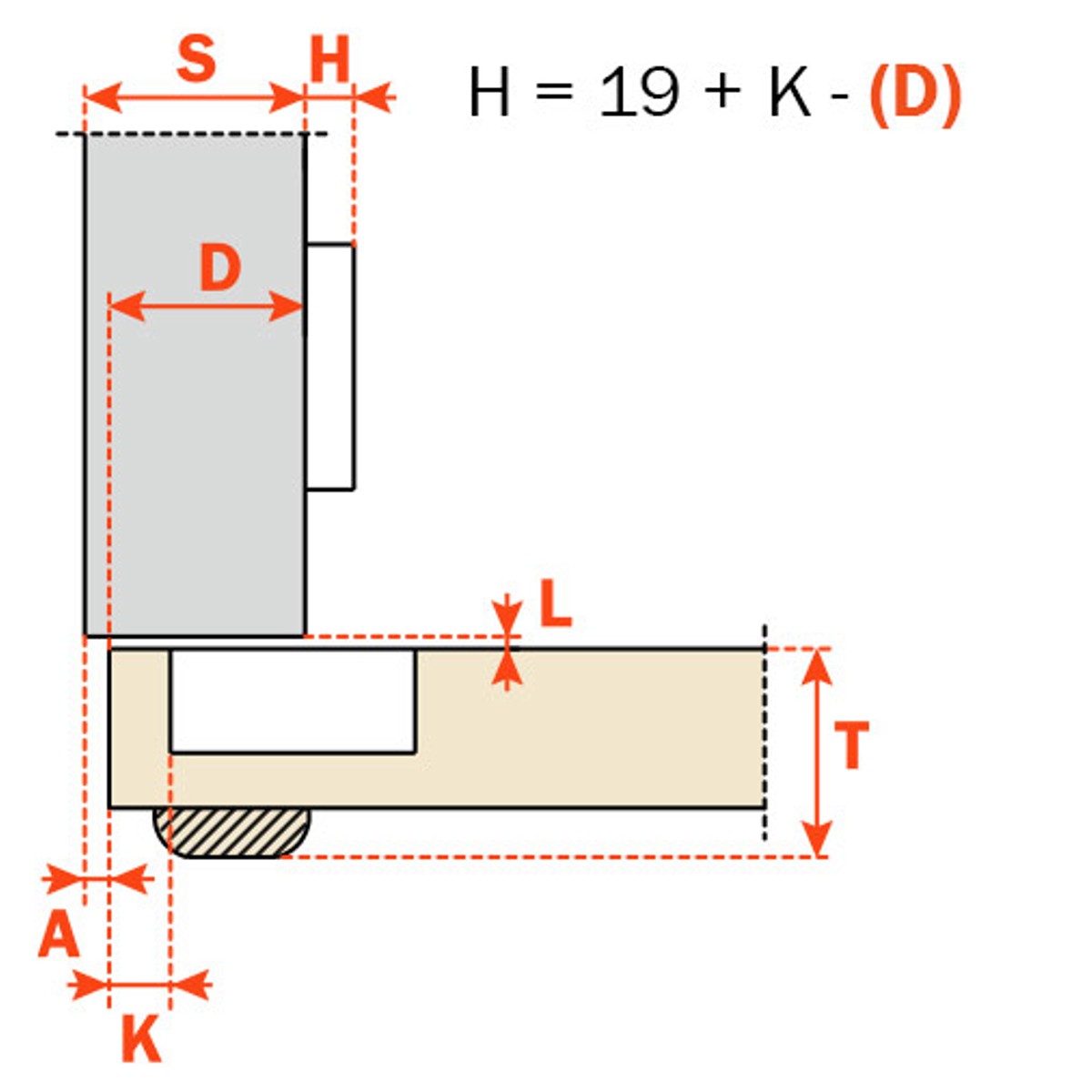

- Cup drilling depth: 13mm
- Suitable for Accuride 1432
- Maximum door thickness: 40mm
- Requires 3.5mm Countersunk screws

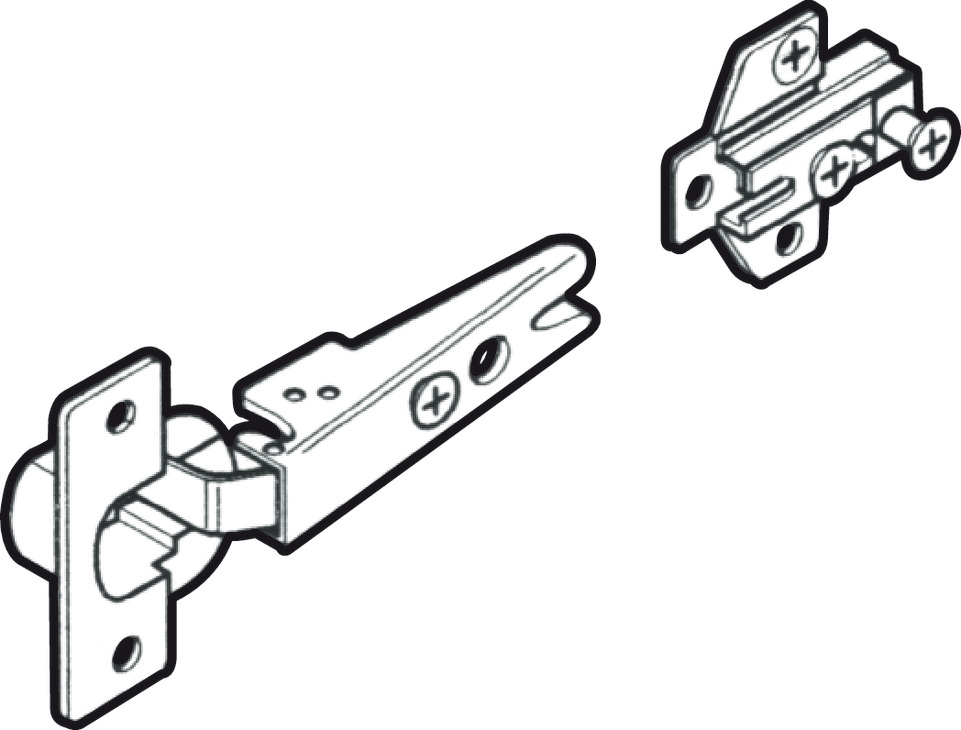

- Works with 200 salice series/domi plates

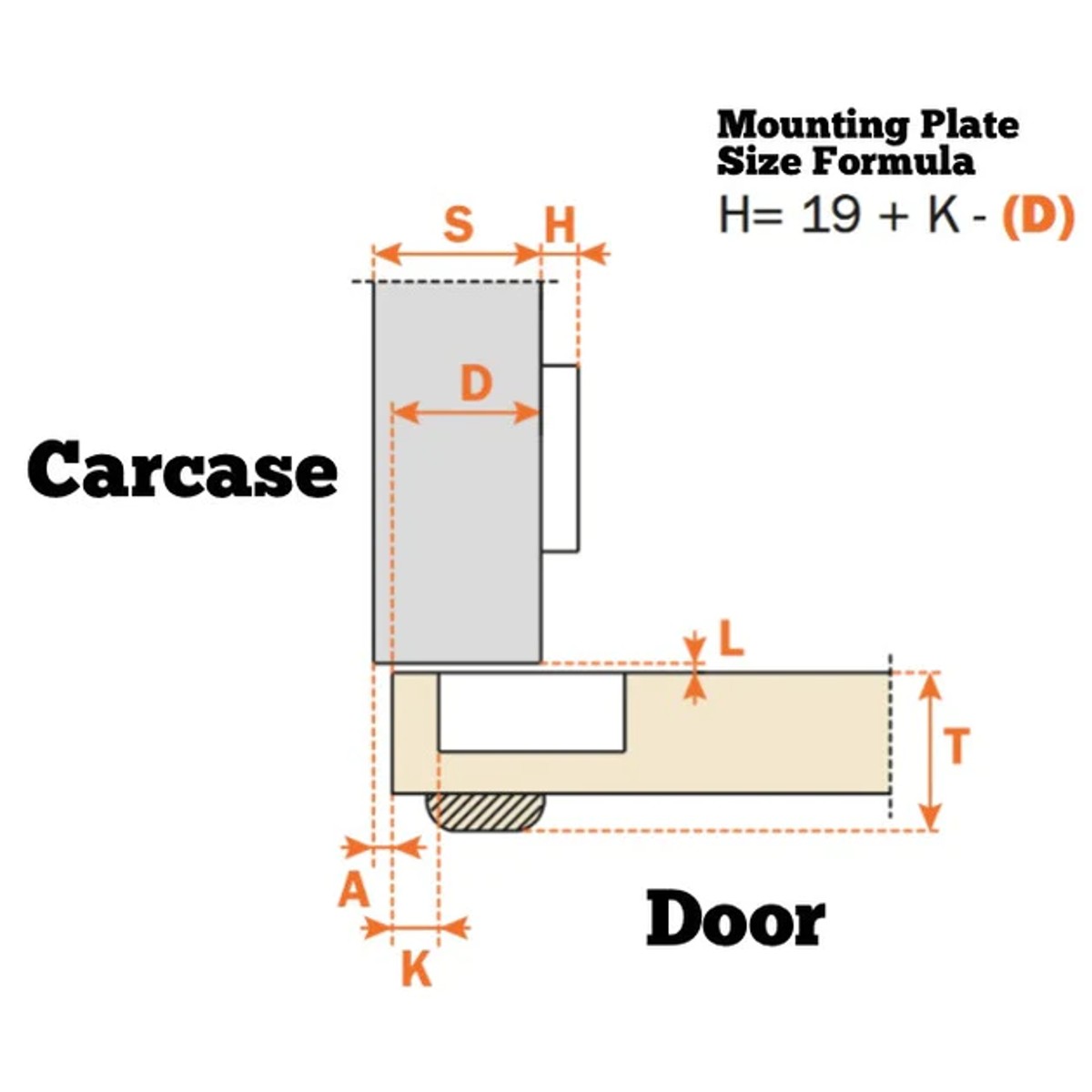

- Mounting plates sold seperately in the related products below

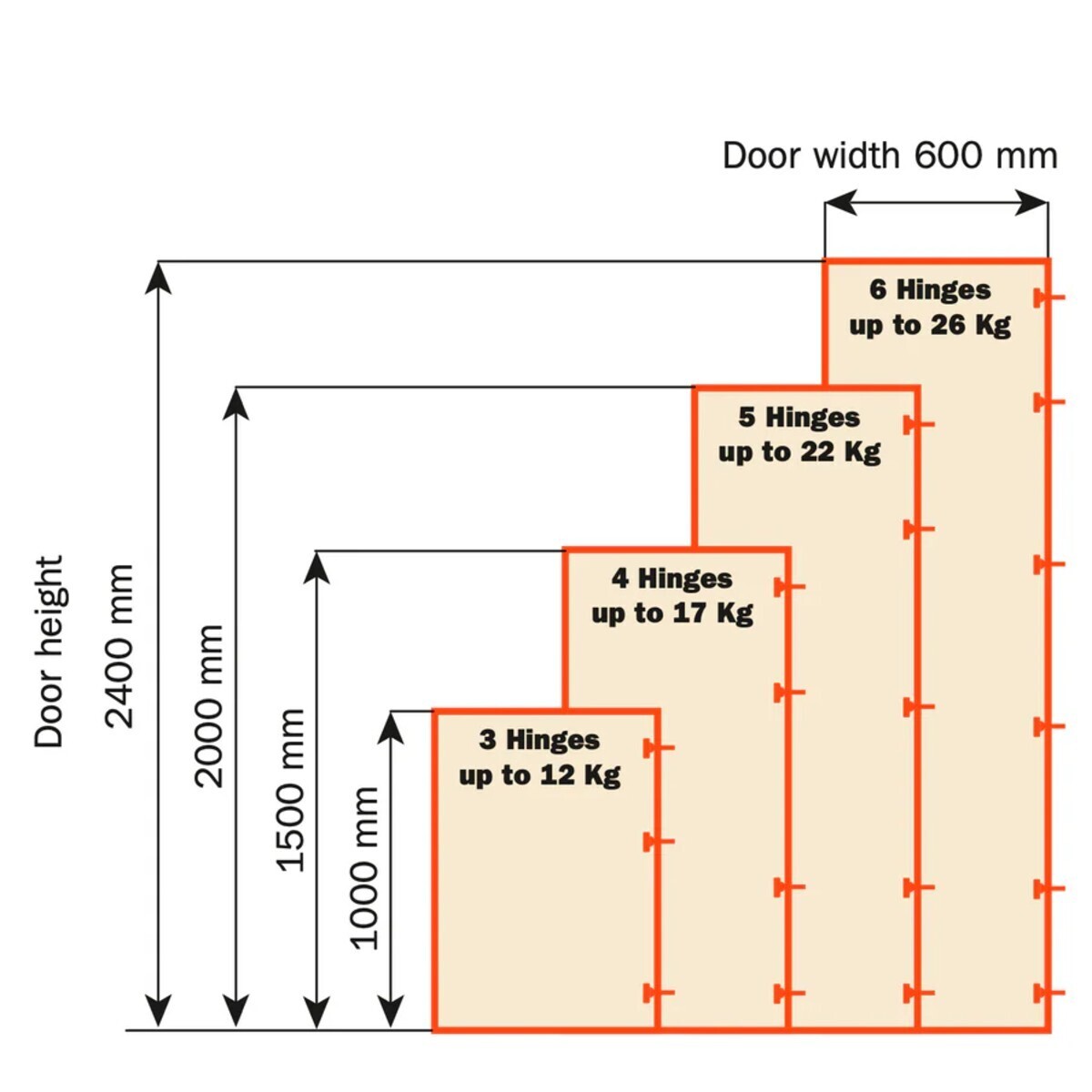

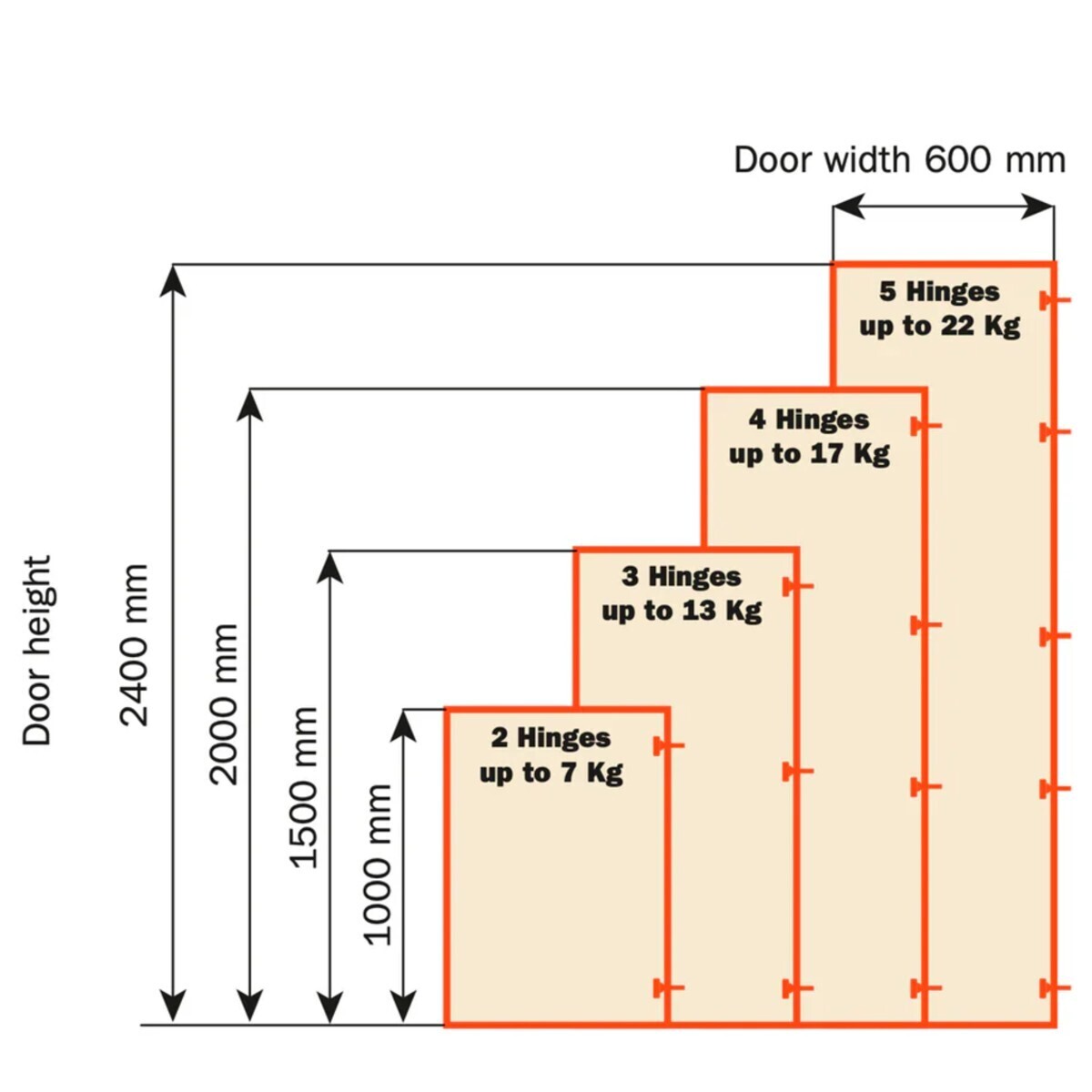

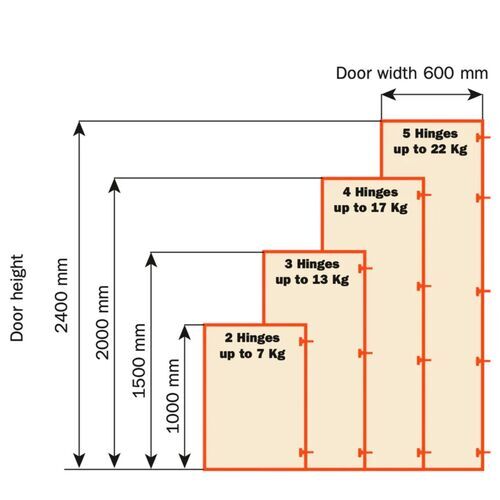

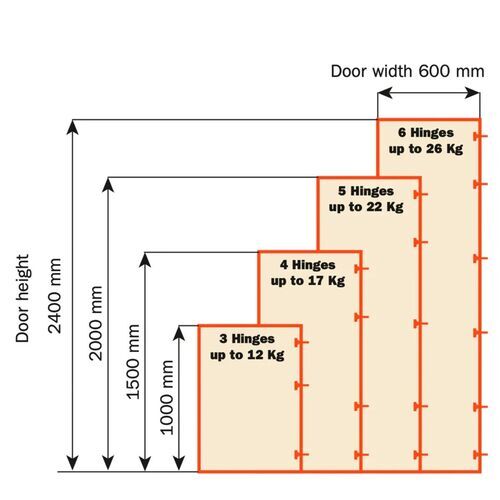

A number of hinges required per door height:
- 0-1000mm (2/3 hinges)
- 1001-1500mm (3/4 hinges)
- 1501-2000mm (4/5 hinges)
- 2001-2400mm (5/6 hinges)
