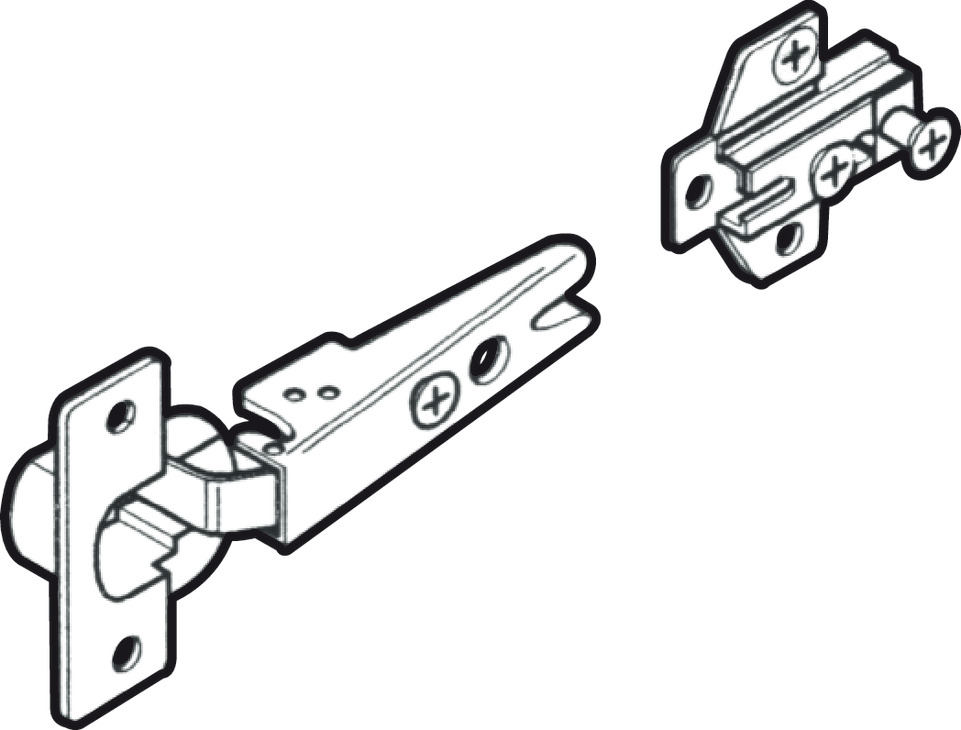

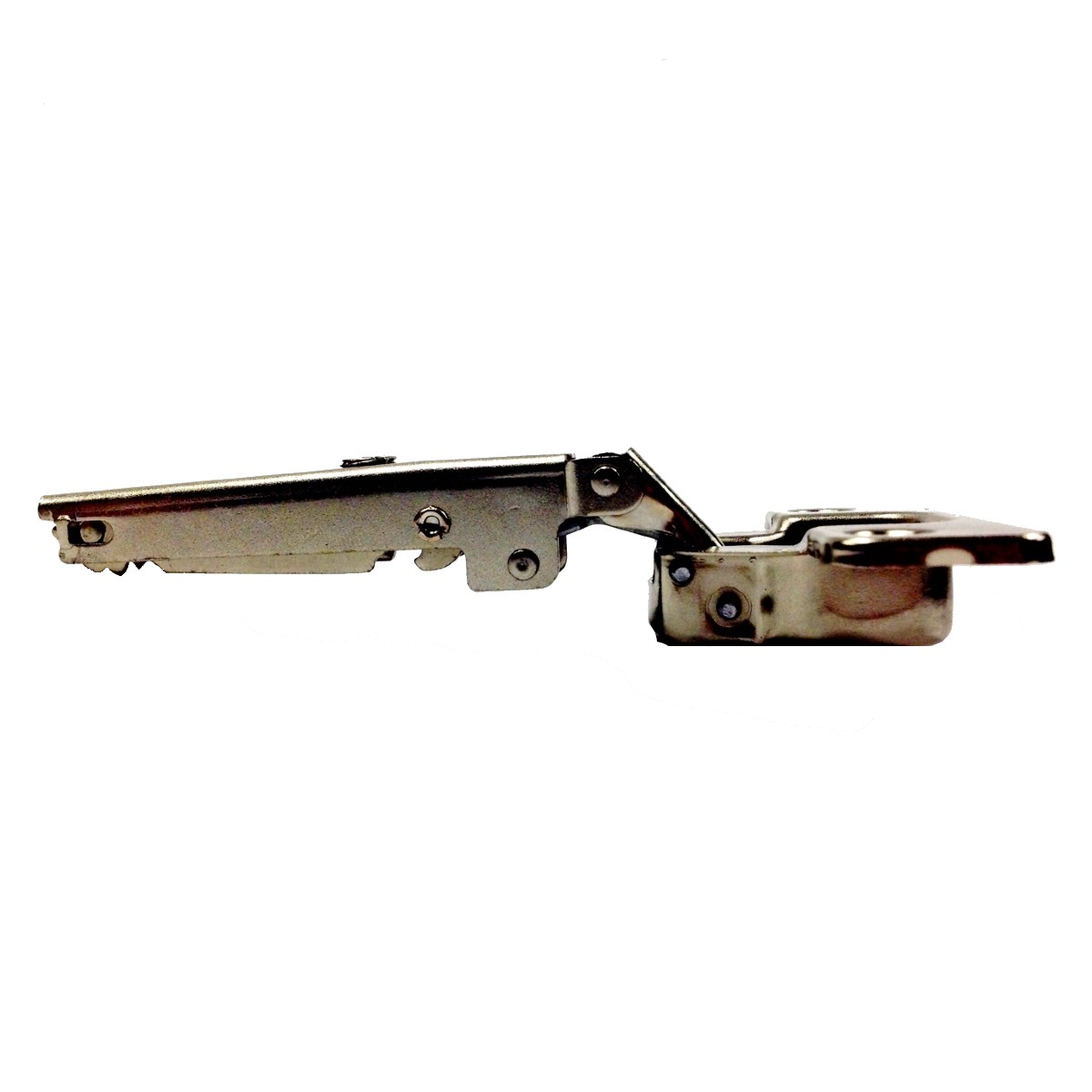

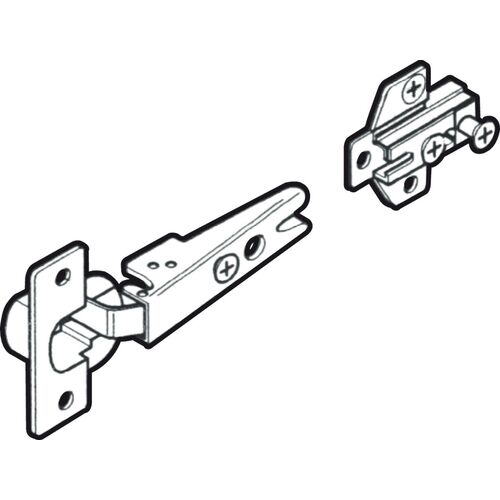

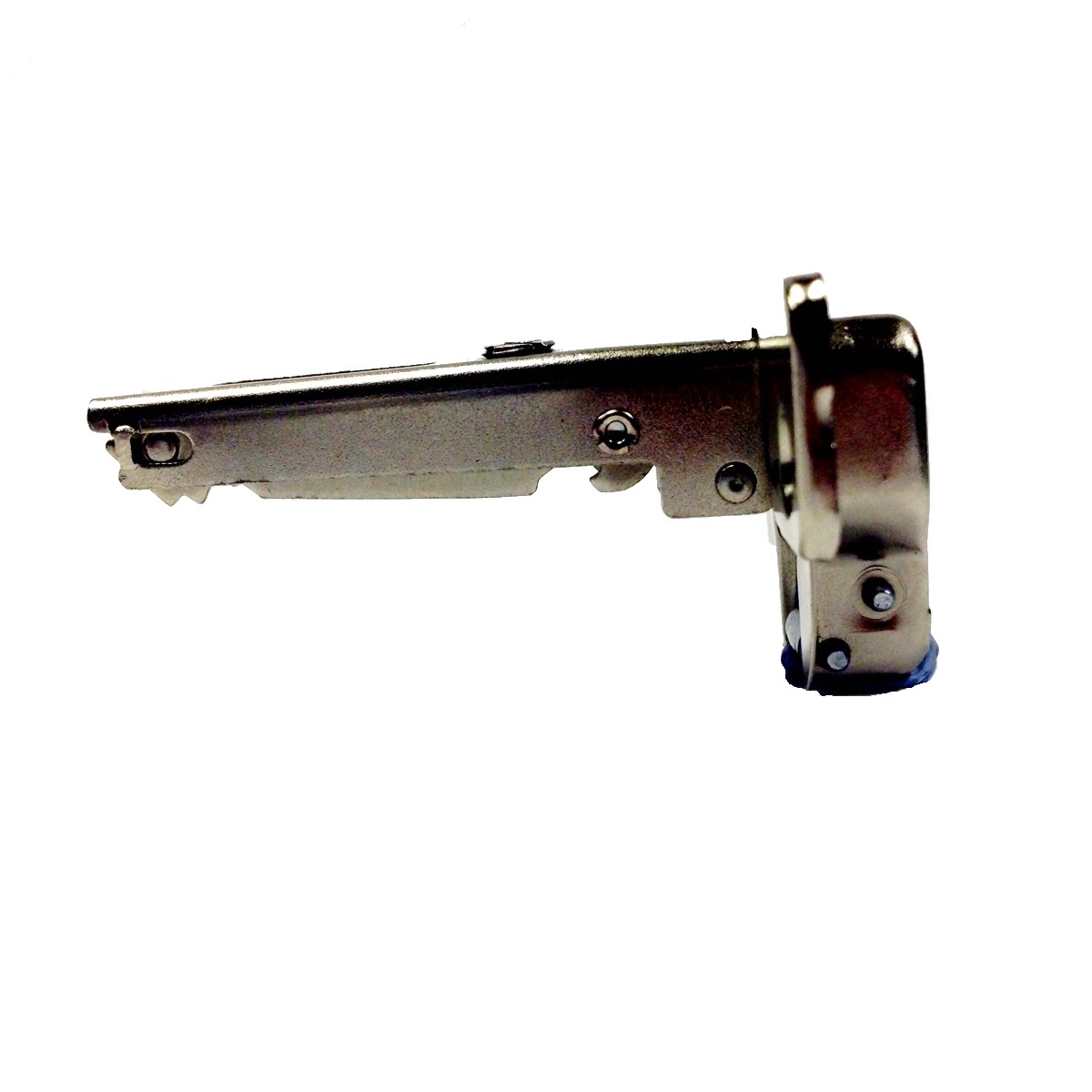

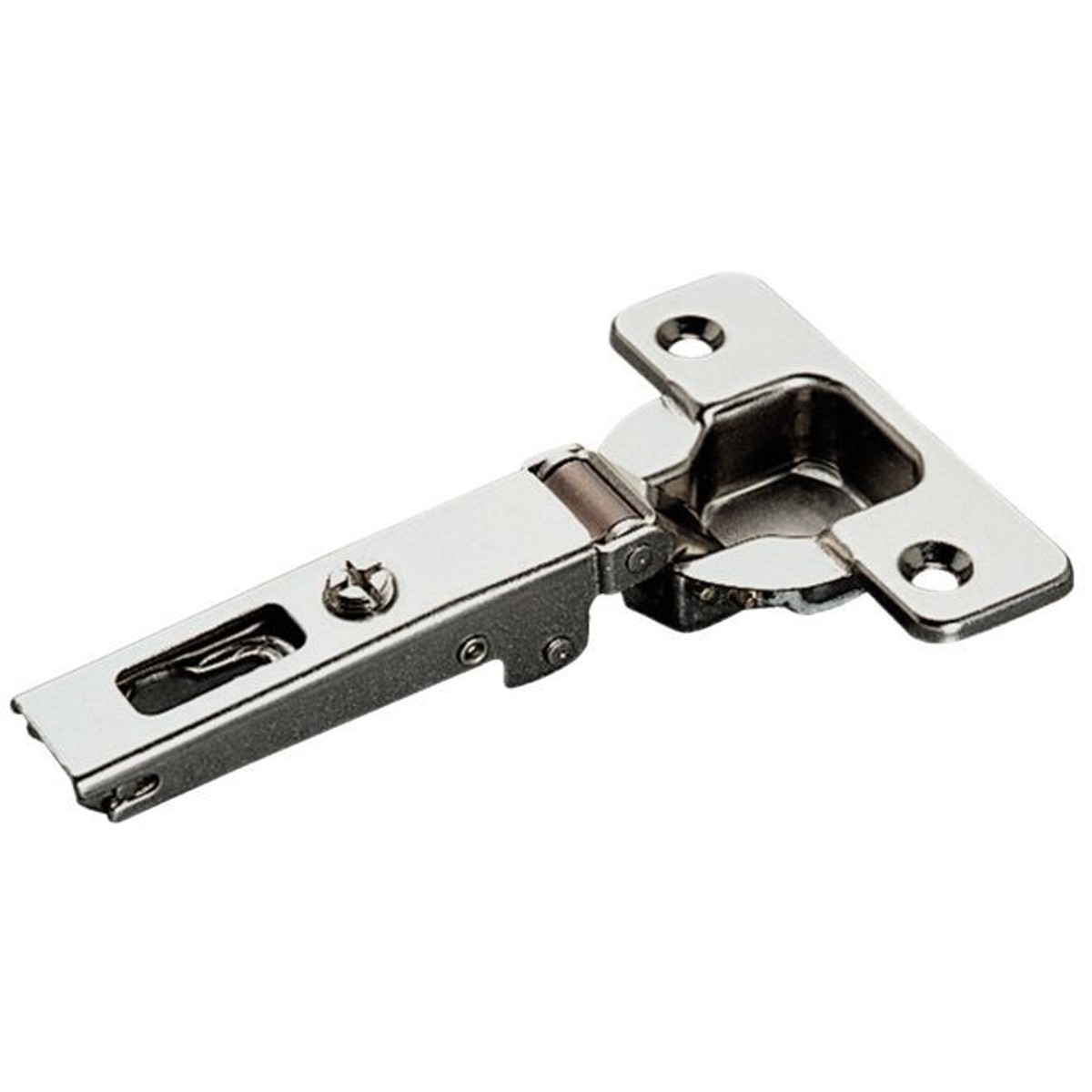

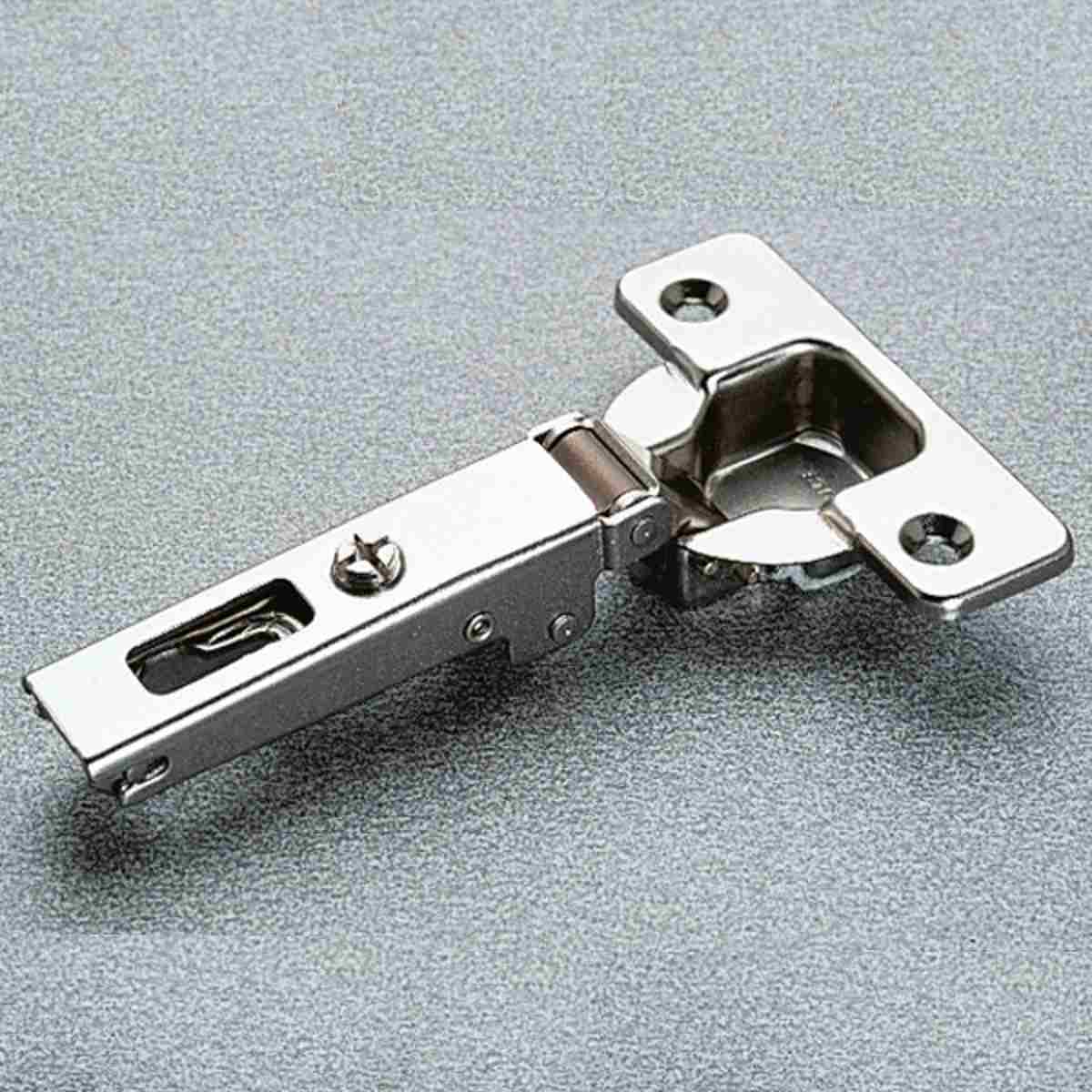

Salice C2A6A99 110 Degrees Full Overlay Sprung Hinge. 35mm Cup Hinge For Heavier And Thicker Doors.
- Full overlay application
- Sprung

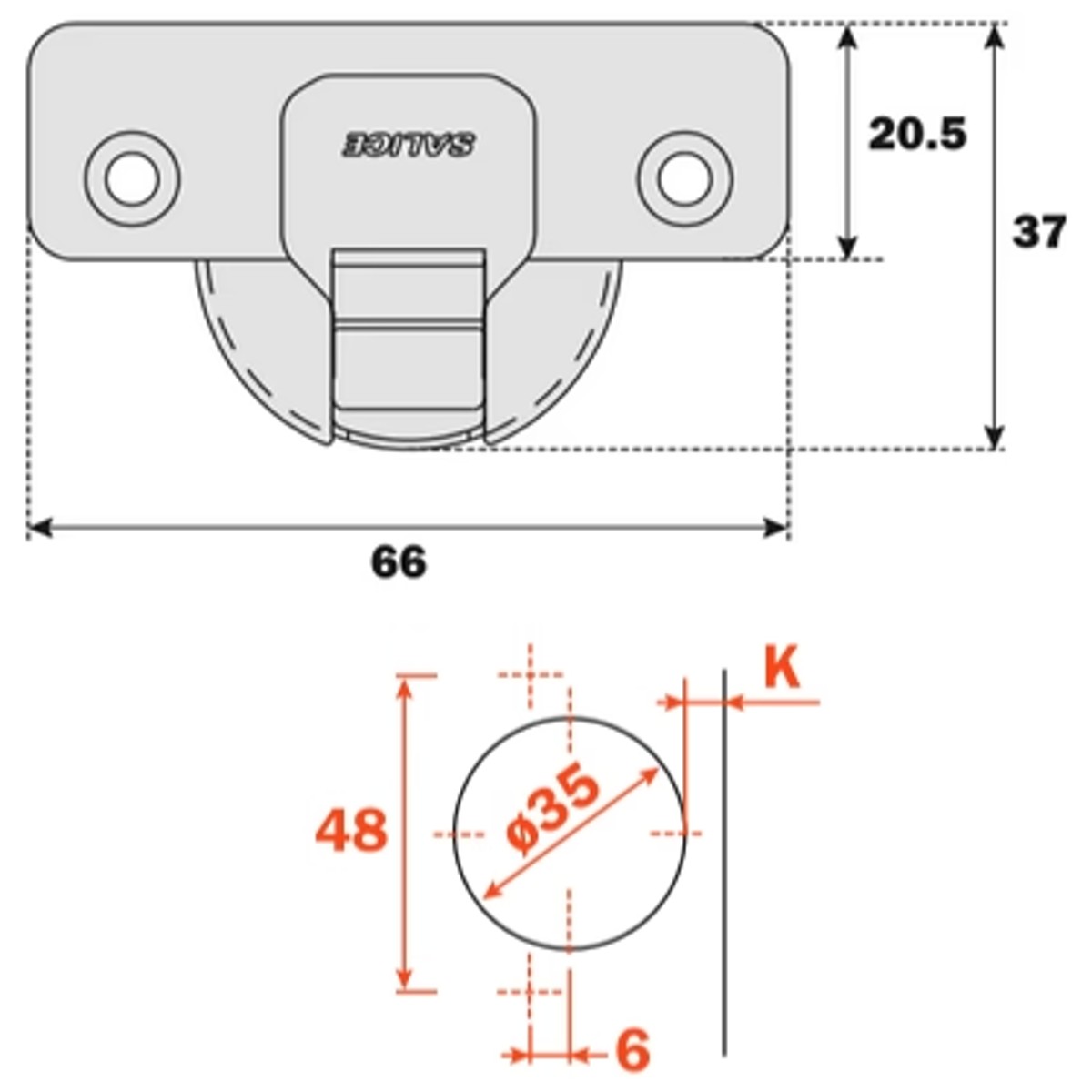

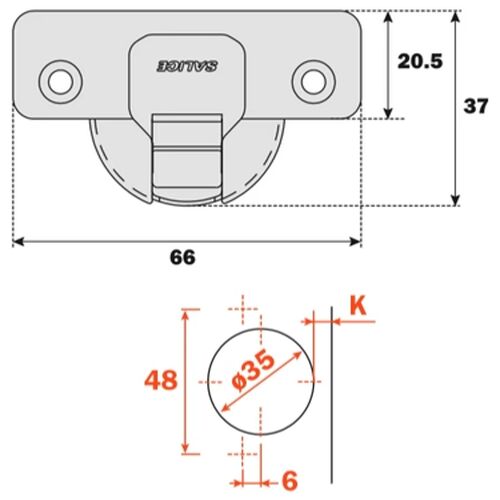

- Cup drilling: 35mm

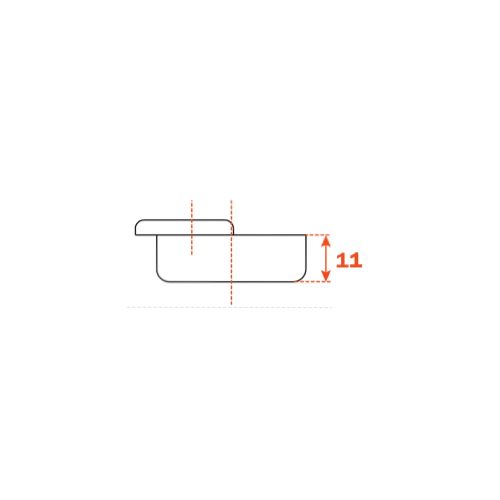

- Cup drilling depth: 11mm
- Works with 200 salice series/Domi plates
- Requires 3.5mm Countersunk screws
- Mounting plates sold seperately in the related products below
- Suitable for Accuride 1432

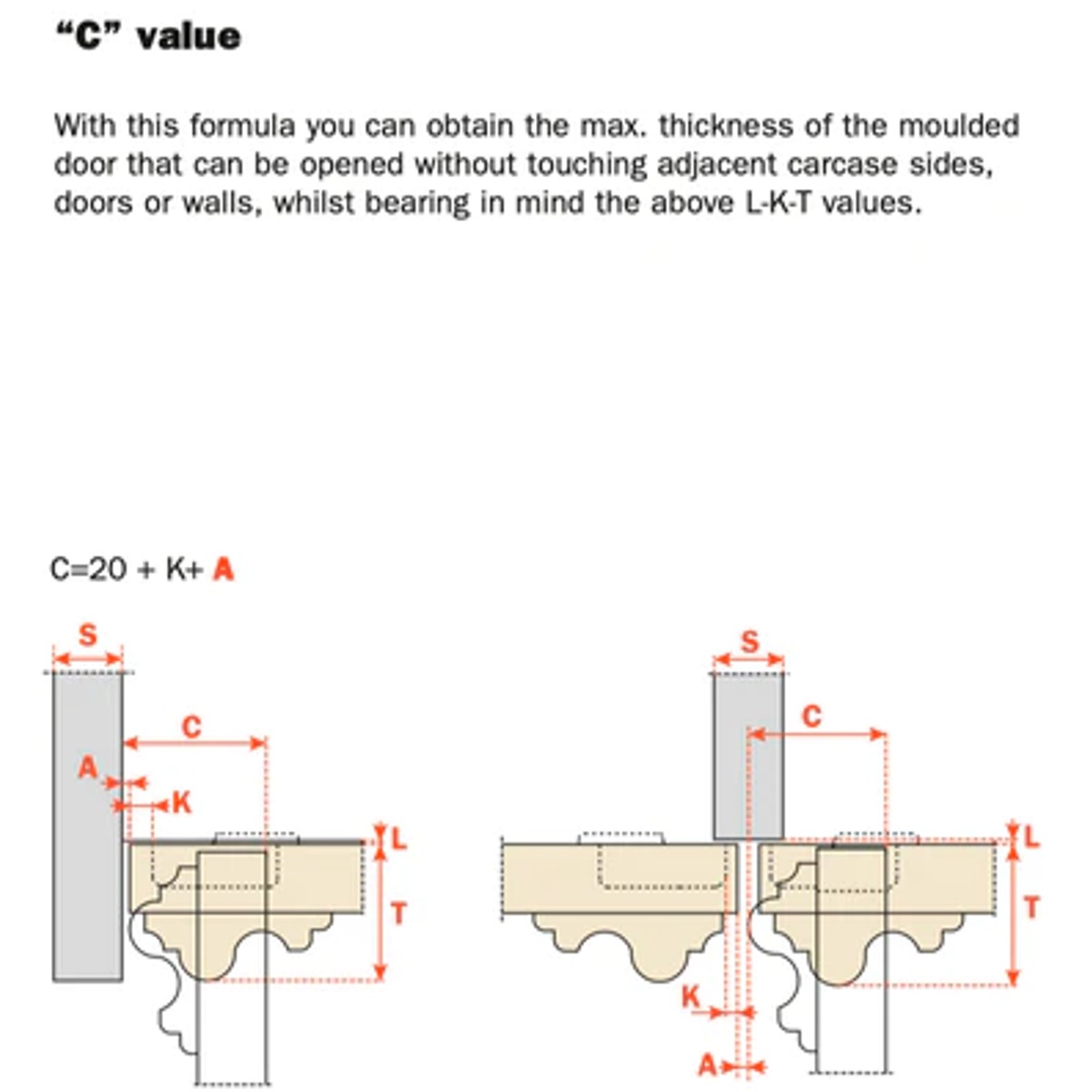

- Door thickness: 16-26mm
- Installation: screw fixing

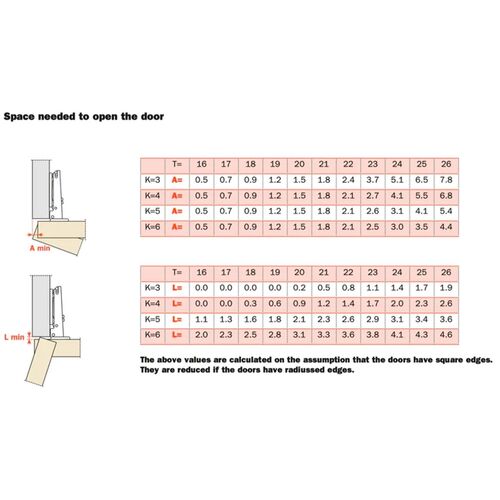

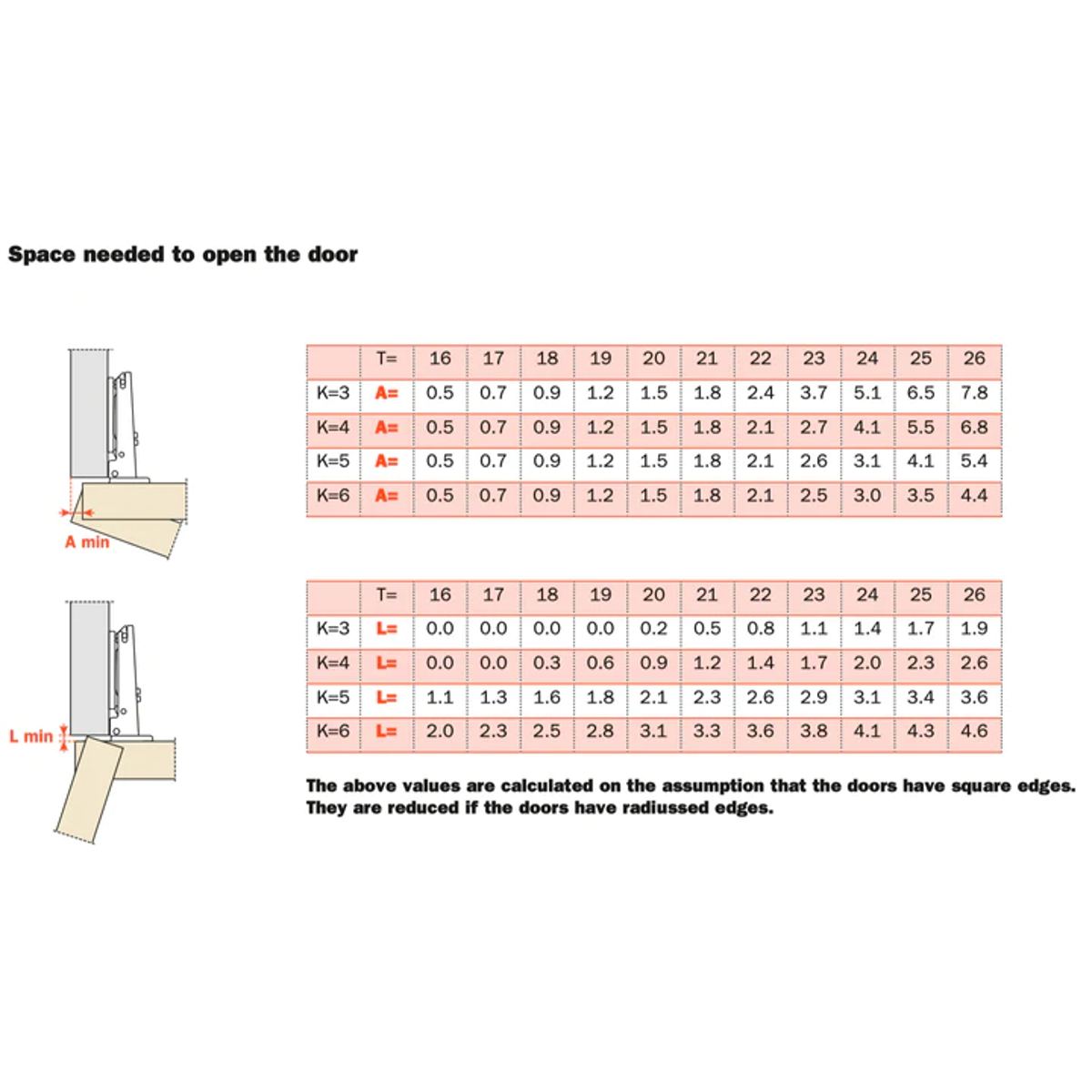

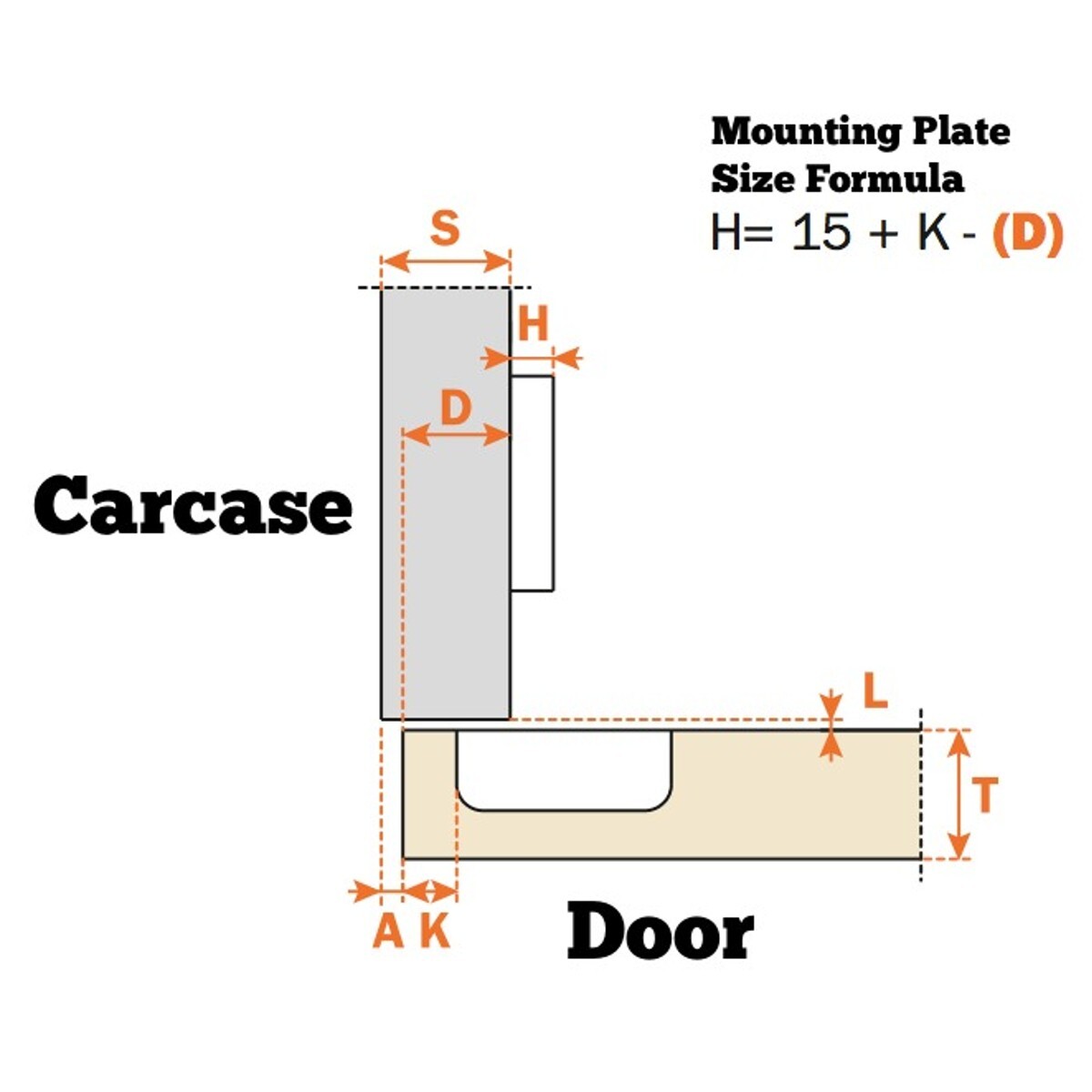

- Possible drilling distance: 3-6mm(K)

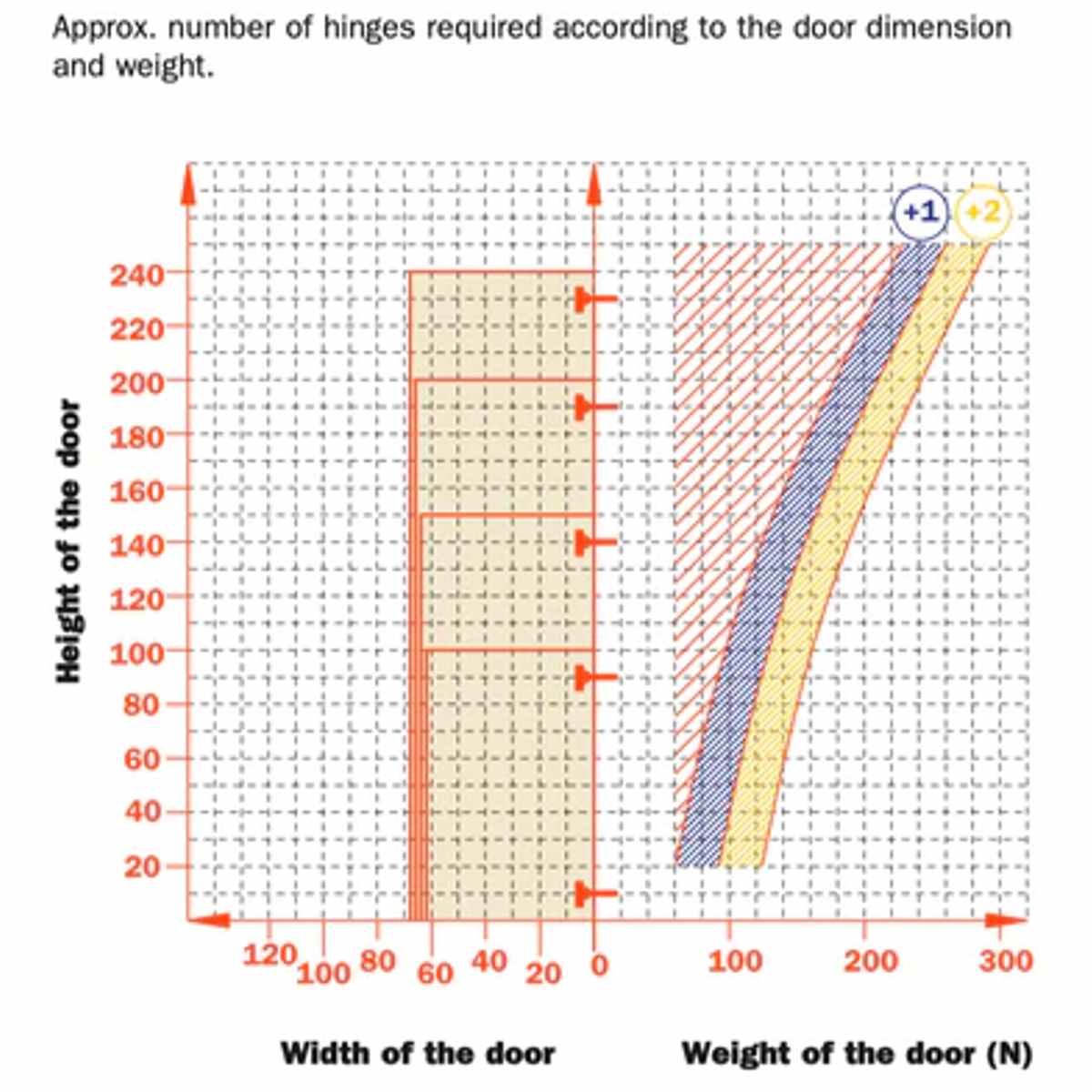

A number of hinges required per door height:
- 915-1193mm (3 hinges)
- 1194-1498mm (4 hinges)
- 1499-1803mm (5 hinges)
- 1804-2300mm (6 hinges)
