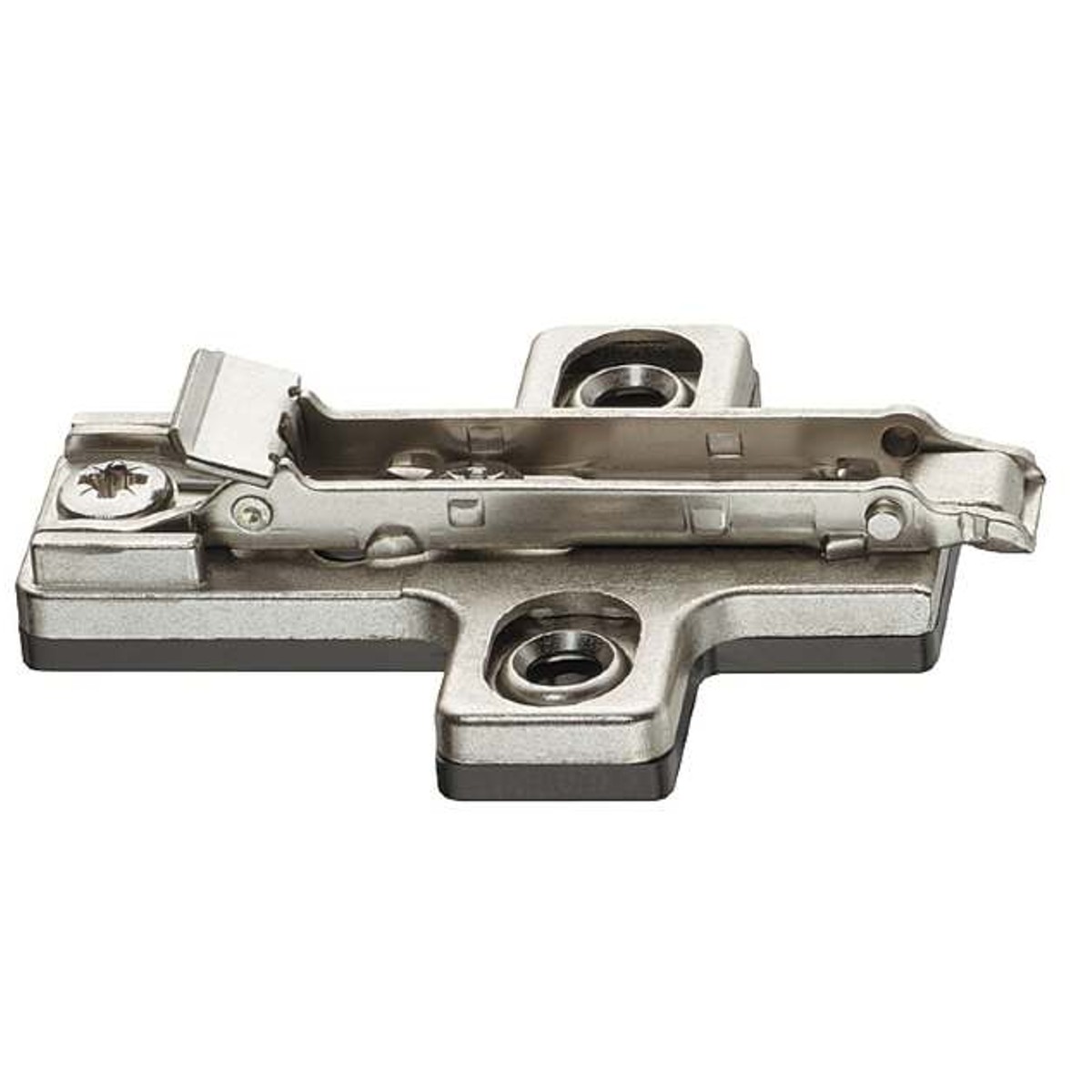

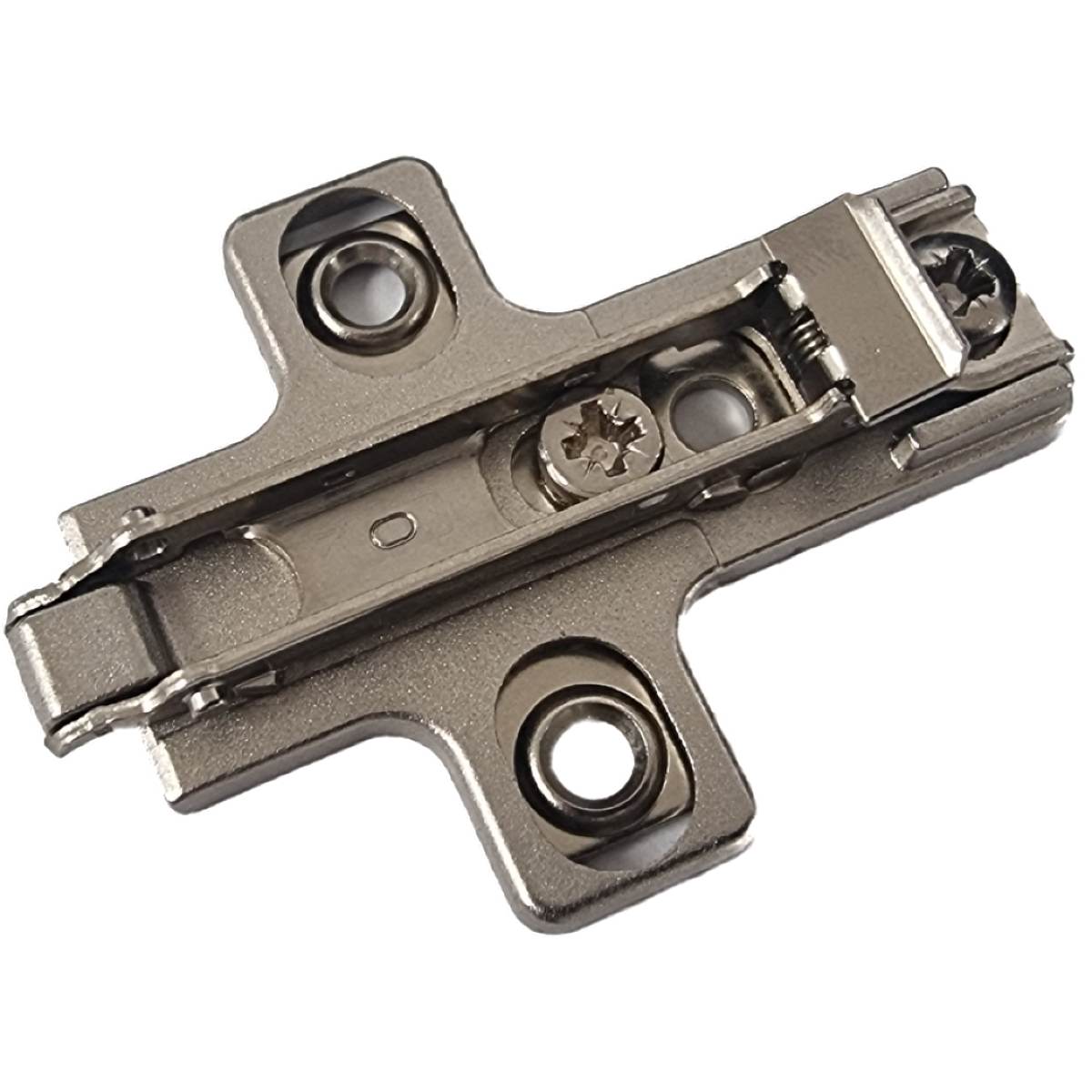

The Salice BAR3R09 0mm mounting plate is a premium two-cam adjustable hinge mounting plate compatible with all Salice hinges. Constructed of stamped steel or die-cast steel with nickel plating to resist corrosion, it provides cam height adjustment of +/-2mm and cam depth adjustment of -0.5mm to +2.8mm.
- Plate height: 0mm
- Nickel plated finish
- Can be used with Accuride 1432

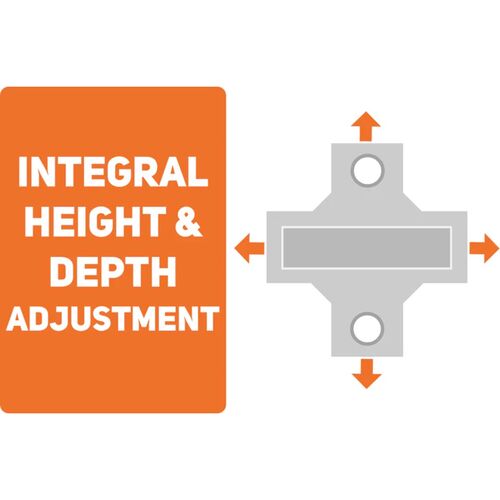

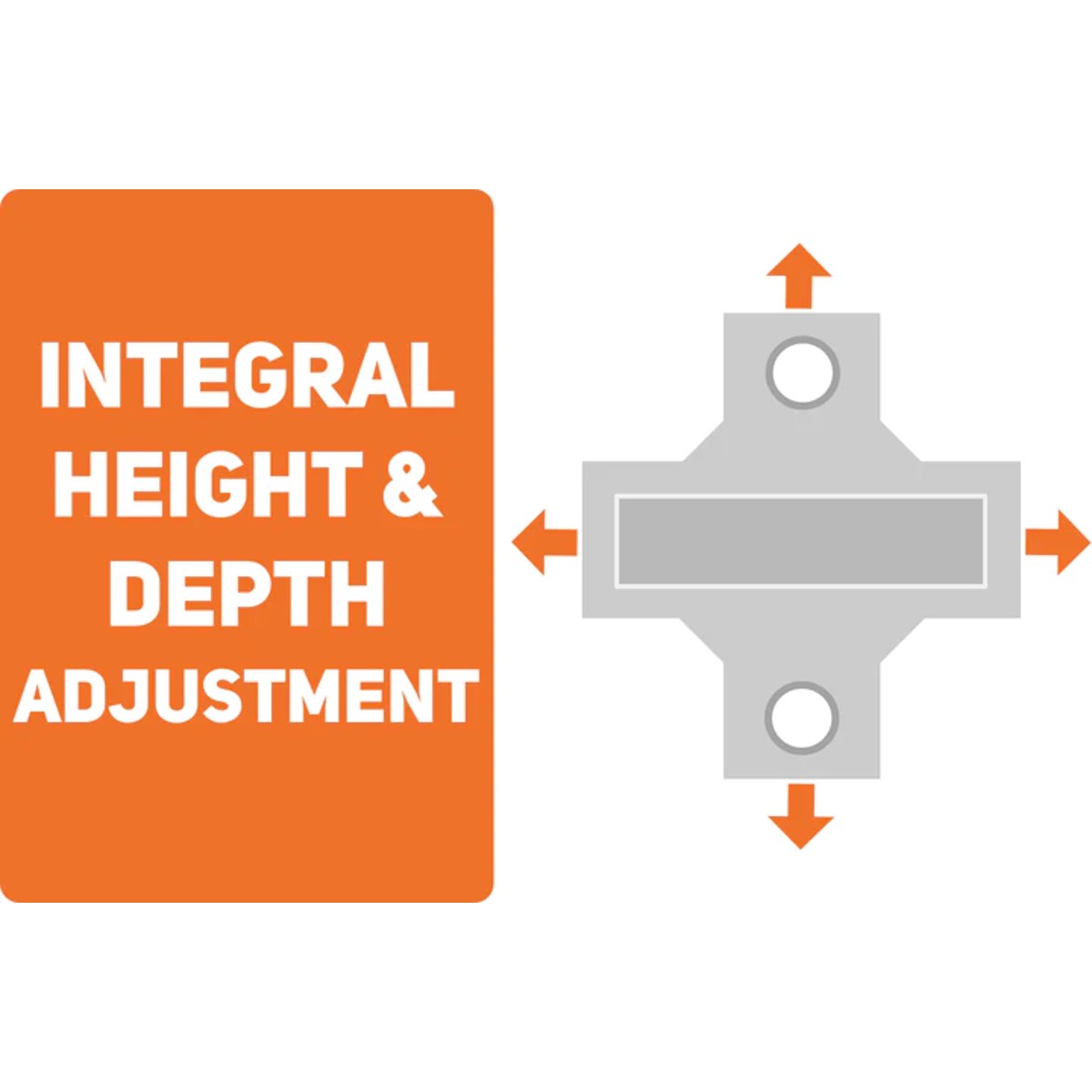

- Integral height and depth adjustement
- Requires 3.5mm countersunk woodscrews

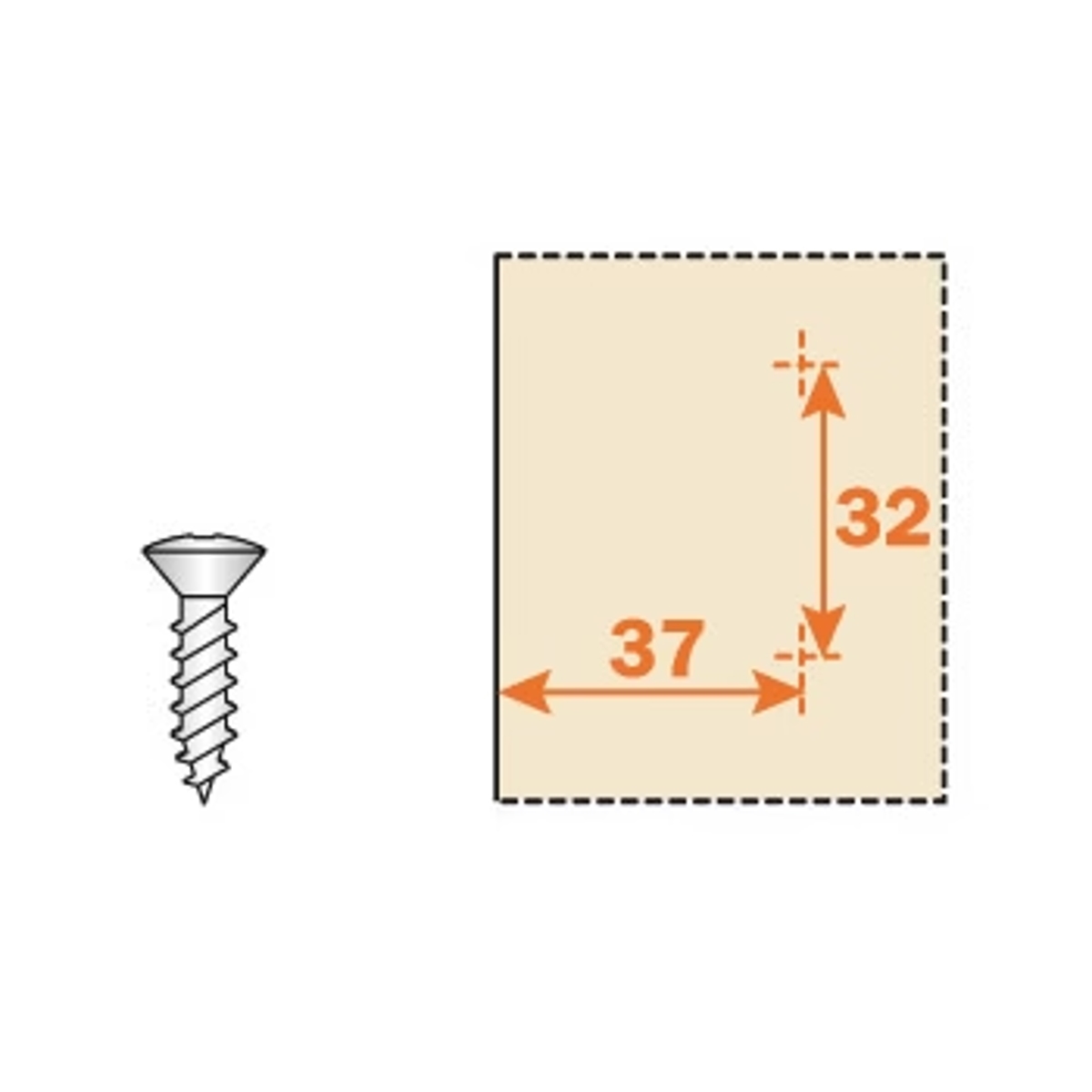

- Screw holes required: 37mm from edge of cabinet
