Hercules Glass Sliding System For Double Doors 3000mm

1898-001
Price: £236.63inc VAT
+

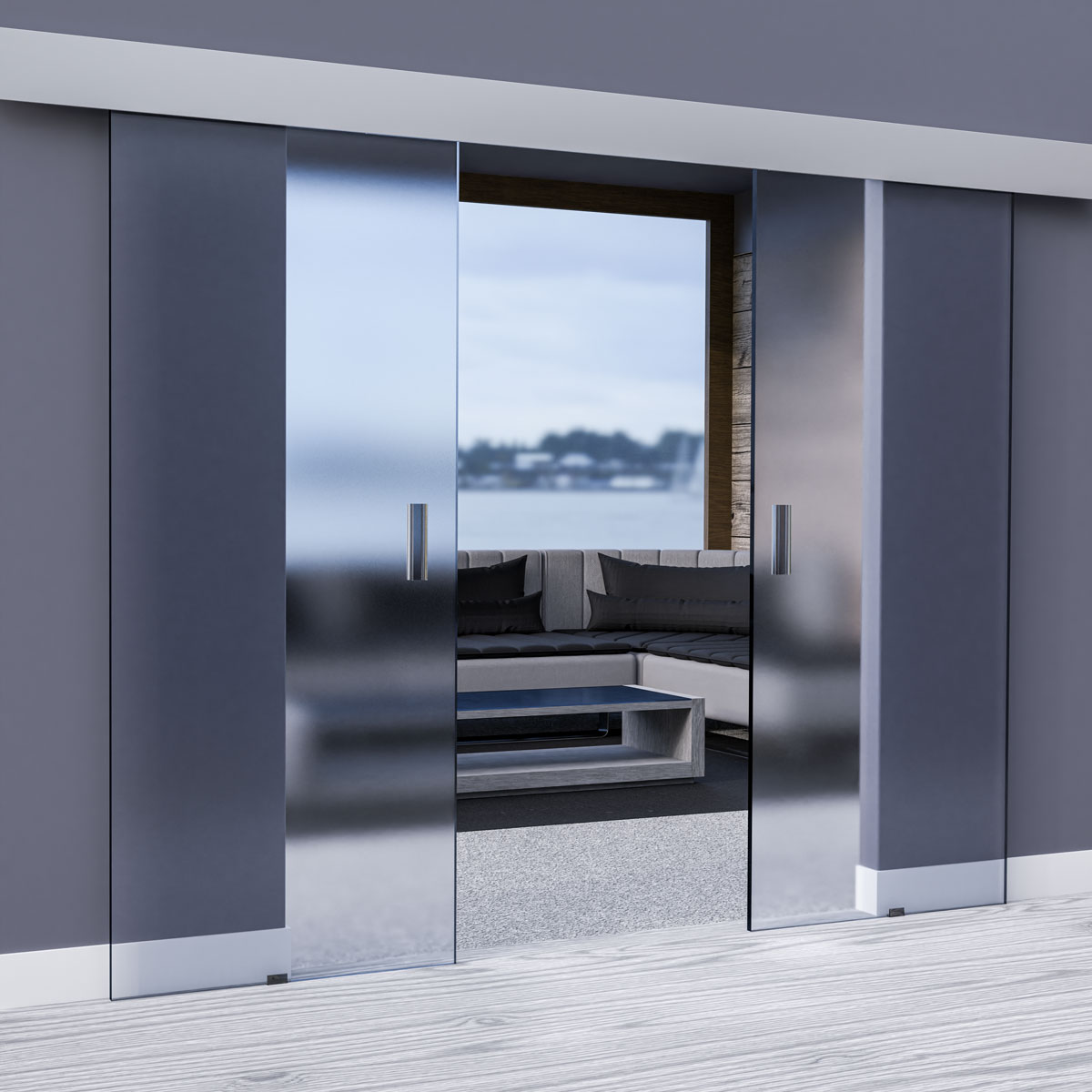

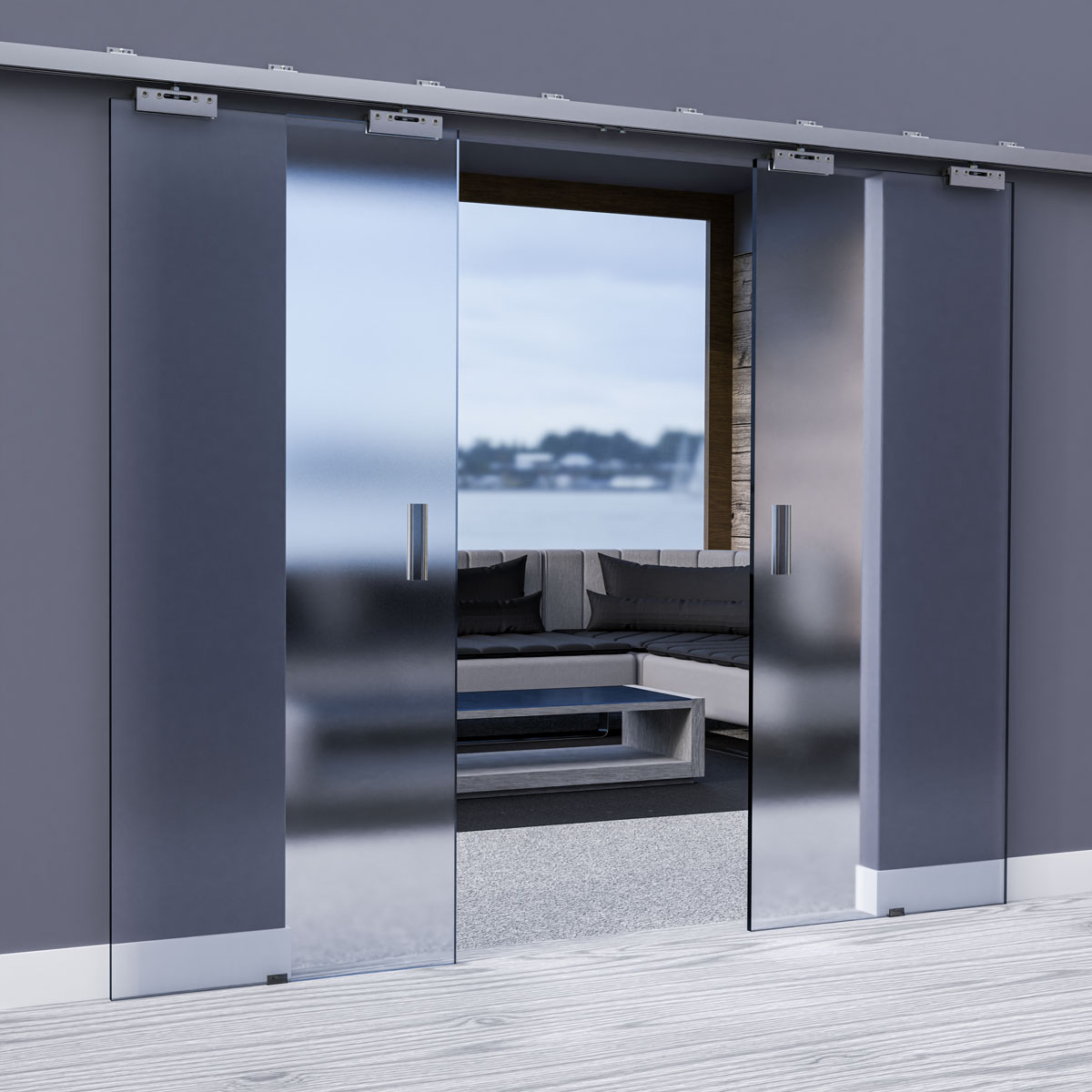

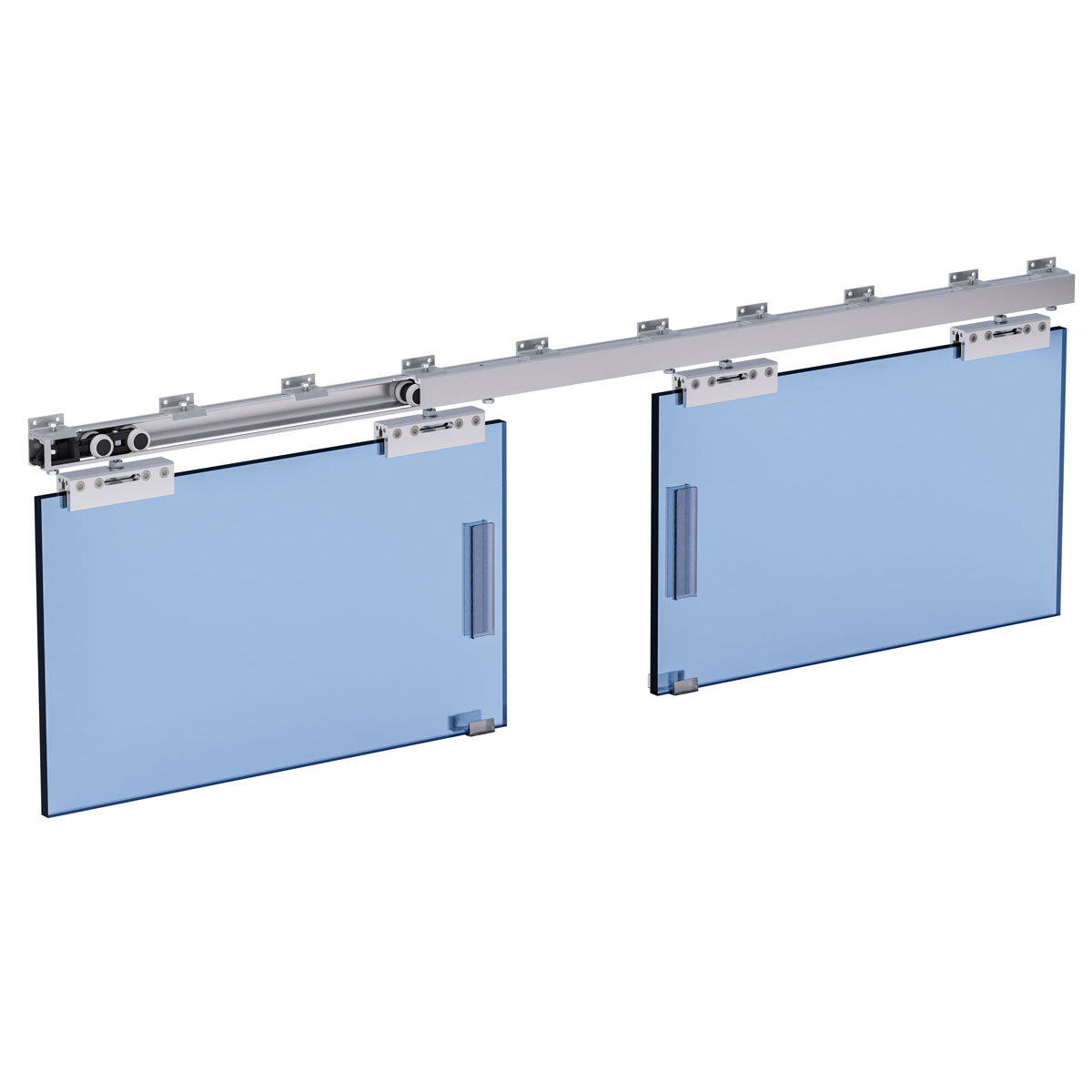

The Hercules glass sliding system for double doors with a 3000mm track is a heavy-duty and reliable option for both office and home settings. It’s designed for easy installation, thanks to its ball-bearing based carriage wheels, ensuring quiet and smooth operation. This system is suitable for glass doors, the Hercules glass sliding system supports a maximum individual door weight of 100kg and is compatible with glass door thicknesses between 8-12mm. It’s designed for durability and has been tested for no less than 100,000 cycles of opening and closing doors.

  • Set for self-assembly, DIY friendly
  • Maximum individual door weight: 100kg
  • Maximum individual door width: 750mm
  • For glass door thickness between 8-12mm
  • Heavy duty, reliable sliding door system for double glass doors
  • Guaranteed number of cycles of opening and closing door: no less than 100 000 cycles!
  • From now on, it is sufficient to prepare the glass tile to be able to enjoy the comfort of sliding glass door
  • Unique construction of the clamps completely eliminates the need to cut troublesome holes in glass panels
  • For doors wider than 750mm 2 single-door Hercules systems can be used and connected together or additional track can be added
  • Suitable for domestic and commercial use in standard room temperature. Not suitable for conservatories and places where the temperature fluctuates
  • Quiet and very smooth sliding thanks high quality ball bearing based wheels designed for its durability and also used in our hercules 120 kg for heavy sliding doors

Contents of a complete set:

  • 3000mm aluminium track

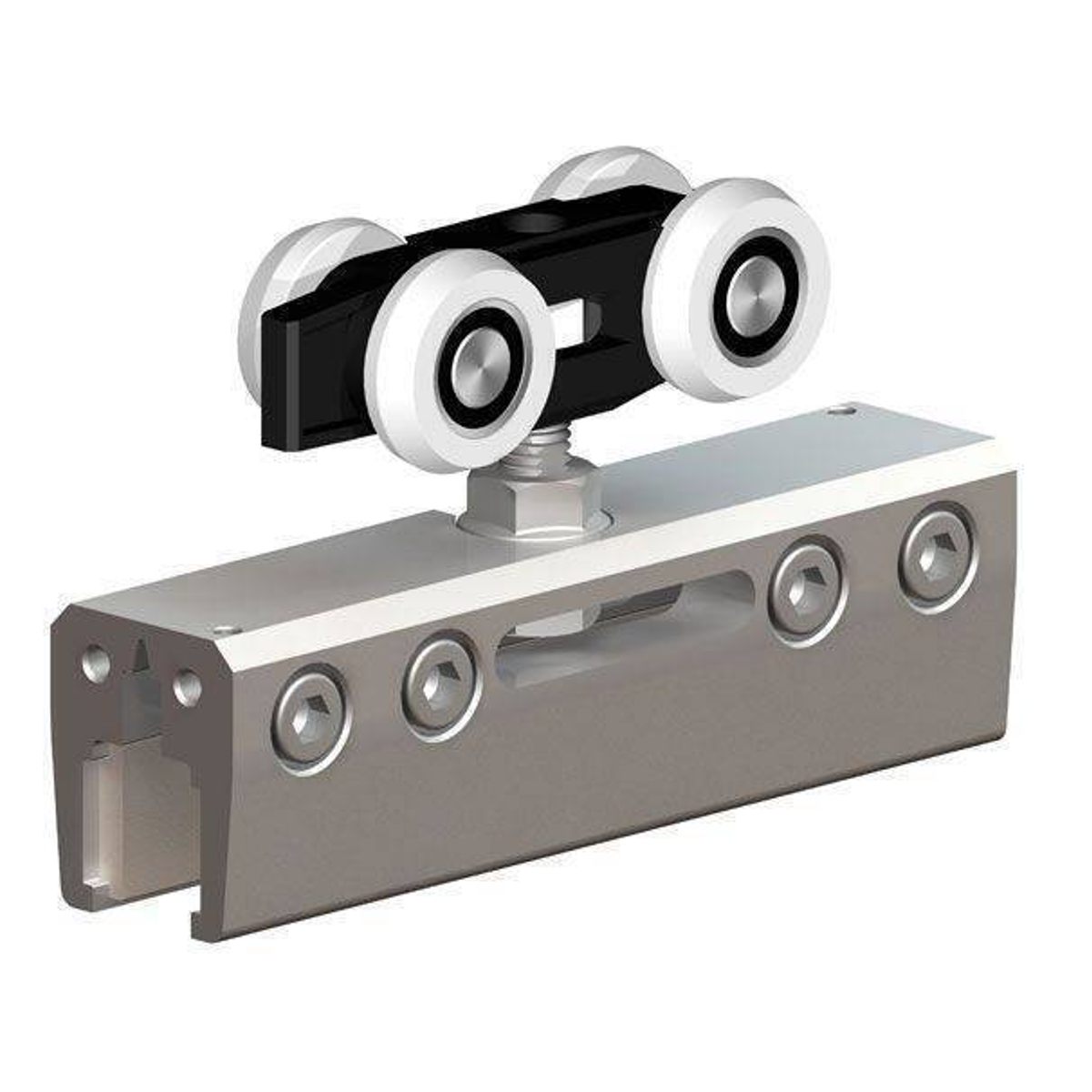

  • 4 x ball-bearing trolleys with glass clamps

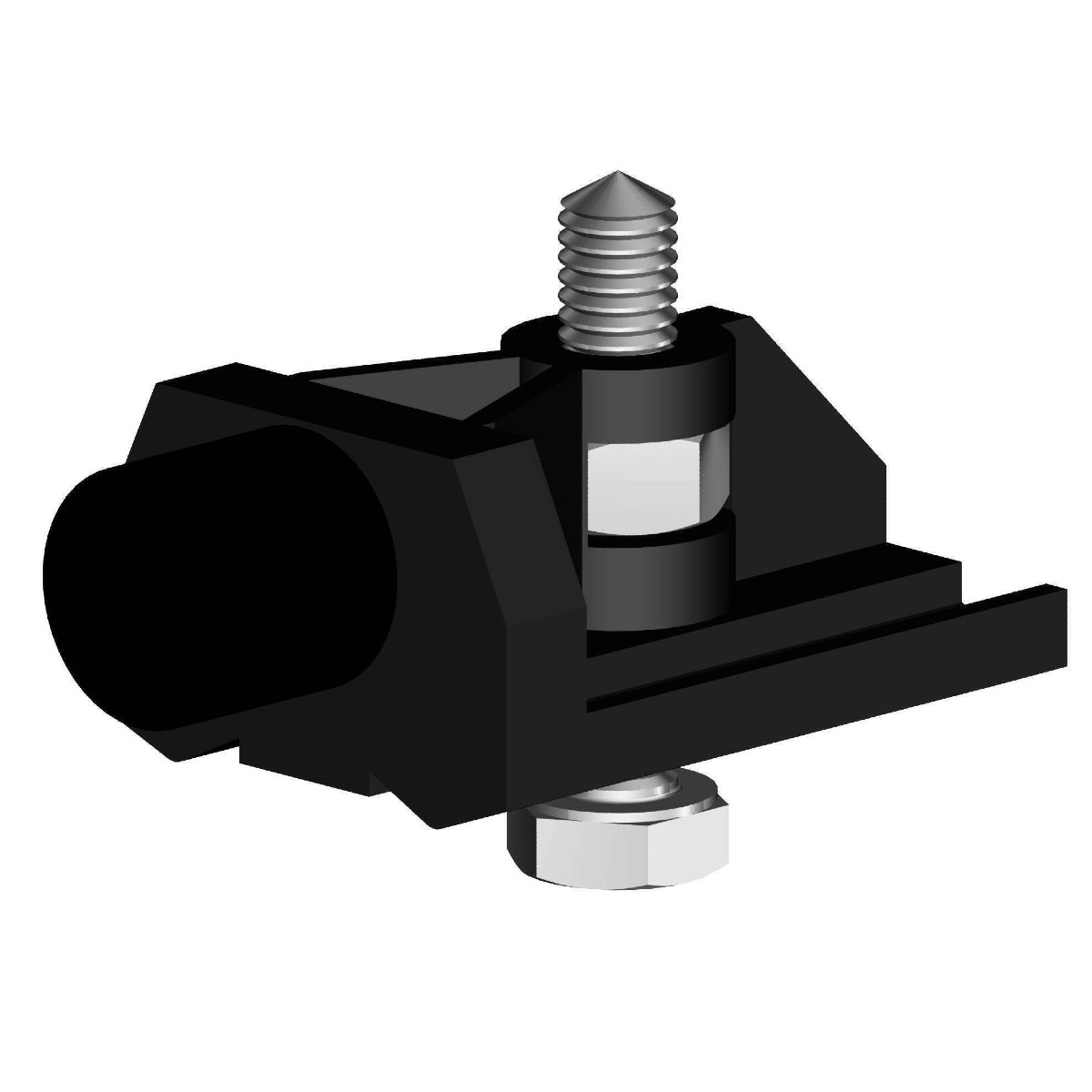

  • 2 x stopper
  • 2 x clip-stopper

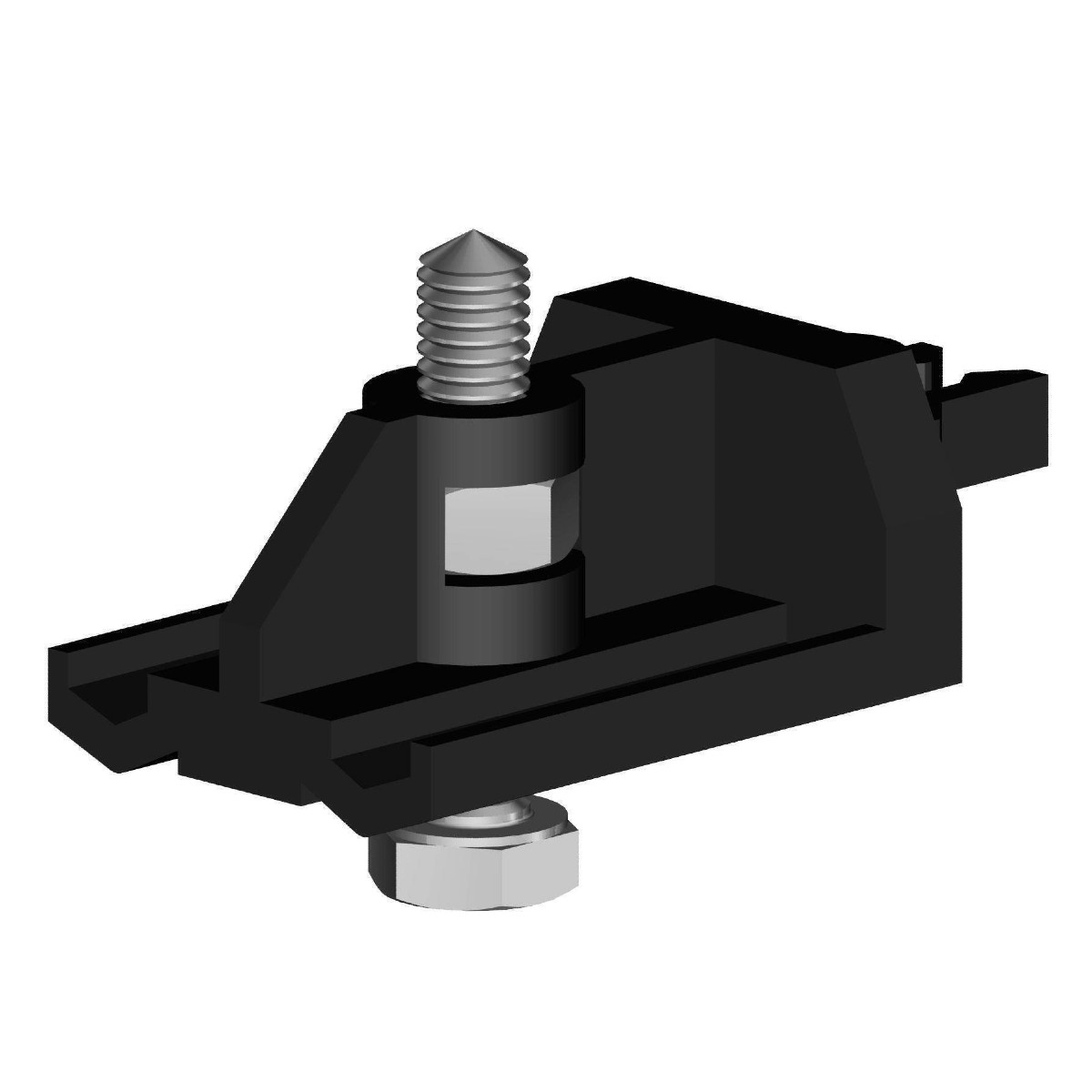

  • 2 x universal bottom guide
  • 2 x sets of wall brackets
  • 4 x self adhesive plastic door handles
  • Set of screws, wall plugs and allen key
  • Installation instructions

Optional extras:

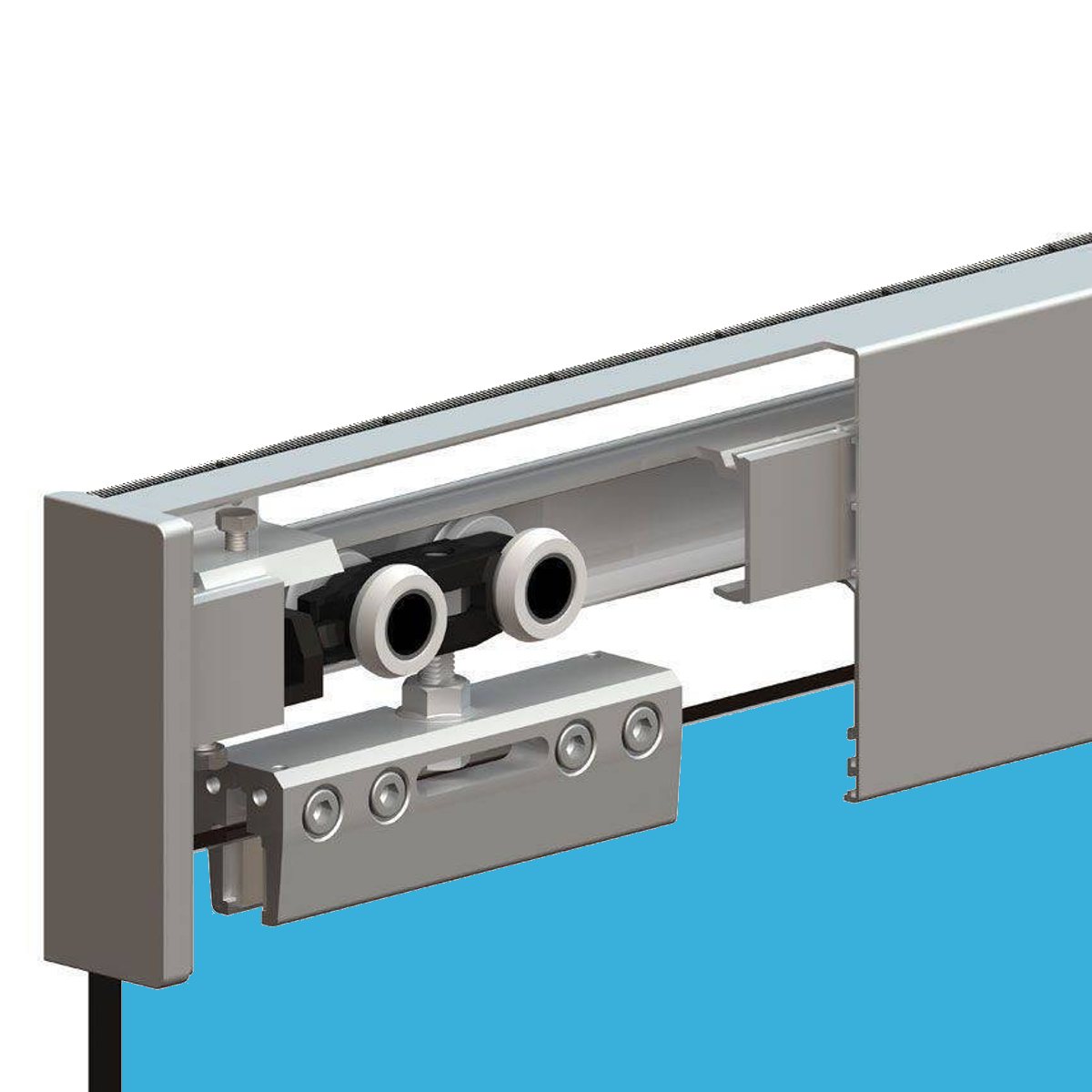

  • Track covers
  • Soft close pistons
  • Symmetric system

Please note that:

  • Use only with ESG or VSG glass
    • ESG: single layer toughened glass
    • VSG: multi-layer laminated glass
  • Please note that doors are not included
  • Please watch installation video before installing the system
  • Clamps have to be tightened in correct sequence using torque wrench

Sliding Systems

Dedicated for:
  • Glass Doors
  • Room Dividing Doors
Included accessories for :
  • 2 Doors
Maximum Door Weight :
100kg
Product short Name:
Hercules
