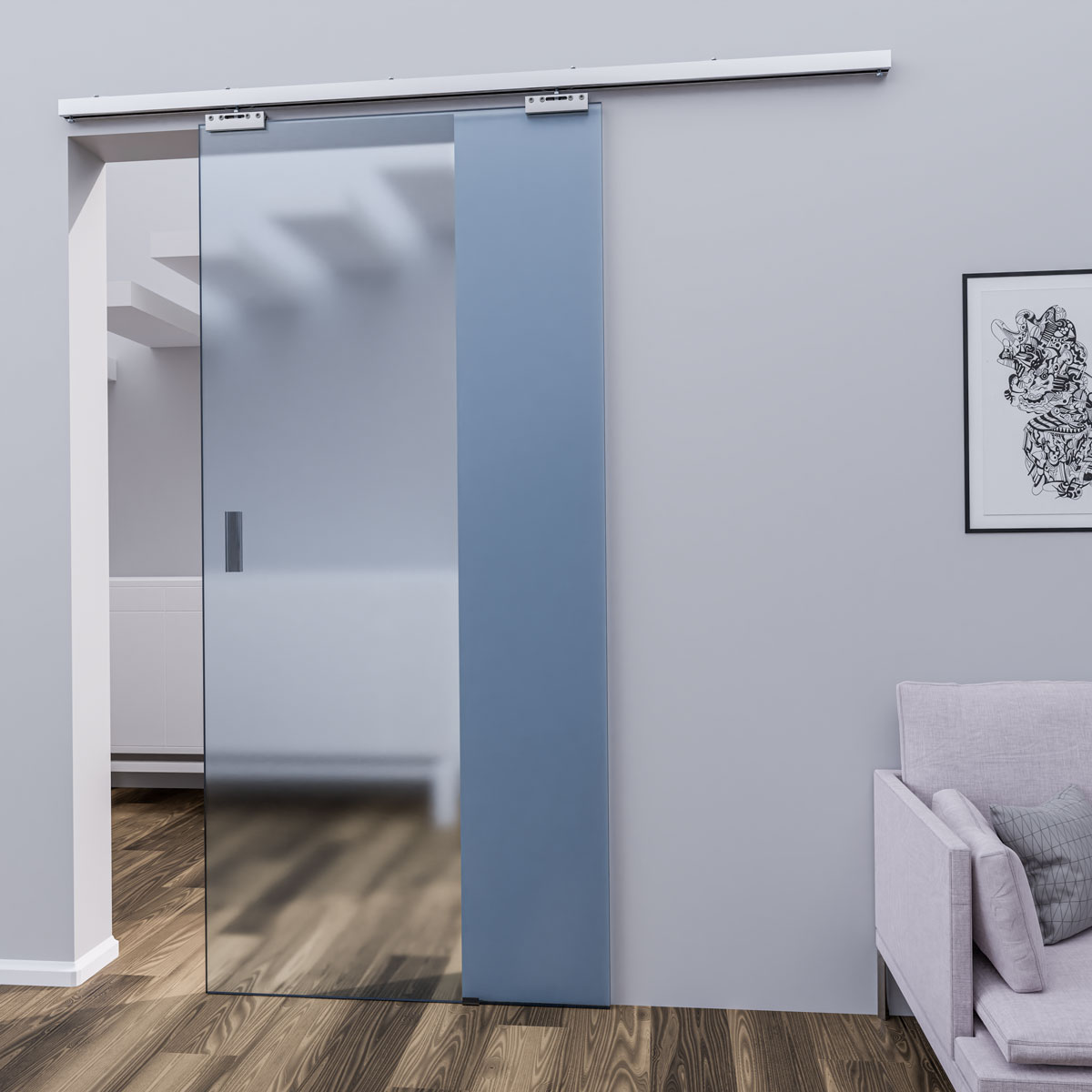

Hercules Glass Sliding Door Gear

0306-001
from: £96.95inc VAT

Please, select one

+
  • Heavy duty, reliable sliding door system for glass doors
  • Set for self-assembly, DIY friendly
  • Unique construction of the clamps completely eliminate need to cut troublesome holes in glass panels. From now on, it is sufficient to prepare the glass tile to be able to enjoy the comfort of sliding glass door.
  • Quiet and very smooth sliding thanks high quality ball bearing based wheels designed for its durability and also used in our Hercules 120 for heavy sliding doors.
  • For glass door thickness between 8-12 mm
  • Maximum individual door weight: 100 kg
  • Maximum recommended door width: 1000 mm
  • Guaranteed number of cycles of opening and closing door: no less than 100 000 cycles!
  • Also suitable for double doors

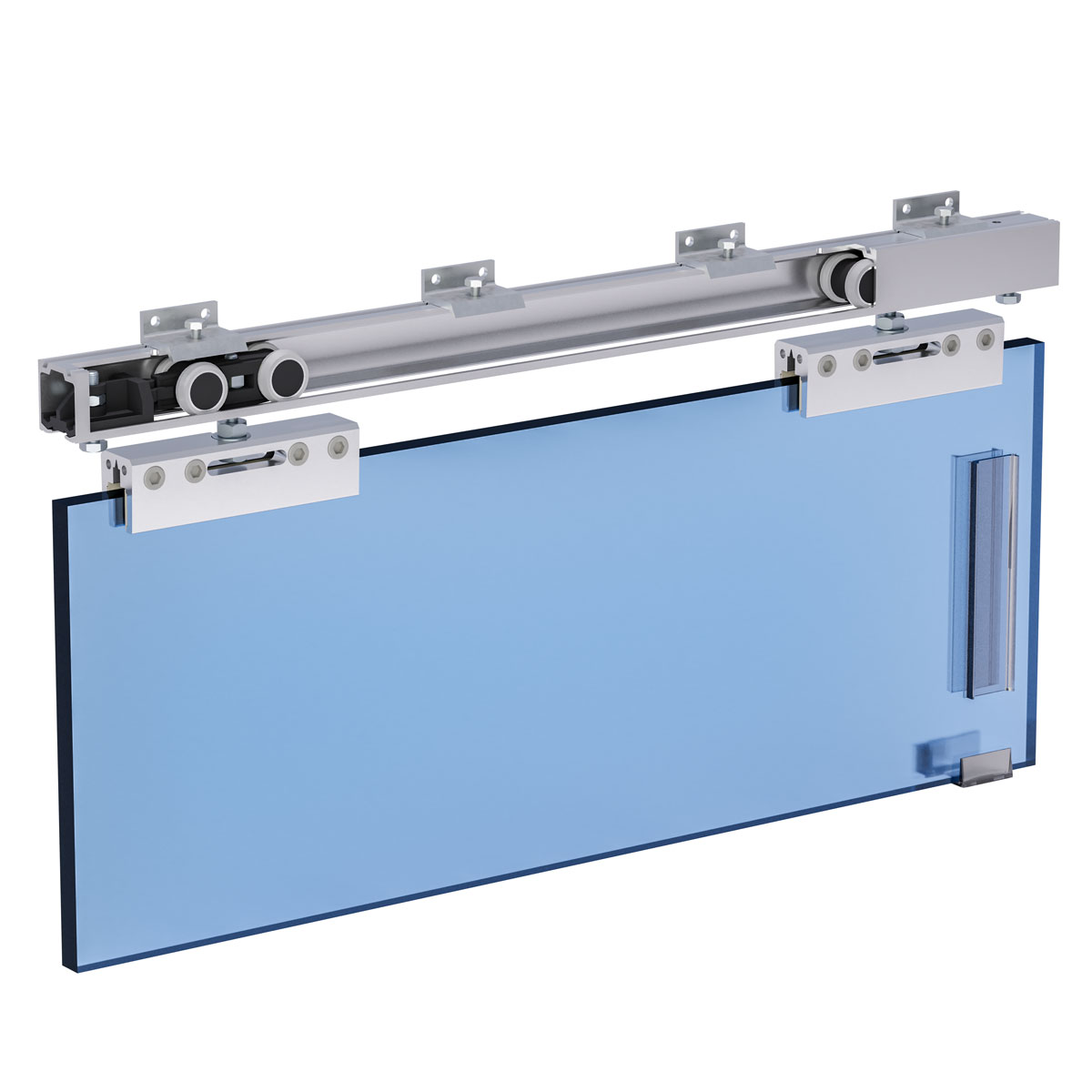

Contents of complete set:

  • Aluminium track

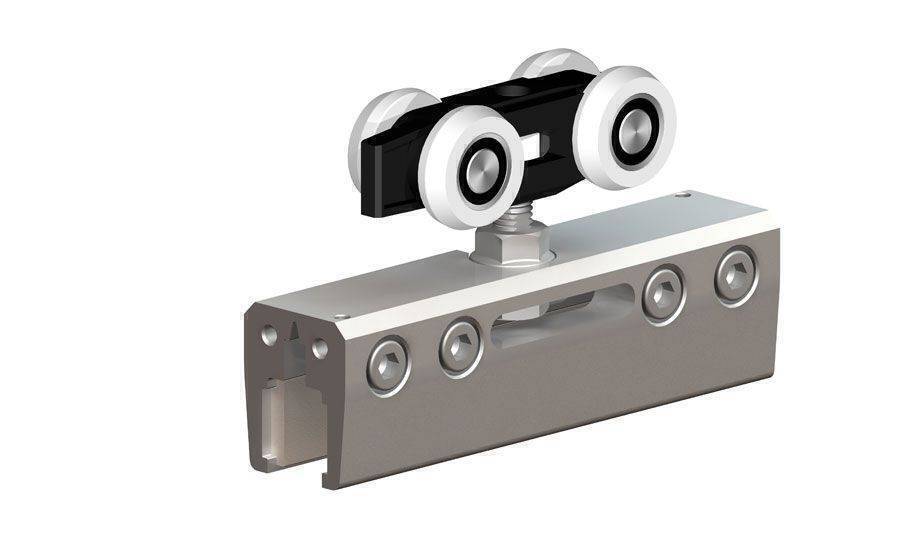

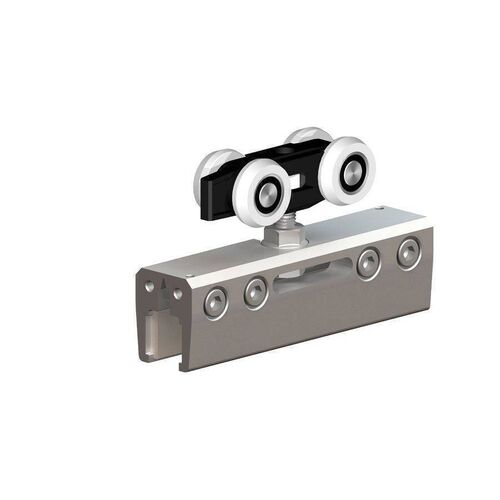

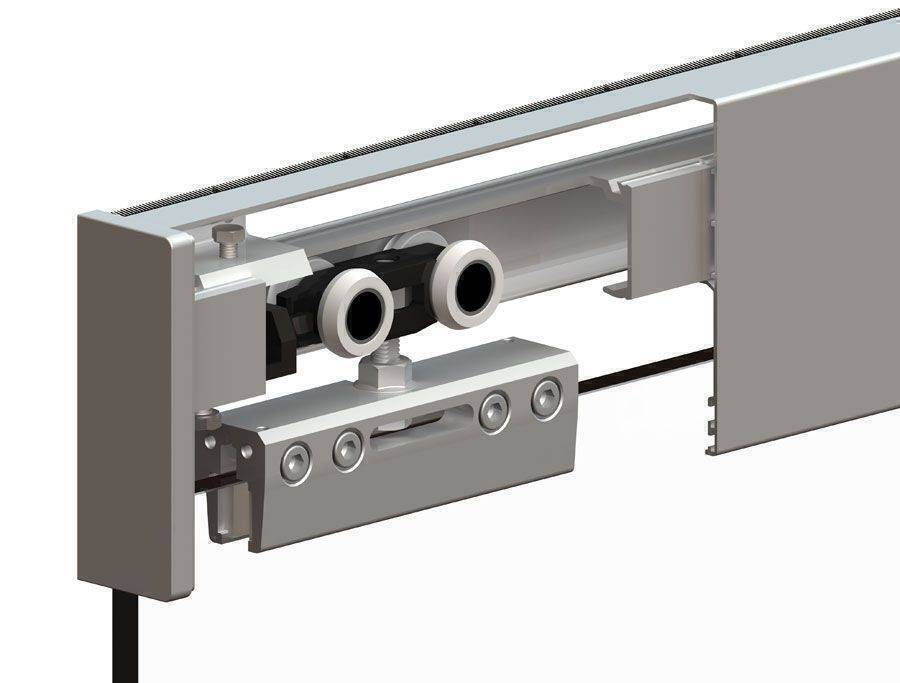

  • 2 x ball-bearing trolleys with Glass Clamps
  • 1 x Stopper
  • 1 x Clip-stopper

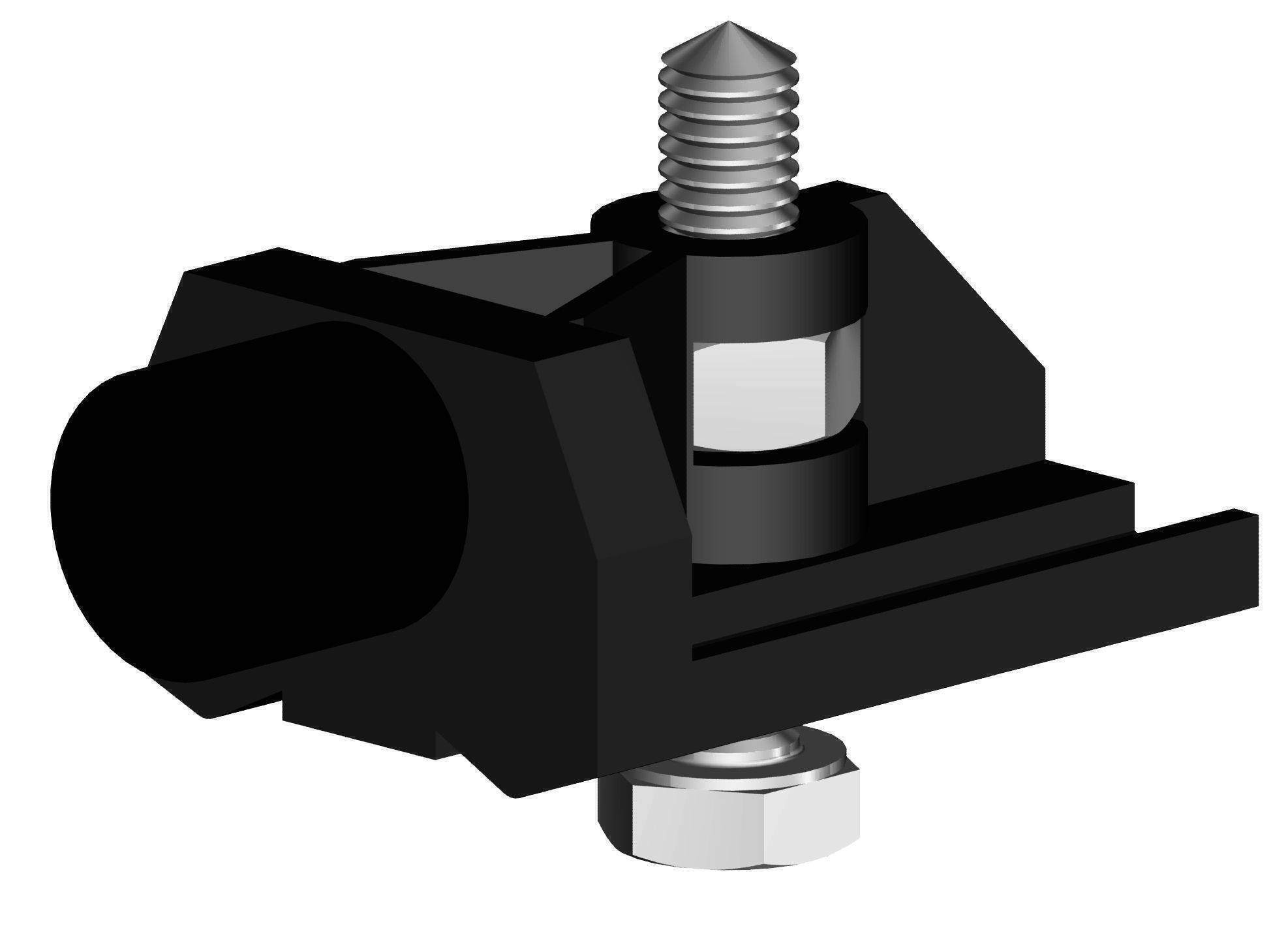

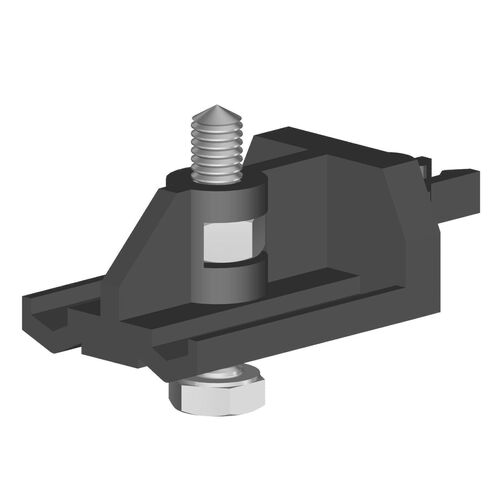

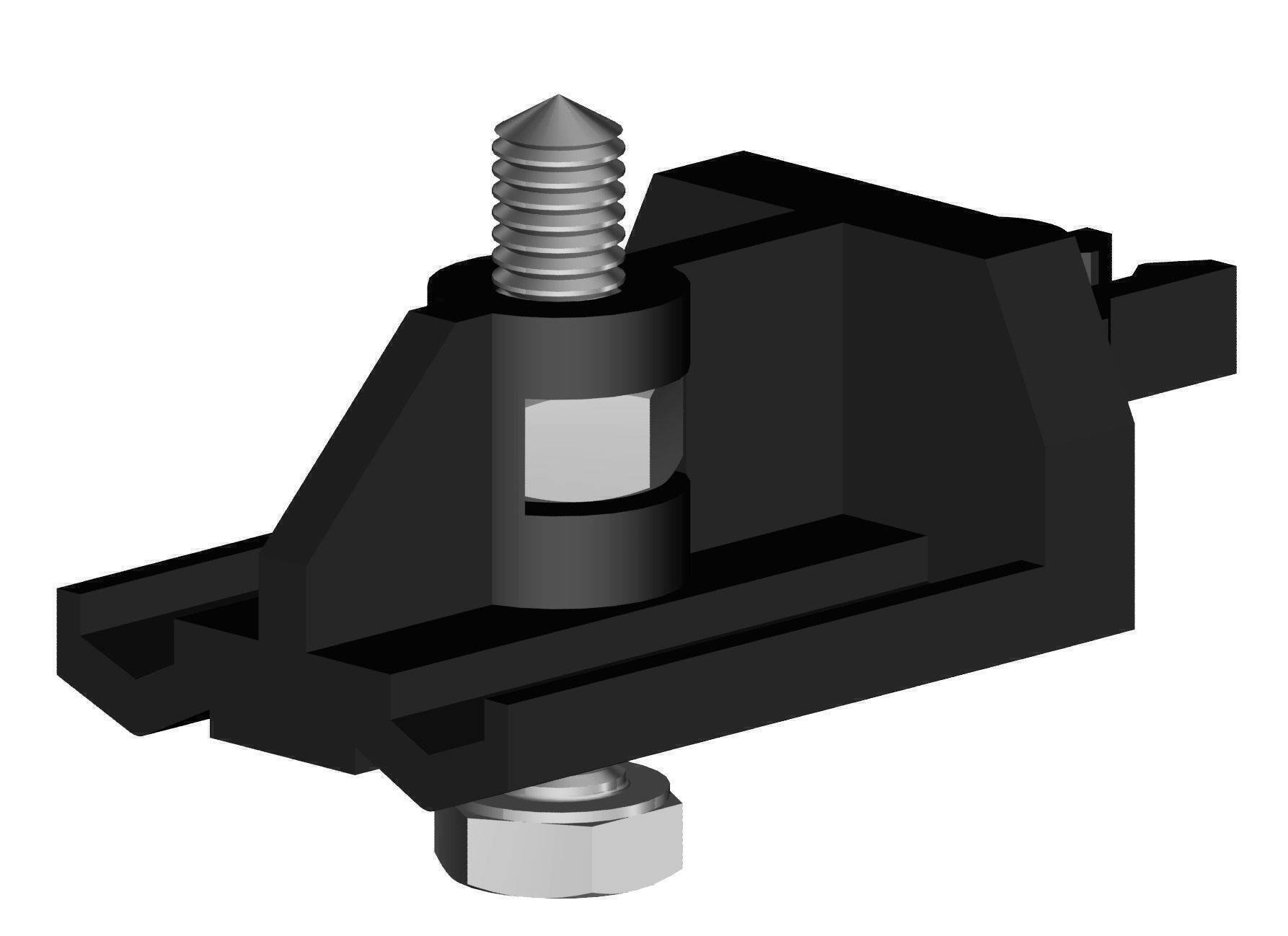

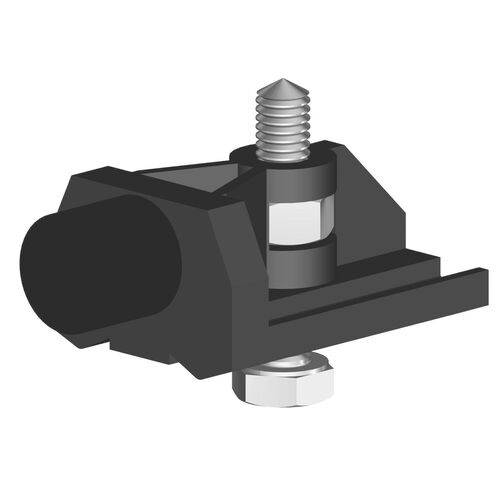

  • 1 x Universal bottom guide
  • Set of wall brackets
  • 2 x self adhesive plastic door handles
  • Set of screws, wall plugs and allen key
  • Installation instructions

Optional Extras:

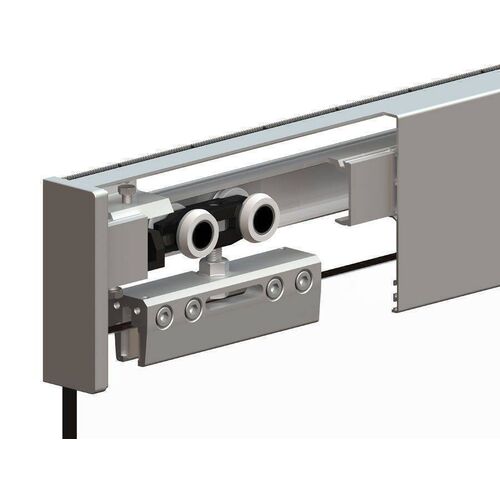

  • Track covers

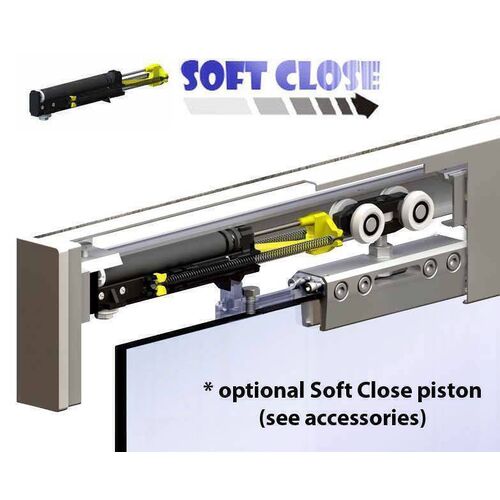

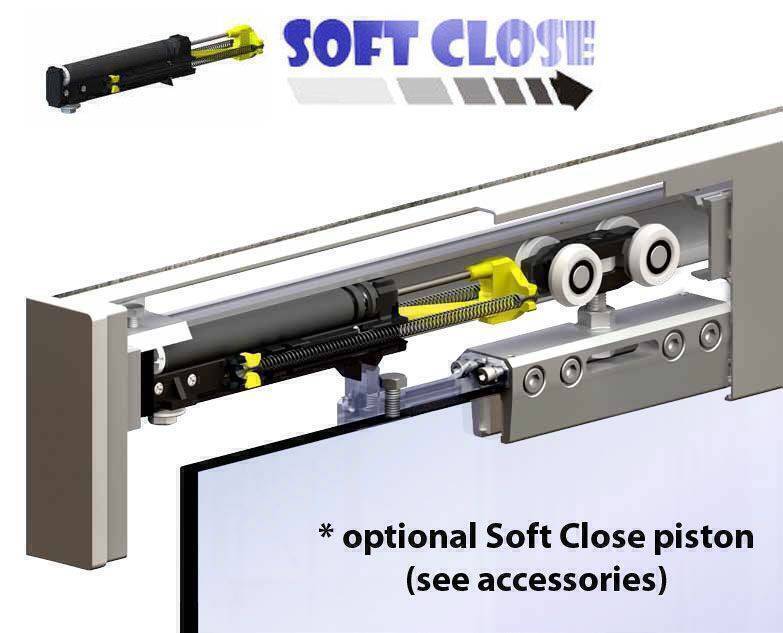

  • Soft Close pistons
  • Symmetric Systems - for double doors
  • Additional set of fittings for a second door

Please watch installation video before installing the system. Clamps has to be tightened in correct sequence using torque wrench.

WARNING

Use only with ESG* or VSG**

*ESG - single layer toughened glass
**VSG - multi-layer laminated glass

Please note doors are not included.

Other Glass Systems (Saf_Glass.pdf, 5,191 Kb) [Download]

Fitting Instructions (PDF) (Glass_Fitting.pdf, 1,656 Kb) [Download]

Sliding Systems

Dedicated for:
  • Glass Doors
  • Room Dividing Doors
Included accessories for :
  • 1 door
Maximum Door Weight :
100kg
Product short Name:
Hercules
System type:
Top Hung
Track Length :
  • 2000mm
