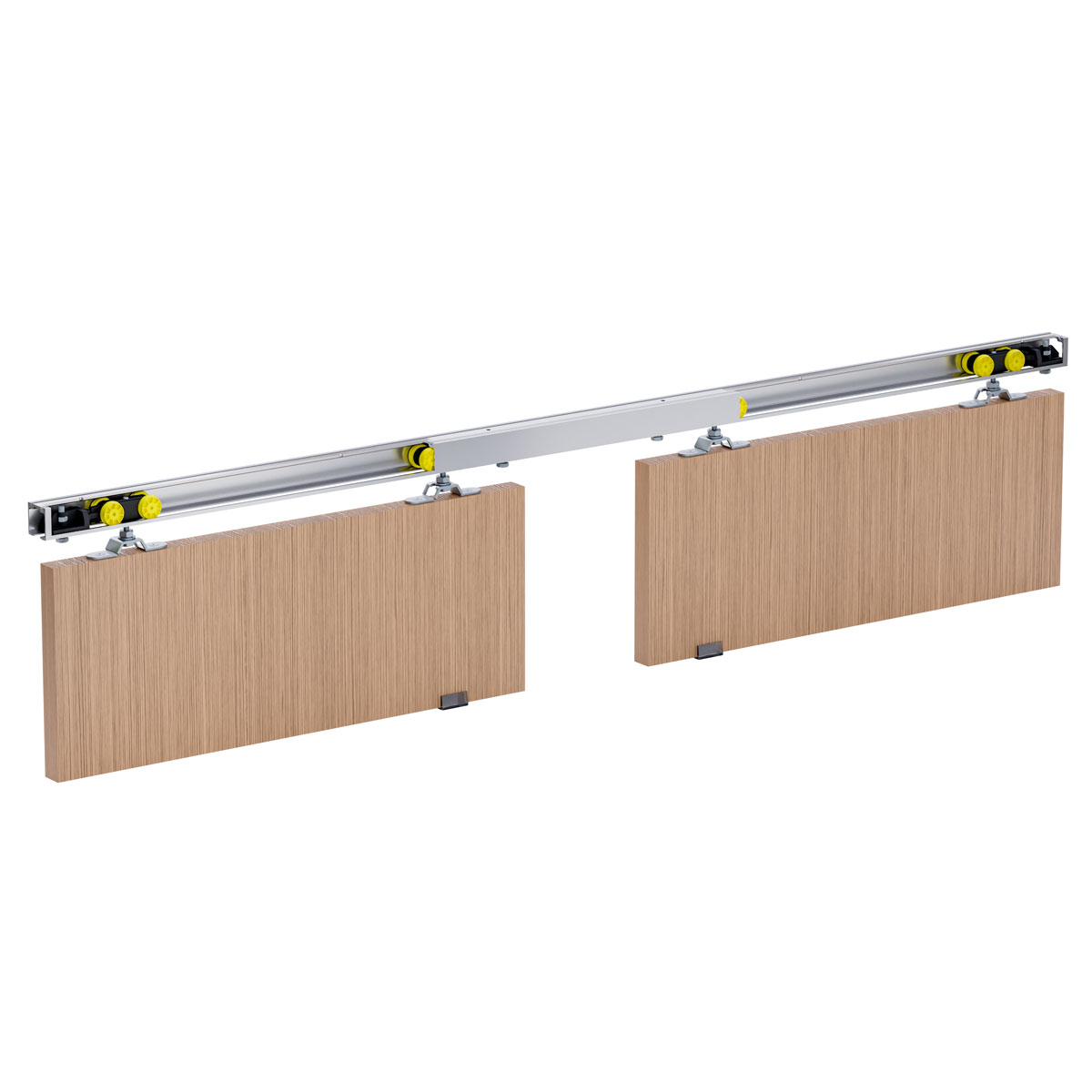

Hercules for Double Doors 3000 mm

1894-001
from: £111.43inc VAT

Please, select one

+
  • heavy duty, reliable sliding door system for office or home,
  • easy installation thanks to ball bearing based carriage wheels
  • quiet and very easy sliding
  • for wooden or MDF doors
  • maximum individual door weight: 60 kg or 120kg
  • minimum required door thickness: 16 mm for 60kg and 22mm for 120kg
  • Max individual door width: 750mm
  • For doors wider than 750 mm 2 single door Hercules Systems can be used and connected together or additional track can be added
Contents of complete set:

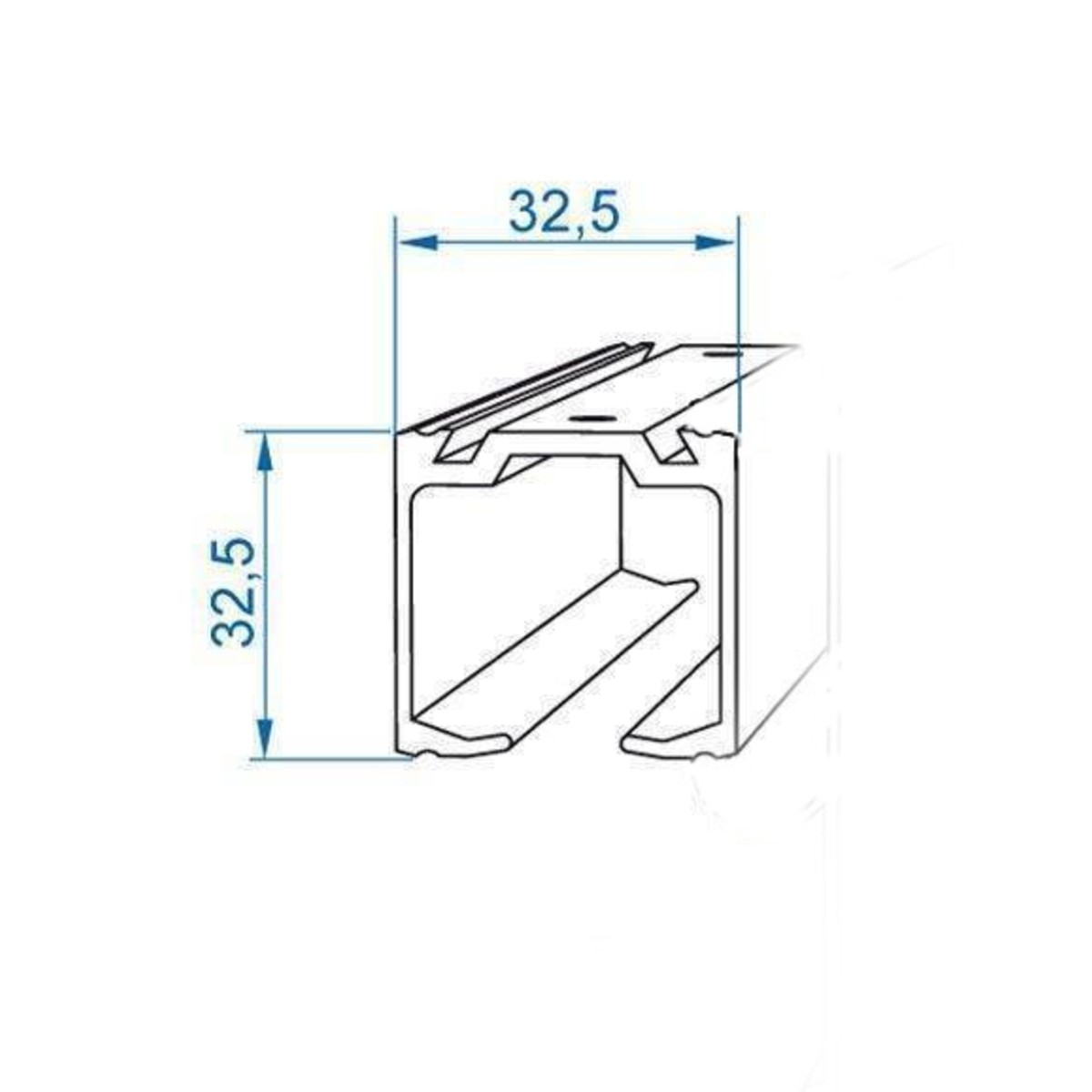

  • 3000 mm Aluminium track (H2 type)
  • 4 x Trolleys
  • 2 x Universal Bottom Guide
  • 4 x Carrier plates
  • 4 x Stopper(s)
  • Mounting Screws
  • Installation instructions
Additional Accessories for Hercules system (must be purchased separately)
For the most demanding customers, interior designers and architects we offer also set of accessories to complement the system with additional functionality.
  • Soft Close piston - Latest addition for our system providing soft close motion. Piston can be also retrofitted to existing tracks
  • Aluminium Pelmets (Track Covers) for Hercules system - Is extremely attractive and the best way to hide the track and glass clamps. Available in three different finishes gold, silver and brown
  • Set of accessories for additional door Hercules 60kg - Set of accessories for additional door to be used with Hercules 60kg
  • Wall brackets for up to 45mm doors or up to 35mm doors when attaching door track on the wall
  • Draught Excluder seal - Brushes made from natural materials, effectively seal open spaces with eliminating penetration of dirt, dust, moisture and noise.
  • Hercules Symmetric System - allows for automatic opening and closing of both doors at the same time.
Please note doors are not included.

Fitting instructions 60kg (PDF) (HS60inst.pdf, 768 Kb) [Download]

Fitting Instructions 120kg (HS120inst001.pdf, 724 Kb) [Download]

Sliding Systems

Dedicated for:

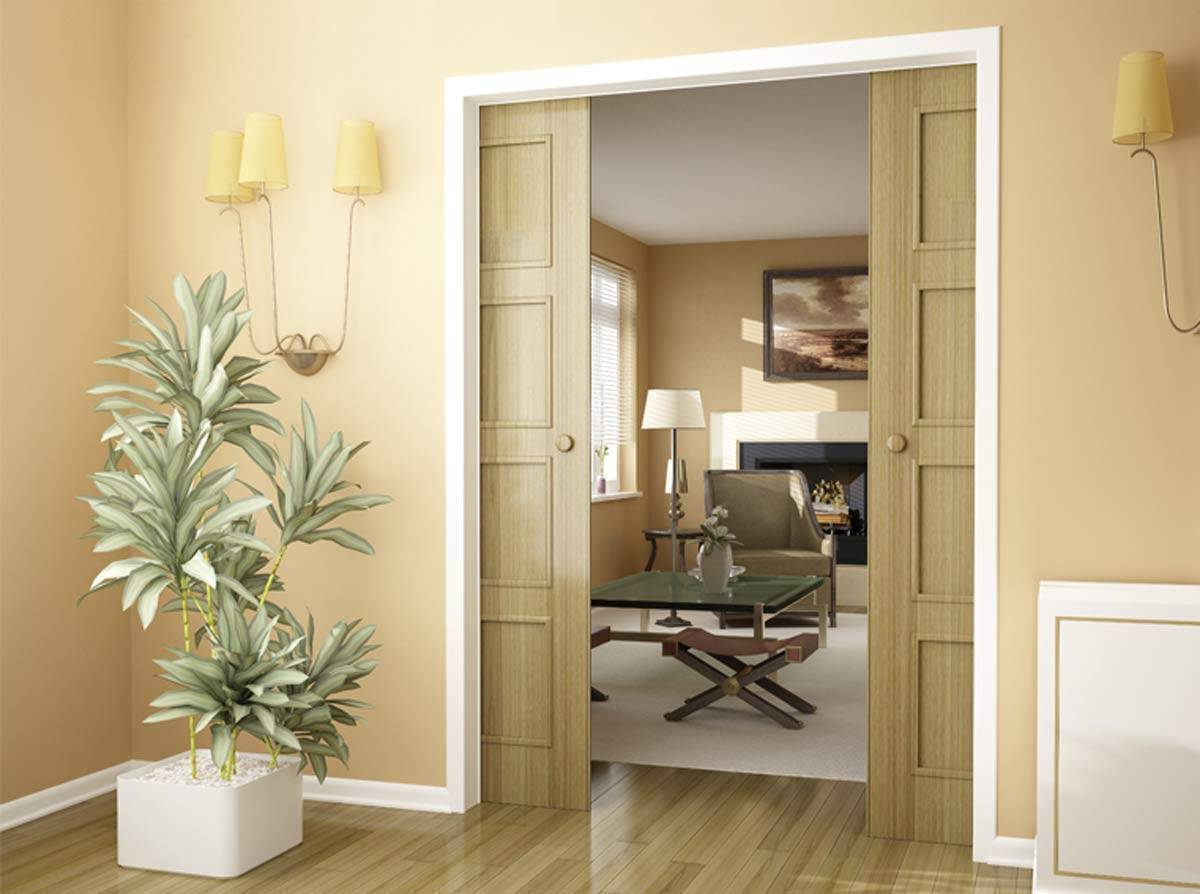

  • Pocket Doors
  • Room Dividing Doors
Included accessories for :
  • 2 doors
Maximum Door Weight :
120kg
Product short Name:
Hercules
System type:
Top Hung
Track Length :
  • 3000mm
