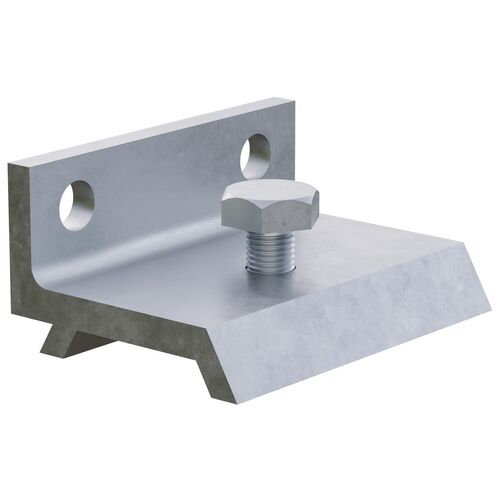

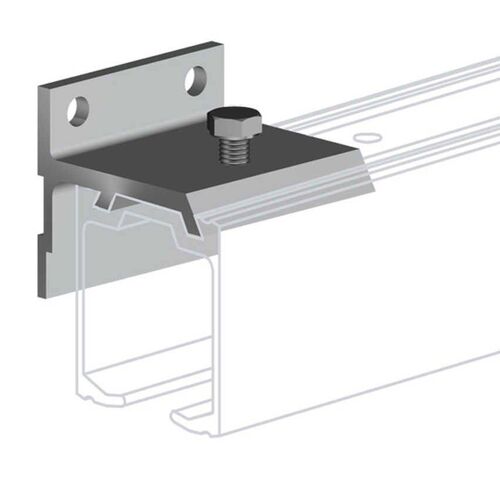

Wall Brackets Designed To Mount H2 (Hercules) Track On The Wall

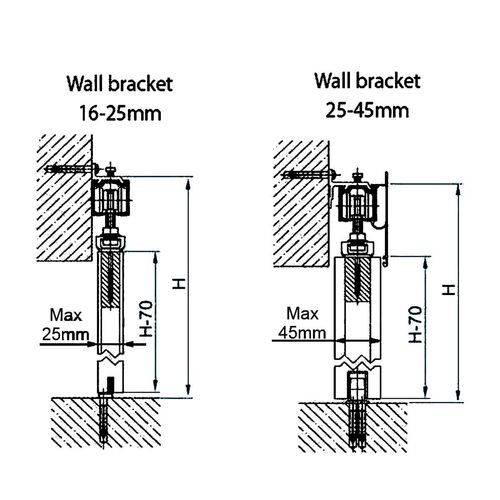

- Support doors between 16-25mm and 25-45mm
- Sold in sets of 5
- For doors, up to 60kg, a wall bracket every 60cm will be needed (based on brick/concrete wall)
- For doors, up to 120kg, a wall bracket every 40cm will be needed (based on brick/concrete wall)
For doors up to 60kg we recommend:
- 3 wall brackets for 1200mm track
- 4 wall brackets for 1500mm track
- 5 wall brackets for 1800mm track
- 5 wall brackets for 2000mm track
- 5 wall brackets for 2400mm track
- 6 wall brackets for 3000mm track
For doors up to 120kg we recommend:
- 4 wall brackets for 1200mm track
- 5 wall brackets for 1500mm track
- 6 wall brackets for 1800mm track
- 6 wall brackets for 2000mm track
- 7 wall brackets for 2400mm track
- 9 wall brackets for 3000mm track
Please be aware that the given measurements for 60kg & 120kg doors are only based on Brick and Concrete walls.
If fitted on a different material ( e.g. MDF ) please consider fitting more wall brackets with smaller spaces in between.
We only sell wall brackets as a set of five, no single purchases are available.
For Door Thickness:
16mm - 24mm
Sliding Systems
Additional Accessories:
- Optional Accessories
Dedicated for:
- Room Dividing Doors
Product short Name:
Hercules
