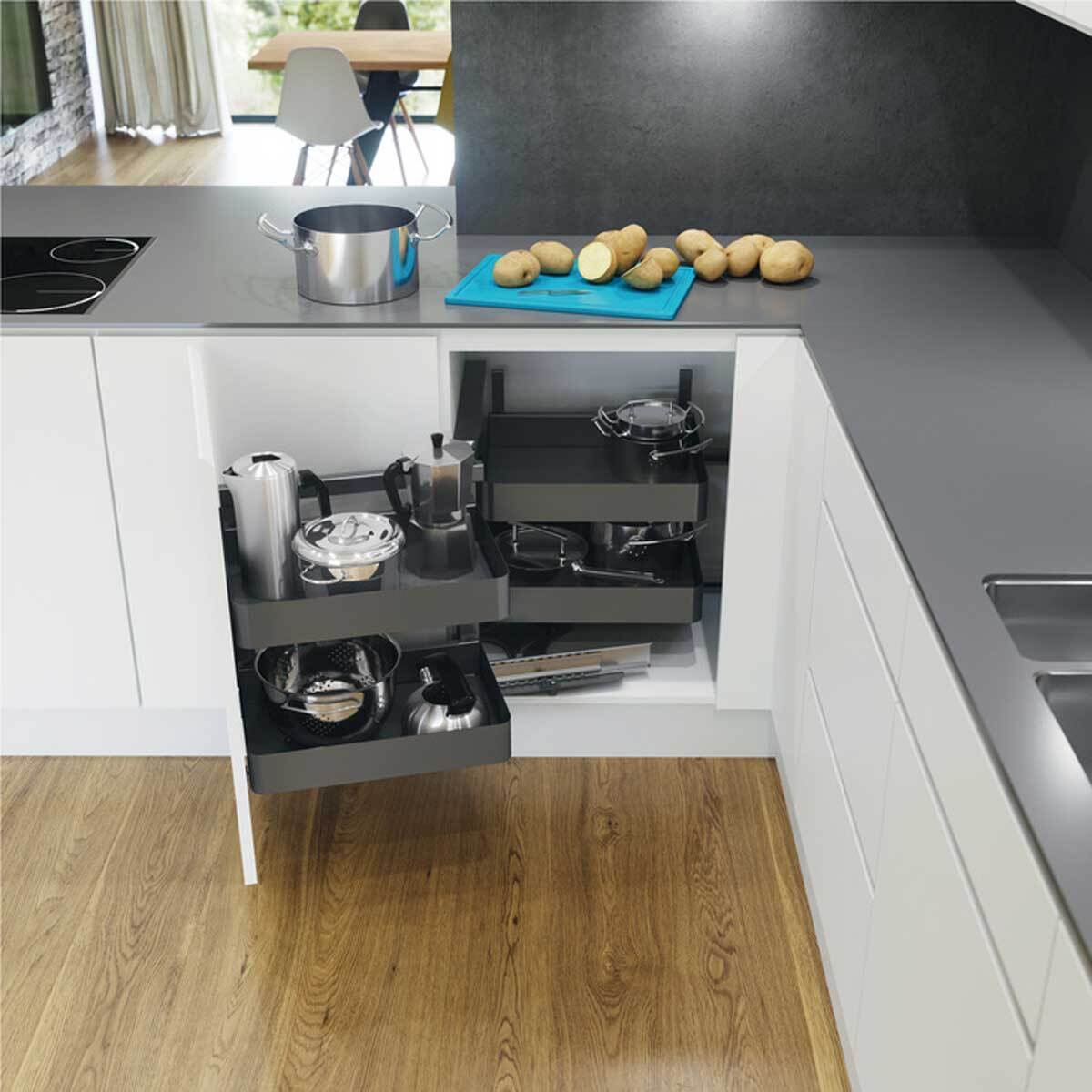

Brand new kitchen storage solution in Vauth Sagel family finished in unique grey colour and style. Powder coated steel plate formed around an inlaid wooden shelf with a seal all the way around forms every one of four trays supplied with a unit. It results in flat contemporary design and great storage capacity.
- Trays and frame finished in grey lava planero colour
- To fit a 800, 900 and 1000 mm cabinets
- Cabinet door widths required: 400-600 mm
- Minimum installation depth: 485 mm
- Minimum installation height: 530 mm
- 3D front adjustment
- Height of trays adjusted individually
- Integrated Soft Closing and Self Closing
- Supplied with installation template
- Maximum load: 35 kg (8 kg per front basket and 9.5 kg per rear basket)
- Manufactured in Germany

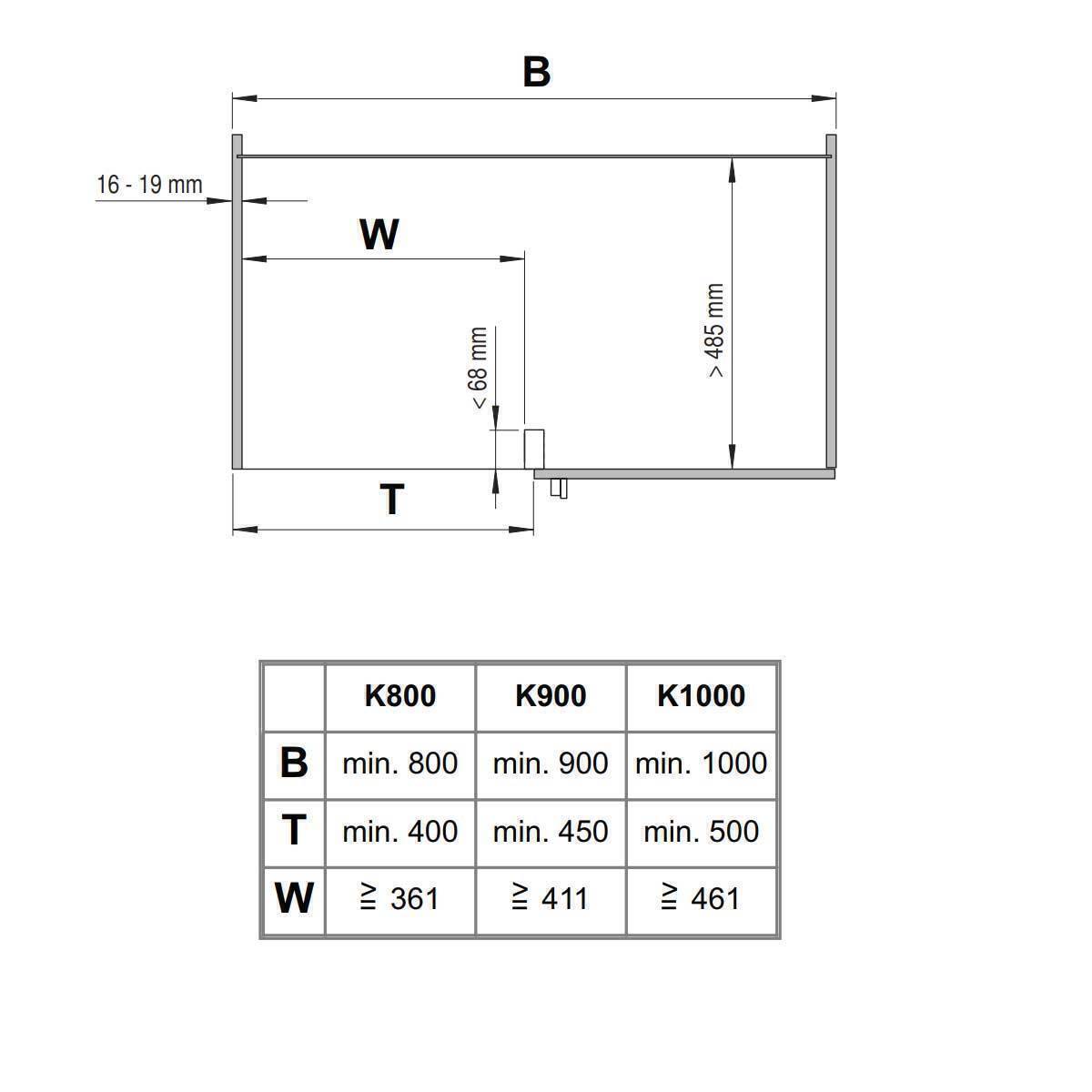

Measured at the narrowest point of the cabinet between centre post and back panel.
System have to operate without any obstructions.
If depth of the cabinet is insufficient there are amendments to the cabinet that might be done:
- moving back panel further back
- removing centre post (corner post) and mounting doors on 190 degree hinges
- mounting door to the basket if possible
- Solid Base
