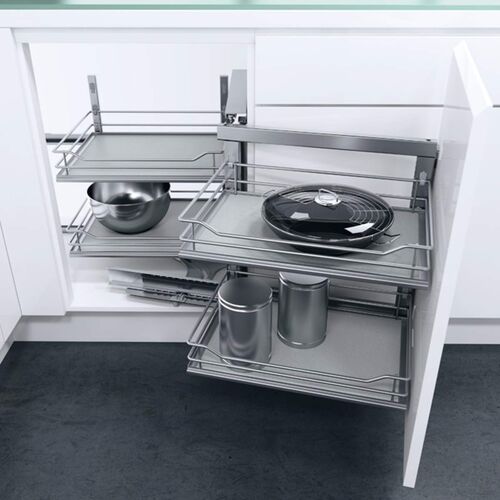

Left Or Right Hand Swing Out Wari Corner Kitchen Storage Unit Complete Set, Pull-Out Action With Soft Close. Made In Germany By Vauth Sagel.
- Premea solid base grey baskets
- For minimum cabinet width 800mm or 900-1000 mm
- Manufactured in Germany
- Supplied with 10 years warranty
- Built in soft close
- Full extension pull out
- Basket capacity: 8kg
- Universal
- Minimum internal depth required: 550mm
- Minimum internal height required: 530mm
- Built-in depth: 485mm

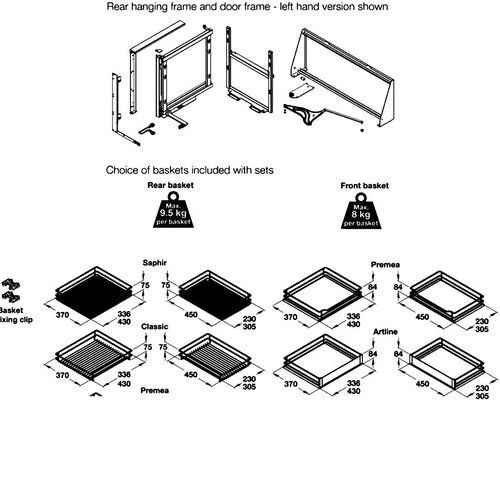

Set Includes:
- 1x frame set
- 1x rear hanging frame and base mounting track
- 1x door frame with pivot
- 1x back frame
- 1x door frame follower
- 1x 3-way adjustable door panel hanging plates
- 1x fixing screws and fitting instructions
- 2x premea solid base storage baskets (rear)
- 2x premea solid base storage baskets (door)
Cabinet Size:
800mm (400mm Door)
Version:

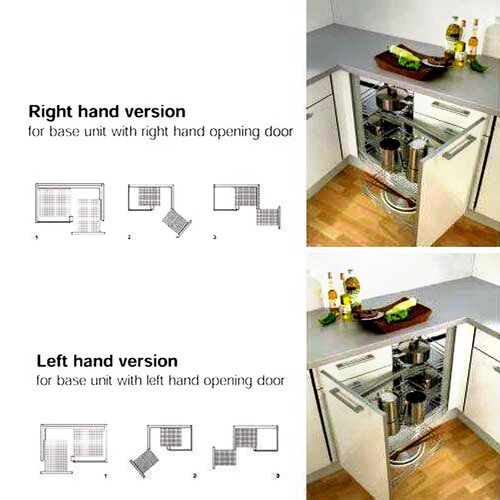

Right
Magic Corners
Closing Mechanism:
Soft Close

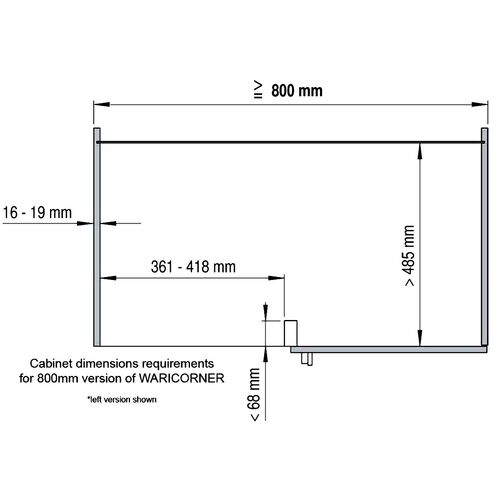

Minimum Internal Cabinet Depth
:
Measured at the narrowest point of the cabinet between centre post and back panel.
System have to operate without any obstructions.
If depth of the cabinet is insufficient there are amendments to the cabinet that might be done:
- moving back panel further back
- removing centre post (corner post) and mounting doors on 190 degree hinges
- mounting door to the basket if possible
485mm
Product short Name:
Vauth-Sagel
System Type:
Magic Corner
Type of baskets:
- Solid Base
