Hercules 120kg Track Set Kit For DIY

Price from: £61.91inc VAT

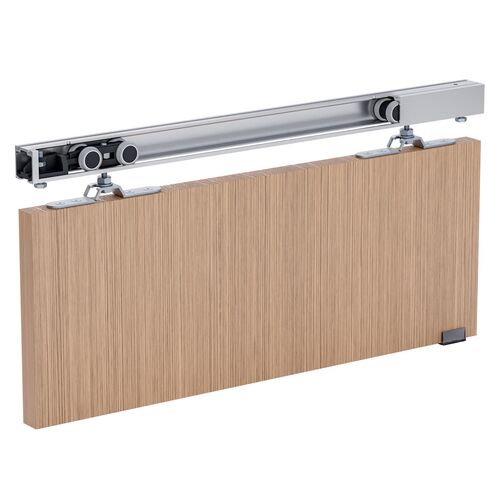

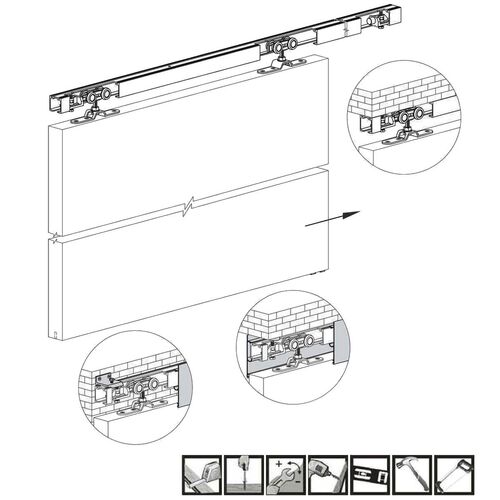

The Hercules sliding door kit is a popular choice for those looking to add a touch of elegance to their home or office. The Hercules sliding door kit is a versatile and reliable system that can be used for wooden doors, with a maximum weight capacity of 120kg. The kit includes high-quality ball-bearing rollers, and the tracks can be cut and joined to fit your specific needs. You can also choose from a variety of accessories such as soft-close mechanisms, wall brackets, and track covers.

  • For wooden or MDF doors
  • Quiet and very easy sliding

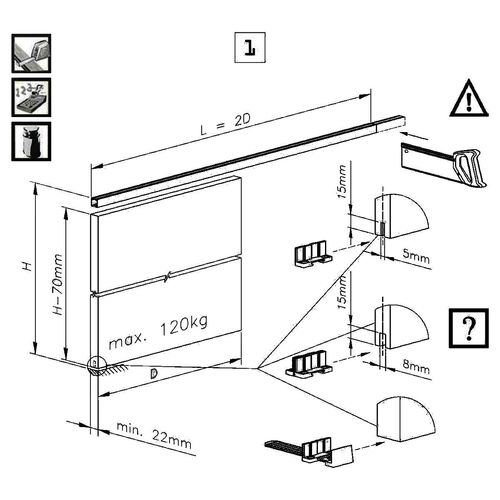

  • Maximum individual door weight: 120kg
  • Minimum required door thickness: 22mm
  • Easy installation thanks to ball-bearing carriage wheels
  • Mounting:

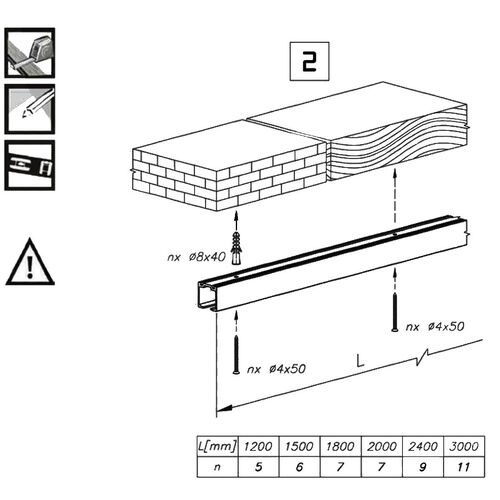

    • Under ceiling/beam fixing
    • Wall fixing available via wall brackets available

Contents of the complete set:

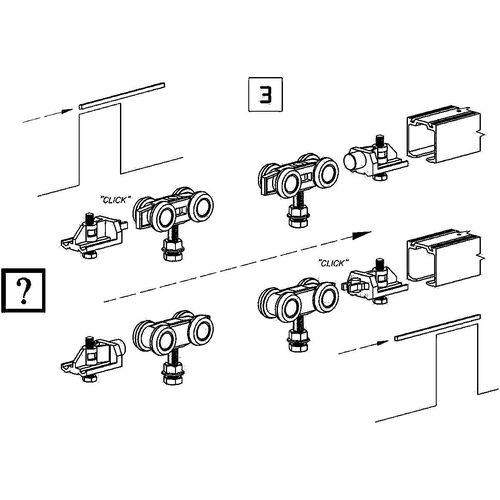

  • 2 x trolleys
  • 2 x stopper(s)

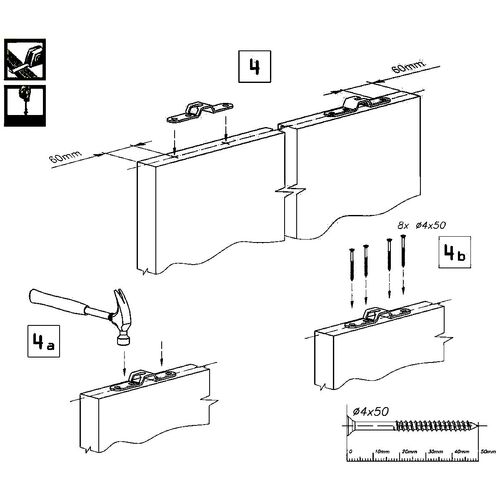

  • 2 x carrier plates

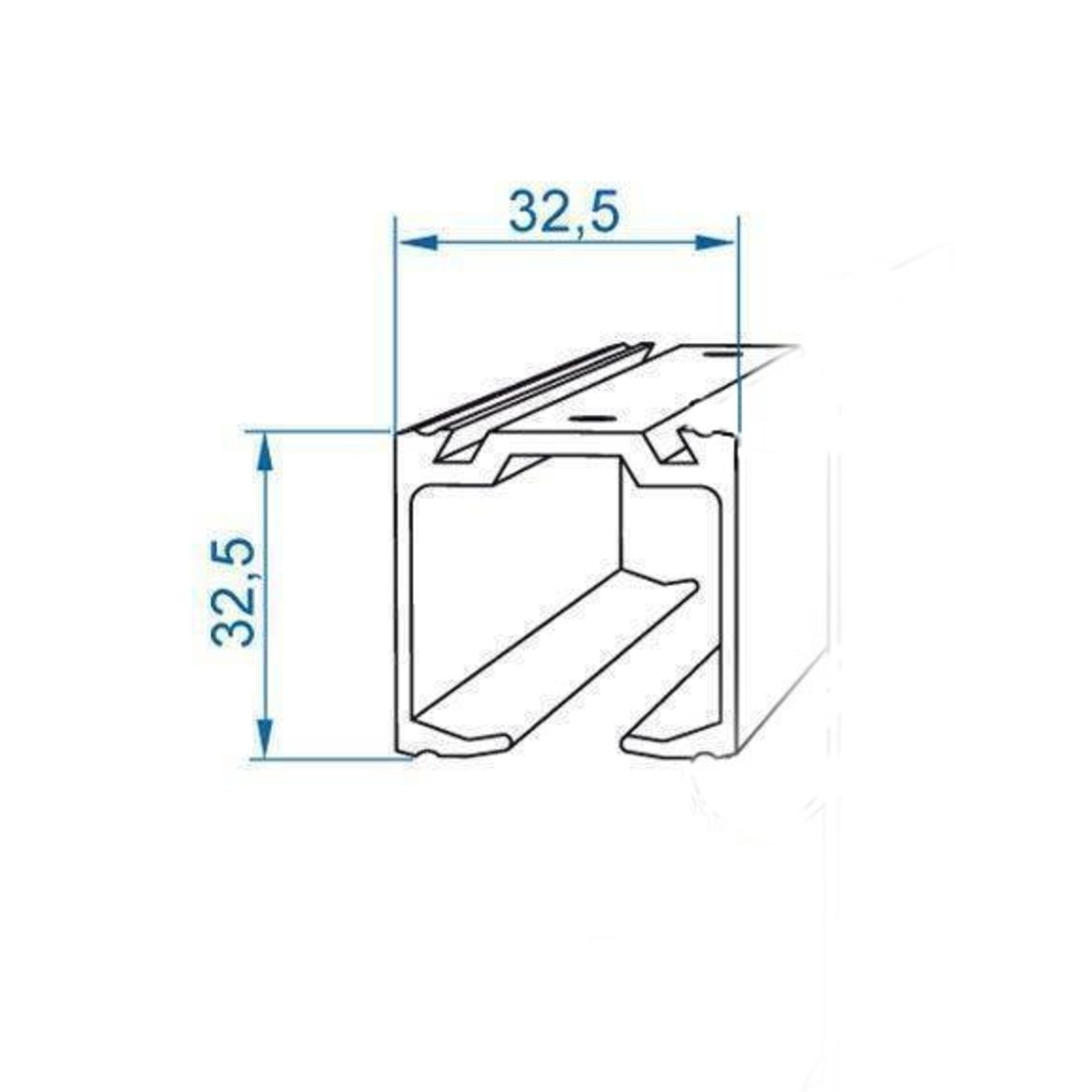

  • 1 x aluminium track

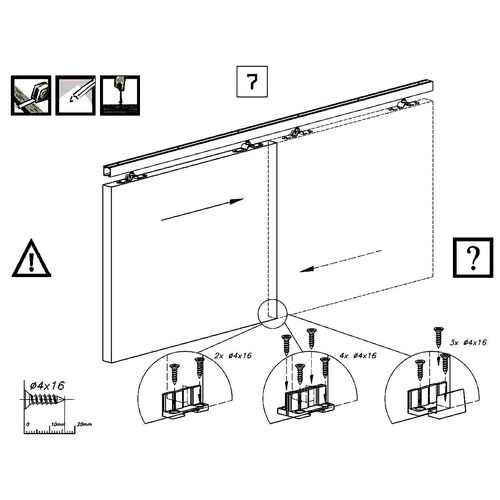

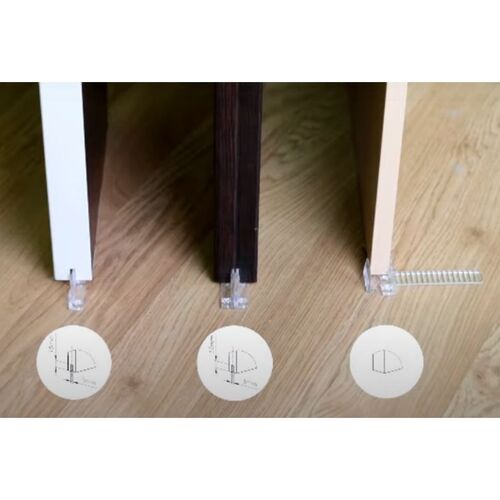

  • 1 x universal bottom guide
  • 1 x set of mounting screws

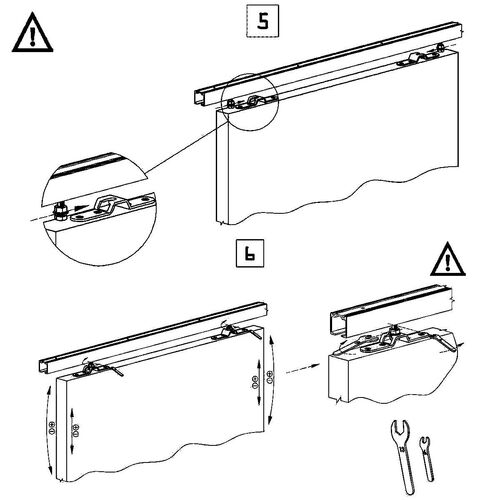

  • 1 x installation instructions
Additional accessories for Hercules system (must be purchased separately)
For the most demanding customers, interior designers and architects we offer also set of accessories to complement the system with additional functionality.
  • Soft Close piston - This latest addition for our system providing soft close motion. Piston can be also retrofitted to existing tracks

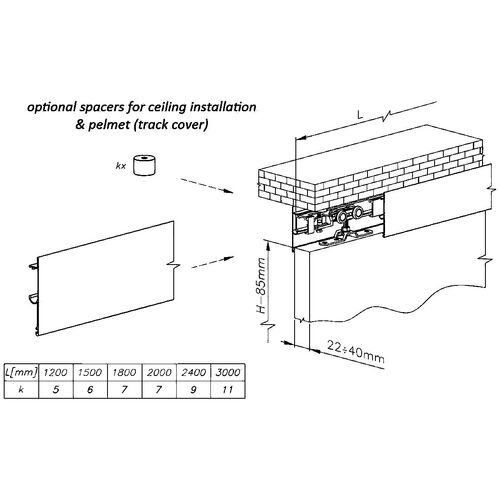

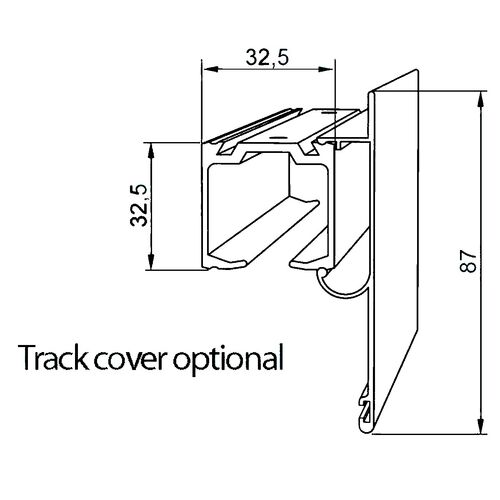

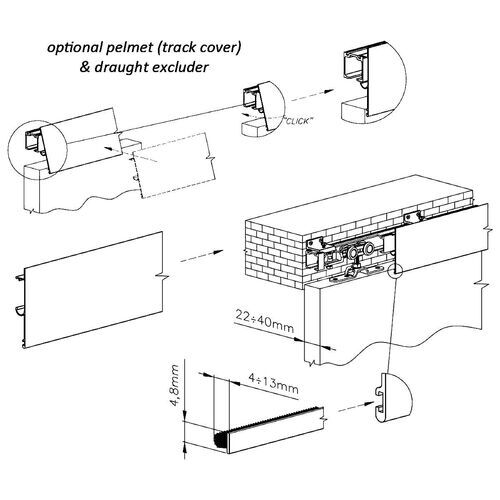

  • Aluminium Pelmets (Track Covers) for Hercules system - Is extremely attractive and the best way to hide the track and glass clamps. Available in three different finishes gold, silver and brown
  • Set of accessories for additional door Hercules 120kg - Set of accessories for additional door to be used with Hercules 120kg

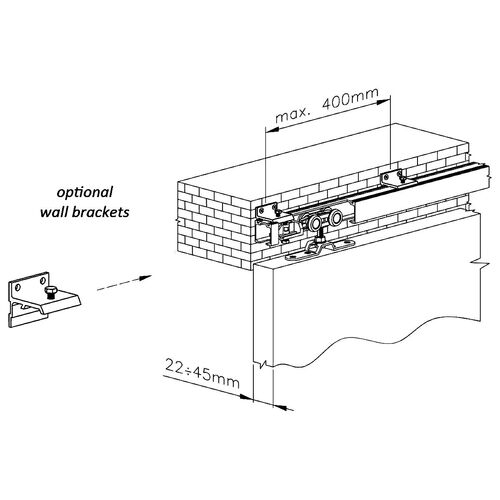

  • Wall brackets for up to 45mm doors or up to 35mm doors when attaching door track on the wall
  • Draught Excluder seal - Brushes made from natural materials, effectively seal open spaces with eliminating penetration of dirt, dust, moisture and noise.
  • Hercules Symmetric System - allows for automatic opening and closing of both doors at the same time.
Track Length:
Wall Brackets :
No Wall Brackets

Sliding Systems

Dedicated for:

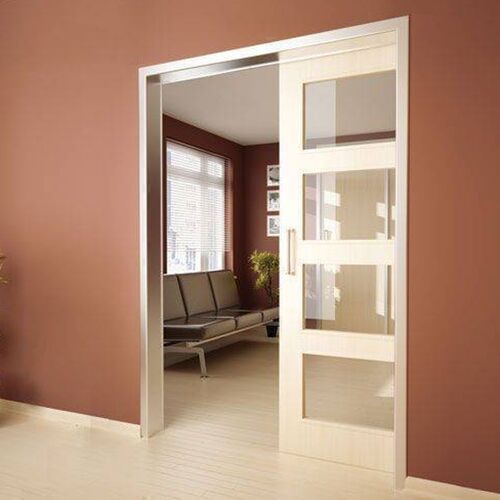

  • Pocket Doors
  • Room Dividing Doors
Included accessories for :
  • 1 door
Maximum Door Weight :
Product short Name:
System Type:
Top Hung
