Blum Tip-on Blumotion - Touch Release Soft Close (11-16mm ** drawer sides)

1763-001
Price from: £56.66inc VAT
+

Blum Tip-on Blumotion Drawer Slides are the most advanced runners released by Blum up to date. The entirely new concept combines Soft Close and Touch Release (Push to Open) features in one mechanism. Thanks to precision engineering operations are effortless and it all works on a purely mechanical basis. All components supplied with BLUM lifetime warranty

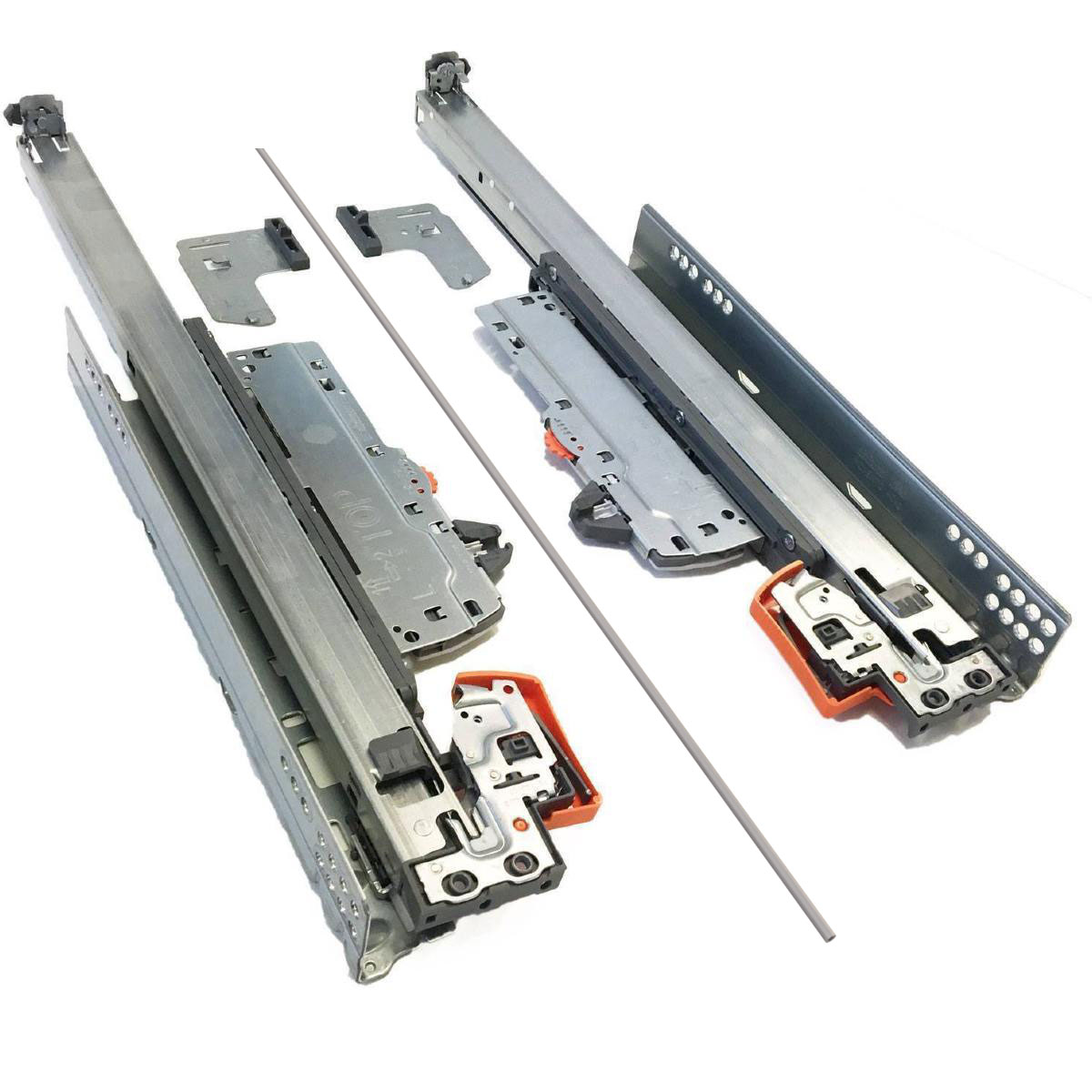

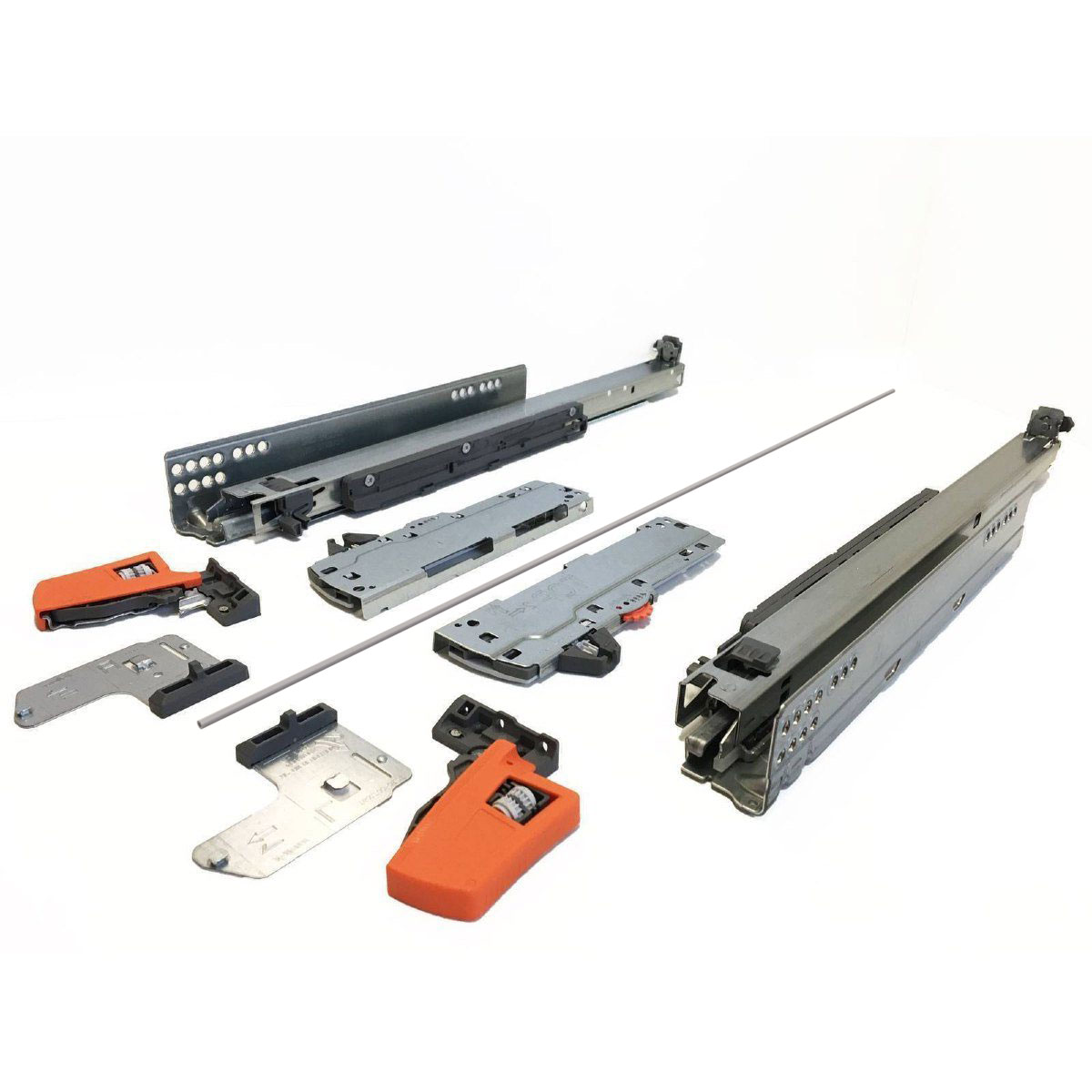

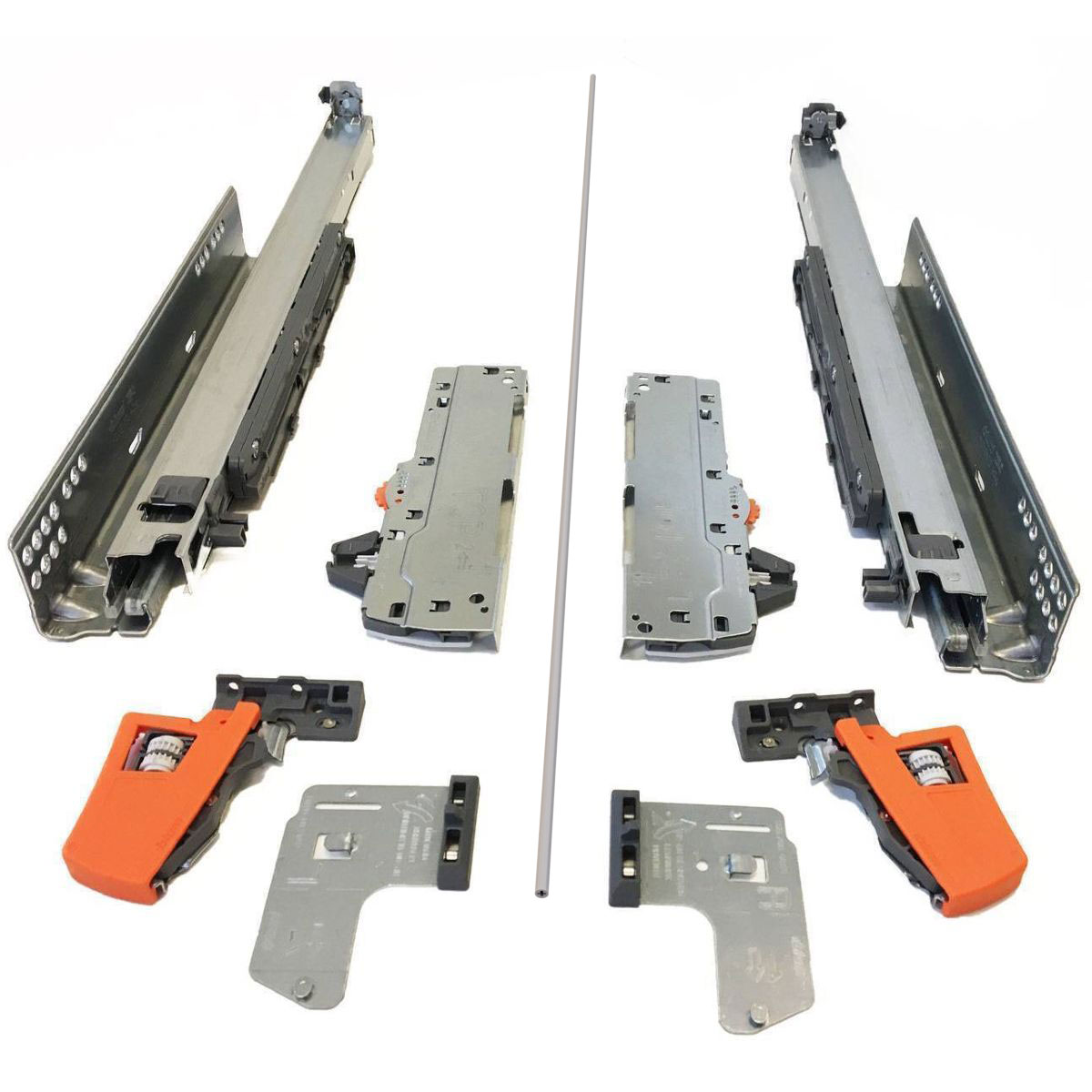

Set contains:

  • Pair of soft-close Movento 760 H Blumotion drawer slides (suitable for 11-16mm ** drawer sides)

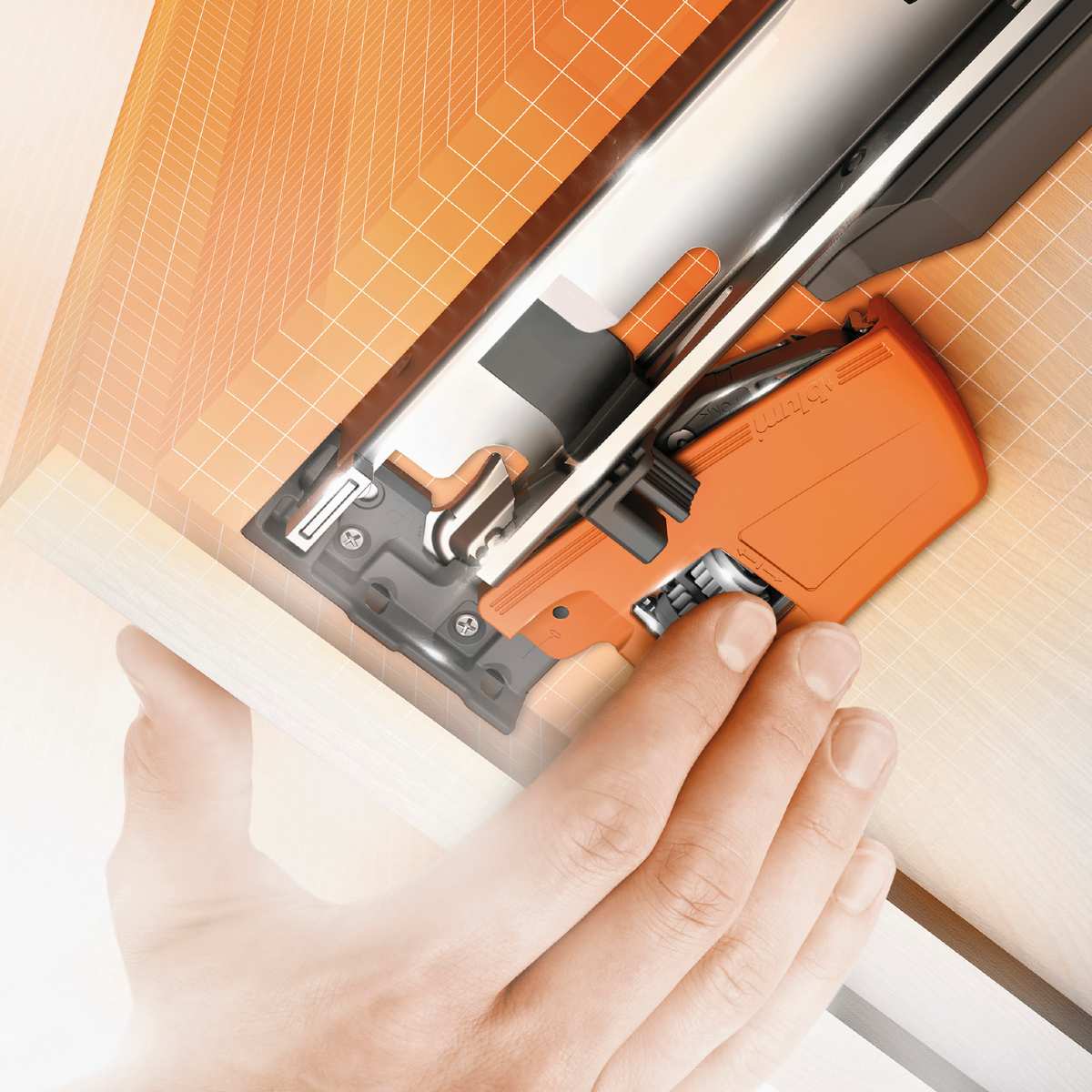

  • Pair of front fixing clips

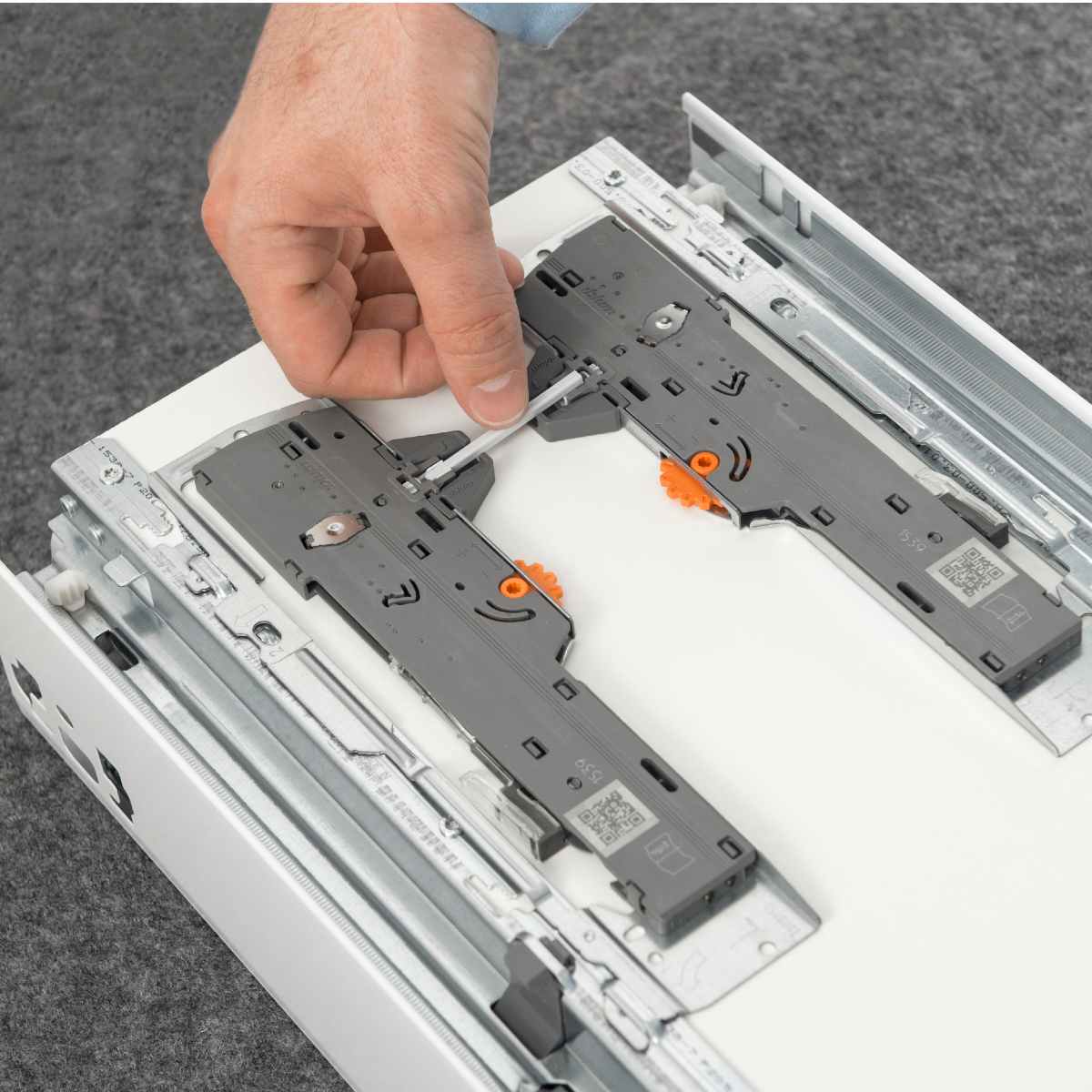

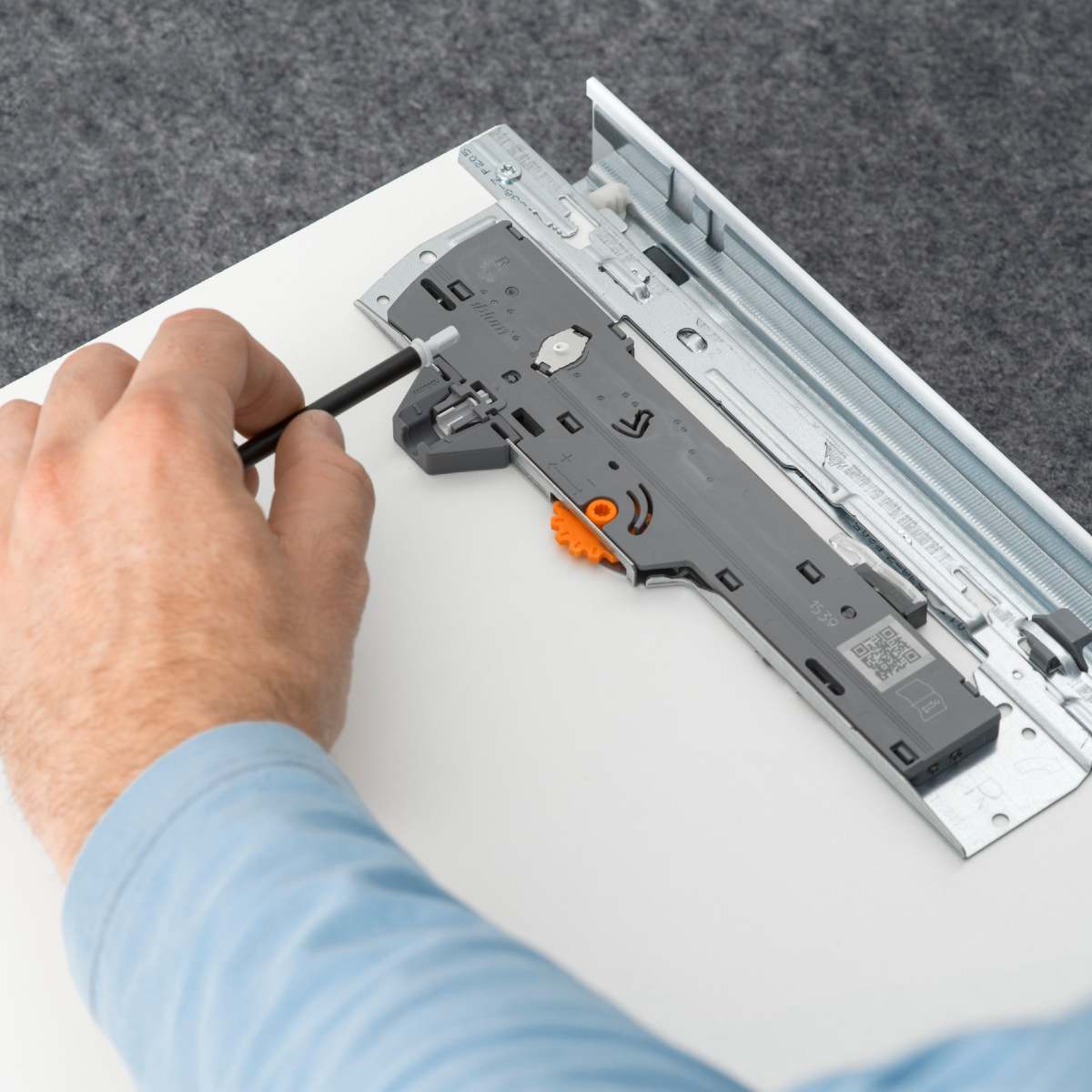

  • Pair of Tip-on adapters

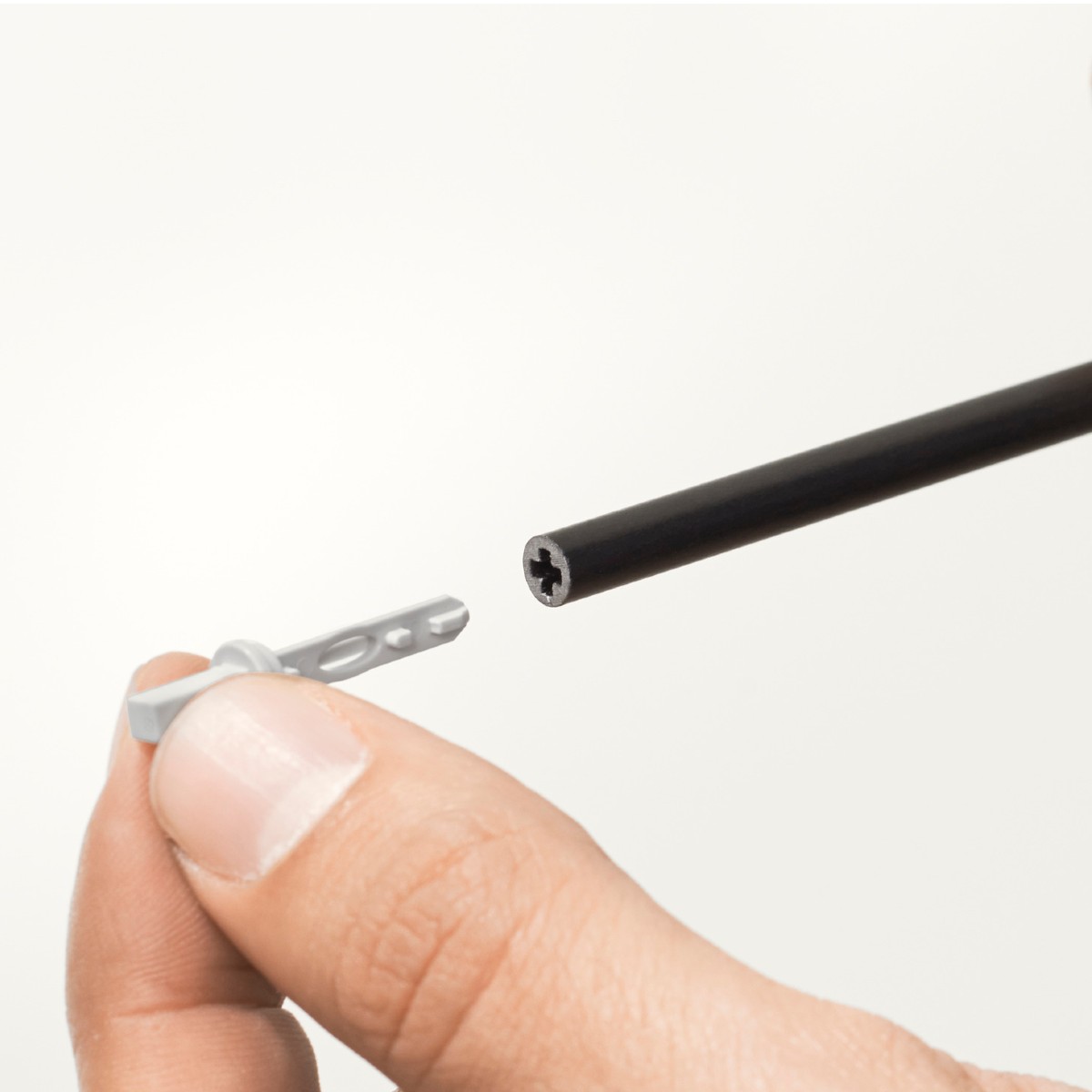

  • Synchronisation bar (1120 mm long)

Features:

  • Soft Close and Touch release (Push to open) in one runner
  • Available in sizes 350-500 mm (other sizes available on special request)
  • Max weight capacity - 40kg
  • Supplied complete with Tip-on and synchronisation bar
  • Four-dimensional drawer adjustment

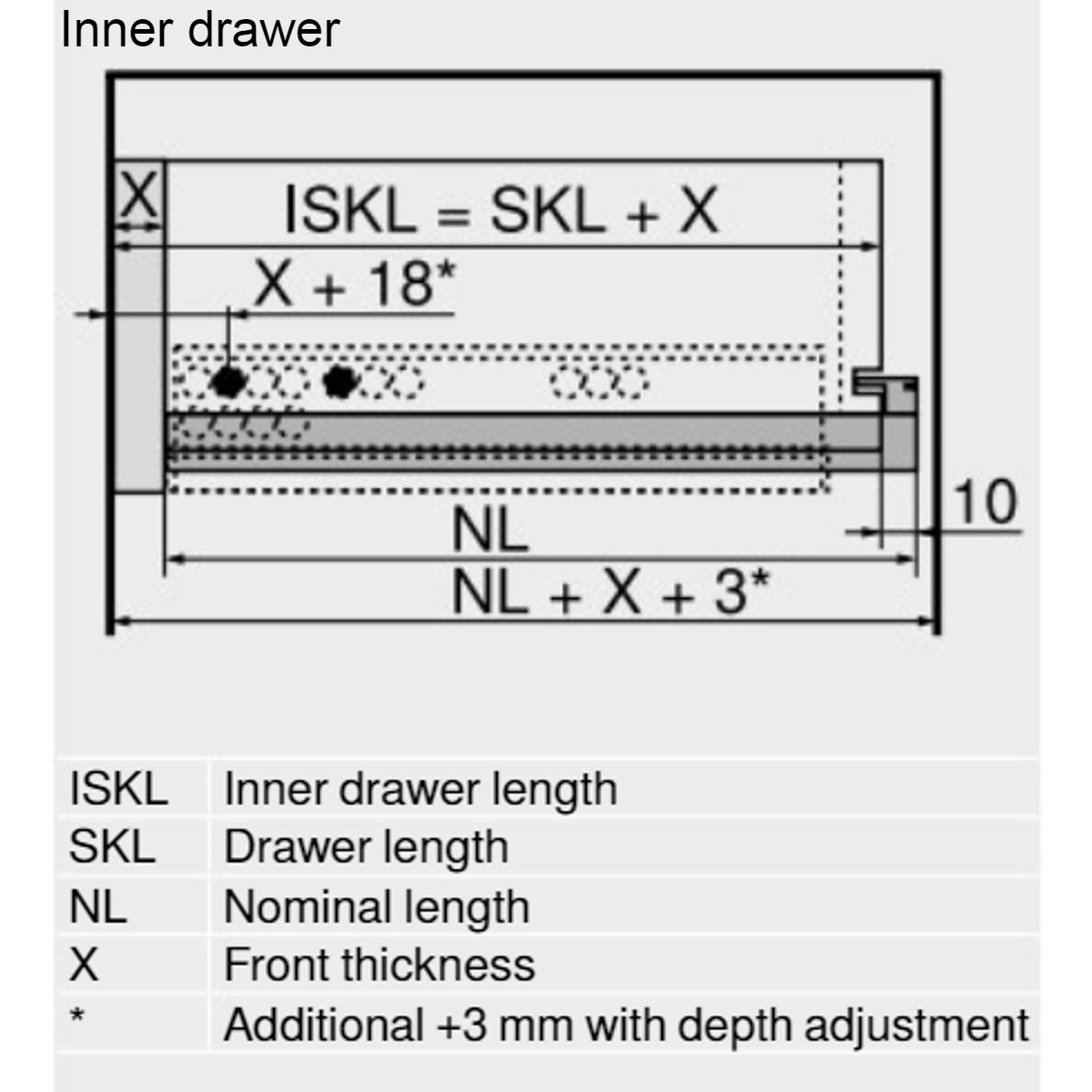

  • Only a 2.5 mm gap between the drawer front and carcass required
  • Lifetime Warranty from BLUM
  • Available with 2 versions of Tip-on*:
    • 0-20 kg*
    • 5-40 kg*

*Please make sure you choose the correct drawer weight from the drop-down menu. It will allow the touch release mechanism to open the drawer with force adequate to the weight of a drawer.

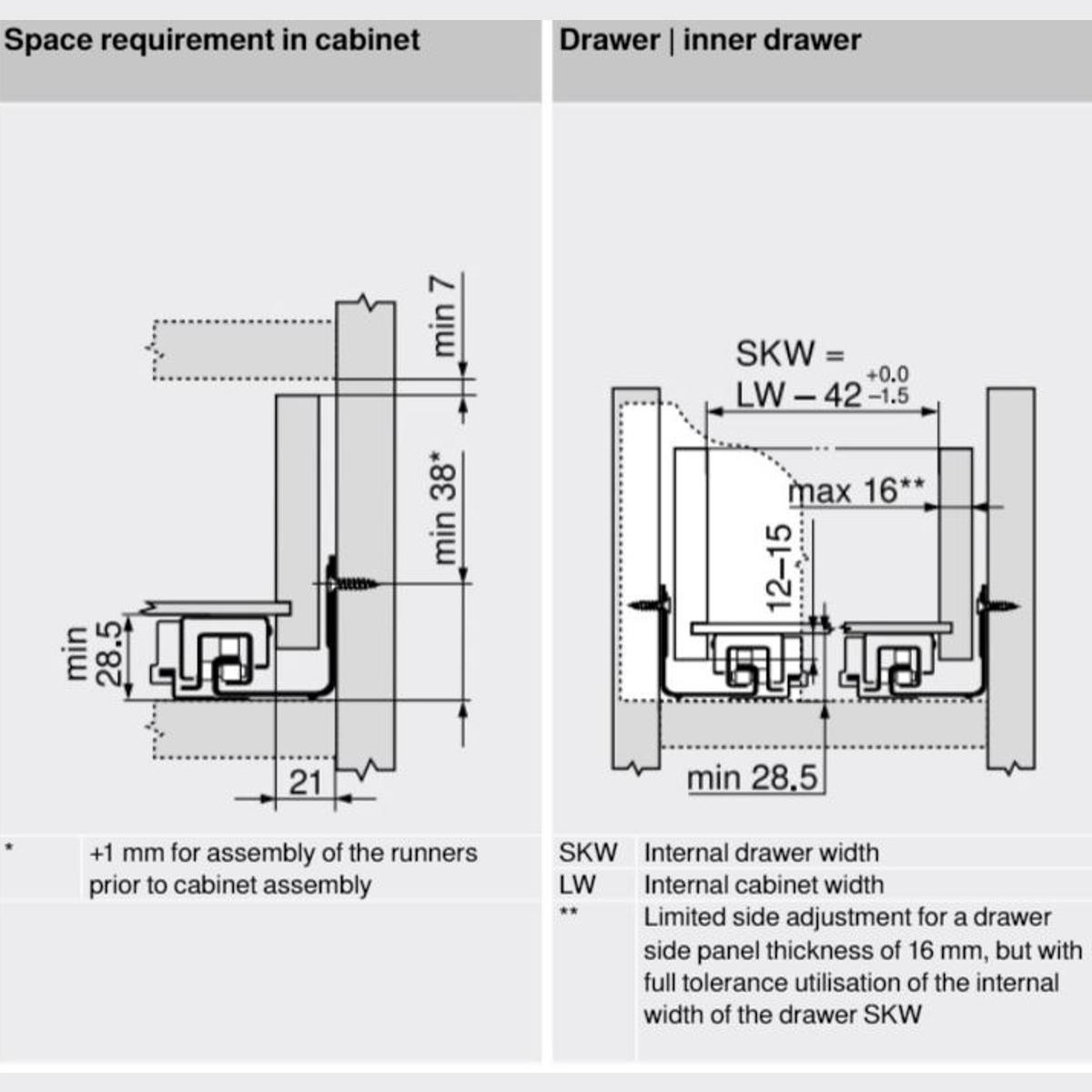

  • ** Limited side adjustment for a drawer side panel thickness of 16mm, but with full tolerance utilisation of the internal width of the drawer


Length:
350 mm
Drawer weight:
0-20 kg
Runner Type :
Concealed Full Extension

Drawer Runners

Closing Mechanism:
Soft Close / Push to open
Runner Size :
  • 350mm
  • 400mm
  • 450mm
  • 500mm
  • 550mm
Weight Rating:
40kg
