Blum 760H Movento Tip-On 40kg Push To Open (Max Drawer Sides 16mm)

5883-001
Price from: £51.11inc VAT
+

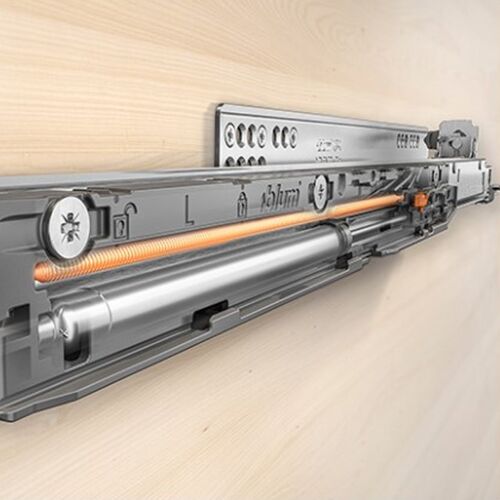

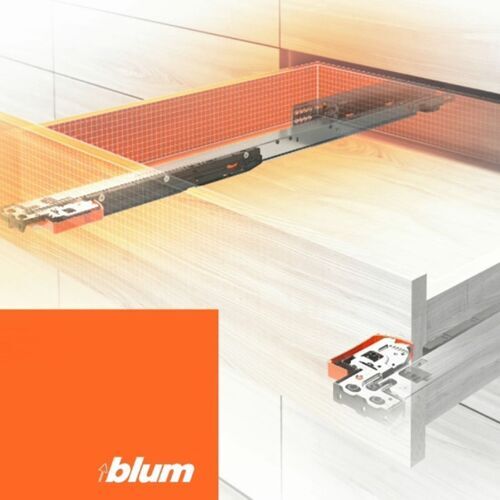

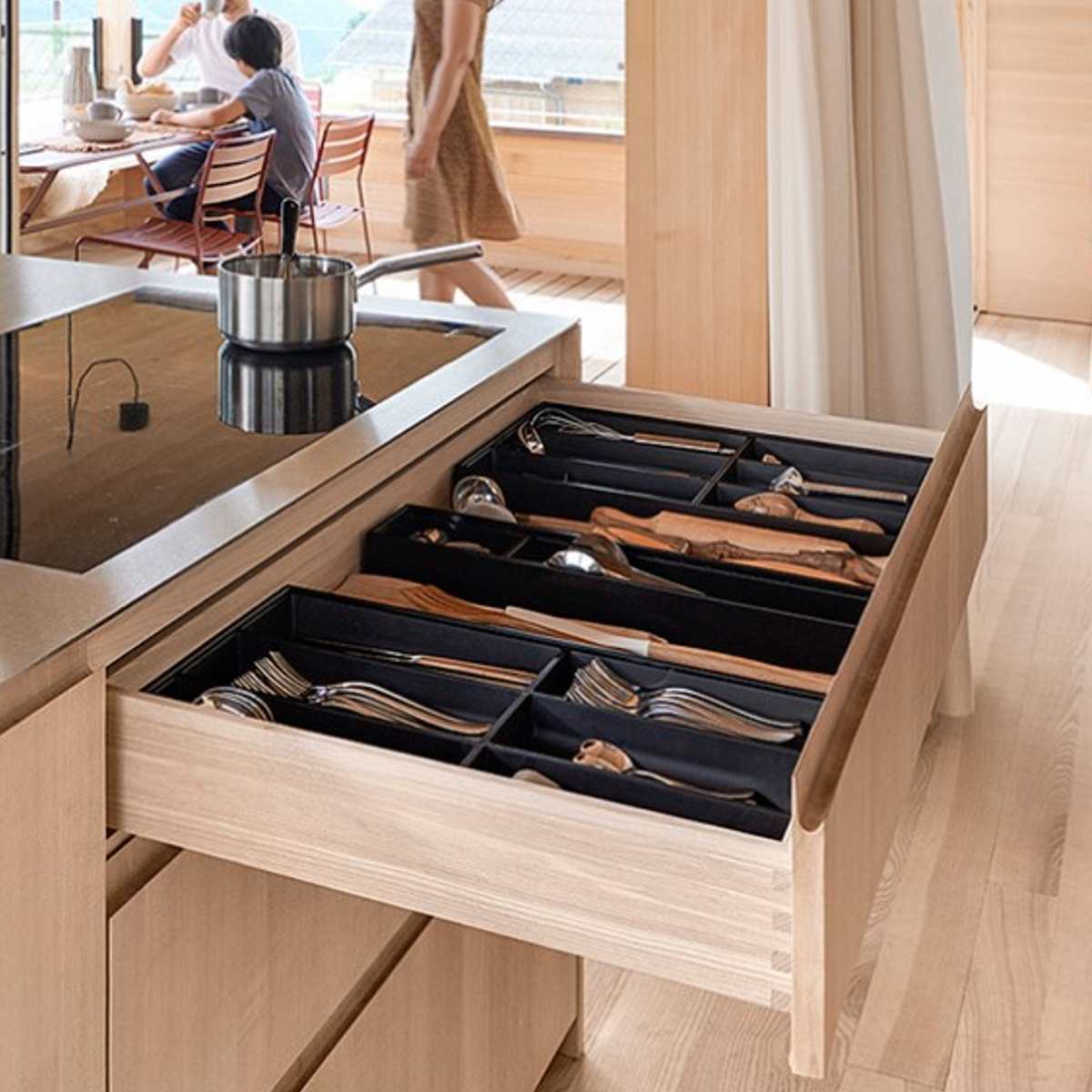

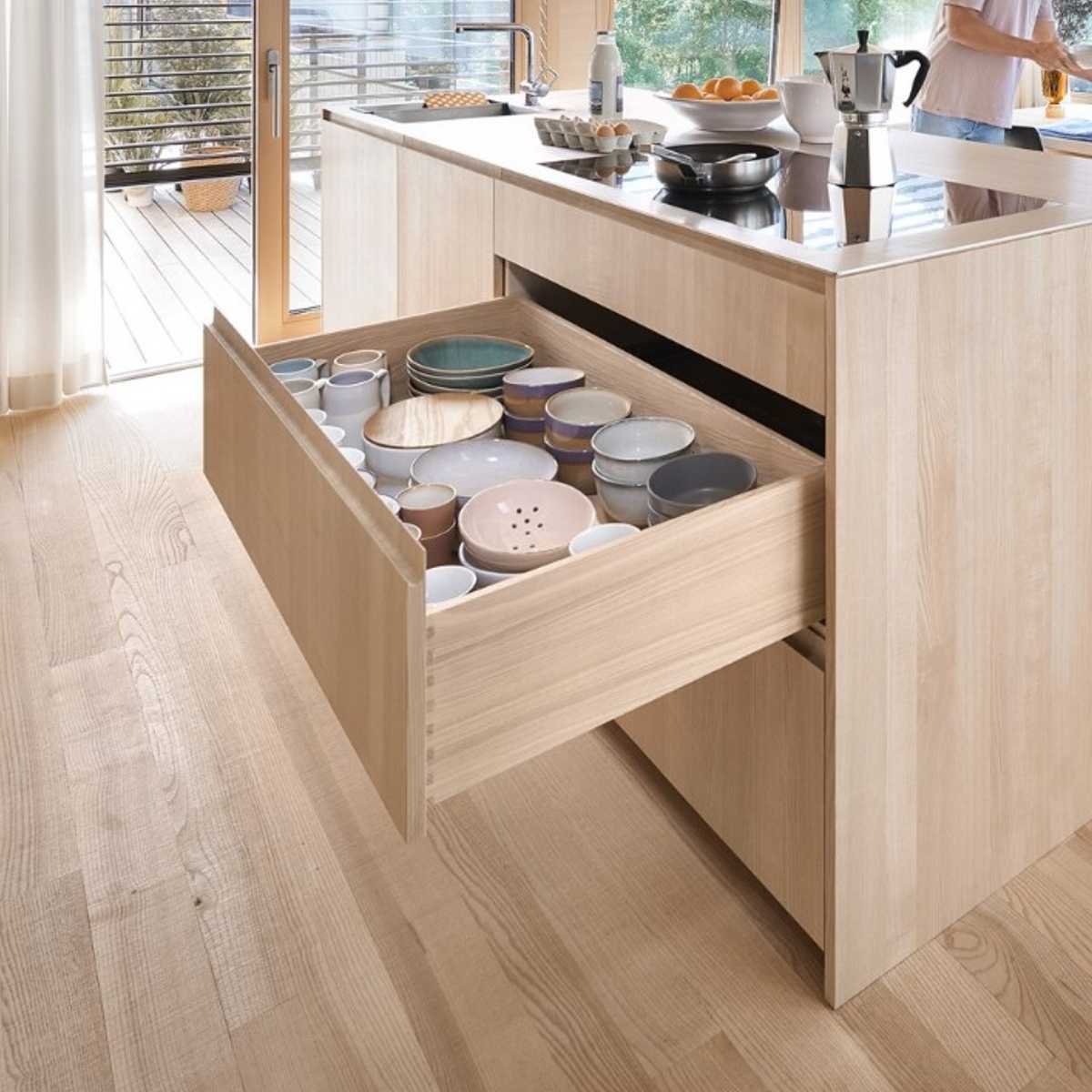

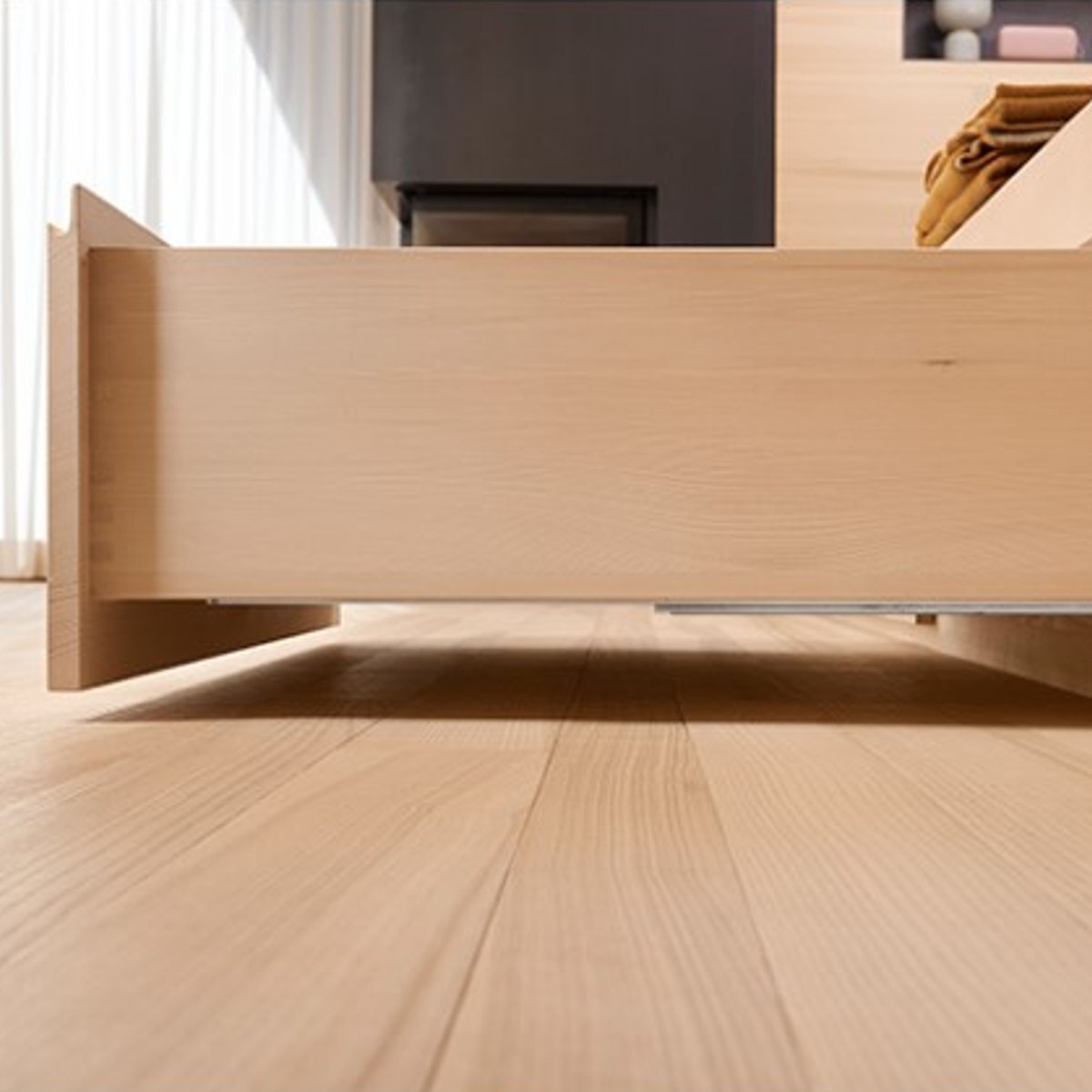

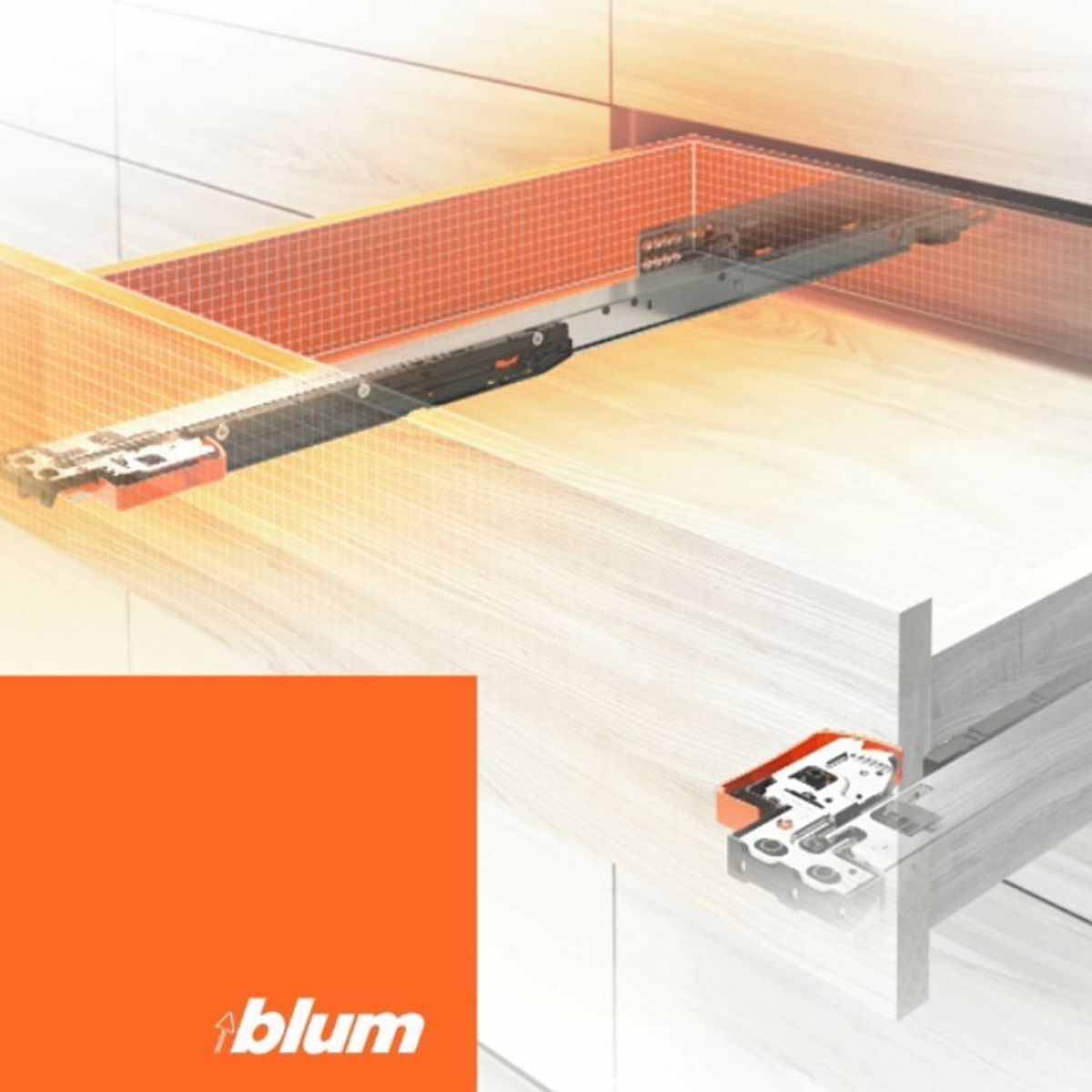

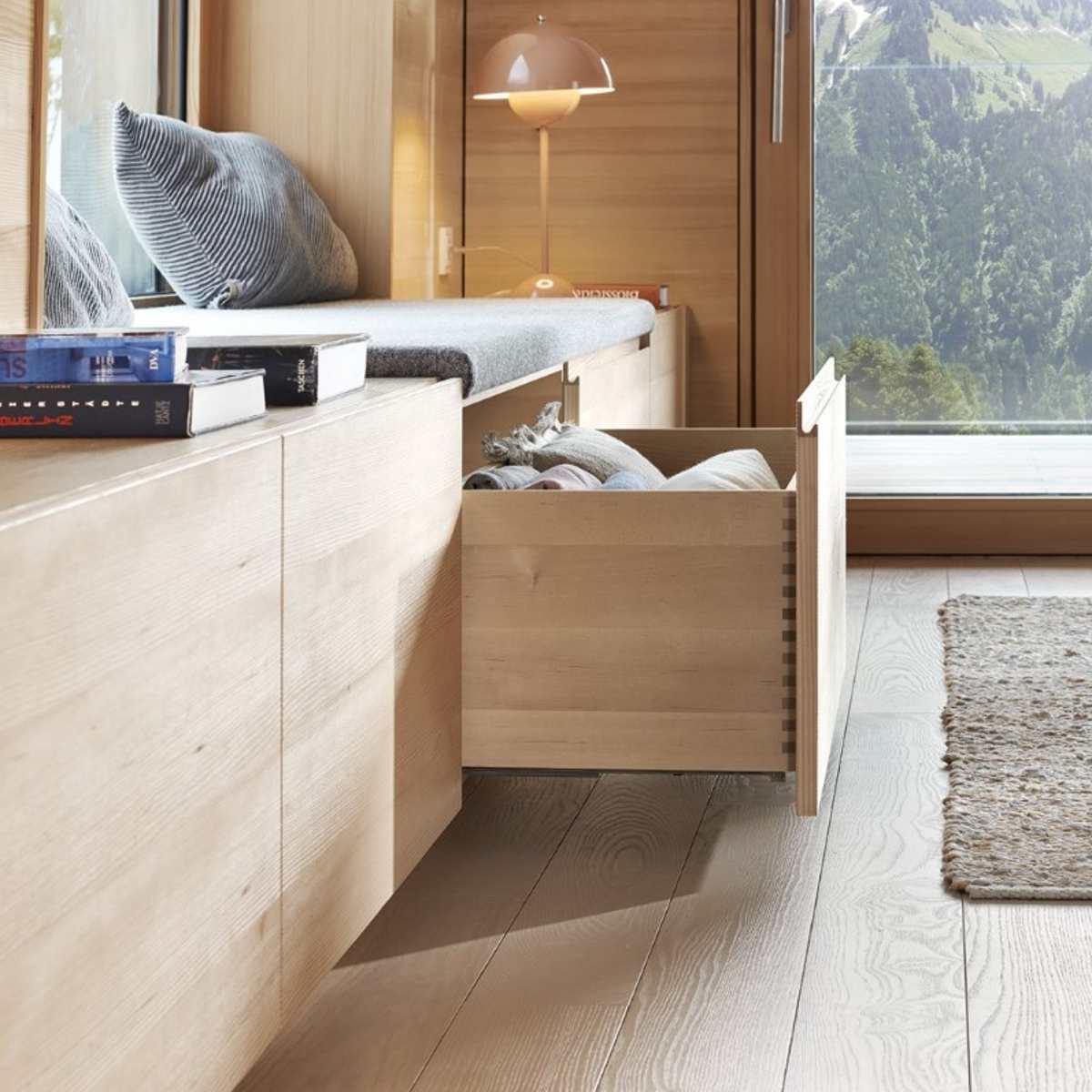

Blum Movento synchronised drawer slides with an integrated tip-on (push to open) mechanism. High quality and smooth operation for kitchen drawers, sideboards and wardrobe drawers up to 40kg. Effortless touch release concealed runners’ action with Blum lifetime warranty.

  • Full extension
  • Blum lifetime warranty

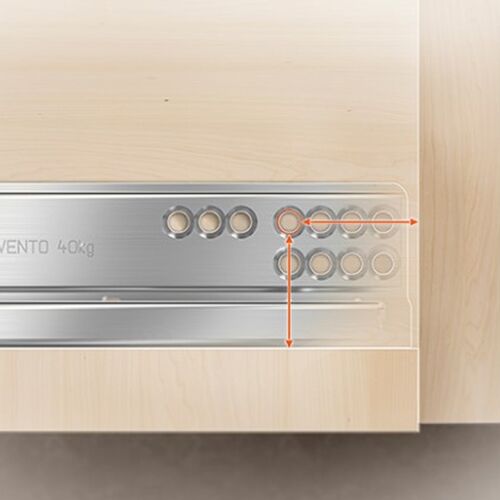

  • Integrated 3d adjustment

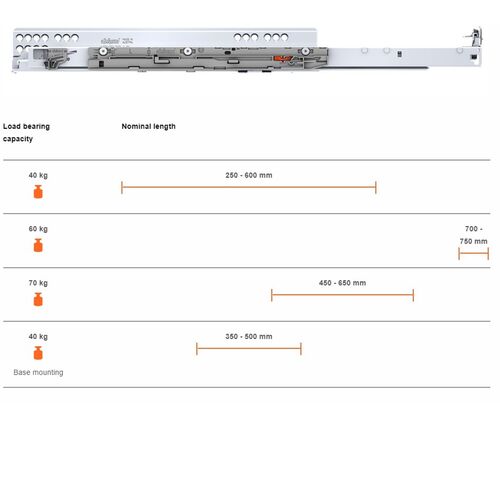

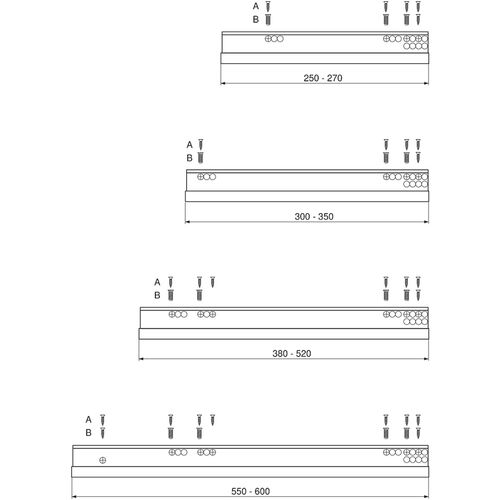

  • Available lengths: 250-600mm
  • Maximum drawer weight: 40kg
  • Integrated tip-on (push to open)

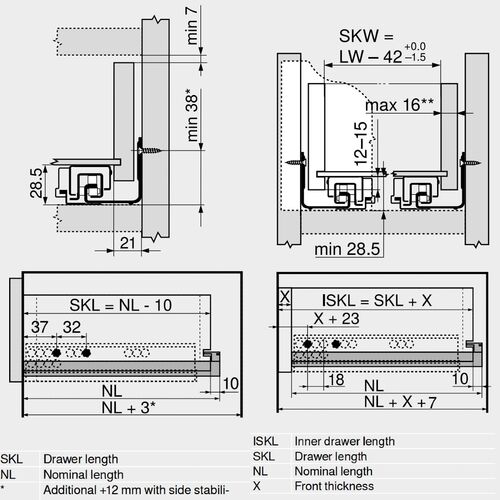

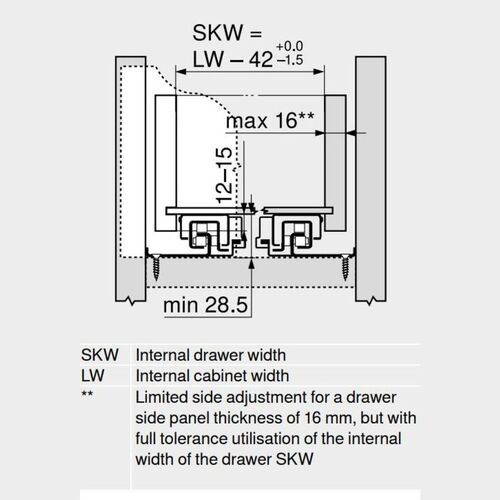

  • To work with max 16mm thick drawers sides
  • Optional depth adjustment available in related products

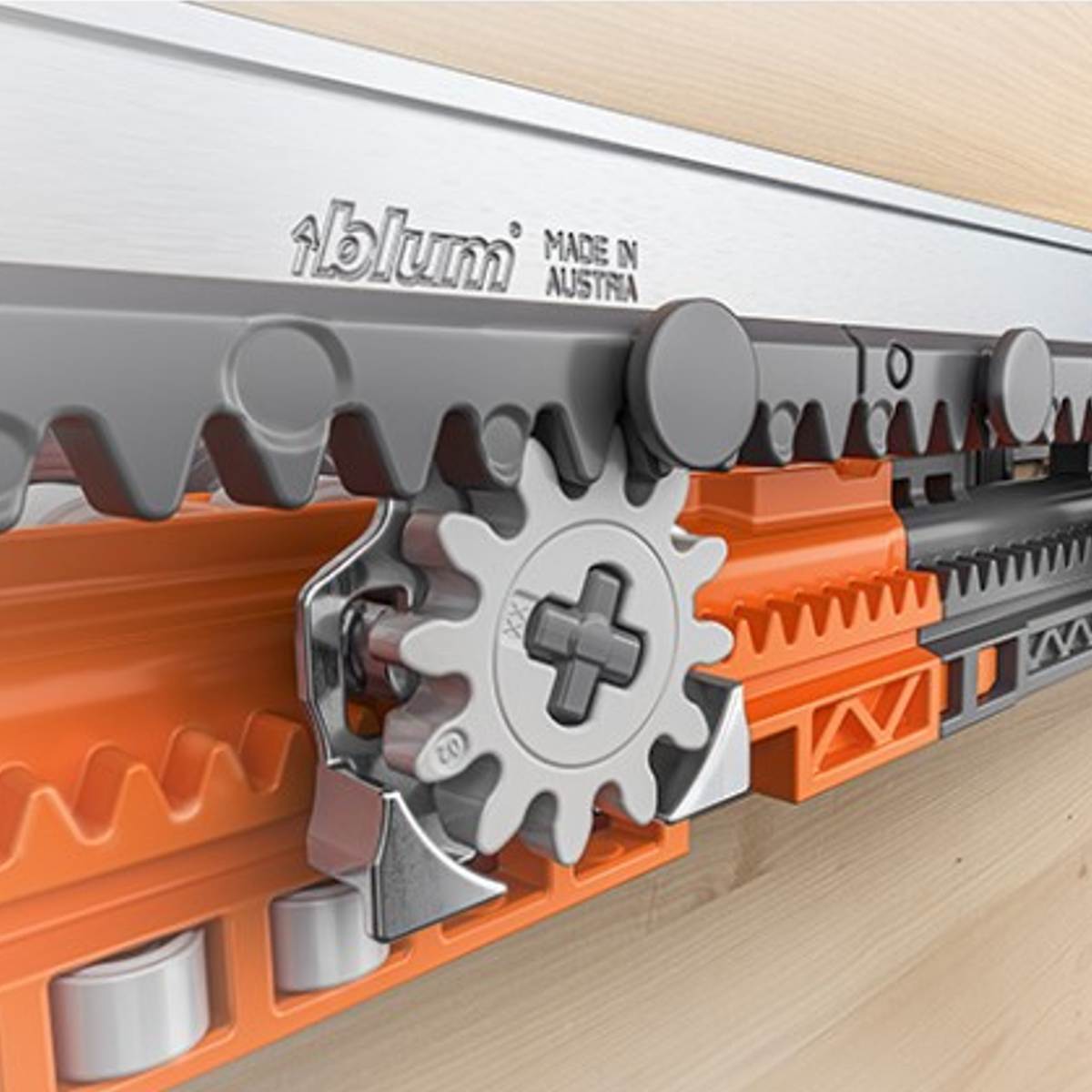

  • Synchronisation for wide drawers available in related products (recommended for drawers wider than 600mm)
  • Available versions: 760H2500T, 760H2700T, 760H3000T, 760H3200T, 760H3500T, 760H4000T,760H4200T, 760H4500T,760H4800T 760H5000T, 760H5500T, 760H6000T

Please note that:

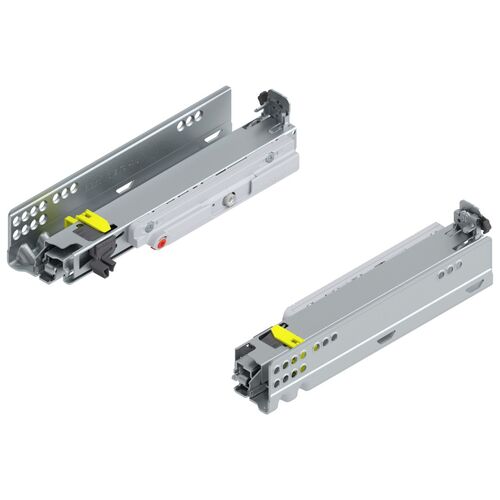

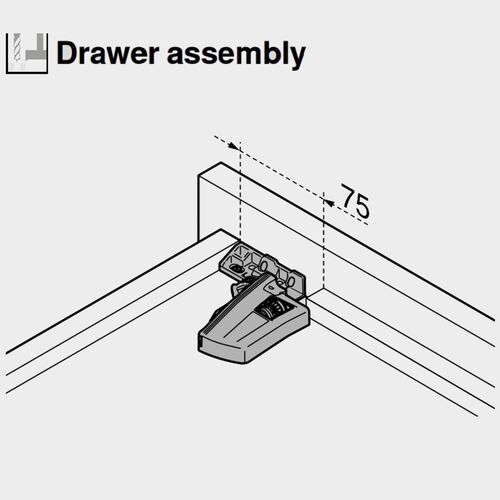

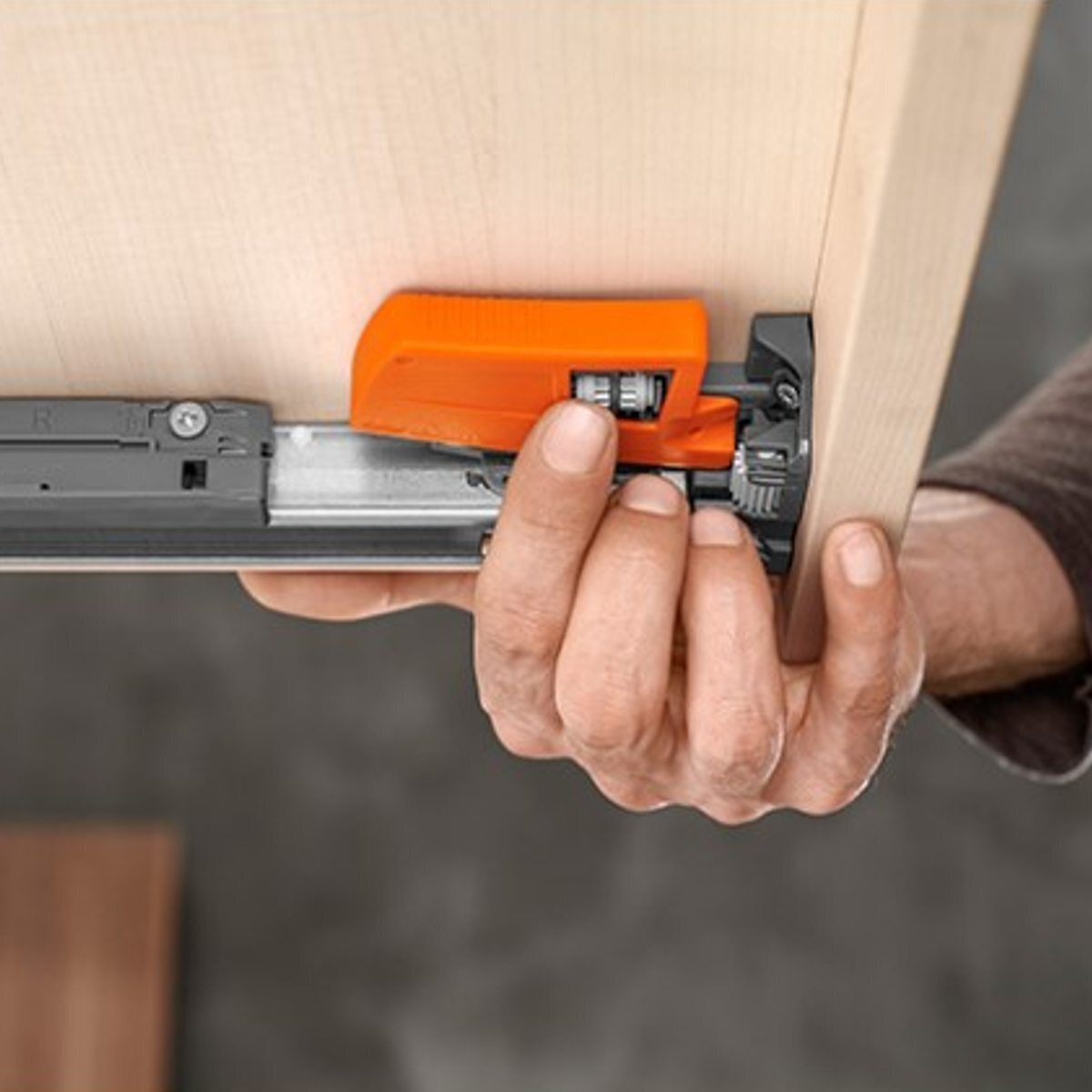

  • Locking devices are required for installation

Compatible synchronisation:

Specification [pdf|39 Kb]

Catalogue Page [pdf|2,050 Kb]

CAD 250mm [dxf|585 Kb]

CAD 270mm [dxf|587 Kb]

CAD 300mm [dxf|603 Kb]

CAD 320mm [dxf|588 Kb]

CAD 350mm [dxf|588 Kb]

CAD 400mm [dxf|629 Kb]

CAD 420mm [dxf|628 Kb]

CAD 450mm [dxf|629 Kb]

CAD 480mm [dxf|630 Kb]

CAD 500mm [dxf|629 Kb]

CAD 550mm [dxf|637 Kb]

CAD 600mm [dxf|658 Kb]

Drawer Runners

Runner Length:
250mm
Locking Devices:
No Locking Devices
