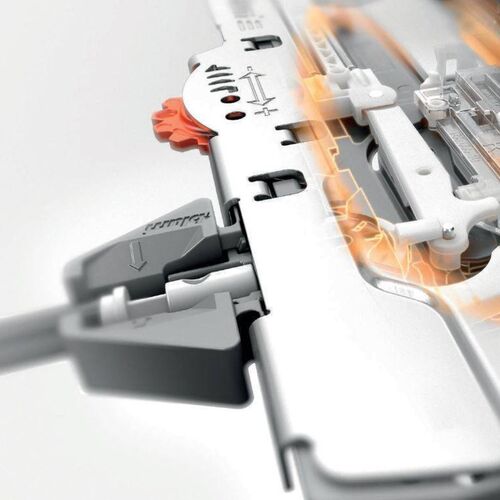

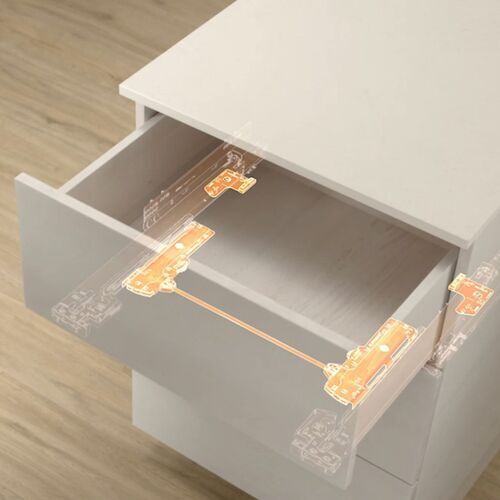

Blum tip-on Blumotion drawer slides are the most advanced runners released by blum up to date. The entirely new concept combines soft close and touch release (push to open) features in one mechanism. Thanks to precision engineering operations are effortless and it all works on a purely mechanical basis. All components supplied with blum lifetime warranty.

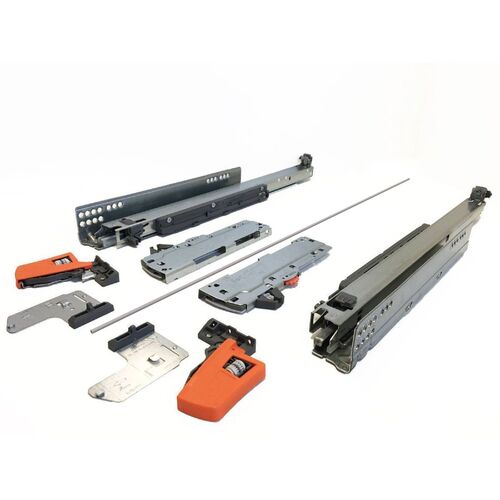

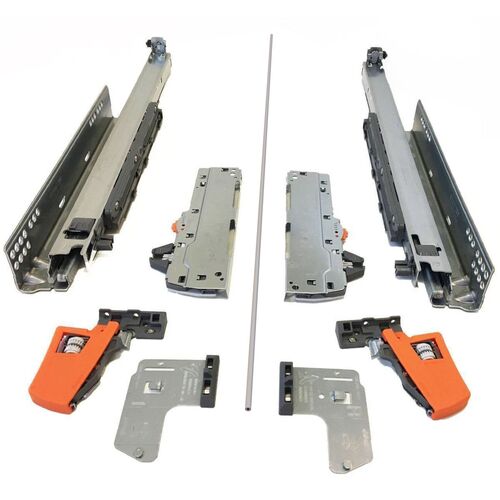

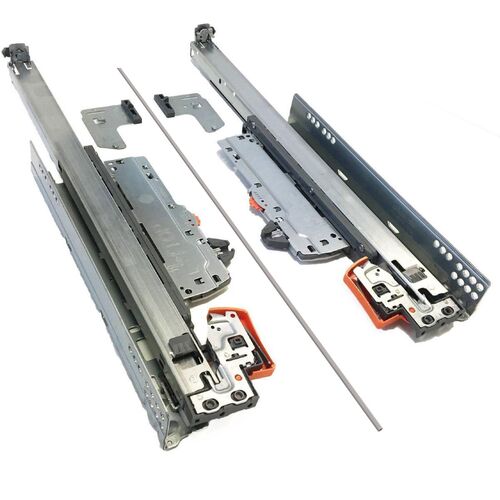

Set contains:
- Pair of soft-close Movento 766H blumotion drawer slides (suitable for 11-16mm drawer sides**)
- Pair of front fixing clips
- Pair of Tip-on adapters
- Synchronisation bar (1120mm long)
Features:
- Soft Close and Touch release (push to open) in one runner
- Available in sizes 450-750mm (other sizes available on special request)
- Full extension
- Minimum weight capacity: 35kg
- Maximum weight capacity: 60kg
- Supplied complete with tip-on and synchronisation bar
- Four-dimensional drawer adjustment

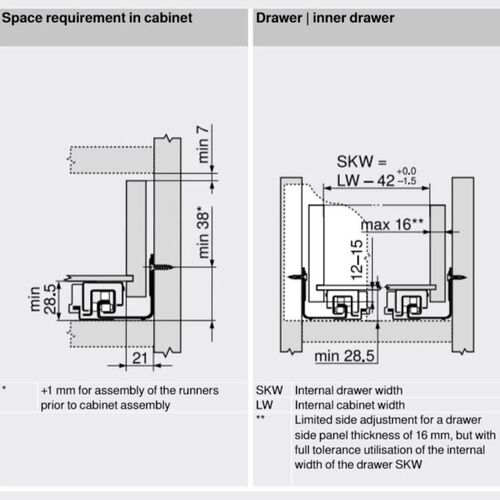

- Only a 2.5mm gap between the drawer front and carcass required
- Lifetime warranty from Blum
- Runners used: 766H4500S, 766H5000S, 766H5500S, 766H6000S, 766H6500S, 766H7000S, 766H7500S
Please note that:
- ** Limited side adjustment for a drawer side panel thickness of 16mm, but with full tolerance utilisation of the internal width of the drawer
Drawer Runners
Runner Length:
450mm
