Blum Tip-on Blumotion - Touch Release Soft Close

4020001
Price: £52.30
(£43.58 EX VAT)
+

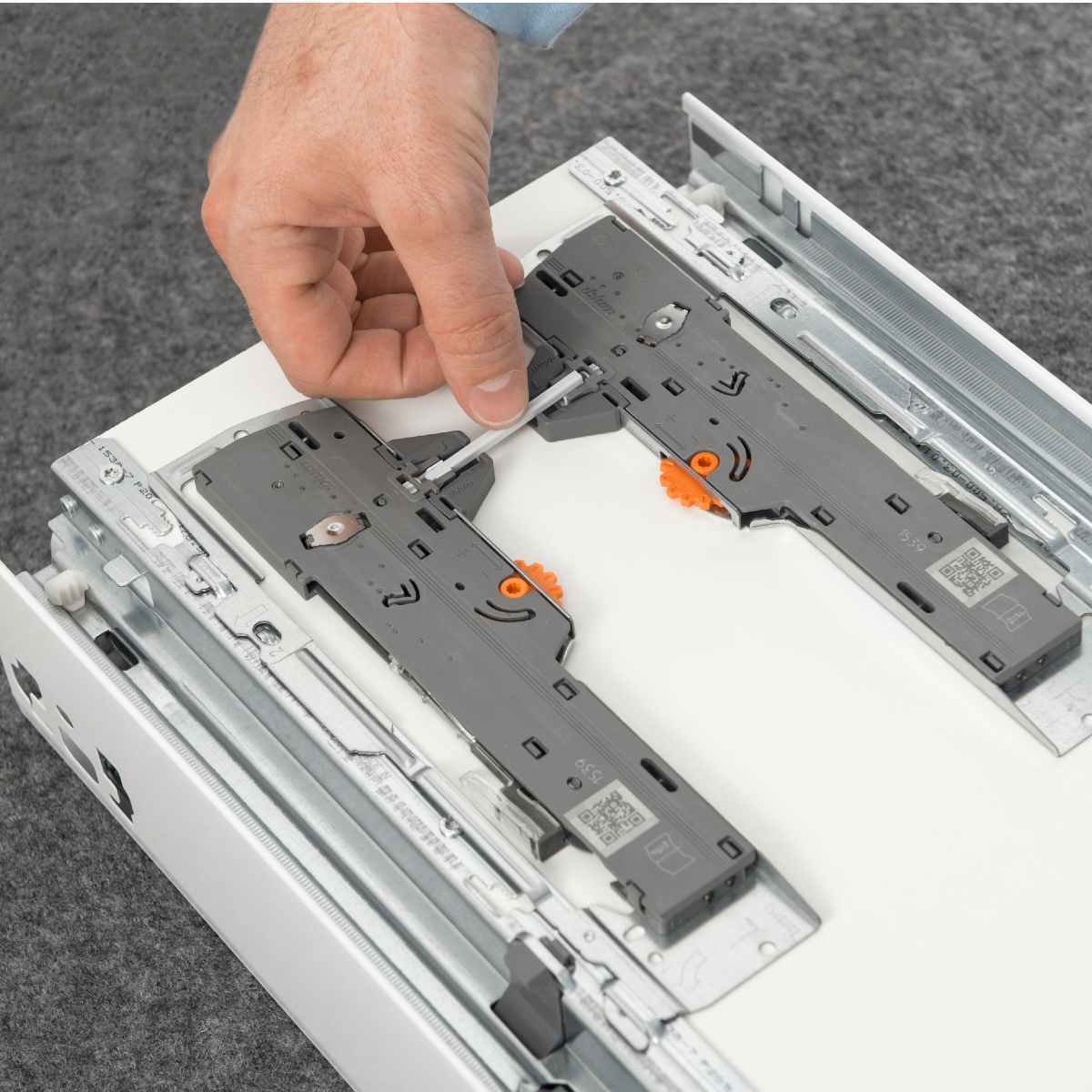

Blum Tip-on Blumotion Drawer Slides are the most advanced runners release by Blum up to date. Entirely new concept combines Soft Close and Touch Release (Push to Open) features in one mechanism. Thanks to the precision engineering operation is effortless and it all works on purely mechanical basis. All components supplied with BLUM lifetime warranty

Set contains of :

  • Pair of soft close Movento Blumotion drawer slides
  • Pair of front fixing clips
  • Pair of Tip-on adapters
  • Synchronisation bar

Features:

  • Soft Close and Touch release (Push to open) in one runner
  • Available in sizes 350-500 mm (other sizes available on special request)
  • Max weight capacity - 40kg
  • Supplied complete with Tip-on and synchronisation bar
  • Four dimensional drawer adjsutment
  • Only 2.5 mm gap between the drawer front and carcass required
  • Lifetime Warranty from BLUM
  • Available with 2 versions of Tip-on*:
    • 0-20 kg*
    • 5-40 kg*

*Please make sure you choose correct drawer weight from drop down menu. It will allow touch release mechanism to open the drawer with force adequate to the weight of a drawer.

Fitting Instructions (Fitting_Instructions.pdf, 2,900 Kb) [Download]

Adjustment (Adjustment_and_Assembly.pdf, 1,790 Kb) [Download]

Specification (Specification.pdf, 890 Kb) [Download]

Drawer Runners

Closing Mechanism:
Soft Close / Push to open
Runner Size :
  • 350mm
  • 400mm
  • 450mm
  • 500mm
  • 550mm
Runner Type :
Concealed Full Extension
Weight Rating:
40kg
