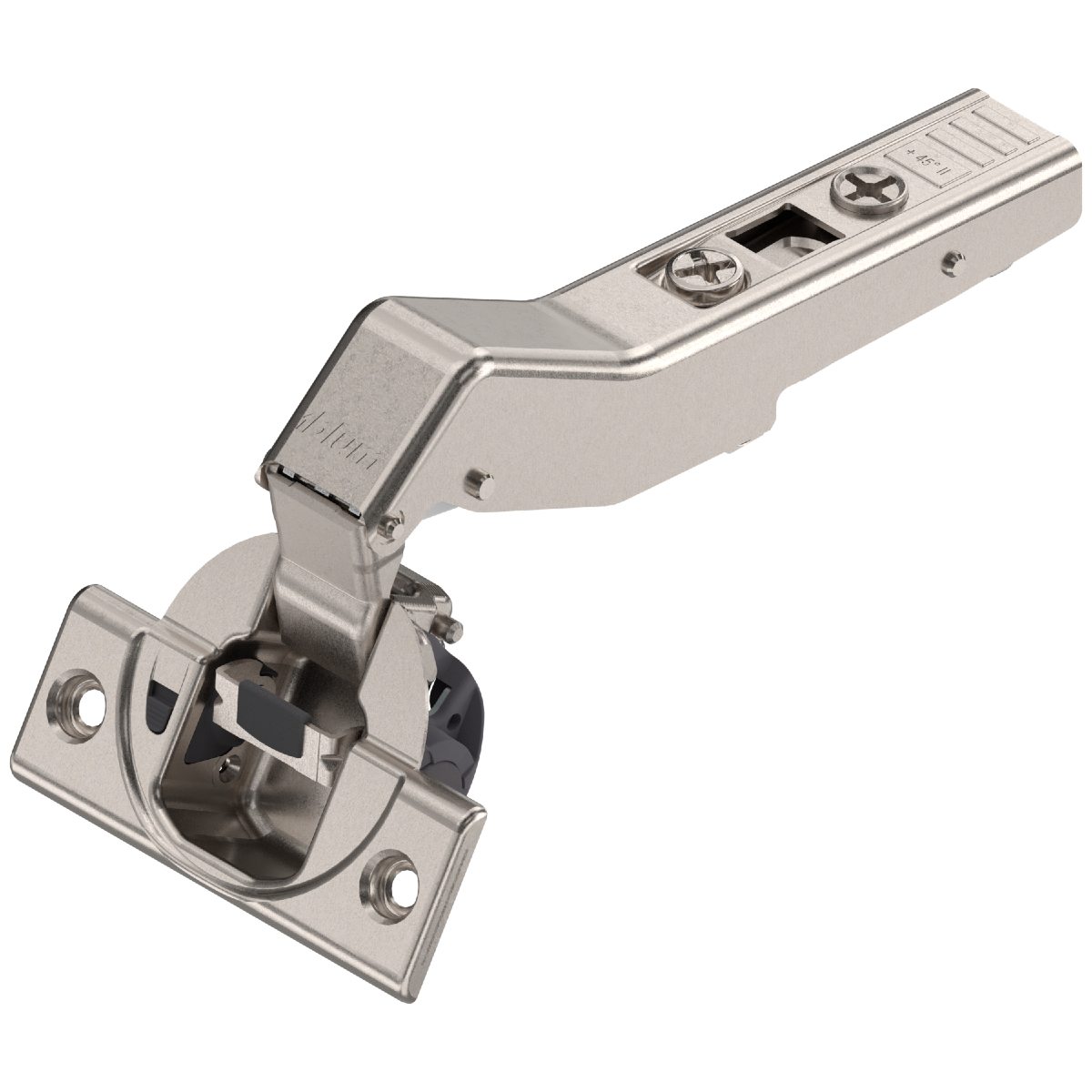

The Blum clip top overlay 110 degree cabinet hinge 79B3558 is a high-quality hinge designed for cabinet doors with an overlay. This hinge ensures reliable function and attractive design for your cabinet doors. Whether you’re installing new cabinets or upgrading existing ones, the Blum clip top hinge provides ease of adjustment and smooth operation.
- Clip top profile door hinge 79B3558
- Opening angle: 110 degrees
- Door thickness: 18-19mm
- Cranking: overlay application
- Boss assembly: screw-on
- Boss material: steel boss

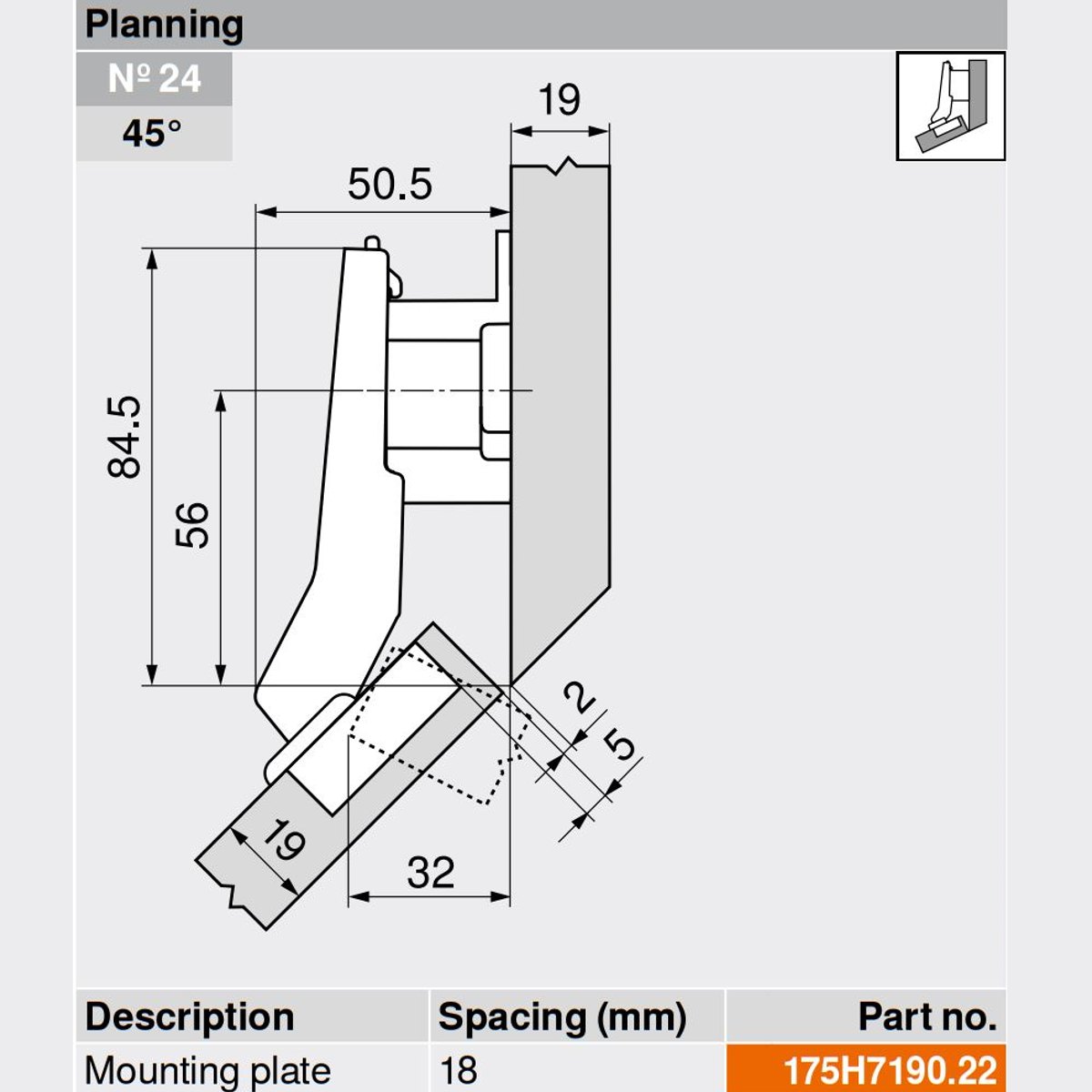

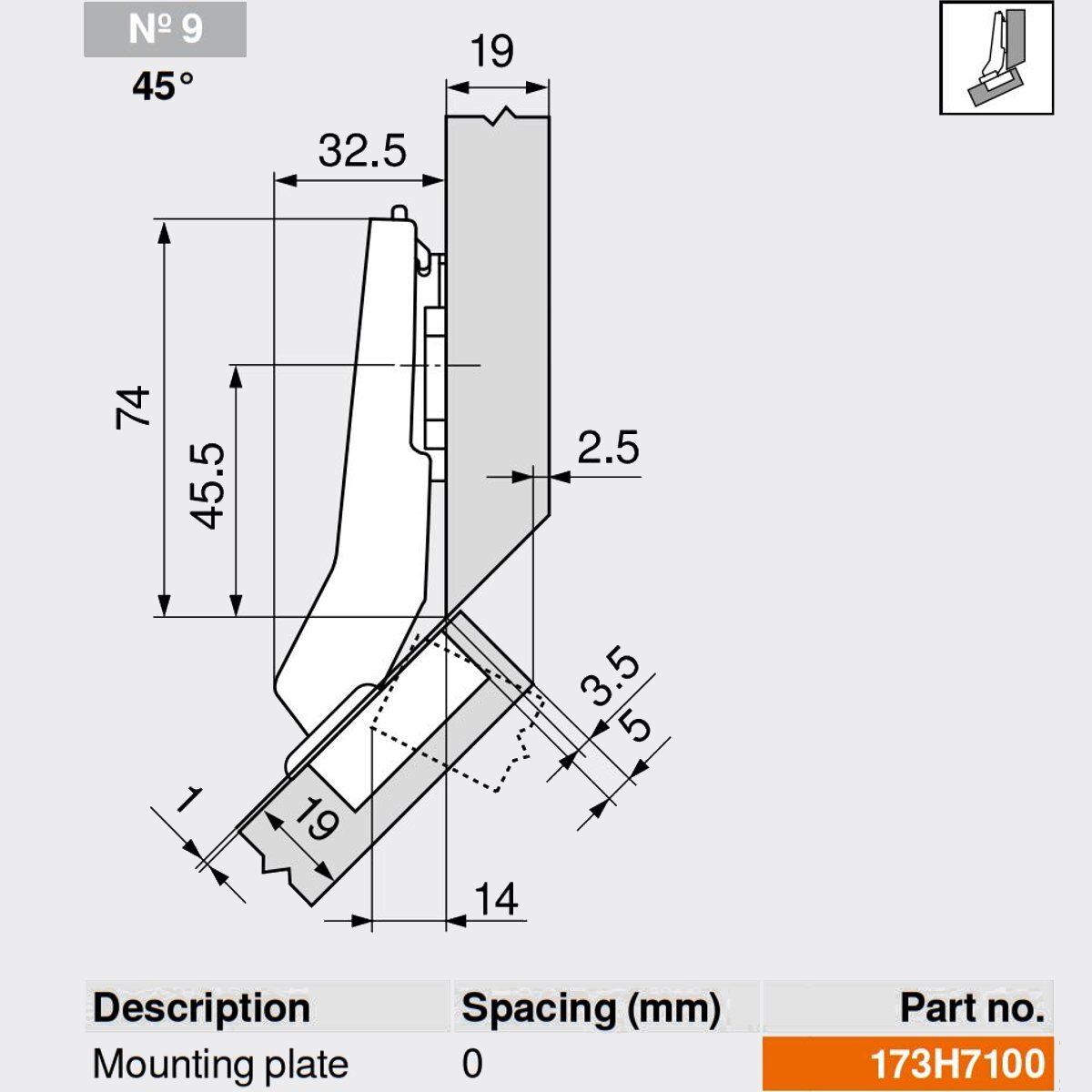

- +45° angled hinge
- Closing mechanism: blumotion soft-close

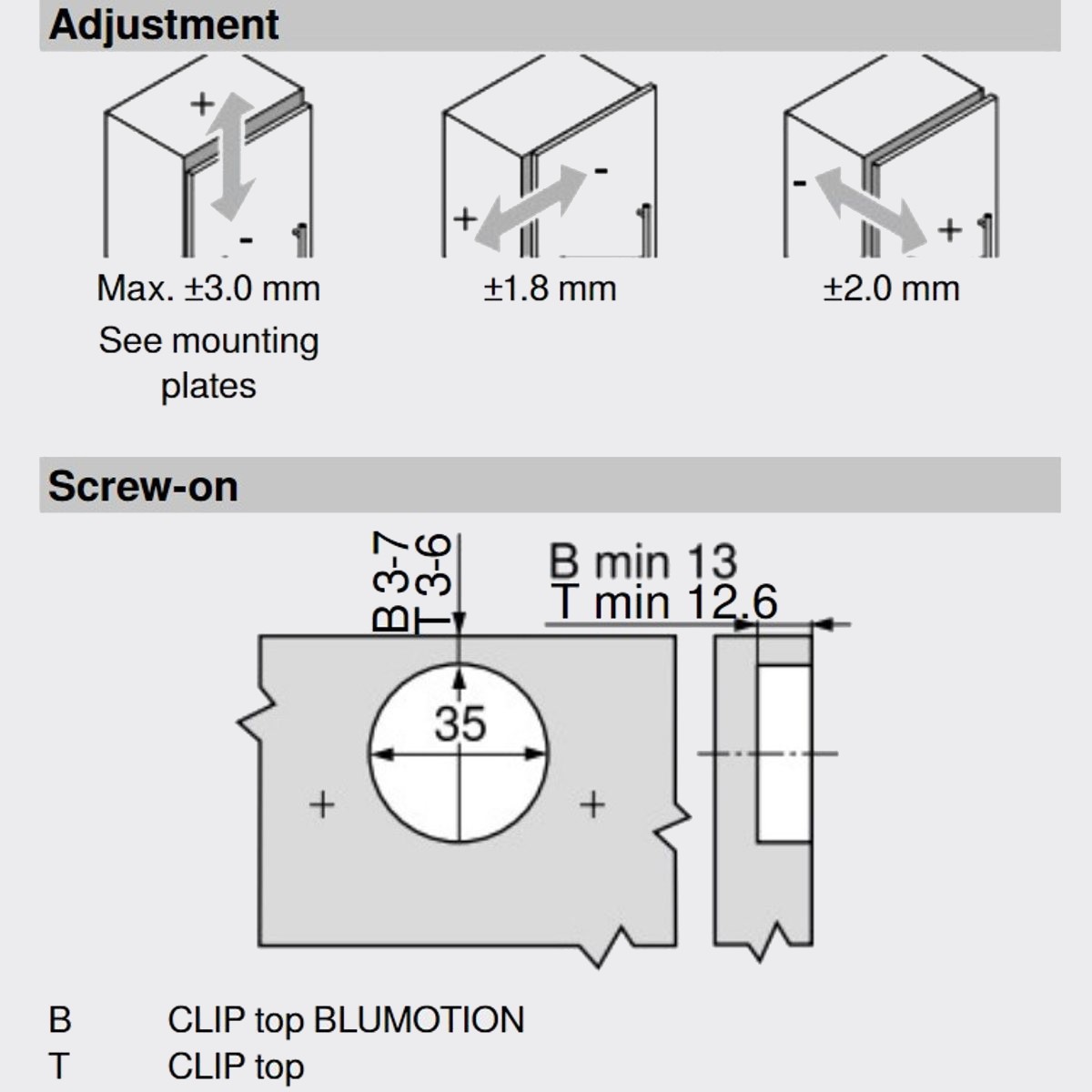

- Side adjustment: +/- 2mm
- Depth adjustment: + 3/- 2mm, convenient with spiral screw
Please note that:
- The hinge mounting plate, cover cap, arm cover and screws are not included
