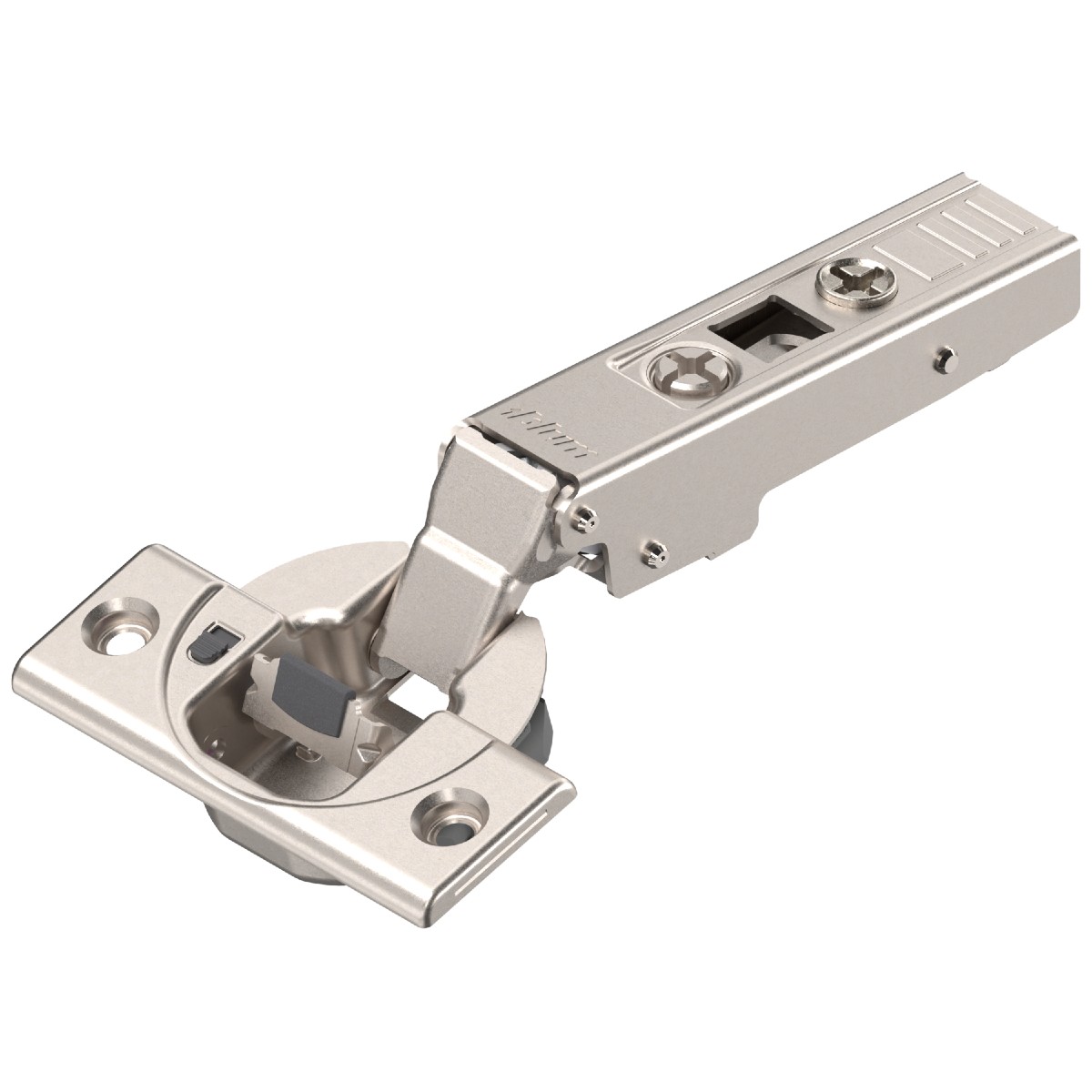

The Blum clip top overlay 107 degree cabinet hinge 75B1550 is a high-quality hinge designed for cabinet doors with an overlay. This hinge ensures reliable function and attractive design for your cabinet doors. Whether you’re installing new cabinets or upgrading existing ones, the Blum clip top hinge provides ease of adjustment and smooth operation.
- Clip standard hinge 75B1550
- Opening angle: 107 degrees
- Door thickness: 15-24mm

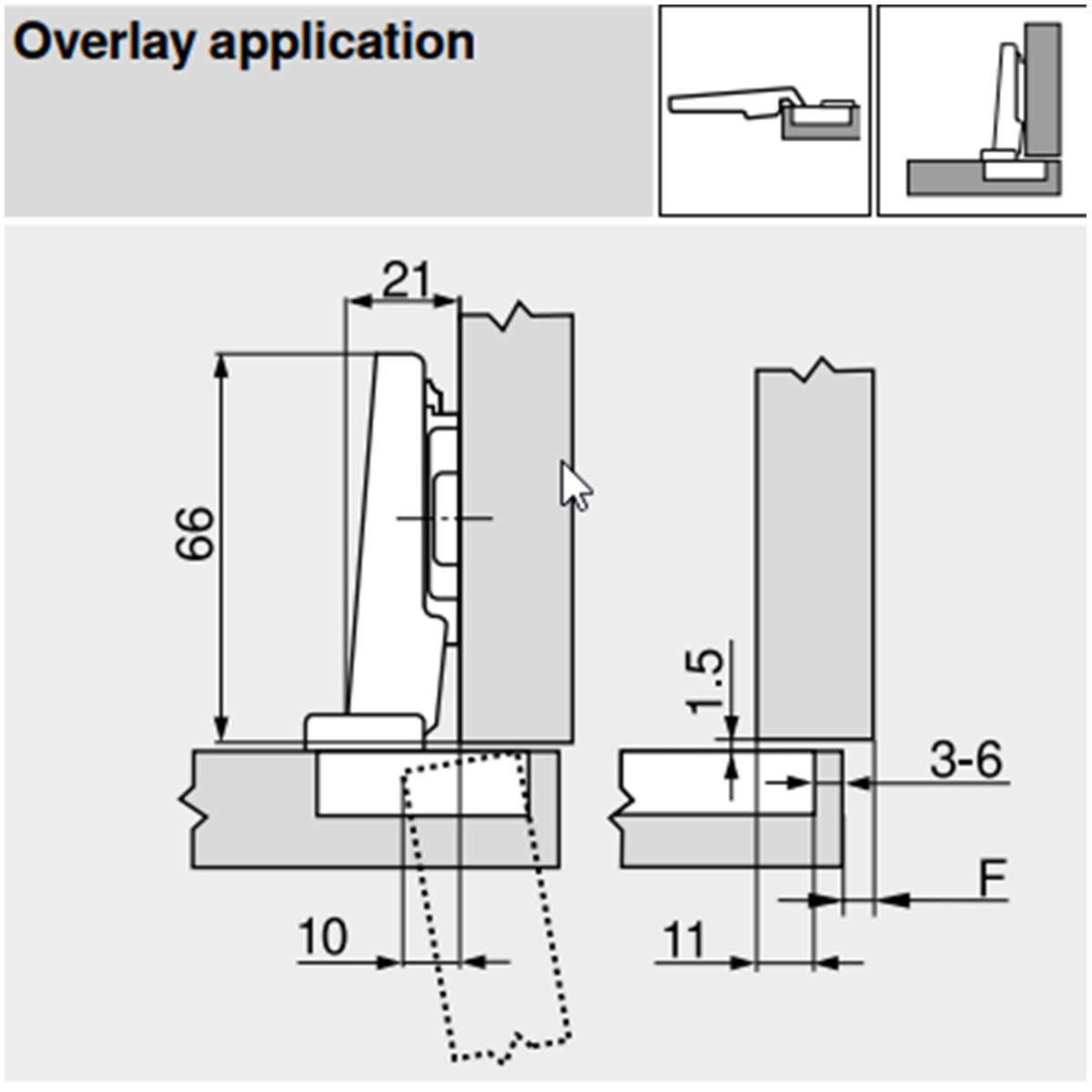

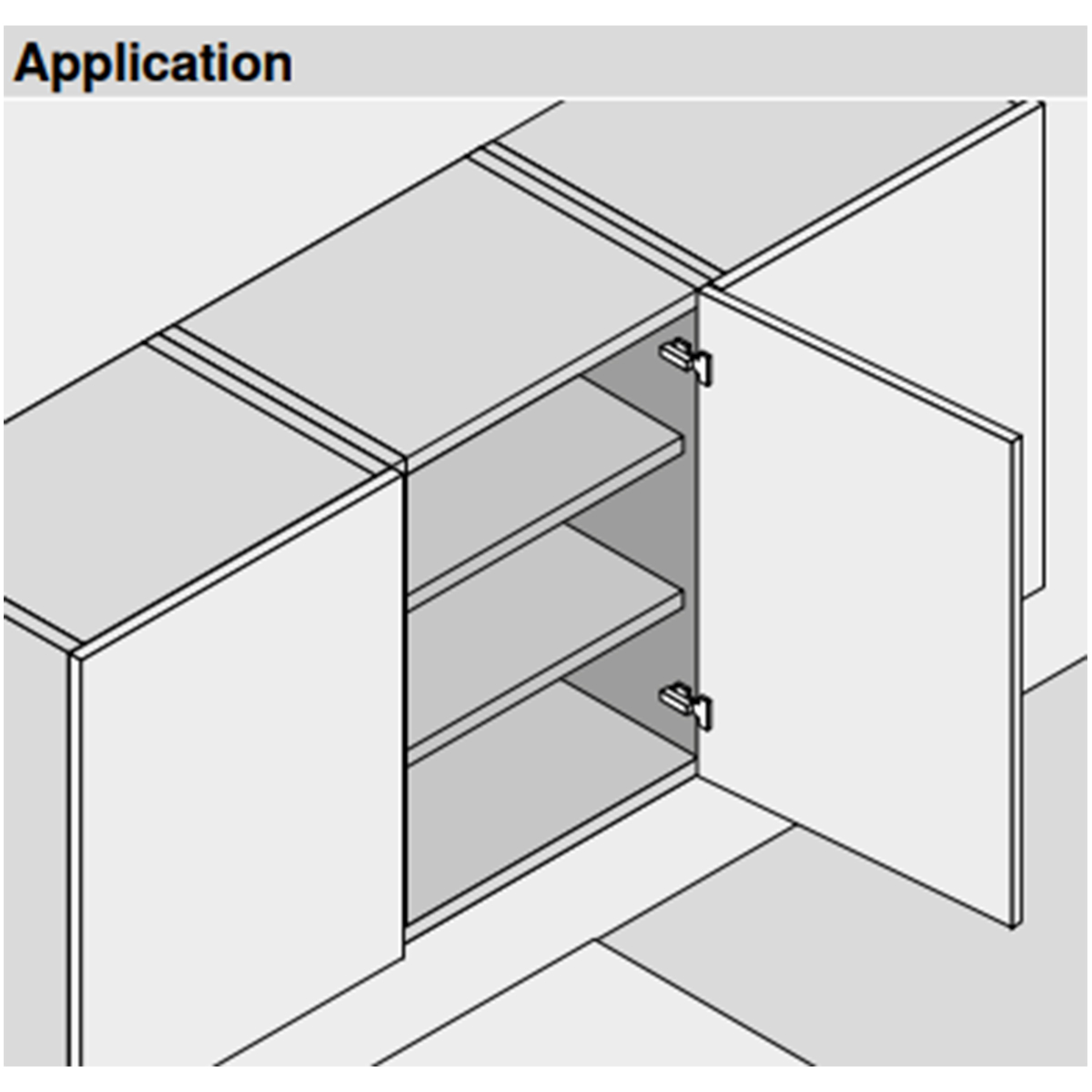

- Cranking: overlay application

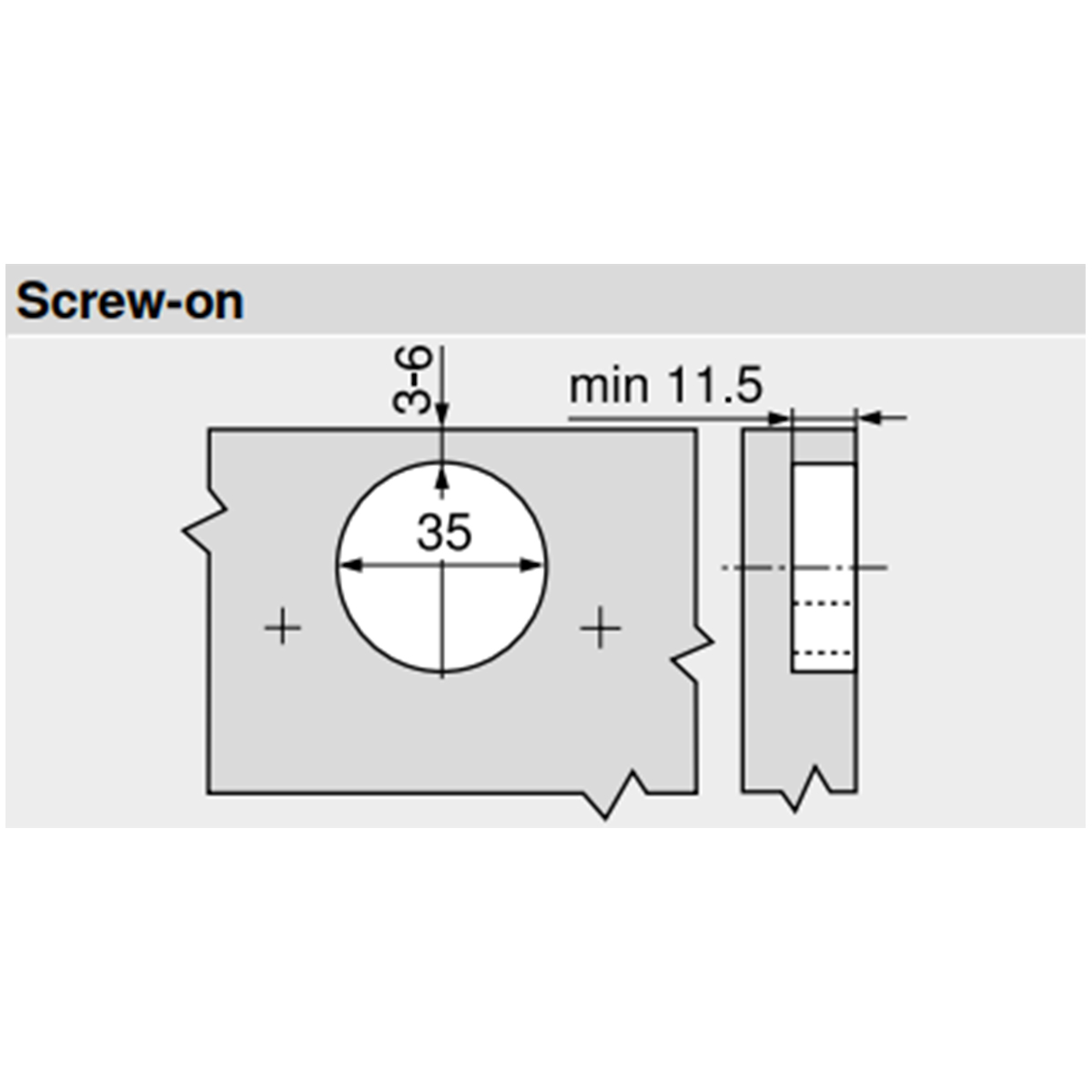

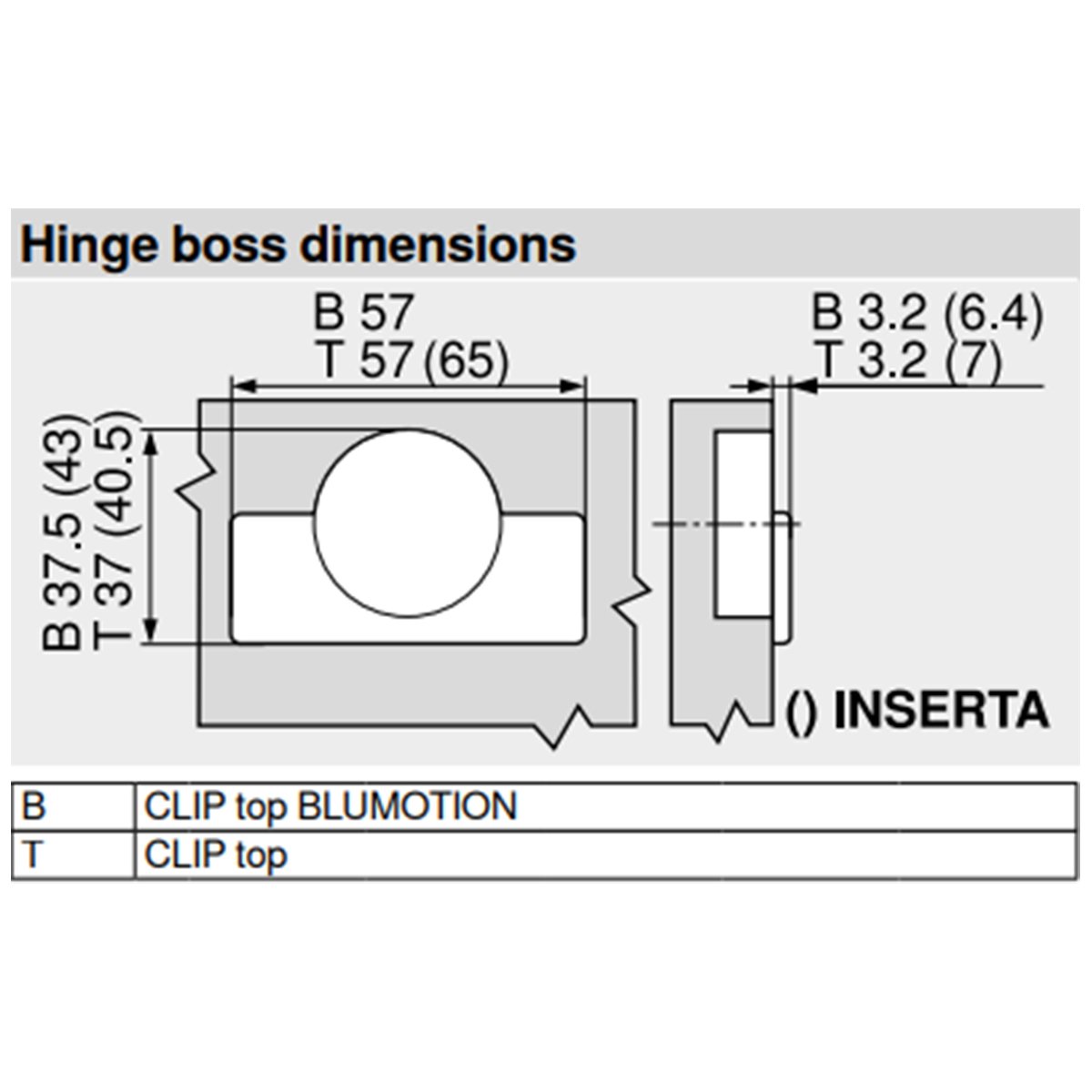

- Boss assembly: screw-on
- Boss material: steel boss
- Closing mechanism: with spring

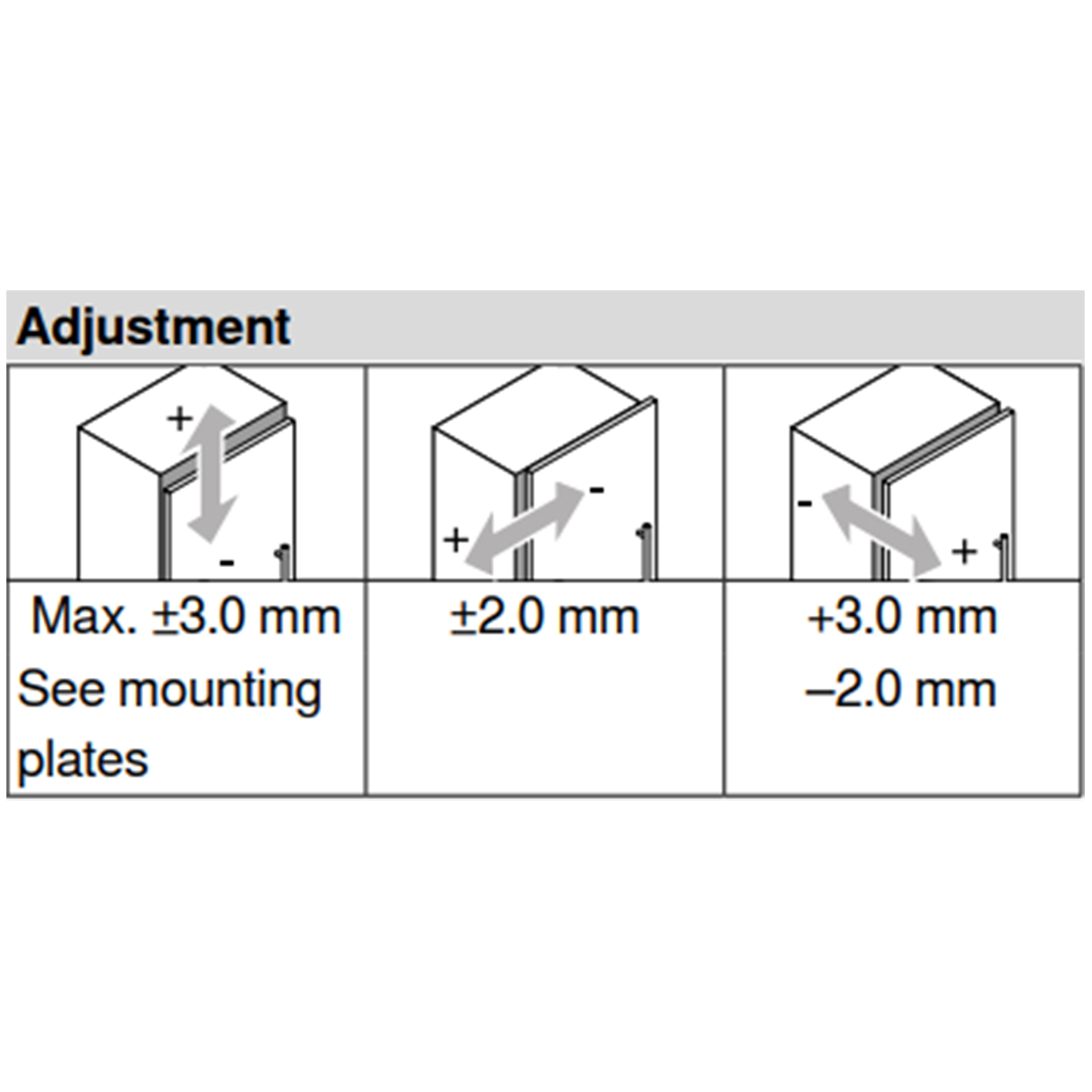

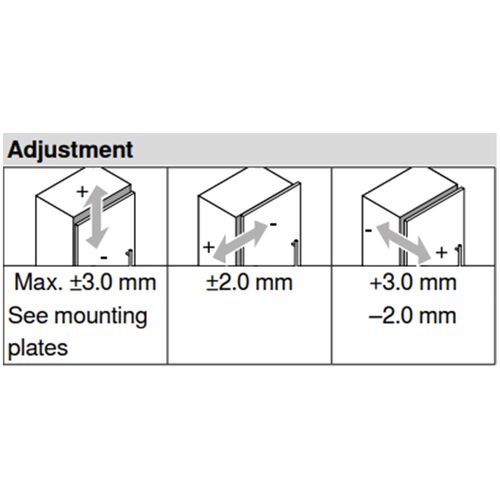

- Side adjustment: +/- 2mm
- Depth adjustment: +3mm/ -2mm, with screw
Please note that:
- The hinge mounting plate, cover cap, arm cover and screws are not included
