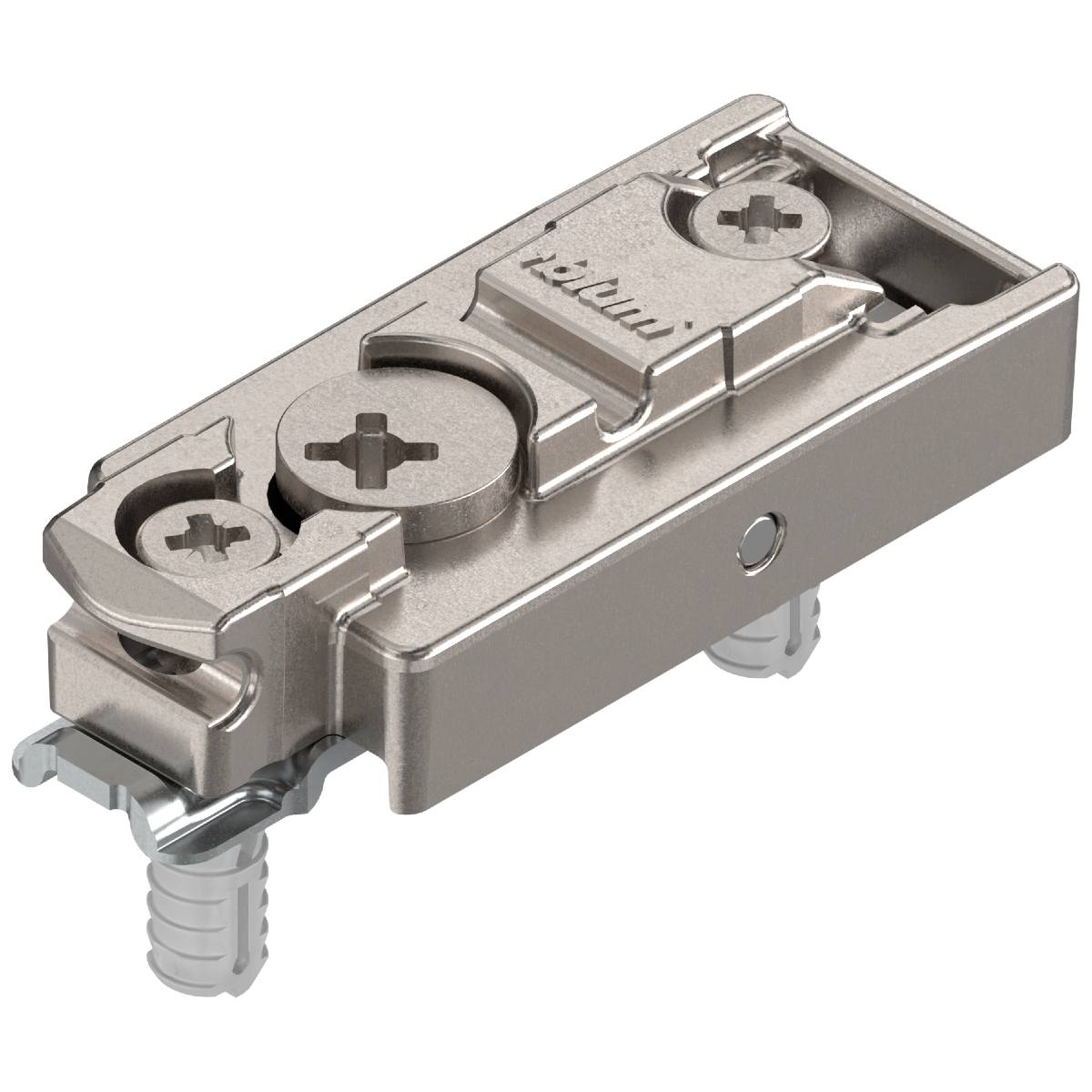

The Blum clip hinge mounting plate 177H5400E Expando is a component used in cabinetry to attach the hinge to the cabinet door and frame. It’s designed for easy installation and removal, allowing the door to be quickly affixed or detached. The mounting plate also enables height adjustment for a precise fit and professional finish.
- Mounting plate 177H5400E
- Mounting plate system: clip
- The shape of the mounting plate: straight
- Spacing: 0mm
- Material: zinc
- Finish: nickel plated
- Fixing: expando (pre-mounted screws with split dowels)

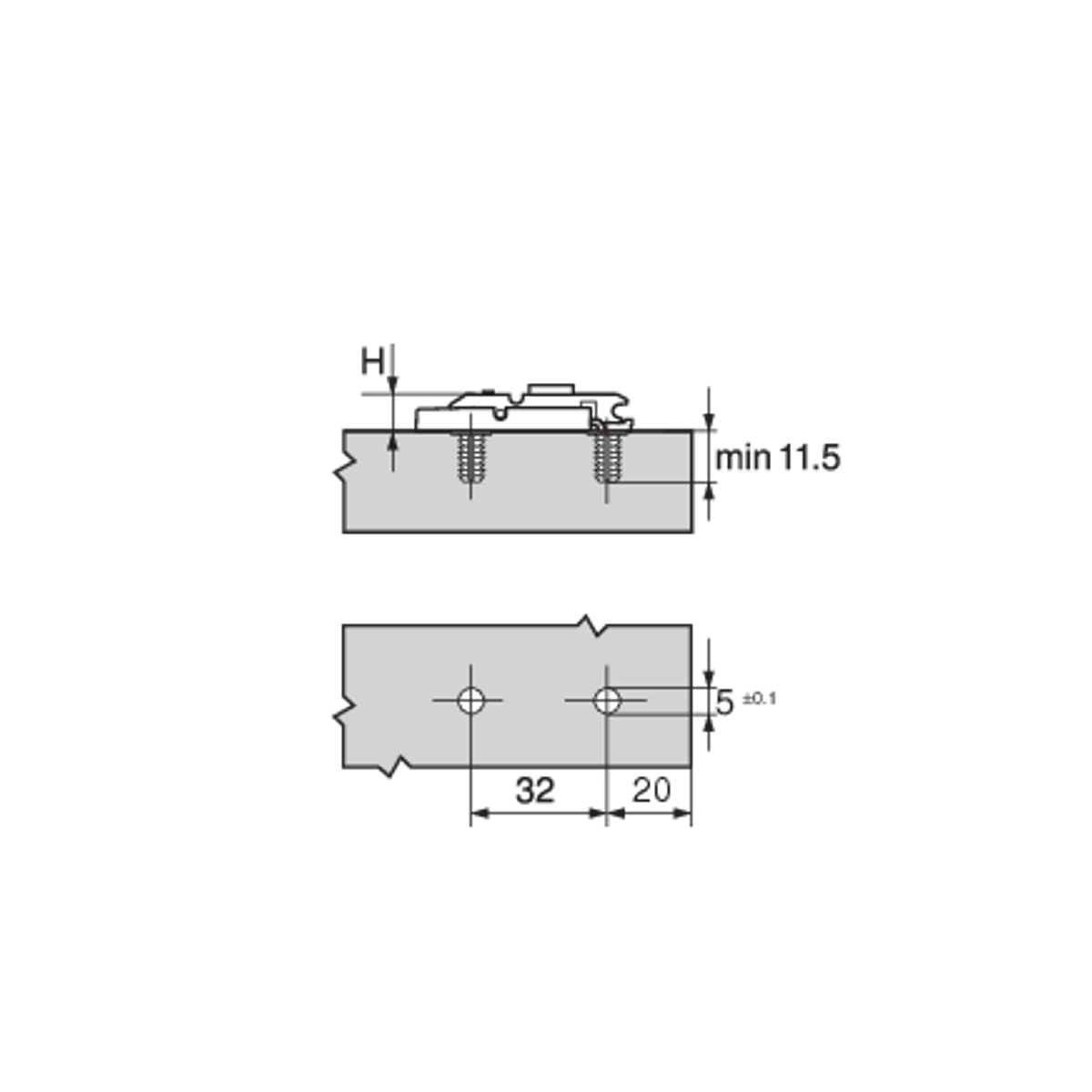

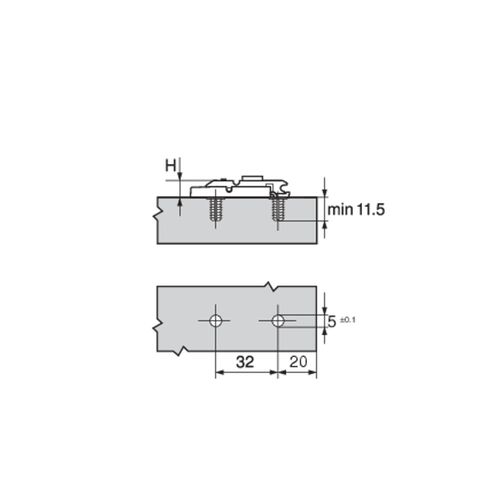

- Distance between fixing positions: 32mm

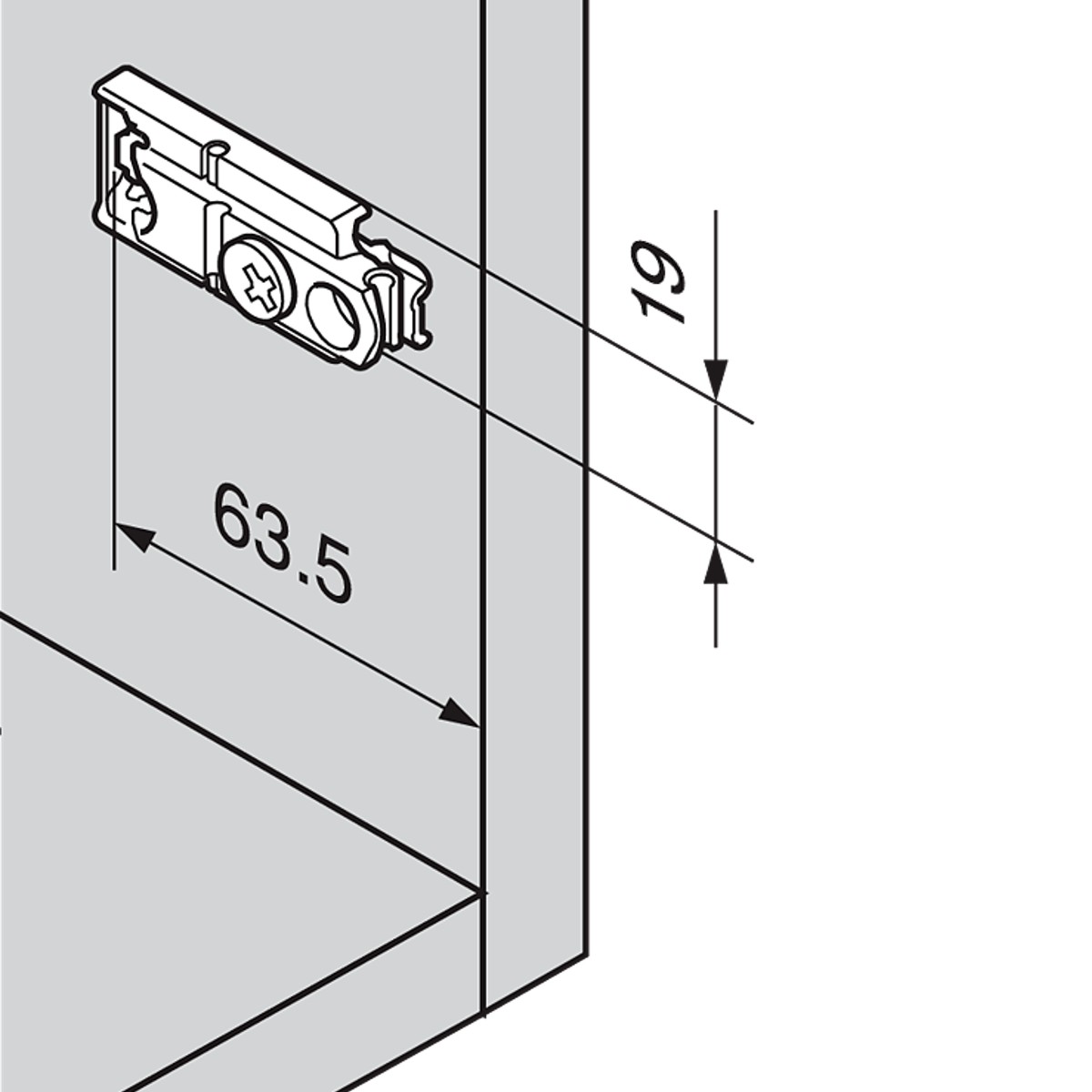

- Distance cabinet front edge to first fixing position: 22mm
- Mounting plates height adjustment: through lower and upper part/screws
