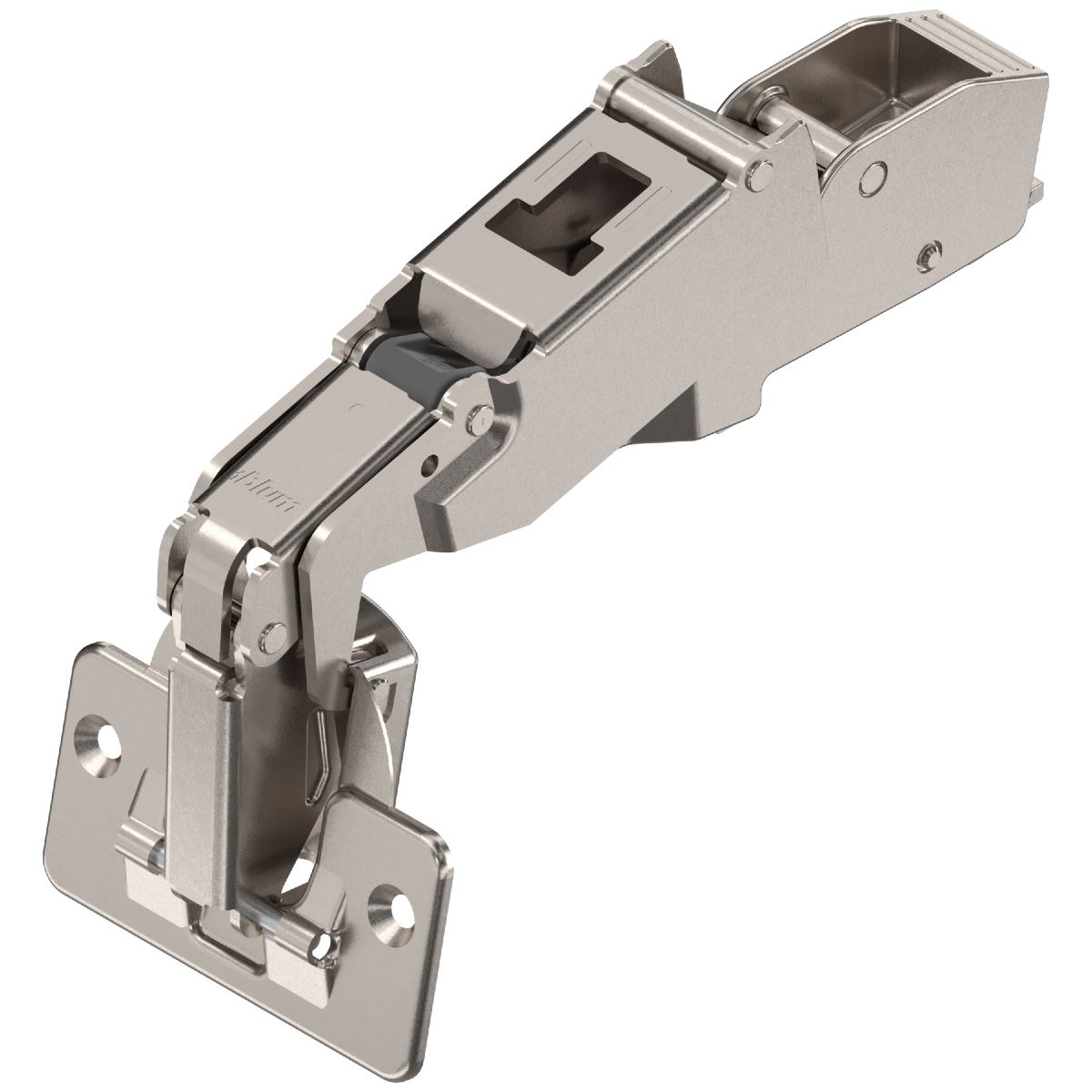

Blum Clip Top Half Overlay 170 Degree Sprung Hinge 71T6650

The Blum clip top half overlay 170 degree cabinet hinge 71T6650 is a high-quality hinge designed for cabinet doors with a half overlay. This hinge ensures reliable function and attractive design for your cabinet doors. Whether you’re installing new cabinets or upgrading existing ones, the Blum clip top hinge provides ease of adjustment and smooth operation.

• Opening angle: 170 degree
• Door thickness: 16-21mm
• Boss assembly: Screw-on
• Boss material: Steel
• Closing mechanism: sprung
• Flange width: 57mm
• Flange height: 2.2mm

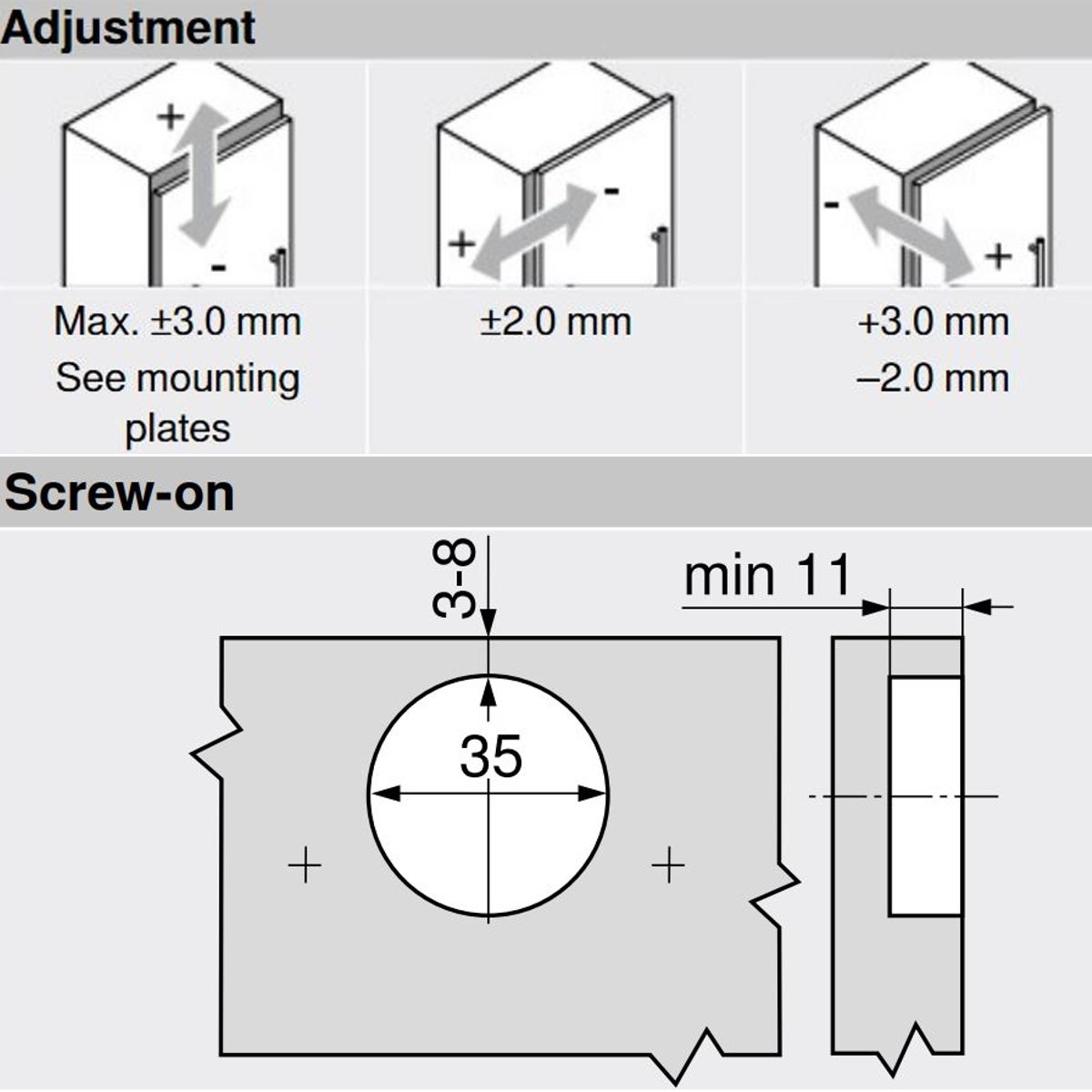

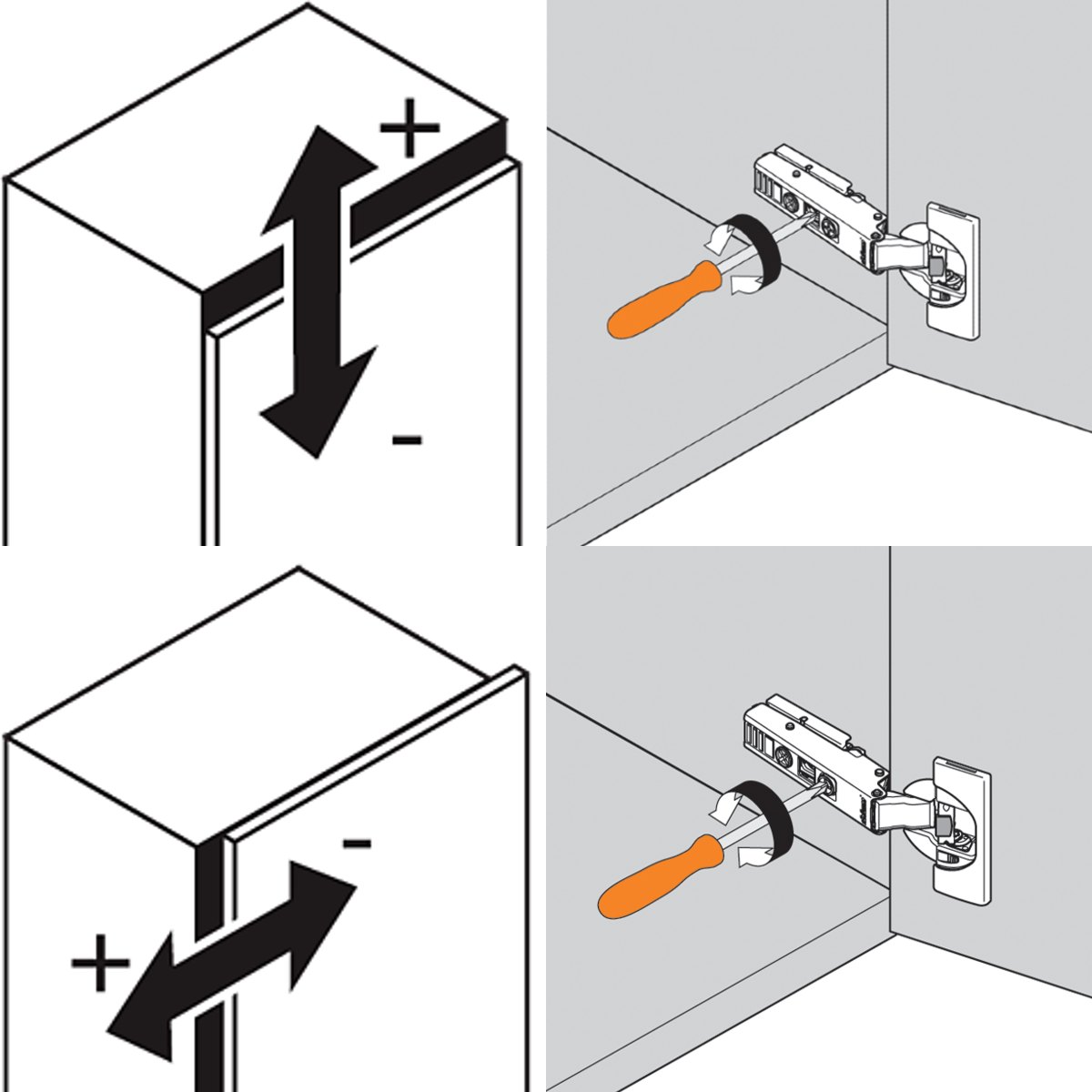

• Depth adjustment: +3/-2mm

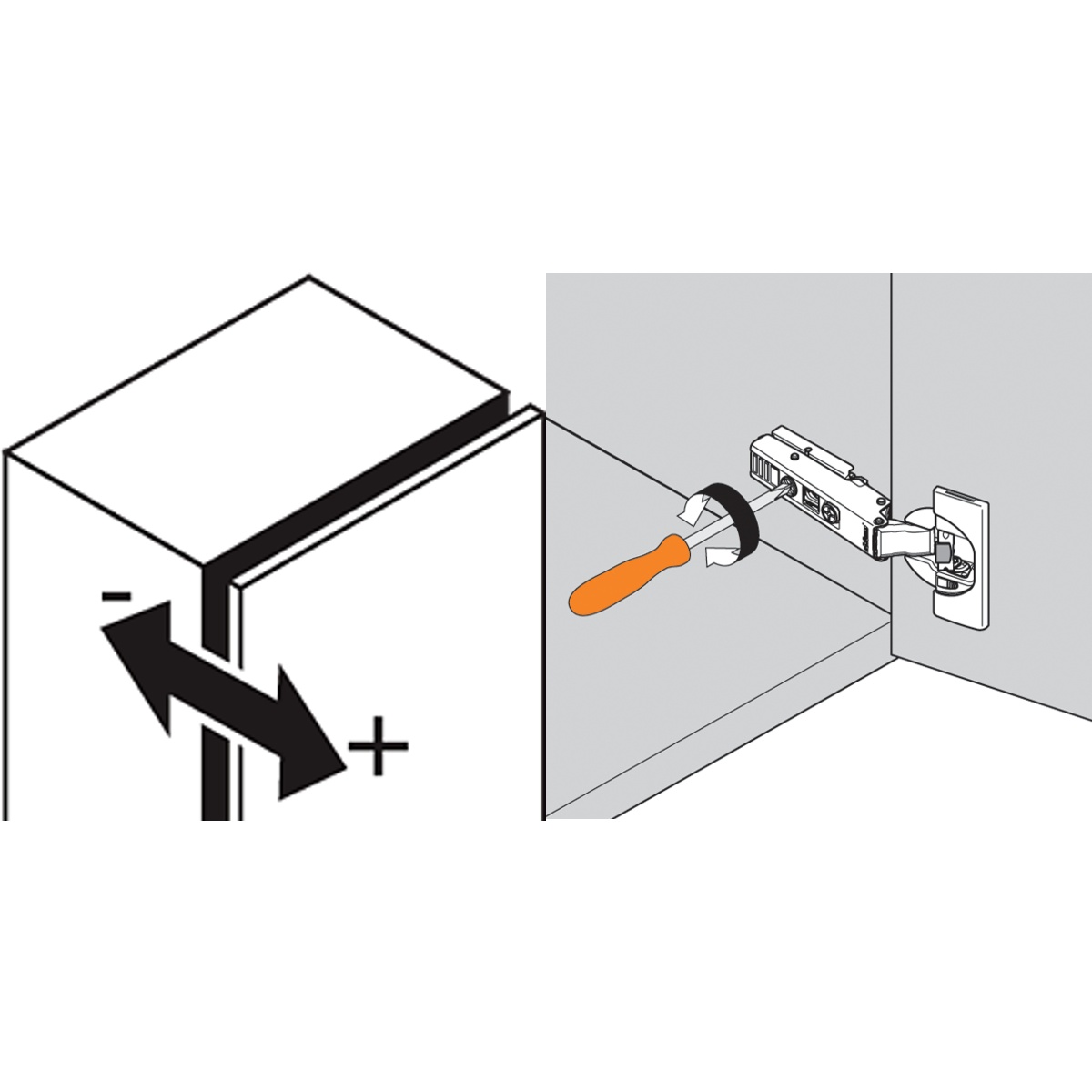

• Side adjustment +/-2mm

Please note that:

• The hinge mounting plate, cover cap, arm cover and screws are not included
• Safety information if young children have access to furniture with wide angle hinges then the 155° opening 0-protrusion hinges should be used
