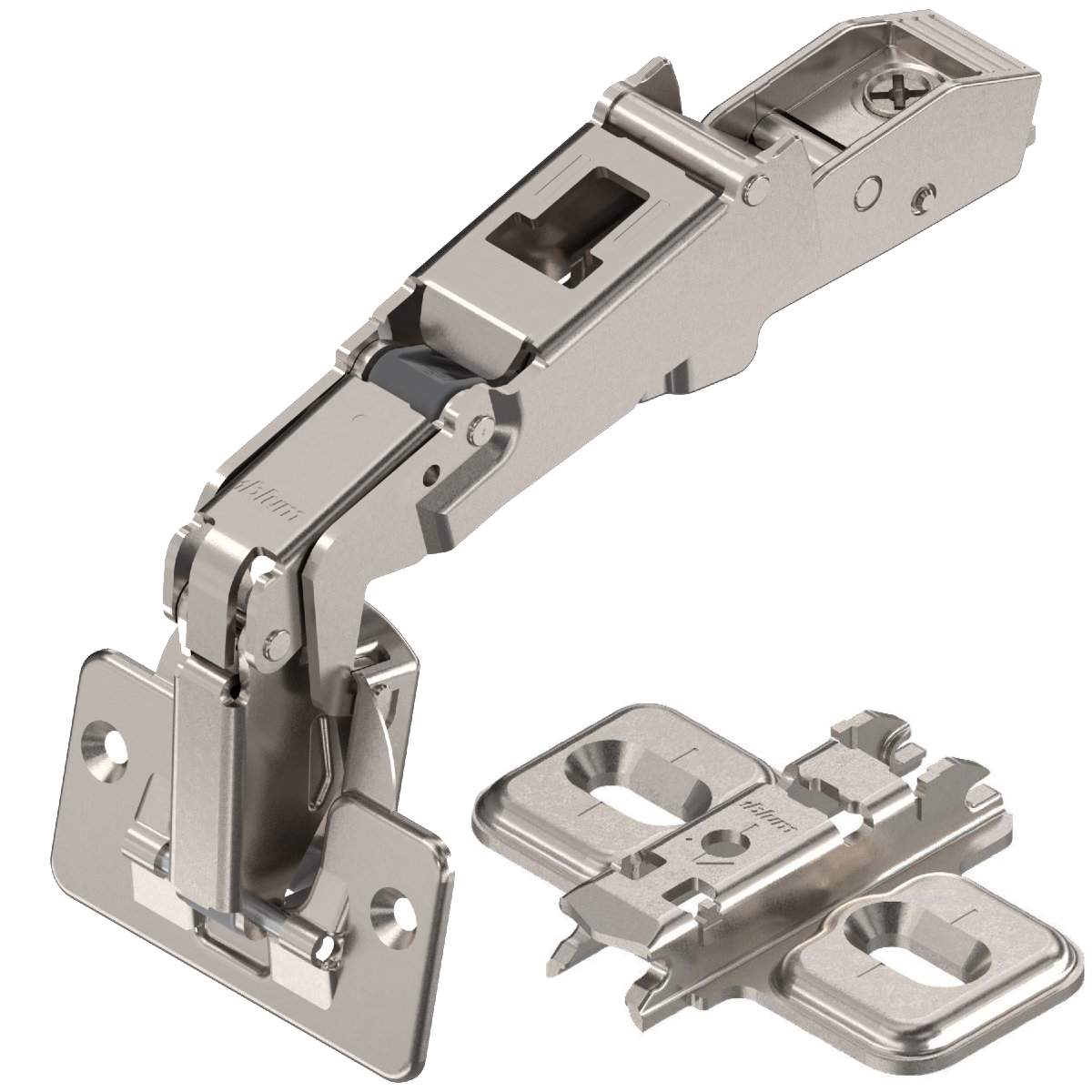

Blum Clip Top Half Overlay 170 Degree Sprung Hinge 71T6650 With Mounting Plate

0648-001
Price from: £6.35inc VAT
+

The Blum clip top half overlay 170 degree cabinet hinge 71T6650 is a high-quality hinge designed for cabinet doors with a half overlay. This hinge ensures reliable function and attractive design for your cabinet doors. Whether you’re installing new cabinets or upgrading existing ones, the Blum clip top hinge provides ease of adjustment and smooth operation.

  • Opening angle: 170 degree
  • Door thickness: 16-21mm
  • Boss assembly: Screw-on
  • Boss material: Steel
  • Closing mechanism: sprung
  • Flange width: 57mm
  • Flange height: 2.2mm

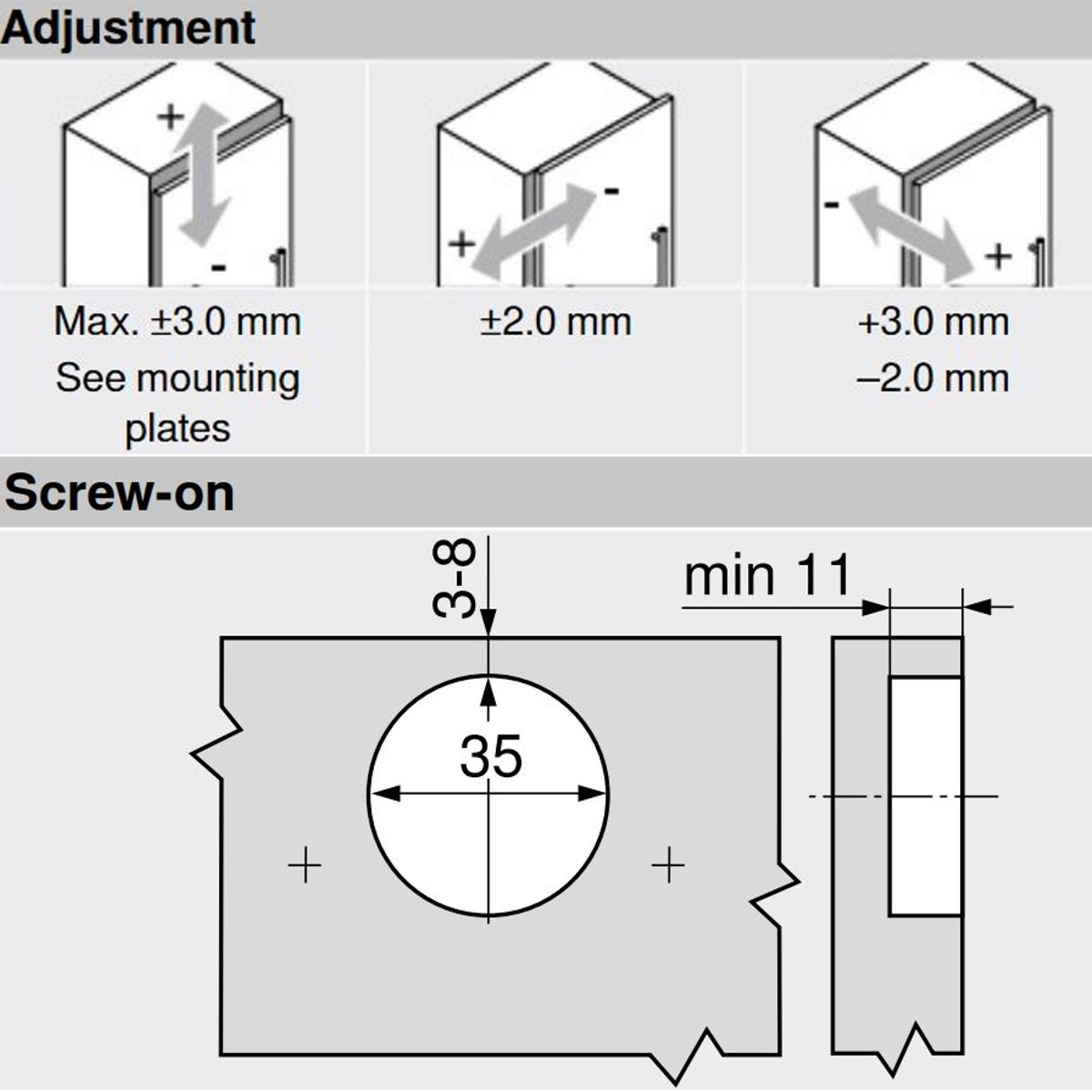

  • Depth adjustment: +3/-2mm
  • Side adjustment +/-2mm

Mounting plates:

  • 173L6100:
    • Screws: no
    • Spacing: 0mm
    • Adjustment: no
  • 173L8100
    • Screws: yes
    • Spacing: 0mm
    • Adjustment: no
  • 175H3100 (inline)
    • Screws: no
    • Spacing: 0mm
    • Adjustment: no
  • 173H7100
    • Screws: no
    • Spacing: 0mm
    • Adjustment: yes
  • 175H7100
    • Screws: no
    • Spacing: 0mm
    • Adjustment: yes

Please note that:

  • Safety information if young children have access to furniture with wide-angle hinges then the 155° opening 0-protrusion hinges should be used

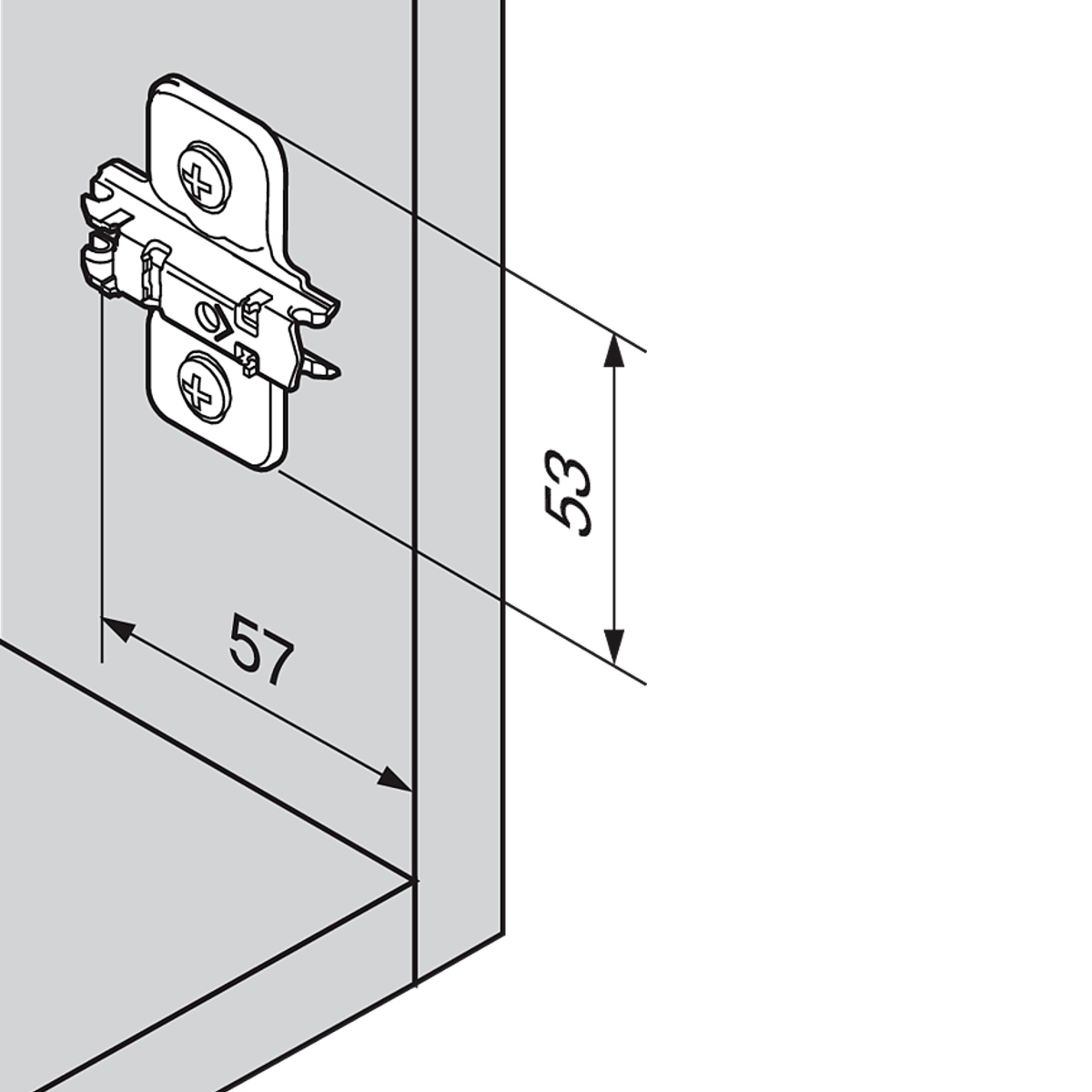

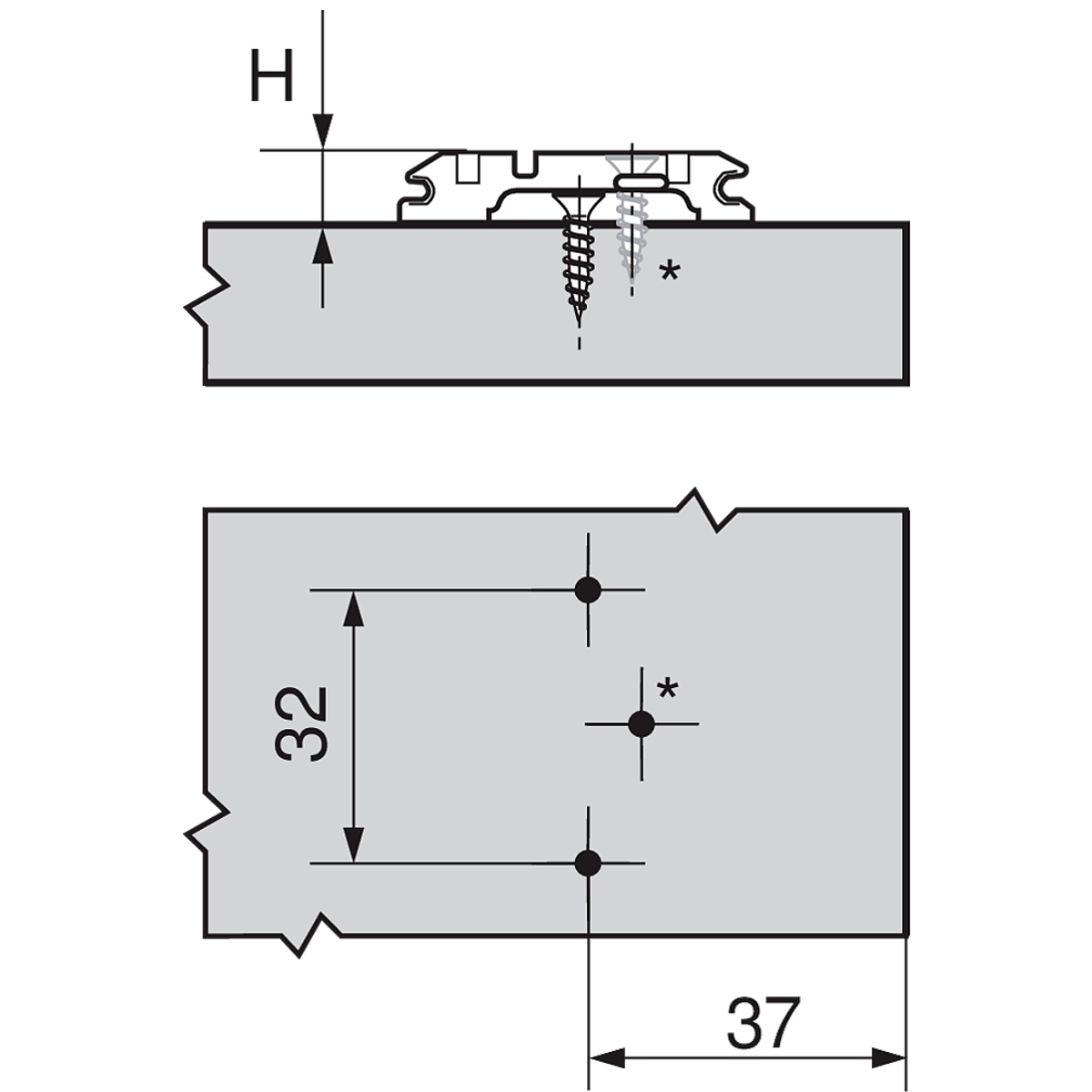

Mounting Plate:
173L6100
