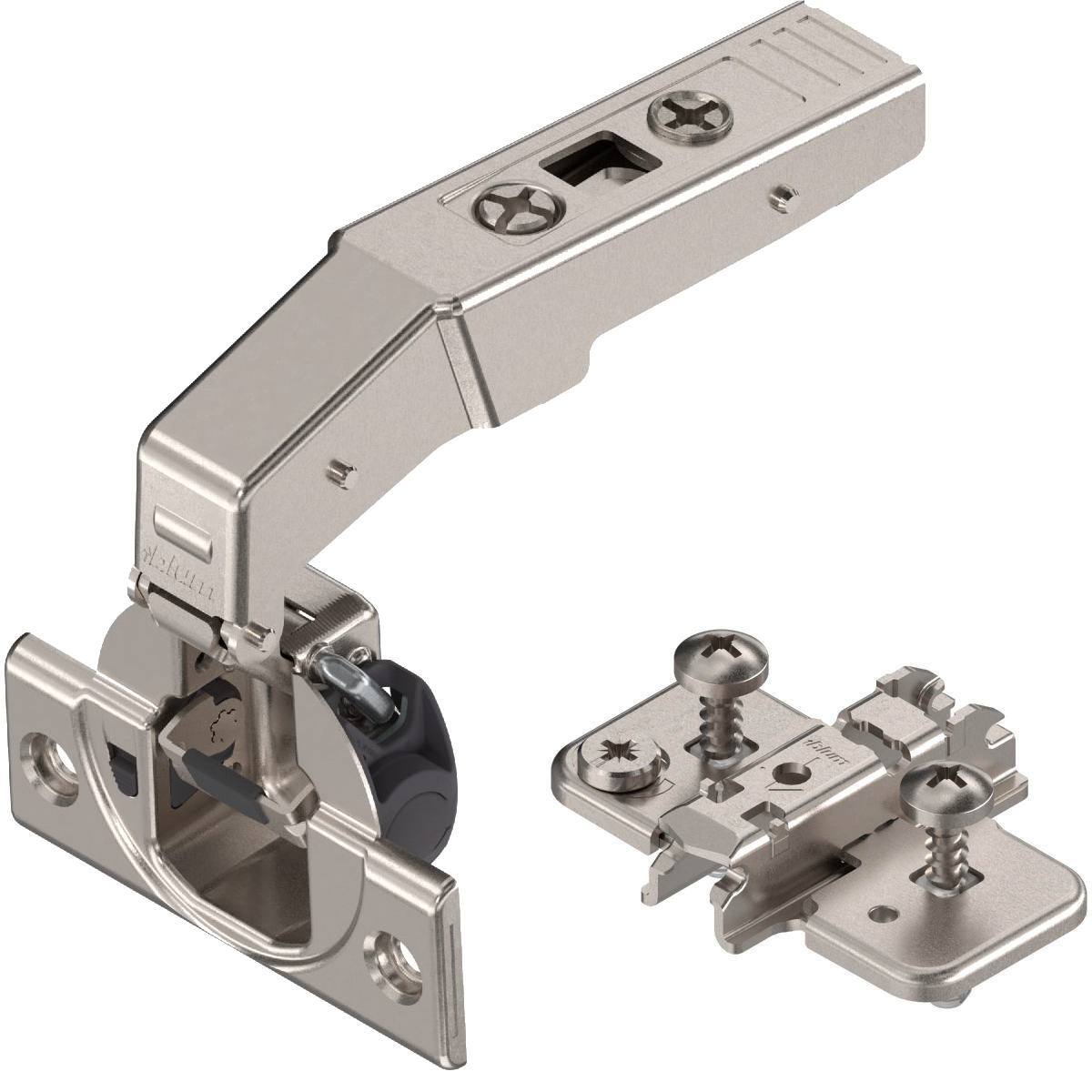

The Blum clip top blind corner inset 95 degree cabinet hinge 79B9550 is a high-quality hinge designed for cabinet doors with an blind corner inset. This hinge ensures reliable function and attractive design for your cabinet doors. Whether you’re installing new cabinets or upgrading existing ones, the Blum clip top hinge provides ease of adjustment and smooth operation.
- Clip top profile door hinge 79B9550
- Opening angle: 95 degrees
- Door thickness: 16-28mm
- Cranking: inset application
- Boss assembly: screw-on
- Boss material: steel boss
- Closing mechanism: blumotion soft-close
- Side adjustment: +/- 2mm
- Depth adjustment: + 3/- 2mm, convenient with spiral screw

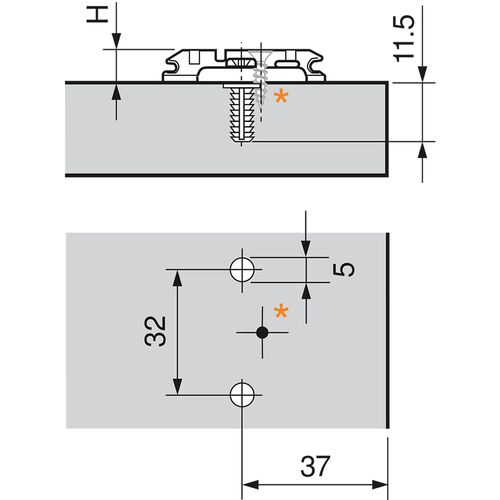

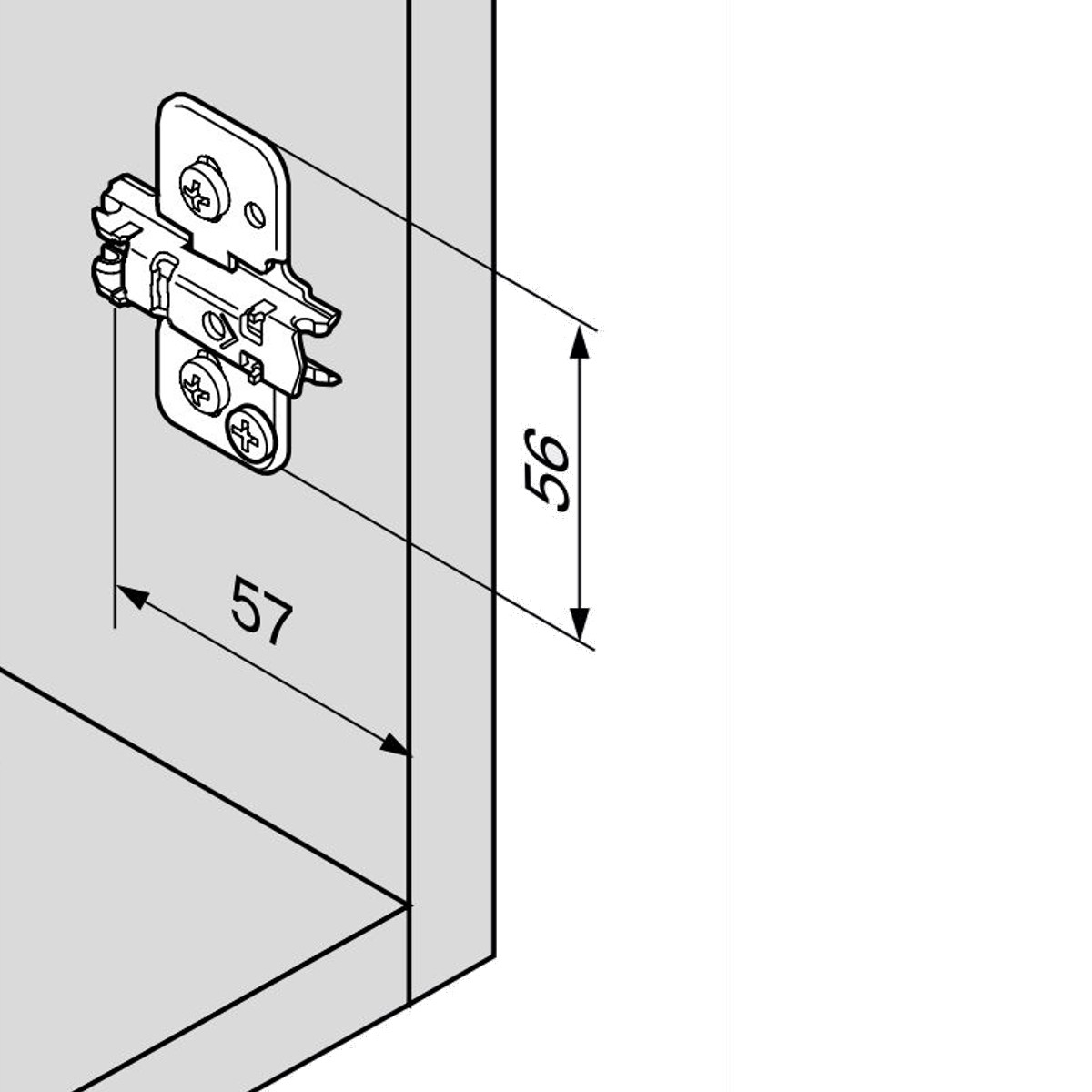

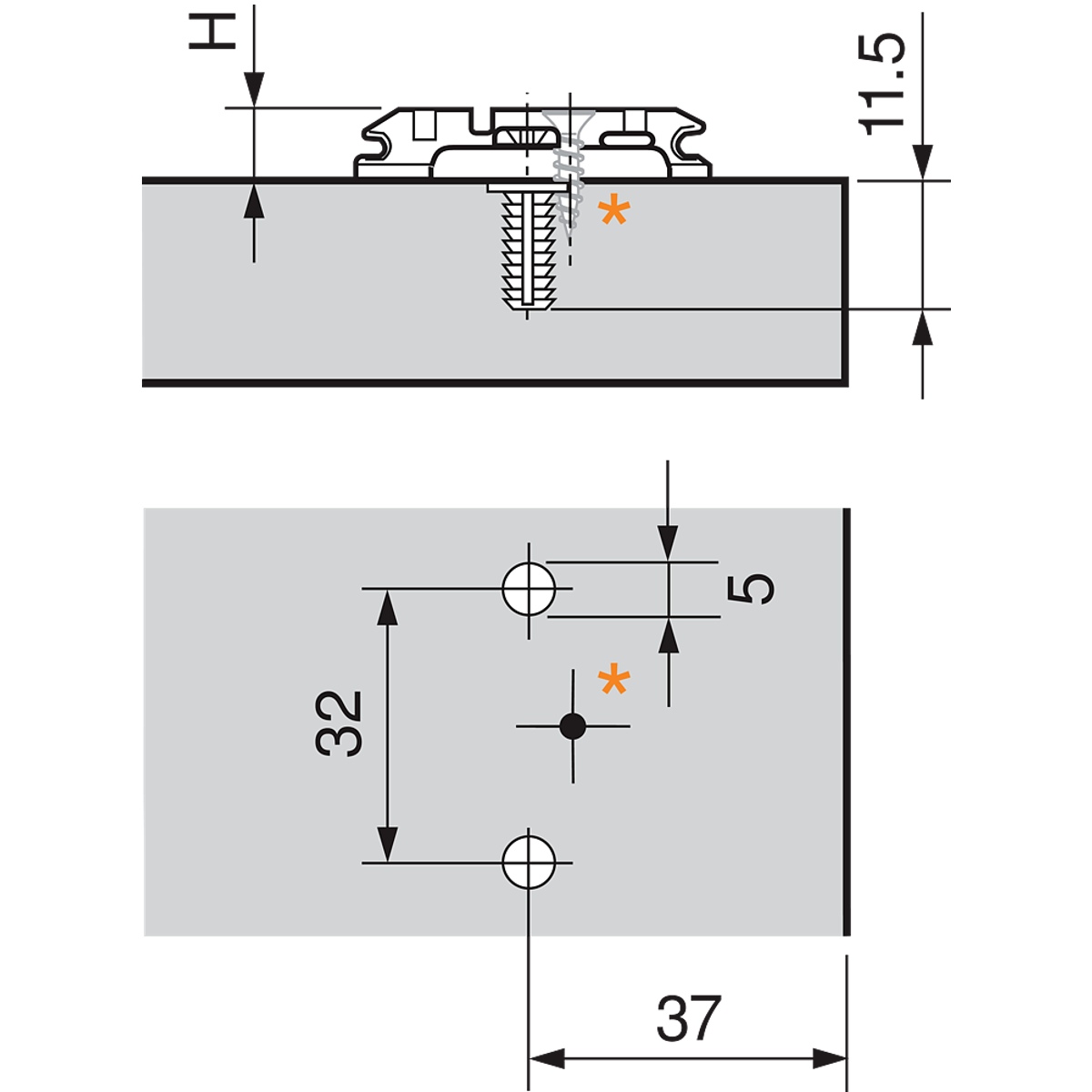

Mounting plates:
- 174E6100 Expando:
- Screws: yes
- Spacing: 0mm
- Adjustment: no
- 174H7100E Expando
- Screws: yes
- Spacing: 0mm
- Adjustment: yes
- 174E6130 Expando
- Screws: yes
- Spacing: 3mm
- Adjustment: no
- 174H7130E Expando
- Screws: yes
- Spacing: 3mm
- Adjustment: yes
- 177H3100E Expando
- Screws: yes
- Spacing: 0mm
- Adjustment: no
Mounting Plate:
174H7130E
Cover Caps:
Without Cover Caps
