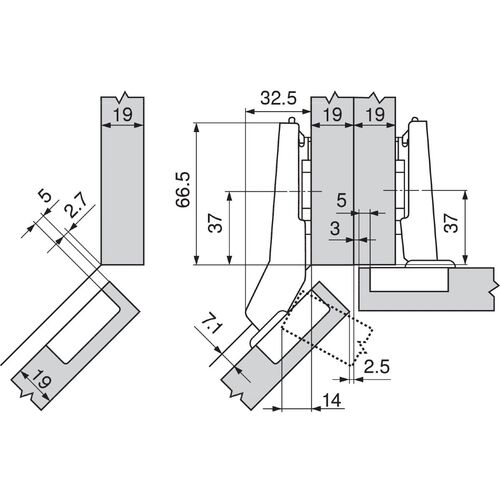

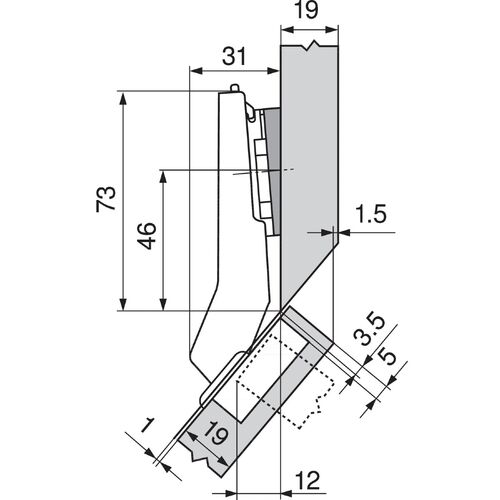

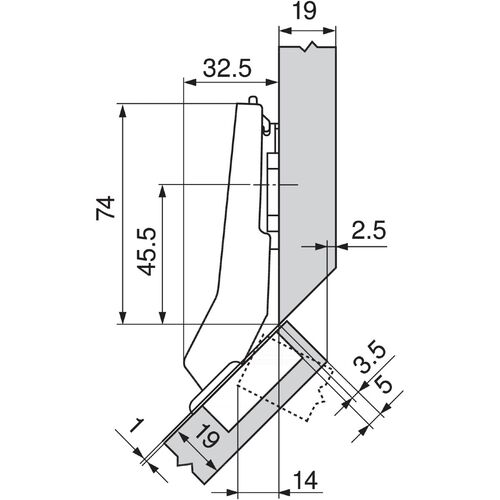

The Blum clip top 45 degree angled full overlay 110 degree cabinet hinge 79T5550 is a high-quality hinge designed for cabinet doors with an overlay. This hinge ensures reliable function and attractive design for your cabinet doors. Whether you’re installing new cabinets or upgrading existing ones, the Blum clip top hinge provides ease of adjustment and smooth operation.
- Clip standard hinge 79T5550
- Opening angle: 110 degrees
- Door thickness: 16-19mm
- Cranking: overlay

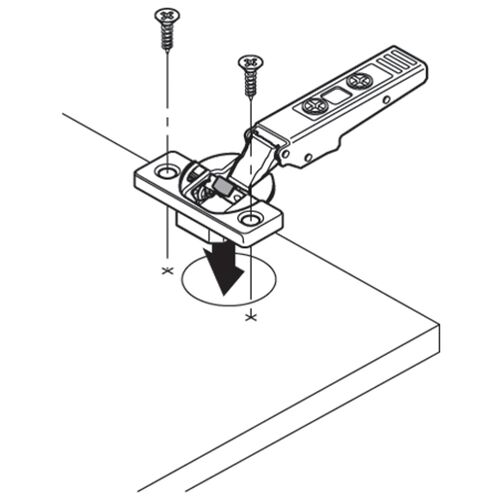

- Boss assembly: screw-on
- Boss material: steel boss
- Closing mechanism: with spring

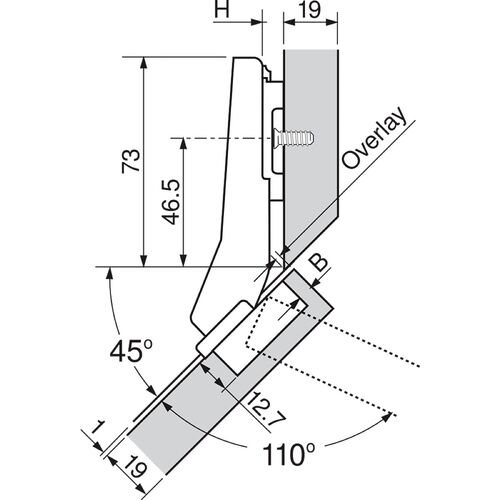

- Cabinet angle: 45 degrees

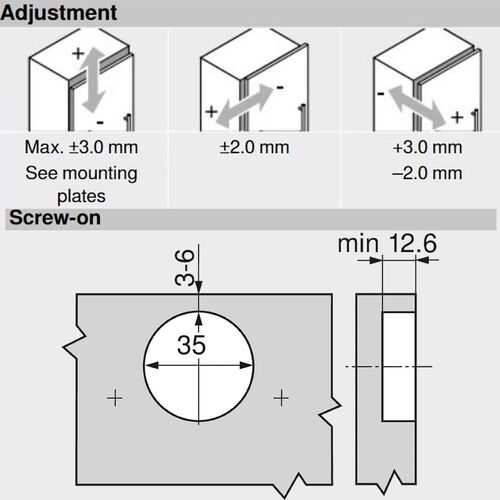

- Side adjustment: +/- 1.8mm
- Depth adjustment: +/- 2mm
- Please refer to 'technical documents' for more information regarding this product
Please note that:
- The hinge mounting plate, cover cap, arm cover and screws are not included
