Blum Clip Hinge Mounting Plate 175H3100 Onyx Black

1848-001
Price: £0.67inc VAT
Write a review
− +

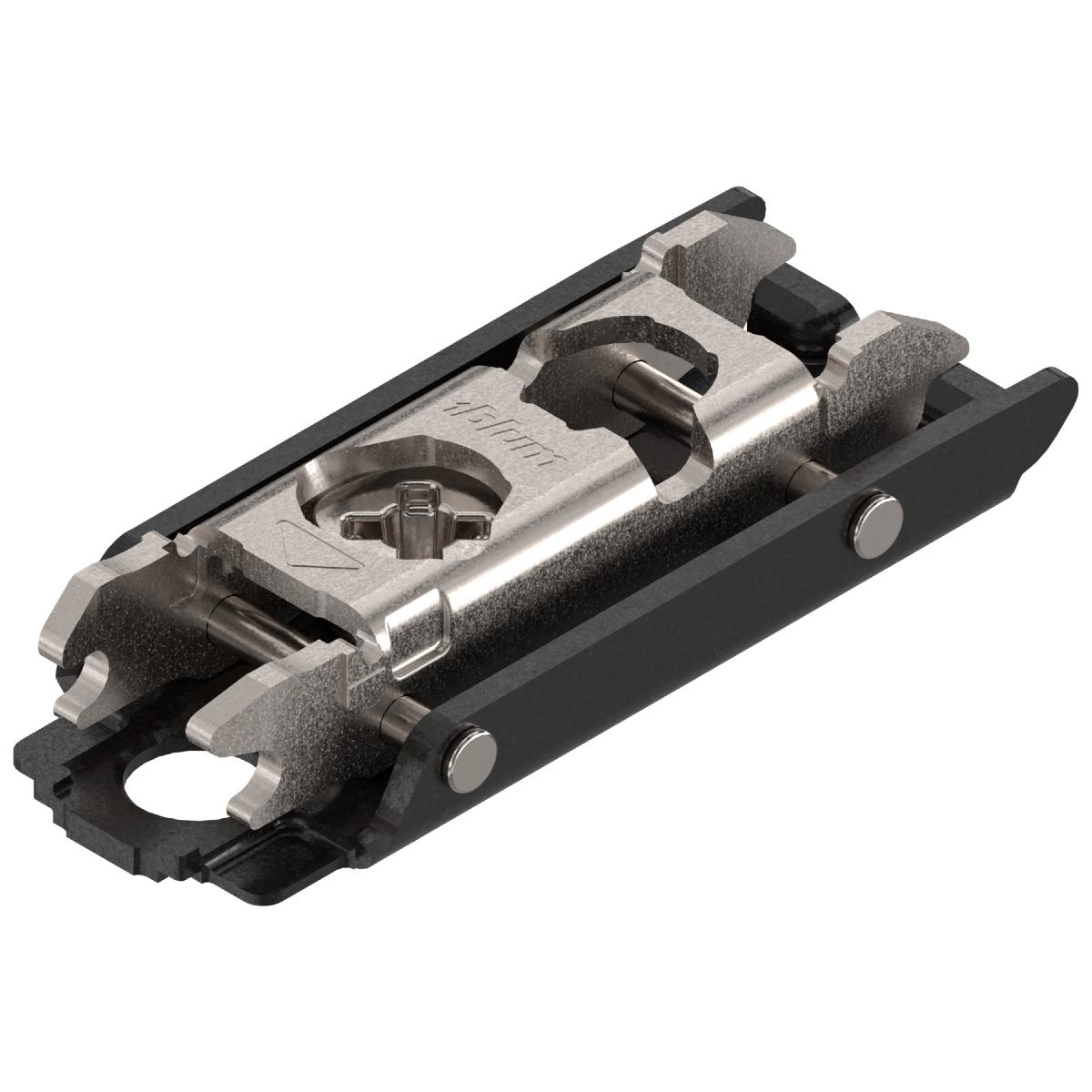

The Blum clip hinge mounting plate 175H3100 in Onyx is a component used in cabinetry to attach the hinge to the cabinet door and frame. It’s designed for easy installation and removal, allowing the door to be quickly affixed or detached. The mounting plate also enables height adjustment for a precise fit and professional finish.

  • Mounting plate 175H3100
  • mounting plate system: clip
  • The shape of the mounting plate: Inline
  • Spacing: 0mm
  • Material: zinc
  • Finish: onyx
  • Fixing: for chipboard screws
  • Suitable for Aventos HK-S

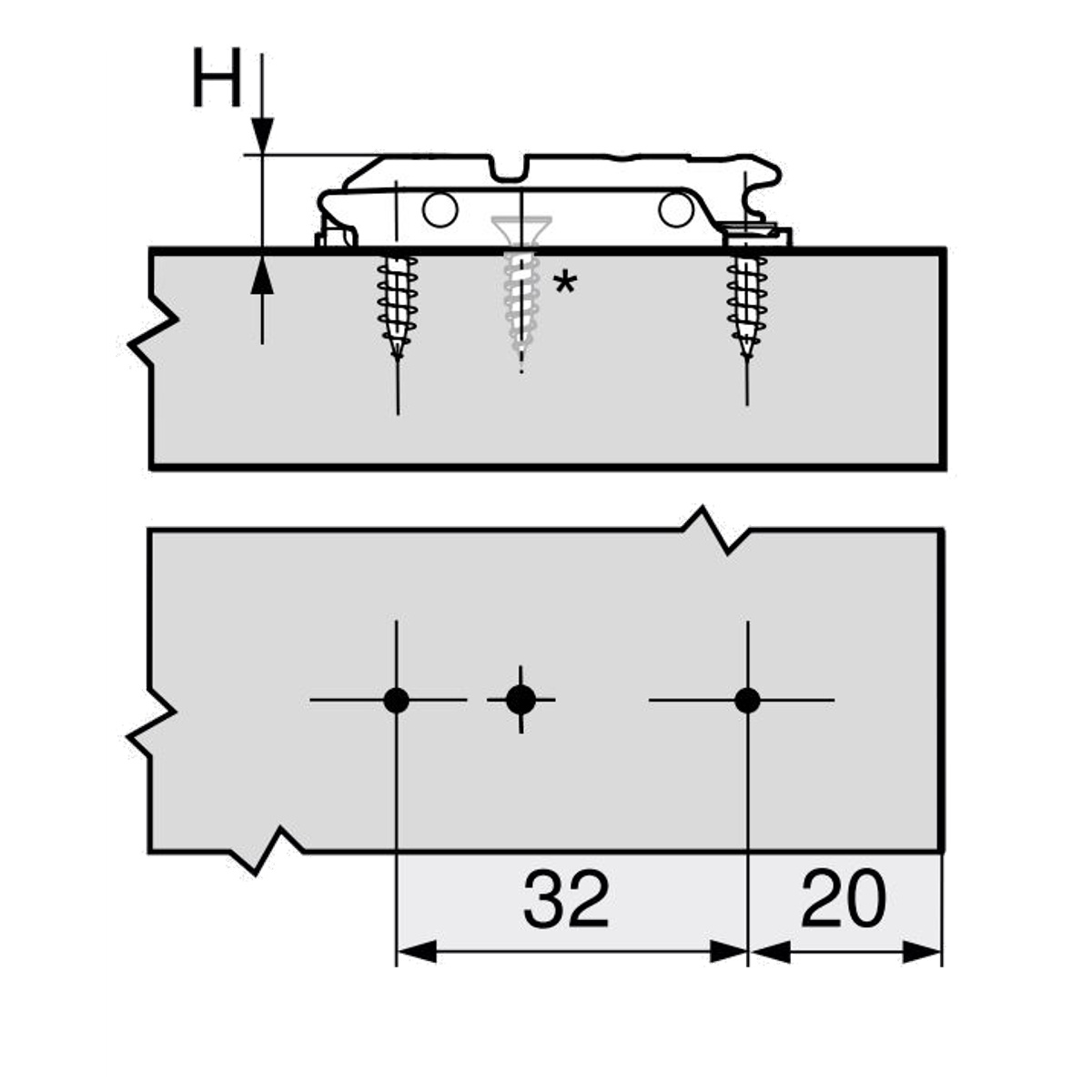

  • Distance between fixing positions: 32mm

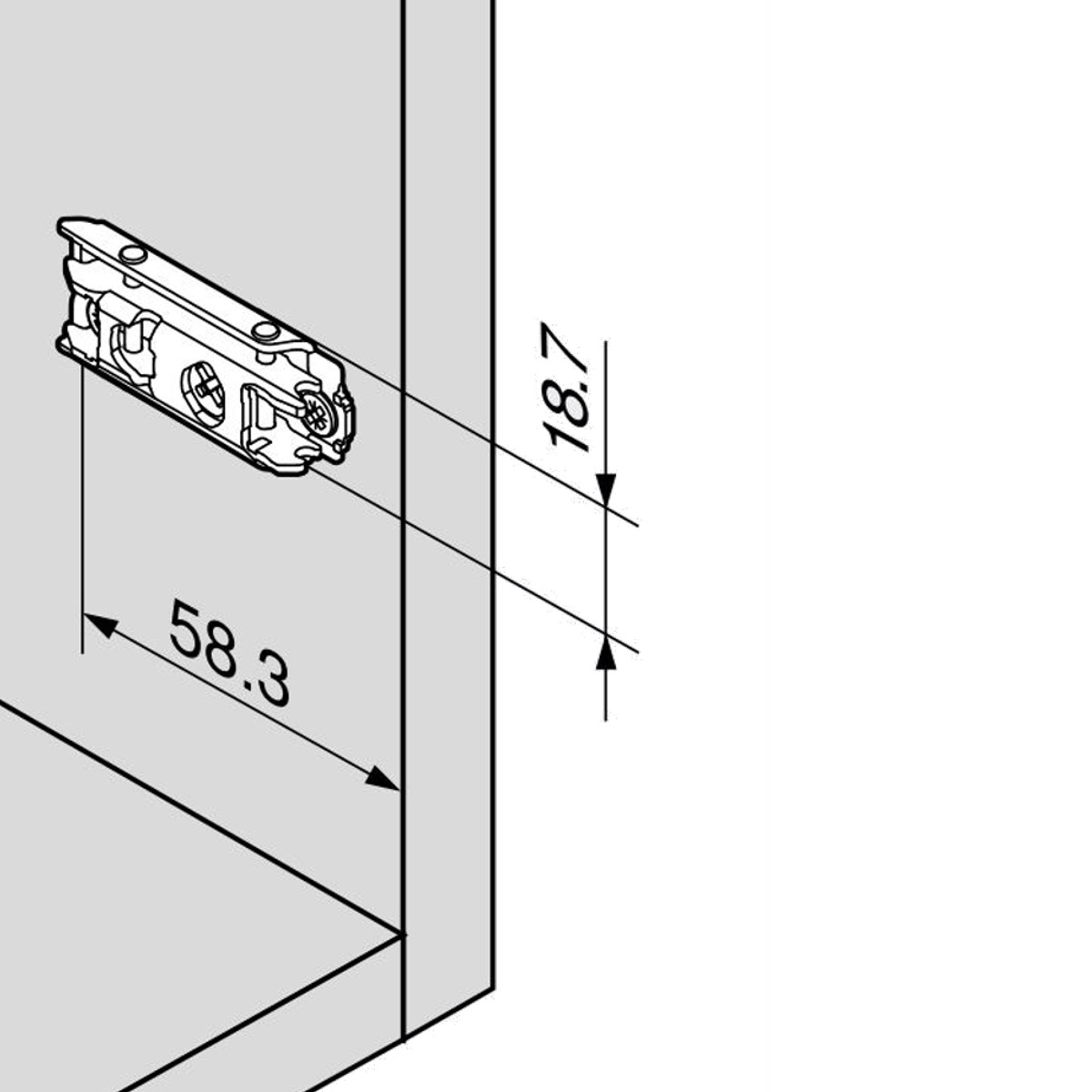

  • Distance cabinet front edge to first fixing position: 37mm
  • Mounting plates height adjustment: through lower and upper part/screws

Product Details [pdf|41 Kb]

CAD File [dxf|611 Kb]

Isometric CAD [dxf|557 Kb]
