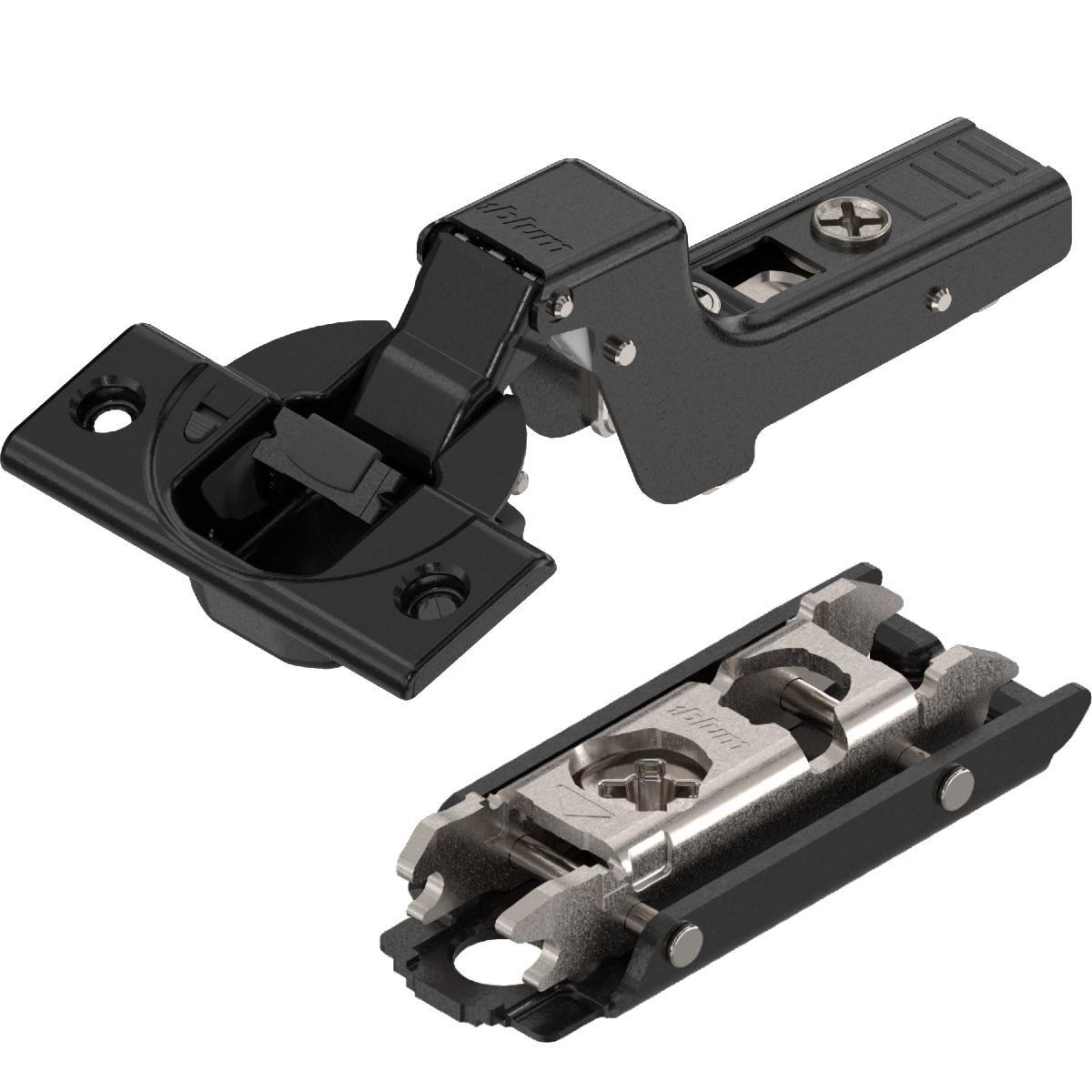

Blum Clip Top Inset 110 Degree Blumotion Cabinet Hinge 71B3750 With Mounting Plate Onyx

8779-001
Price from: £5.12inc VAT
Write a review
− +

The Blum clip top inset 110 degree cabinet hinge 71B3750 is a high-quality hinge designed for cabinet doors with an inset. This hinge ensures reliable function and attractive design for your cabinet doors. Whether you’re installing new cabinets or upgrading existing ones, the Blum clip top hinge provides ease of adjustment and smooth operation.

  • Clip top standard door hinge 71B3750
  • Opening angle: 110 degrees
  • Door thickness 16-26mm

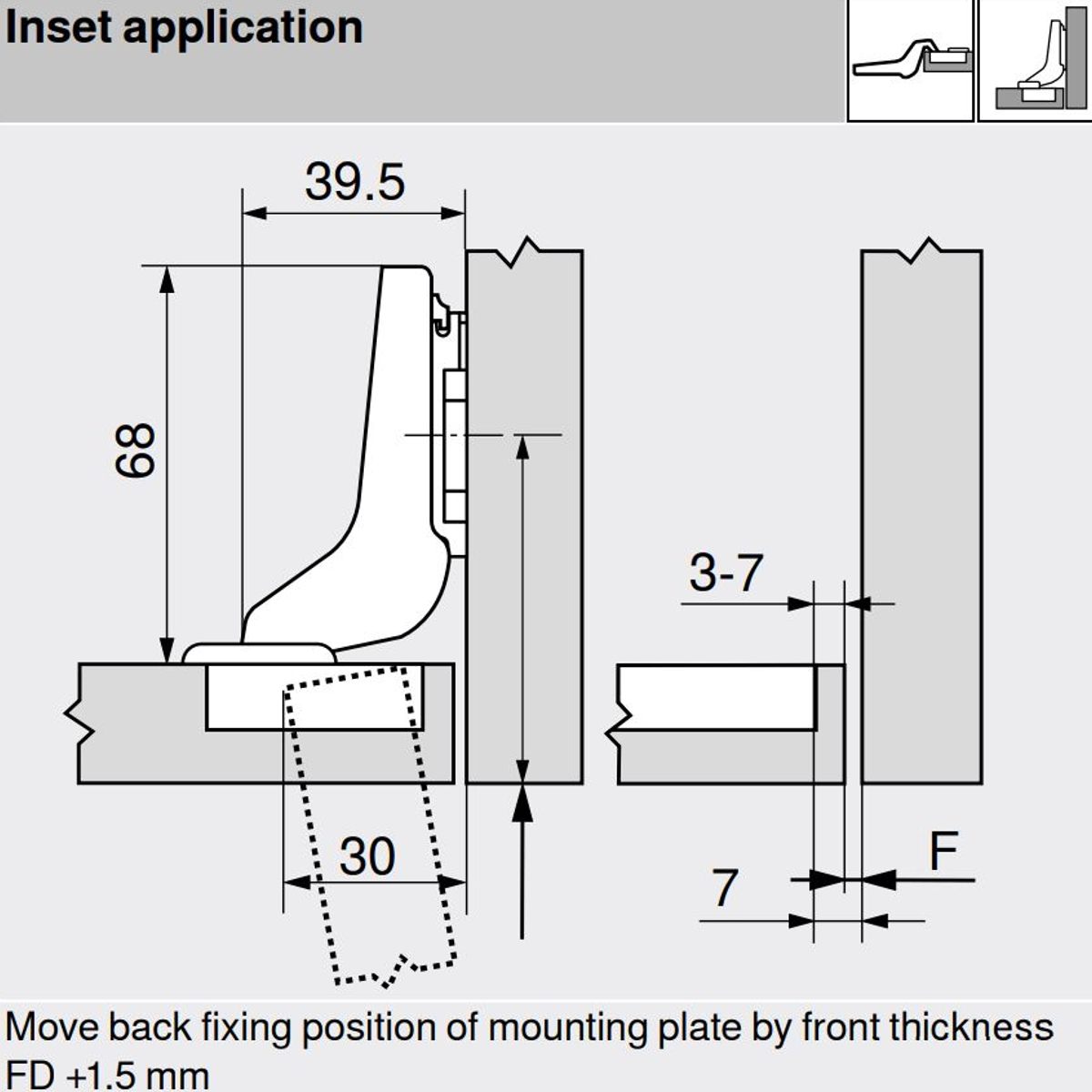

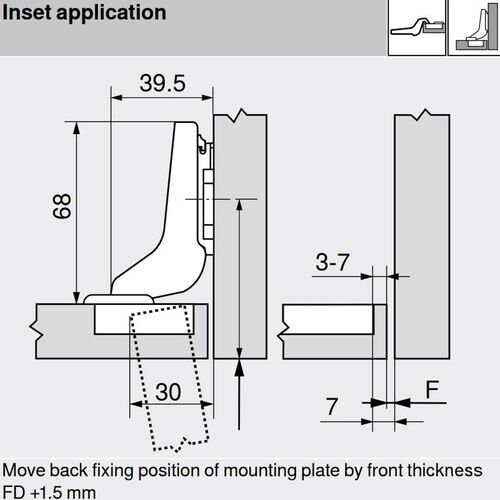

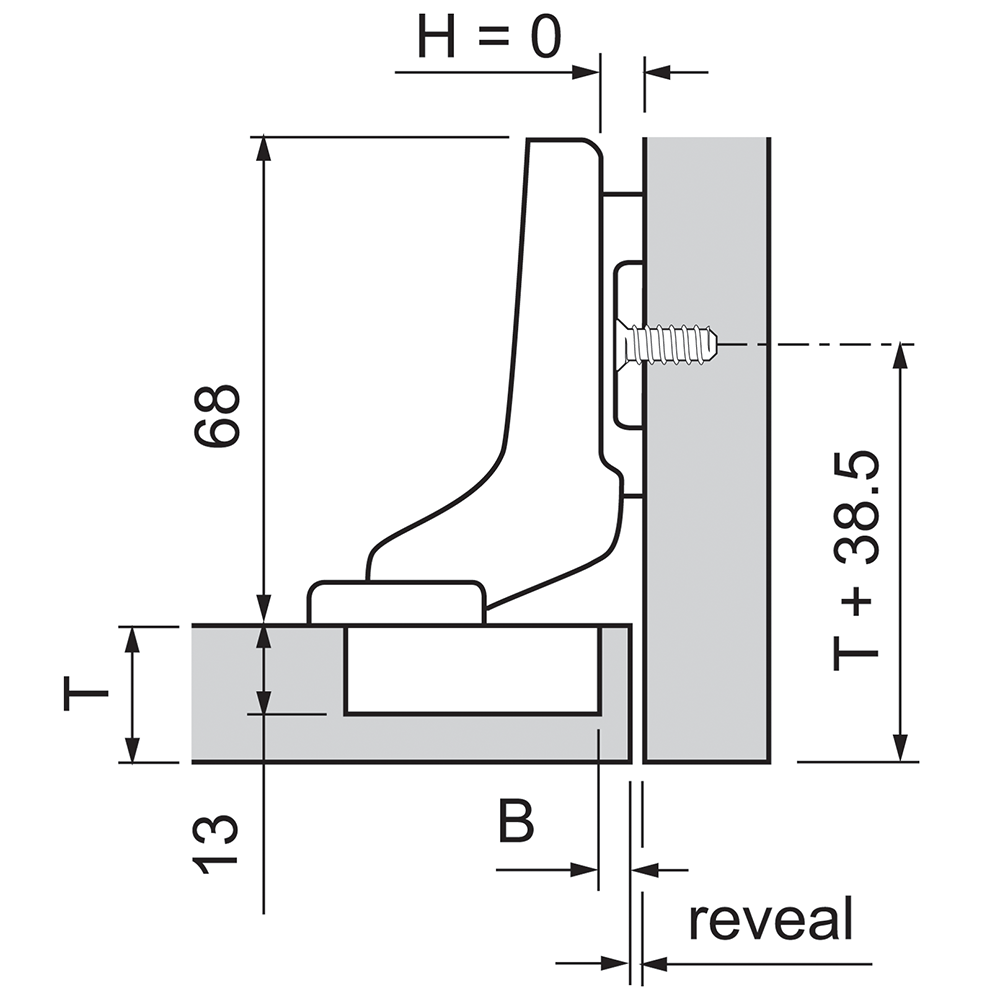

  • Cranking: inset application

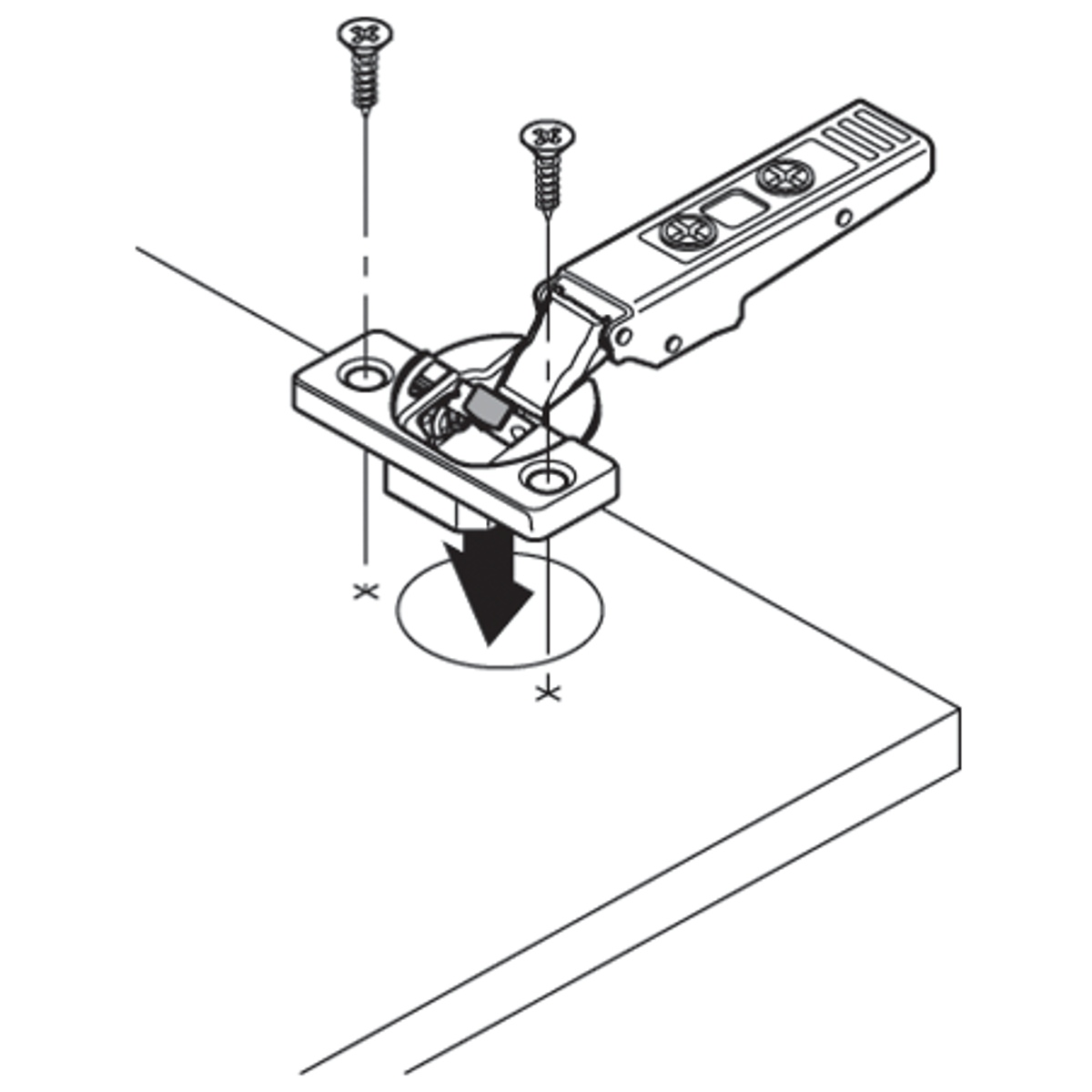

  • Boss assembly: screw-on
  • Boss material: steel boss
  • Closing mechanism: blumotion soft-close

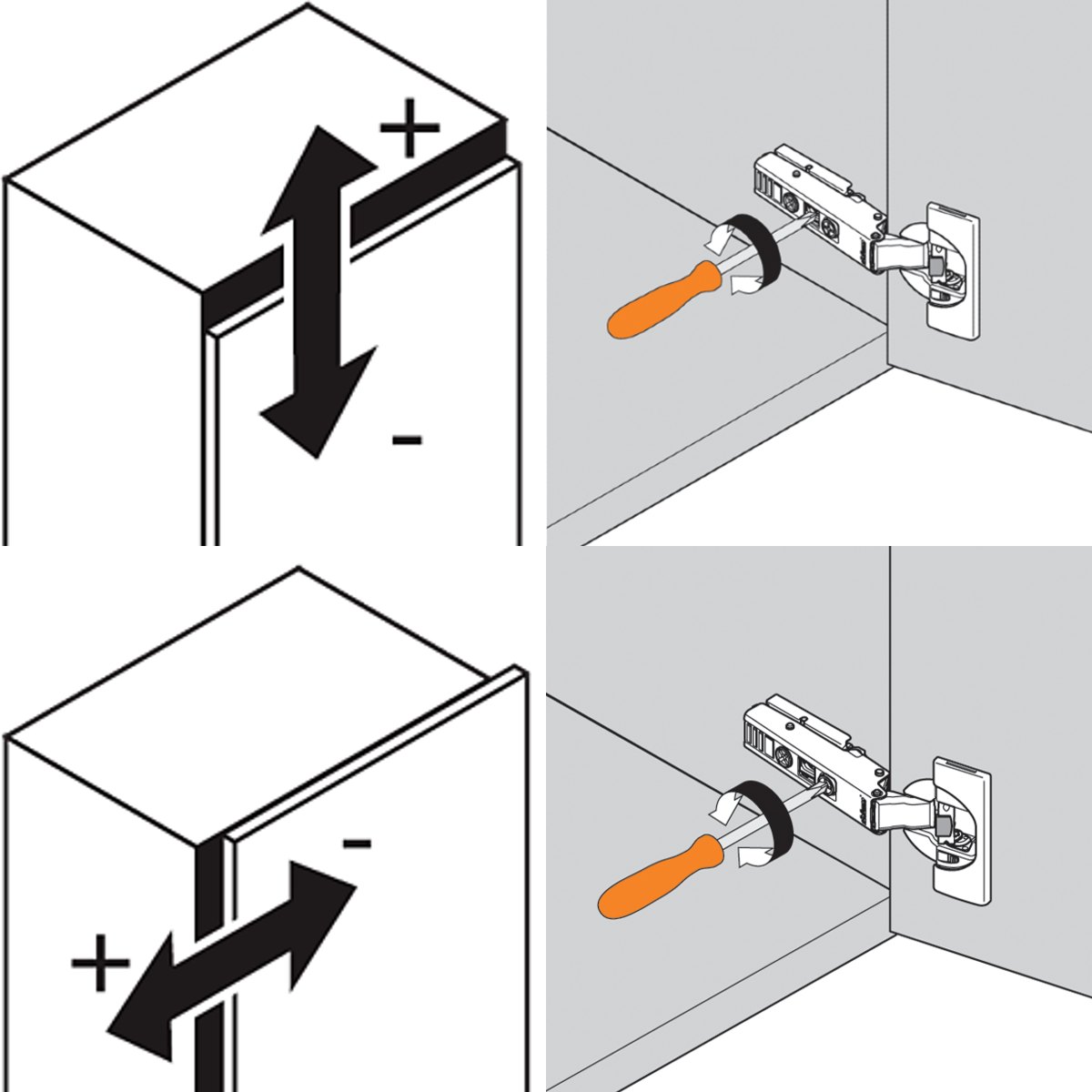

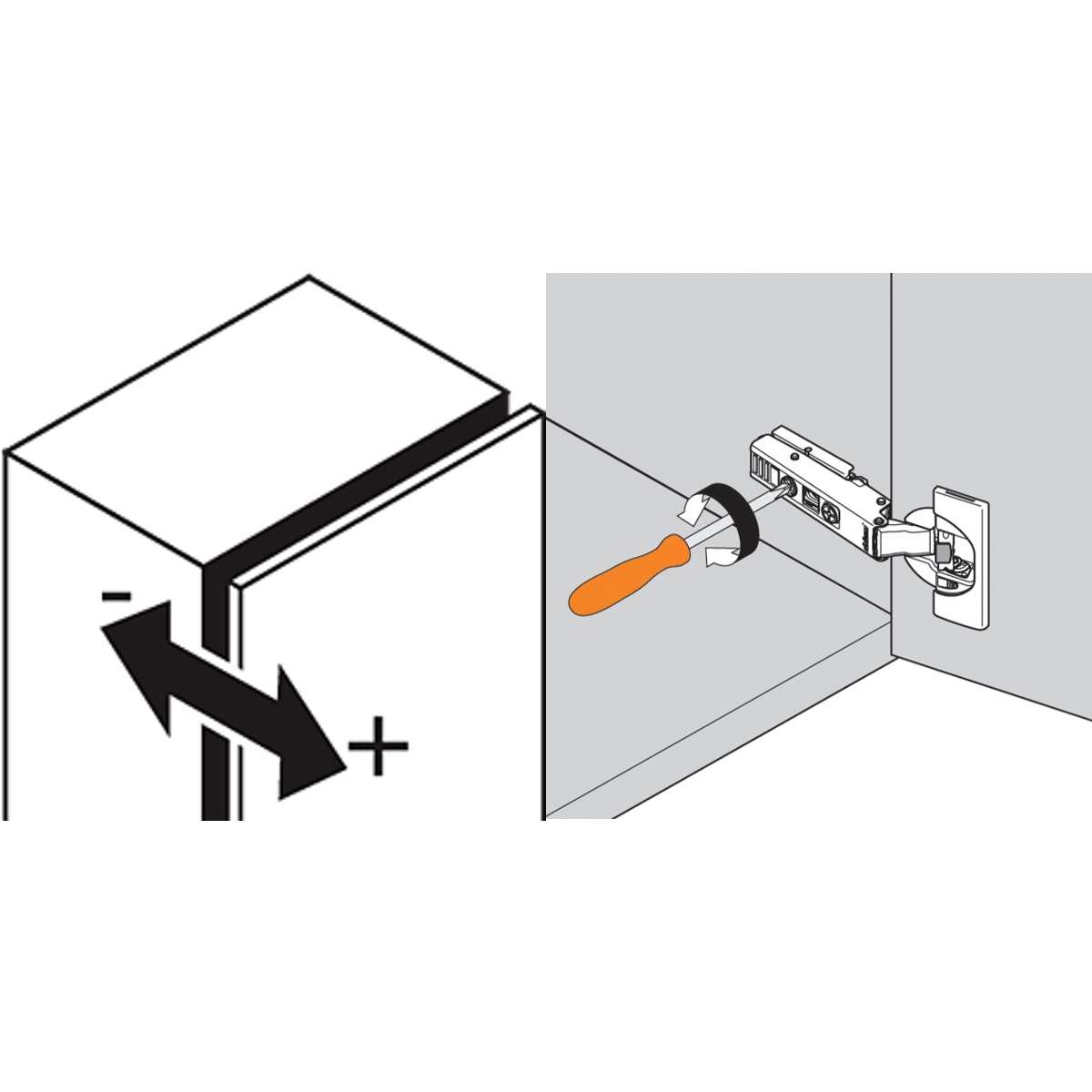

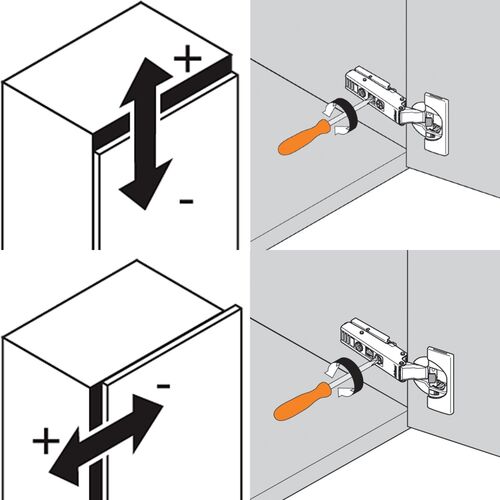

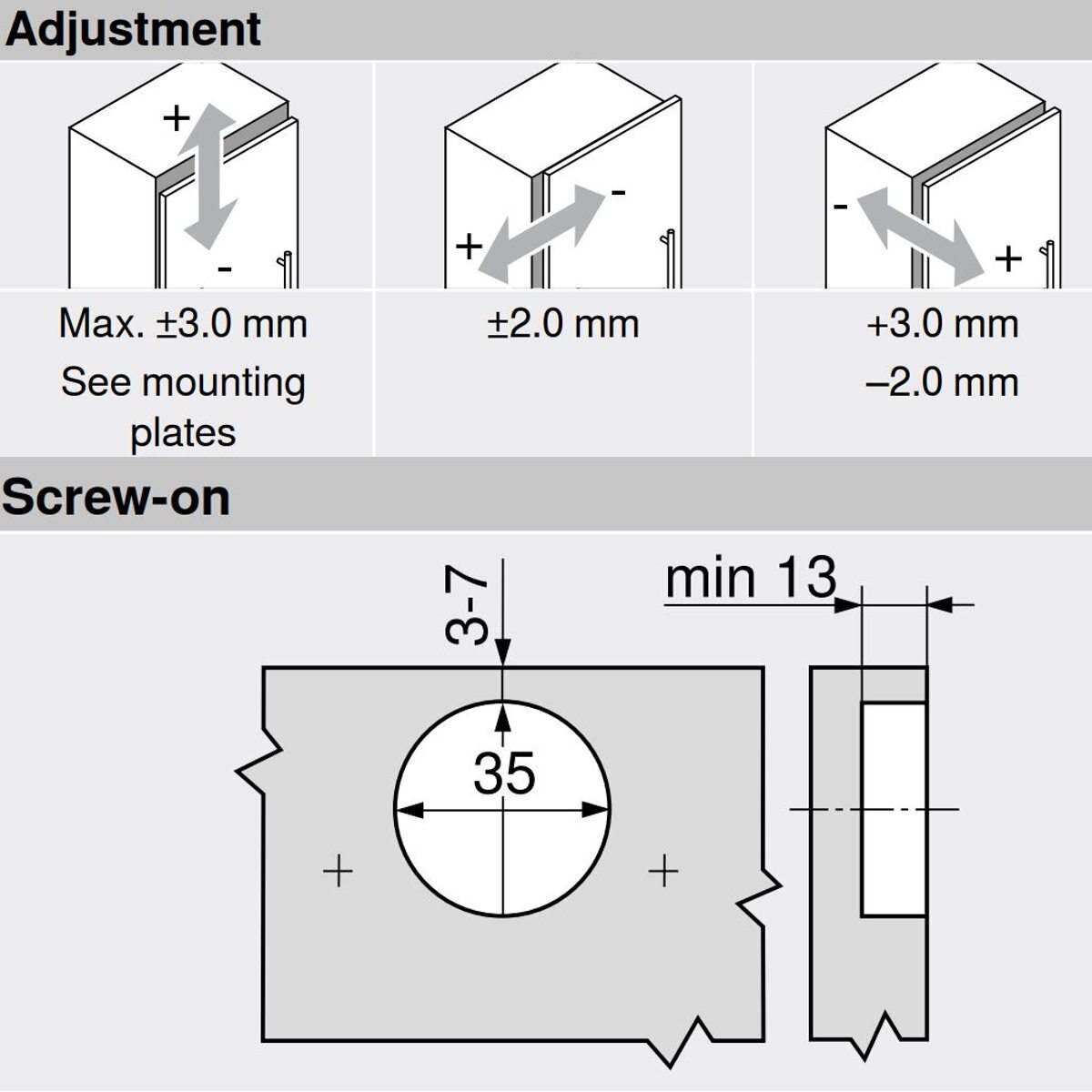

  • Side adjustment: +/-2mm
  • Depth adjustment: +3/-2mm, convenient with spiral screw

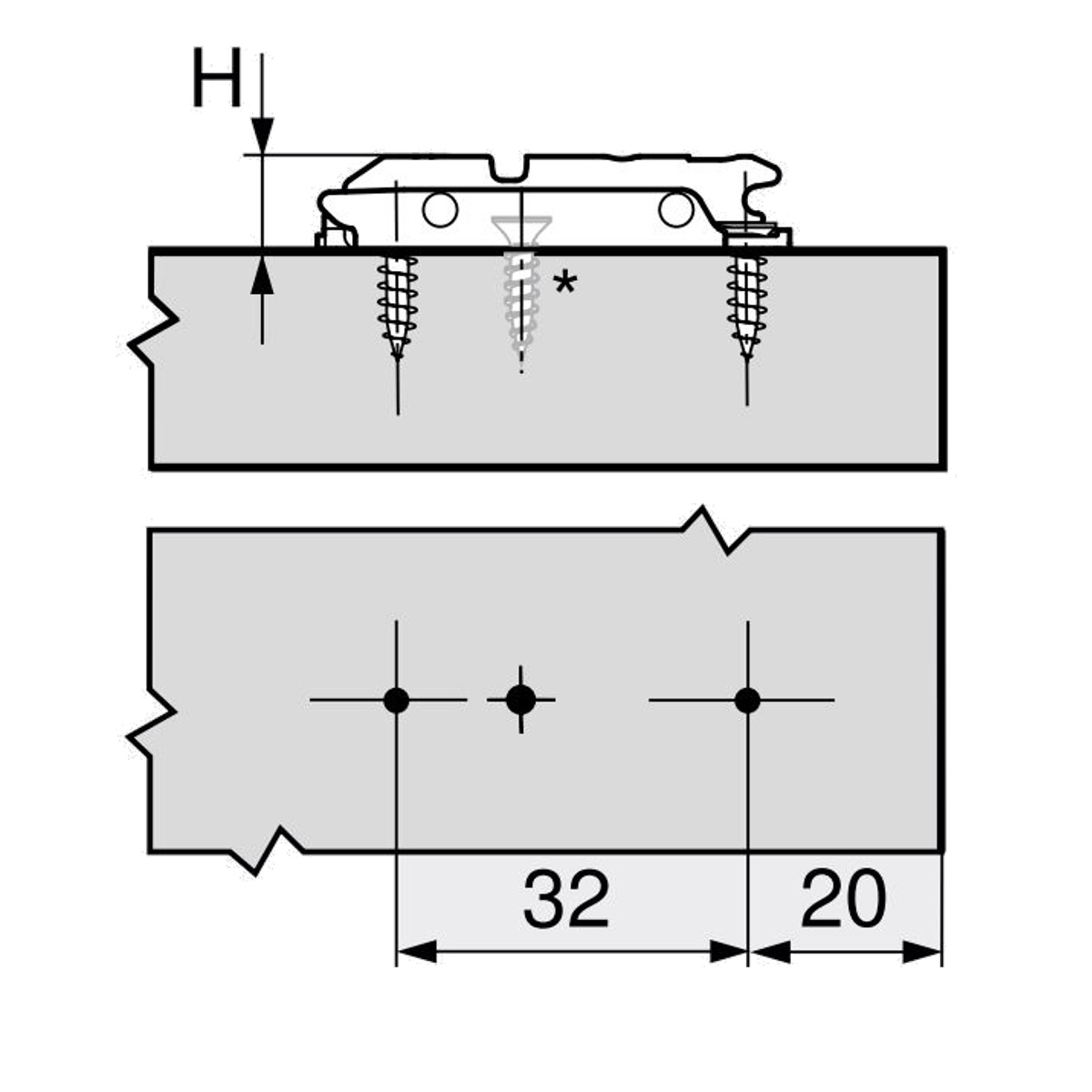

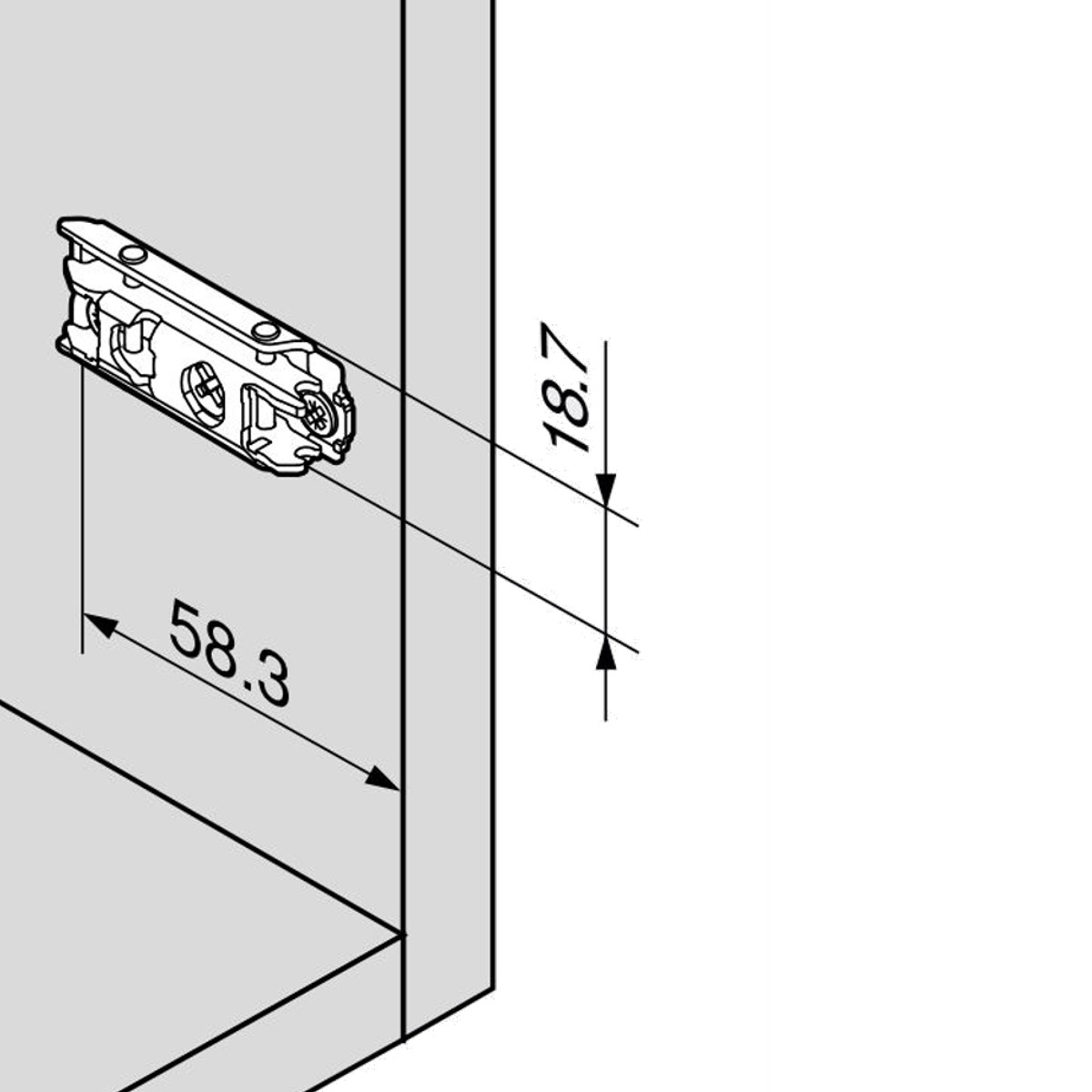

Mounting plates:

  • 173H7100:
    • Adjustment: yes
    • Spacing: 0mm
    • Screws: no
  • 175H3100:
    • Screws: no
    • Spacing: 0mm
    • Adjustment: no
  • 174H7100E: Expando
    • Screws: yes
    • Spacing: 0mm
    • Adjustment: yes
  • 177H3100E: Expando
    • Screws: yes
    • Spacing: 0mm
    • Adjustment: no
  • 175H31310:
    • Screws: no
    • Spacing: 3mm
    • Adjustment: no
  • 174H7130E: Expando
    • Screws: yes
    • Spacing: 3mm
    • Adjustment: yes

Download 71B3750 CAD (dxf)

Download 71B3750 Product Details (pdf)

Download 175H3100 CAD (dxf)

Download 175H3100 Product Details (pdf)

Download 177H3100E CAD (dxf)

Download 177H3100E Product Details (pdf)

Download 174H7100E CAD (dxf)

Download 174H7100E Product Details (pdf)

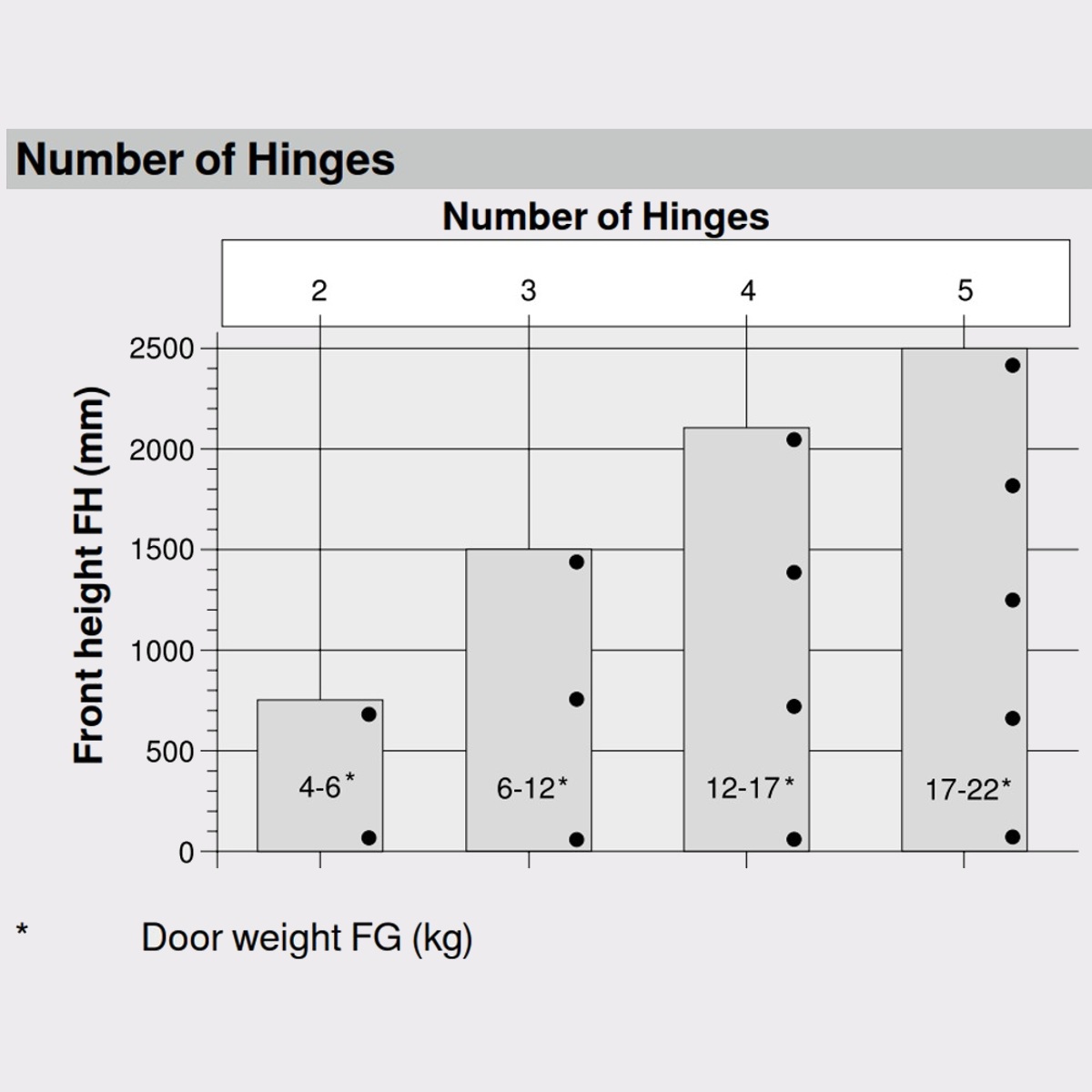

Download Number Of Hinges (jpg)

Mounting Plate:
175H3100
Cover Caps:
Without Cover Caps
