Blum Clip Top Half Overlay 110 Degree Blumotion Cabinet Hinge 71B3650 With Mounting Plate Onyx

8785-001
Price from: £4.86inc VAT
Write a review
− +

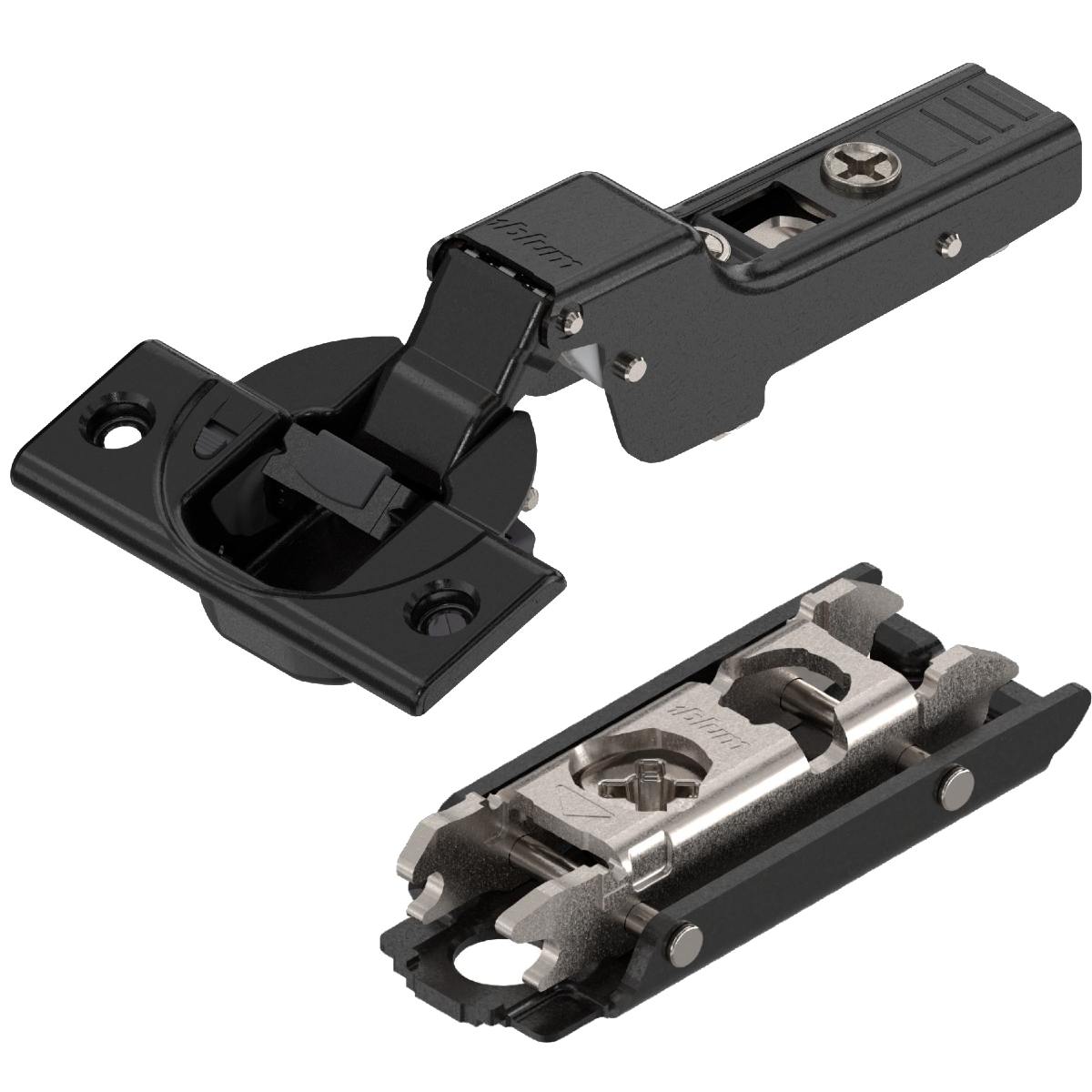

Blum Clip Top Half Overlay 110 Degree Cabinet Hinge 71B3650 And Mounting Plates (175H3100, 174H7100E, And 177H3100E)

  • Clip top standard door hinge 71B3650
  • Opening angle: 110 degrees
  • Door thickness 16-26mm
  • Cranking: half-overlay application
  • Boss assembly: screw-on
  • Boss material: steel boss
  • Closing mechanism: blumotion soft-close

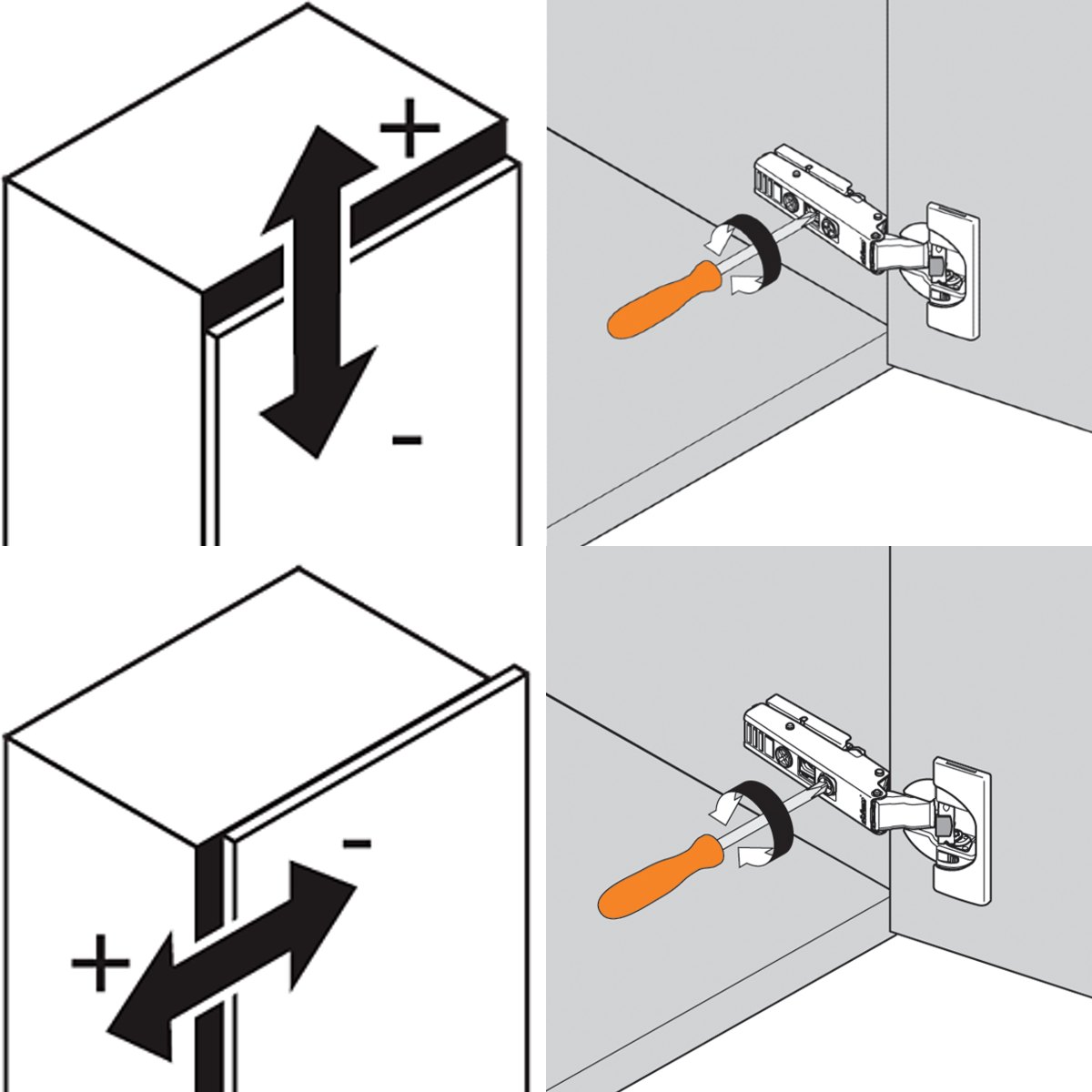

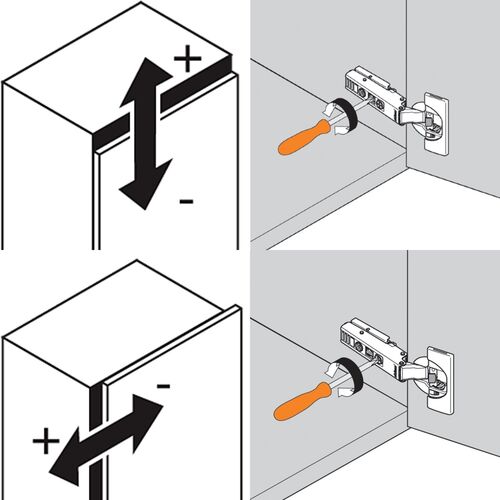

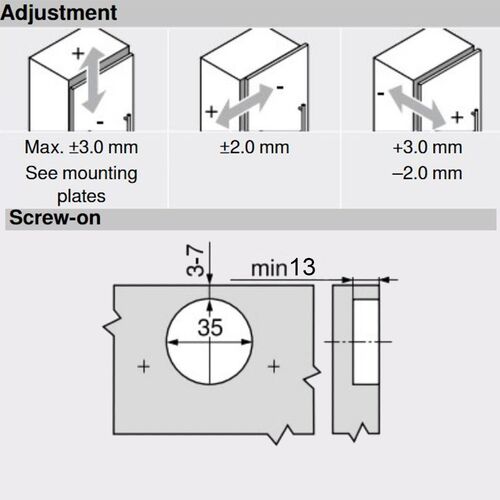

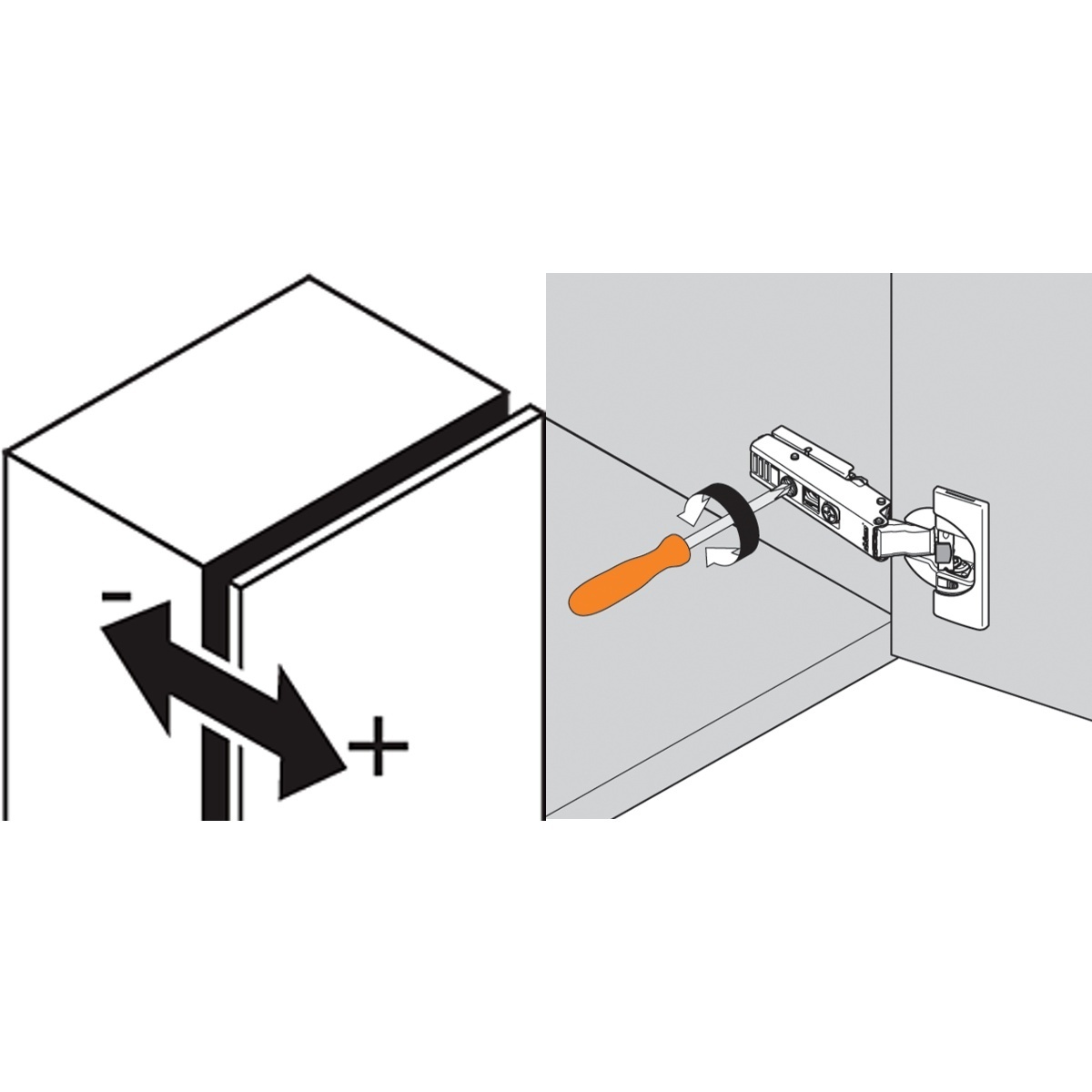

  • Side adjustment: +/- 2mm
  • Depth adjustment: + 3/- 2mm, convenient with spiral screw

Mounting Plates:

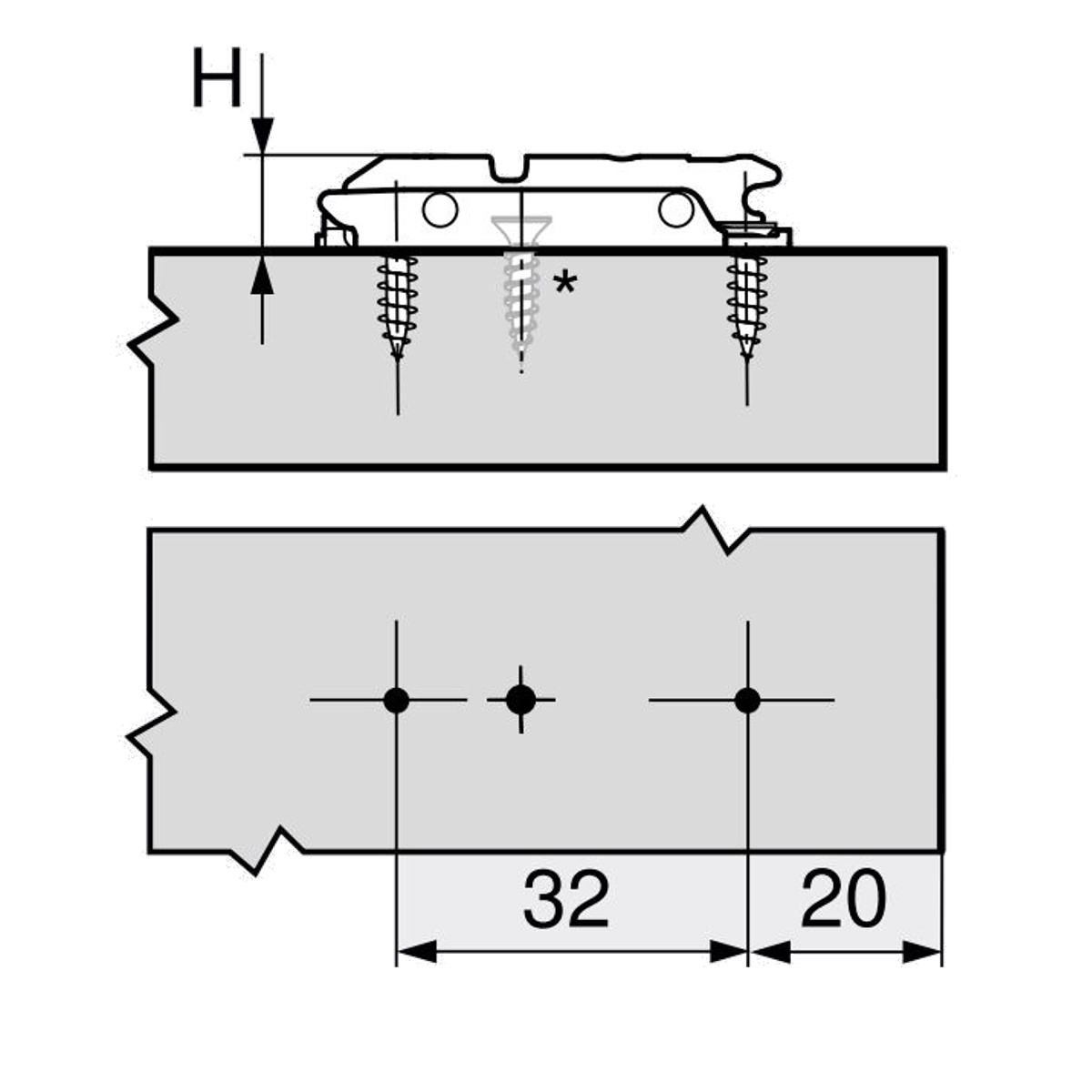

  • 175H3100:
    • Mounting plate system: Clip
    • The shape of the mounting plate: inline
    • Spacing: 0mm
  • 174H7100E:
    • Mounting plate system: clip
    • The shape of the mounting plate: cruciform
    • Spacing: 0mm
  • 177H3100E:
    • Mounting plate system: clip
    • The shape of the mounting plate: inline
    • Spacing: 0mm

Download 71B3650 CAD (dxf)

Download 71B3560 Product Details (pdf)

Download 175H3100 CAD (dxf)

Download 175H3100 Product Details (pdf)

Download 177H3100E CAD (dxf)

Download 177H3100E Product Details (pdf)

Download 174H7100E CAD (dxf)

Download 174H7100E Product Details (pdf)

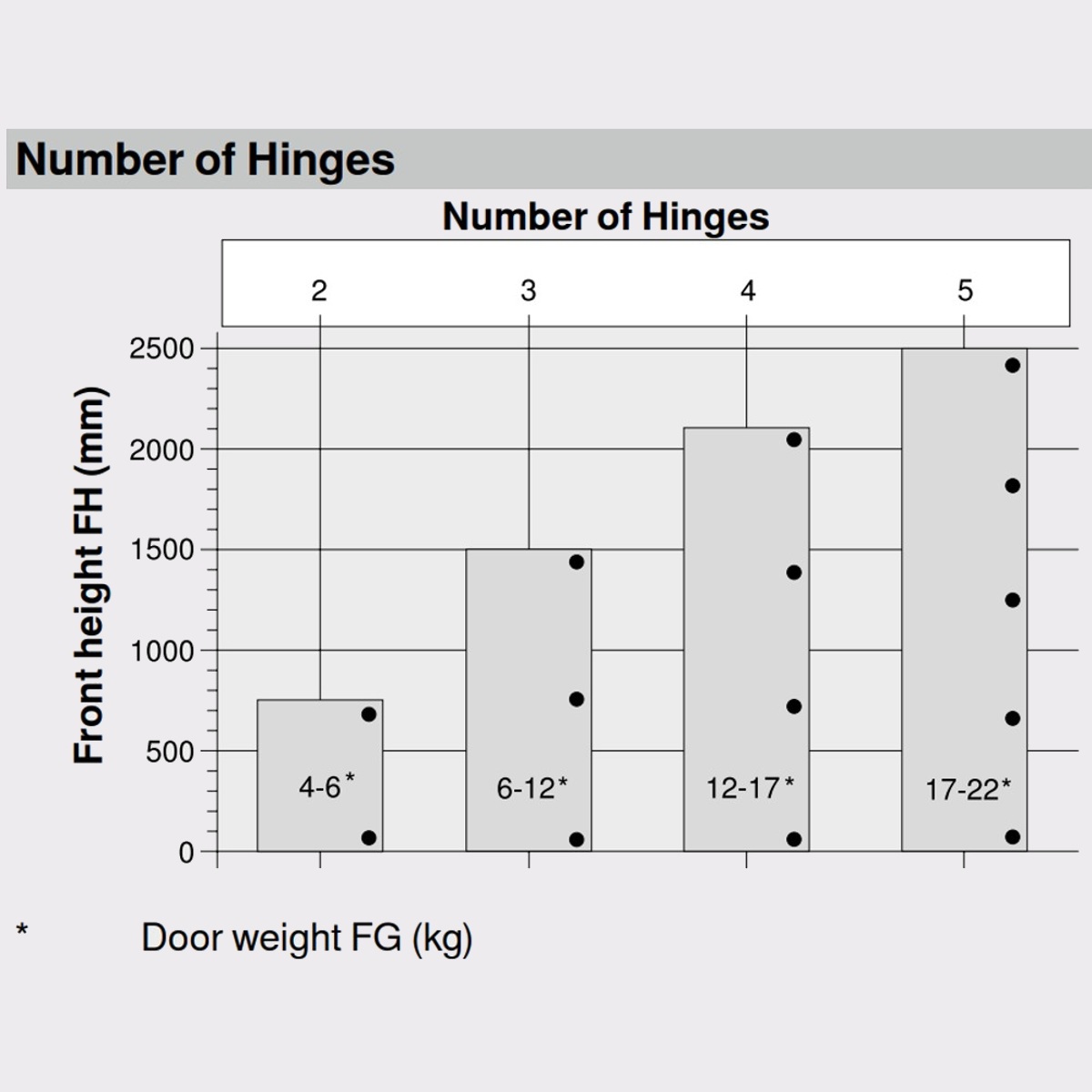

Download Number of hinges (jpg)

Mounting Plate:
175H3100
Cover Caps:
No
