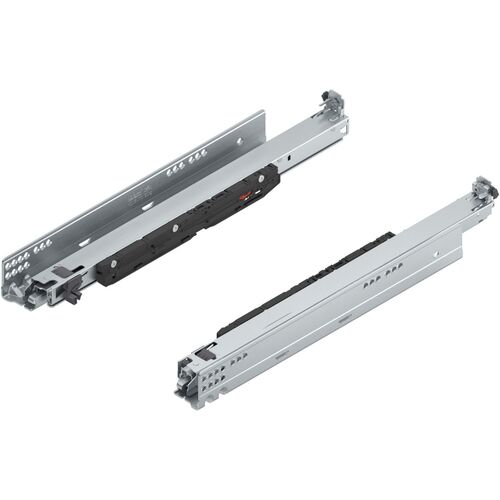

Blum 766H Movento Blumotion 60/70kg (Maximum 16mm Drawer Sides)

1087-001
Price from: £40.92inc VAT
Write a review
− +

Movento Blum drawer slides offer synchronised feather-light glide, 4-dimensional front adjustment, dynamic carrying capacity 60 kg, high stability and very good sag values.

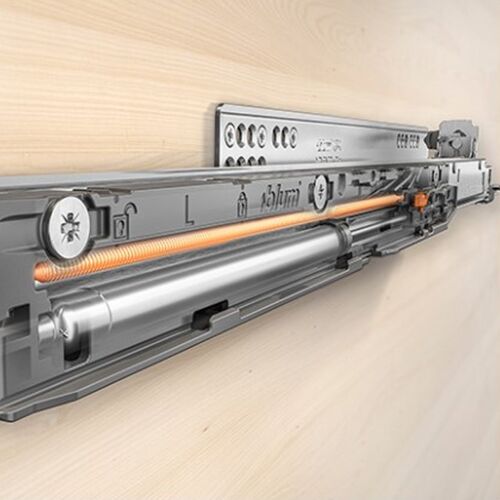

  • Blumotion soft close

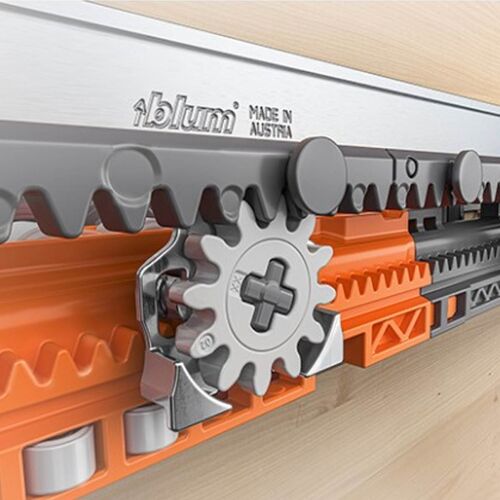

  • Synchronised movement

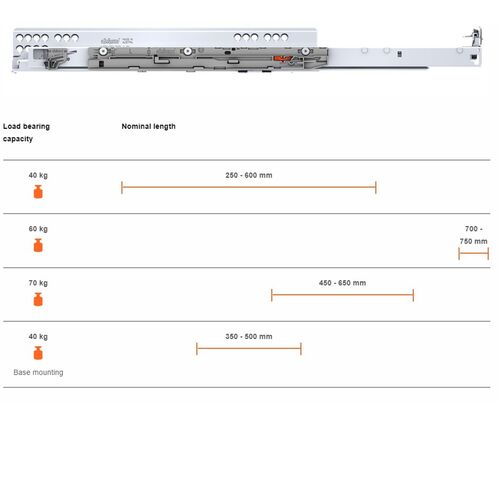

  • Maximum drawer weight: 70kg
  • Optional side stabilisation for very wide drawers
  • Full extension with nominal lengths of 450-750mm
  • Maximum weight of 700mm and 750mm runners: 60kg
  • Integrated height, side and tilt adjustment, optional depth adjustment (available in related products)
  • Available versions: 766H4500S, 766H5000S, 766H5500S, 766H6000S, 766H6500S, 766H7000S, 766H7500S

Please note that:

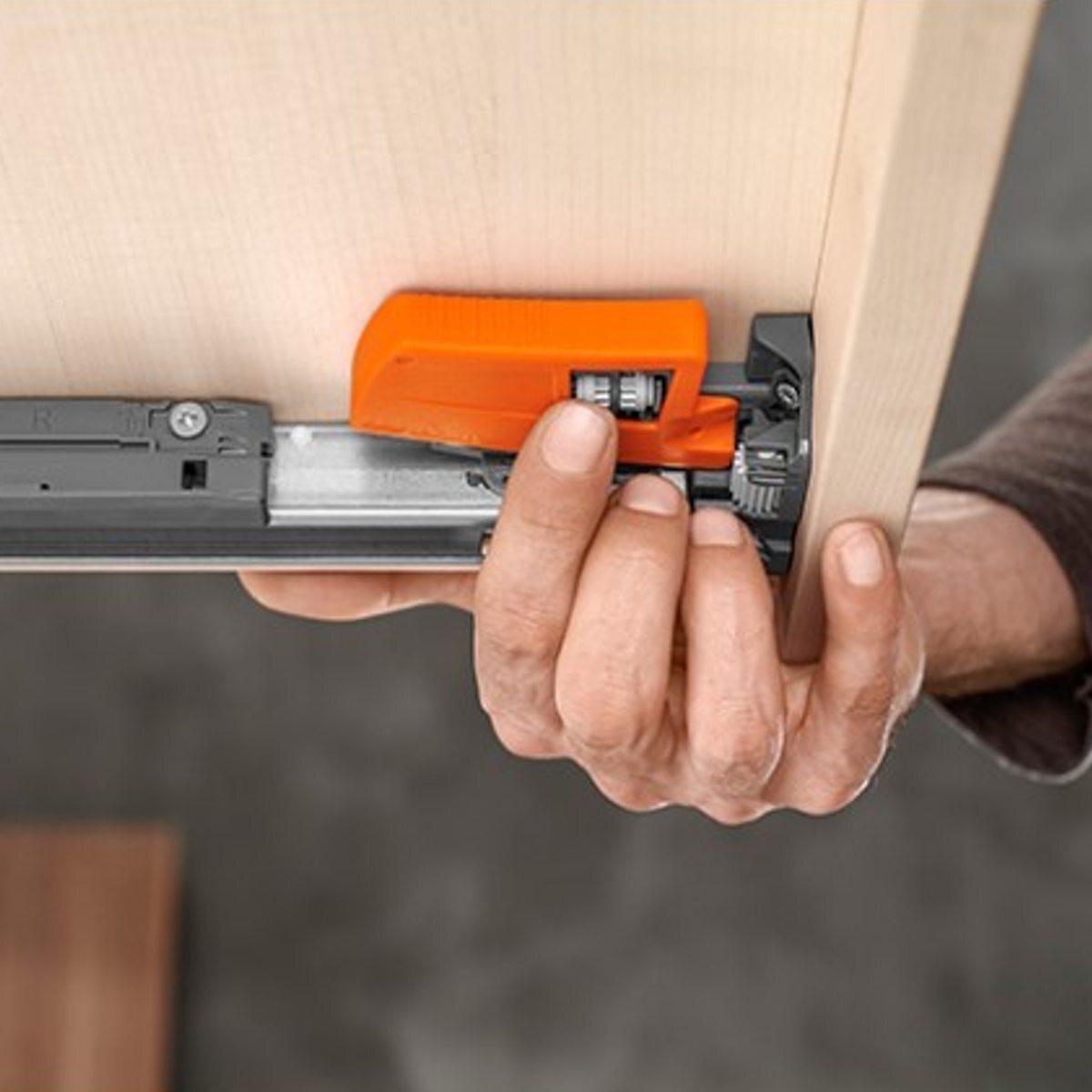

  • Locking devices are required for installation

Download Technical planning Information Part 1 (pdf)

Download Technical Planning Information Part 2 (pdf)

Download Overview (pdf)

Download Adjustments Instruction (pdf)

Download Technical Specification (pdf)

Download Fitting Instruction (pdf)

Download CAD 450mm (dxf)

Download CAD 500mm (dxf)

Download CAD 550mm (dxf)

Download CAD 600mm (dxf)

Download CAD 650mm (dxf)

Download CAD 700mm (dxf)

Download CAD 750mm (dxf)

Drawer Runners

Runner Length:
450mm
Locking Devices:
No Locking Devices
Runner Type :
Concealed Full Extension
Closing Mechanism:
Soft Close
