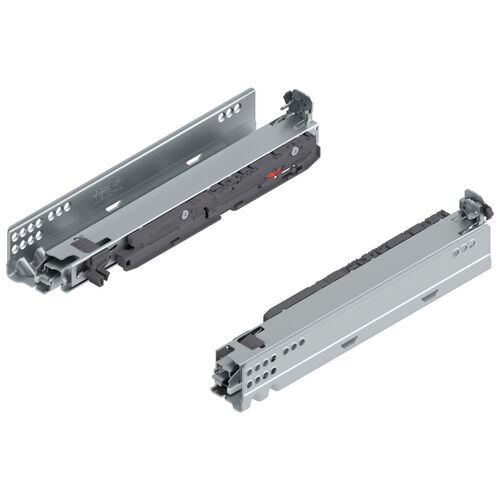

Blum 760H Movento Blumotion 40kg (Maximum 16mm Drawer Sides)

0931-002
Price from: £33.22inc VAT
Write a review
− +

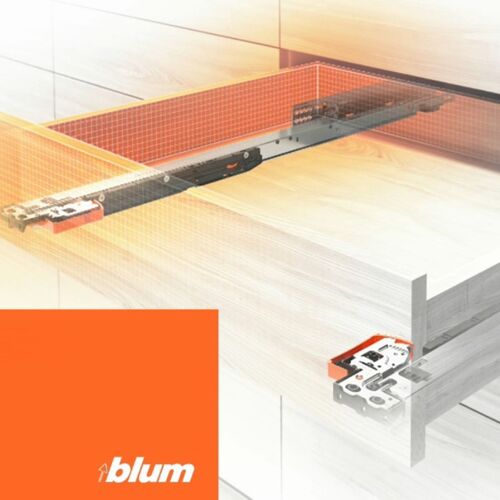

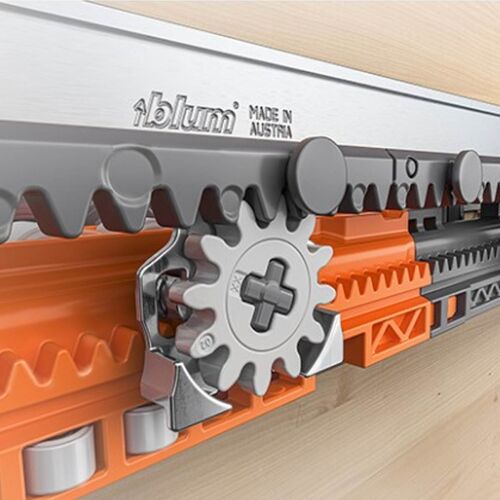

Blum movento drawer slide offers a synchronised feather-light glide, 4-dimensional front adjustment, dynamic carrying capacities of 40kg, high stability, Blumotion soft close and very good sag values. Available in size range from 300-550mm.

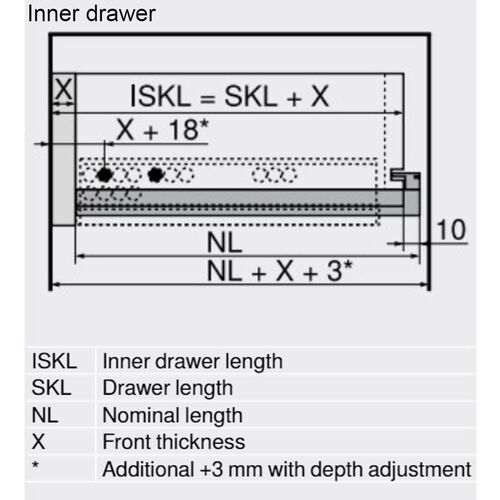

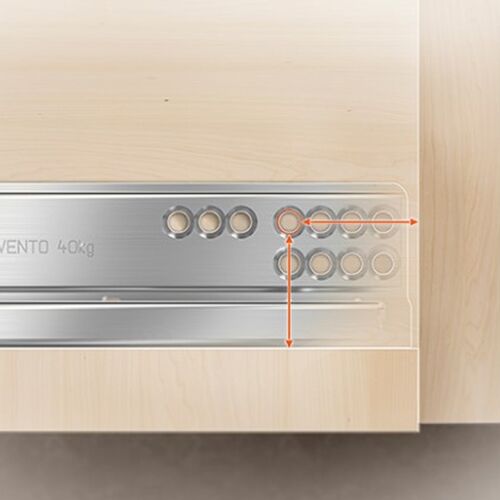

  • Integrated height, side and tilt adjustment, optional depth adjustment (in related products)
  • Blumotion soft close built-in

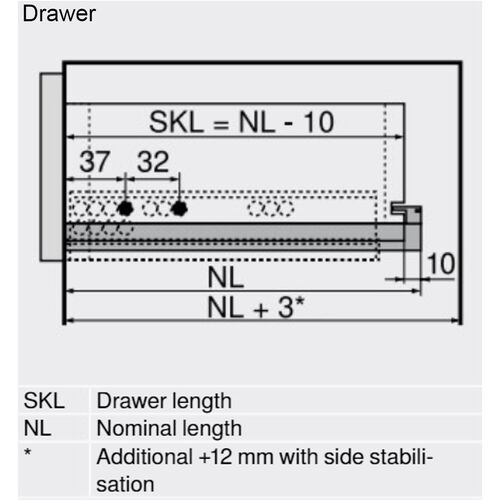

  • Full-extension with nominal lengths of 300-550mm

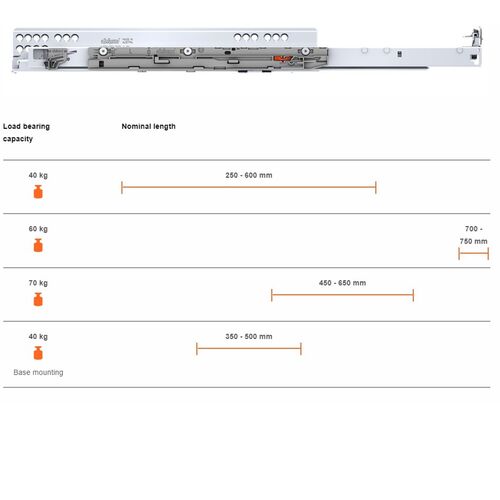

  • Maximum load capacity: 40kg
  • Optional side stabilisation

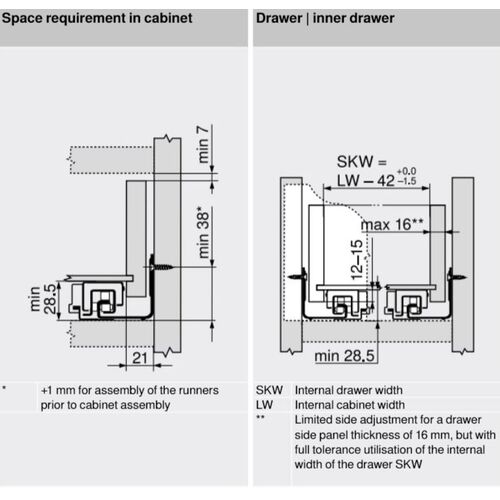

  • Drawer sides: 11-16mm
  • Orga-line
  • Sold in pairs
  • Available versions: 760H3000S, 760H3500S, 760H4000S, 760H45000S, 760H5000S, 760H5500S, 760H6000S

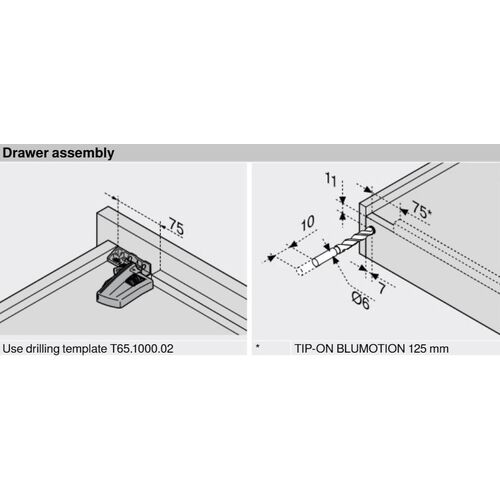

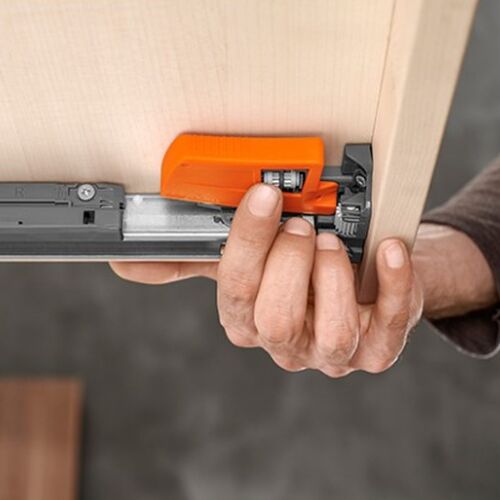

  • Locking Devices are required for Installation

Download Technical Planning Information Part 1 (pdf)

Download Technical Planning Information Part 2 (pdf)

Download Overview (pdf)

Download Adjustments Instruction (pdf)

Download Technical Specification (pdf)

Download Fitting Instruction (pdf)

Download 300mm CAD (dxf)

Download 350mm CAD (dxf)

Download 400mm CAD (dxf)

Download 450mm CAD (dxf)

Download 500mm CAD (dxf)

Download 550mm CAD (dxf)

Drawer Runners

Runner Length:
300mm
Locking Devices:
No Locking Devices
Runner Type :
Concealed Full Extension
Closing Mechanism:
Soft Close
