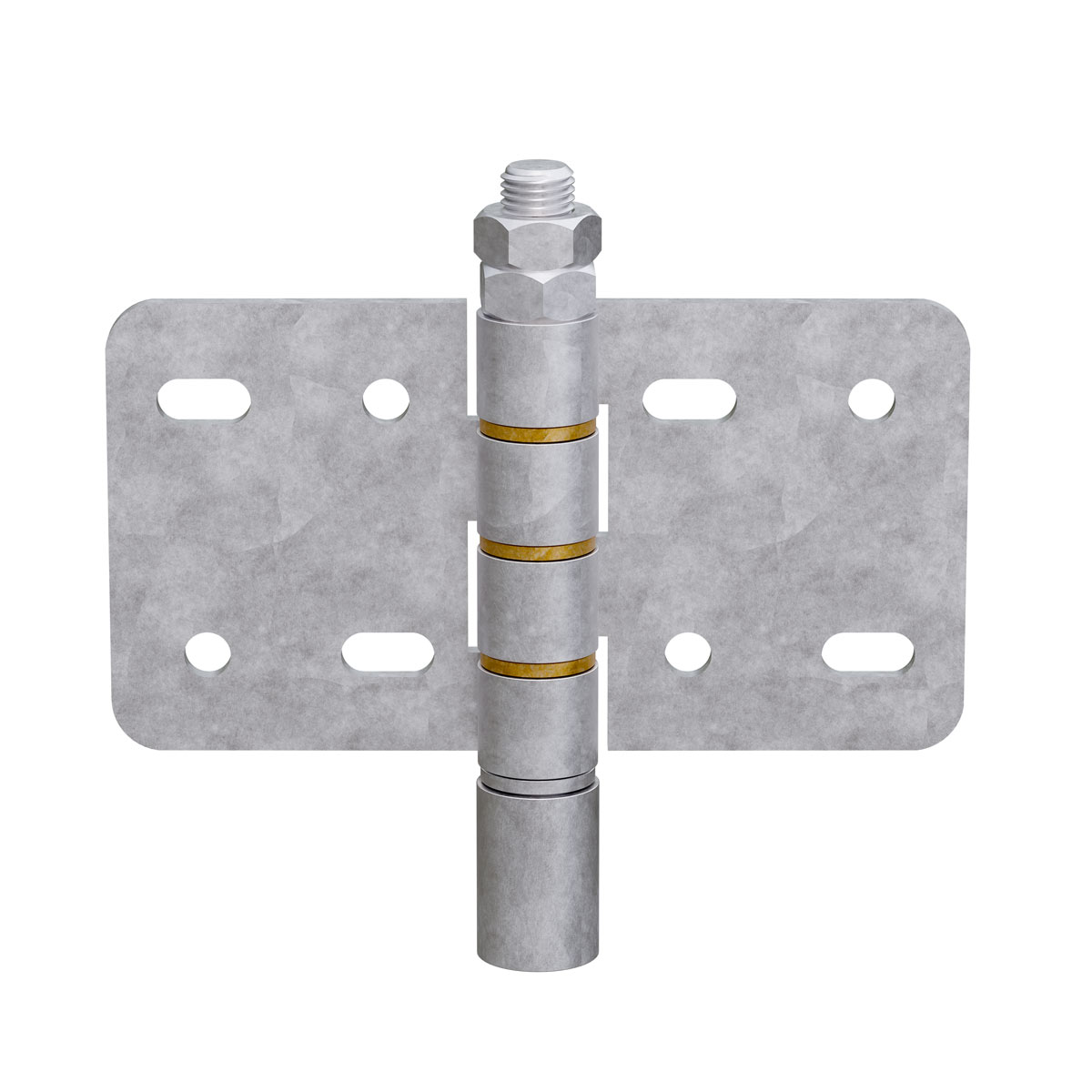

U-19 Hinged Bottom Guide For Curved/Folding Systems

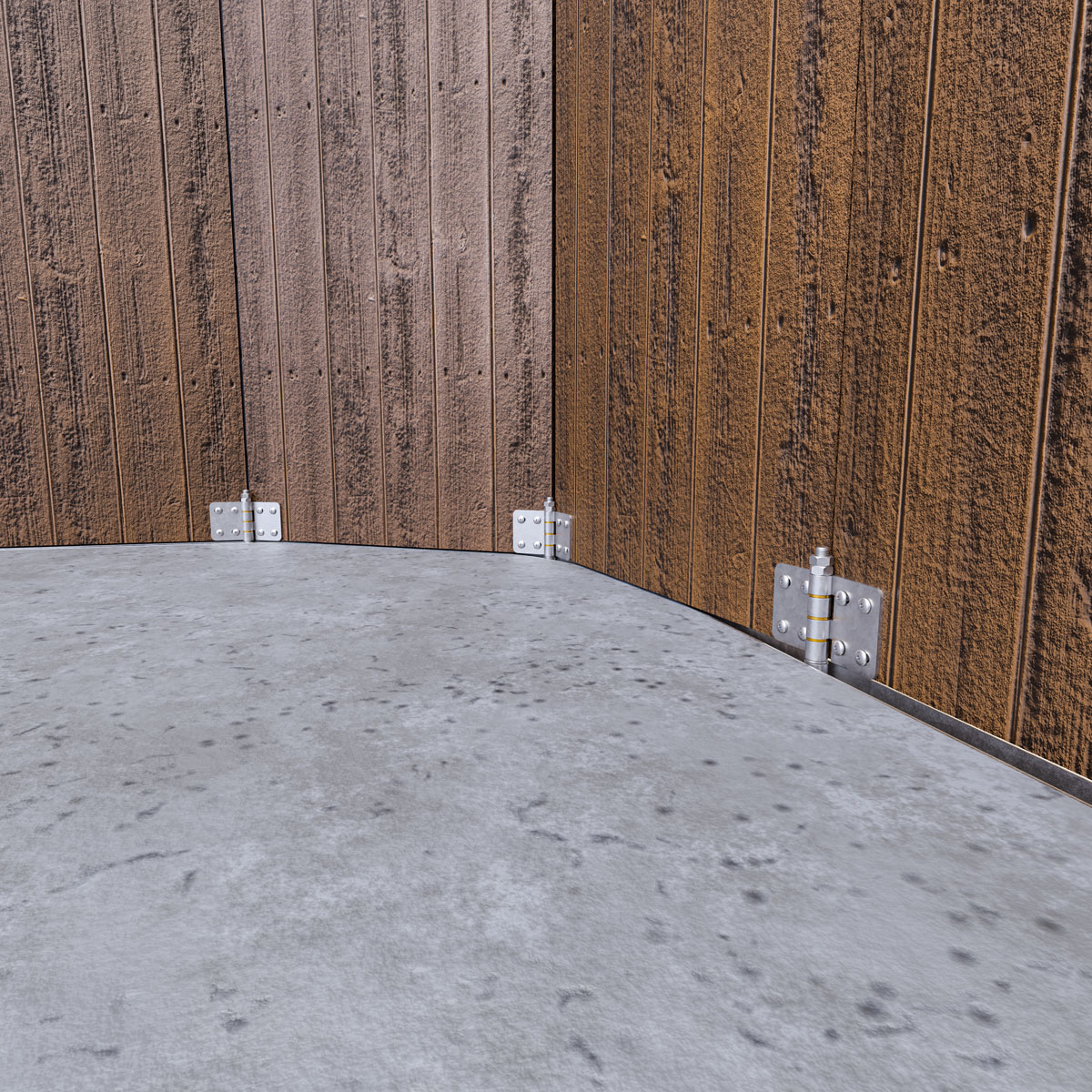

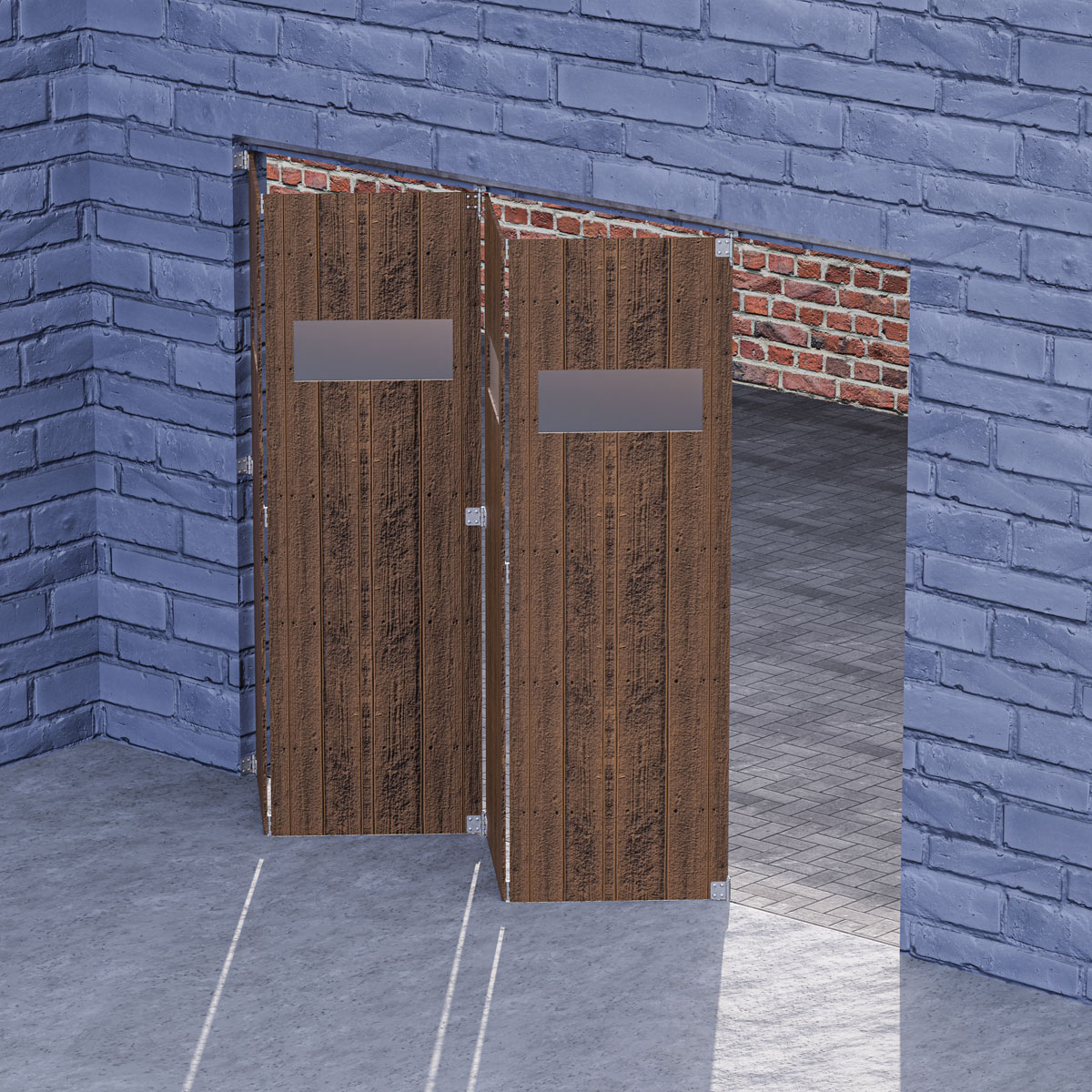

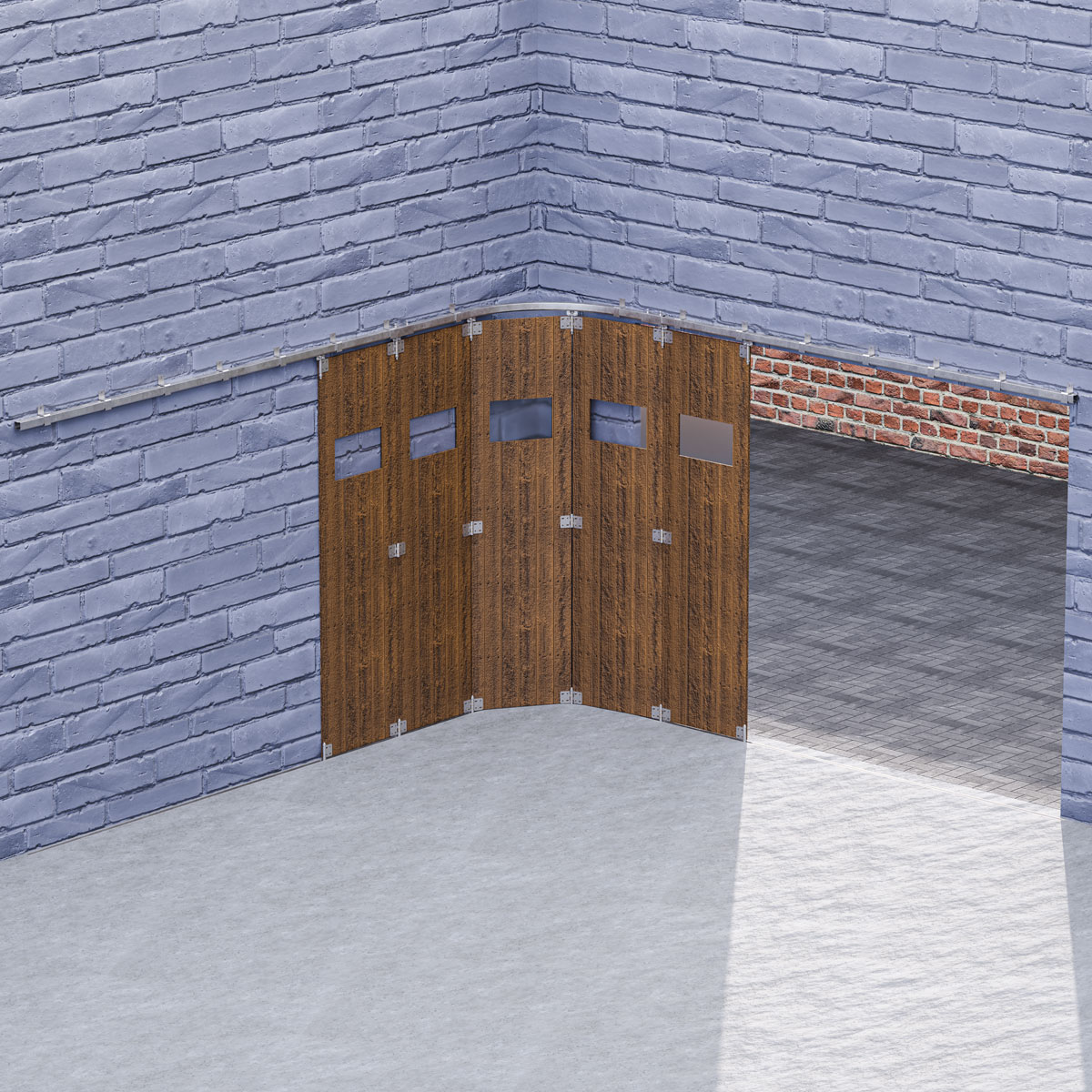

U-19 HInged Bottom Guide For Curved/Folding Industrial Sliding Track Systems For Commercial And Agricultural Applications. Perfect For Enabling Doors To Either Slide Round A Corner Or Fold To One Side. Designed To Function By Sliding Along The U-19 Bottom Track. This Guide Has Two Hinge Plates To Screw. By Screwing Each Hinge To Its Own Door Panel, It Permits The Folding And/Or Curved Door Panels To Fold And Swing.

• M12 bolt
• To work with 50/75/100/150/200kg folding/curved systems
• Manufactured with DD11 zink plated steel
• Suitable for outdoor and indoor use
• All compatible components are available in related products below

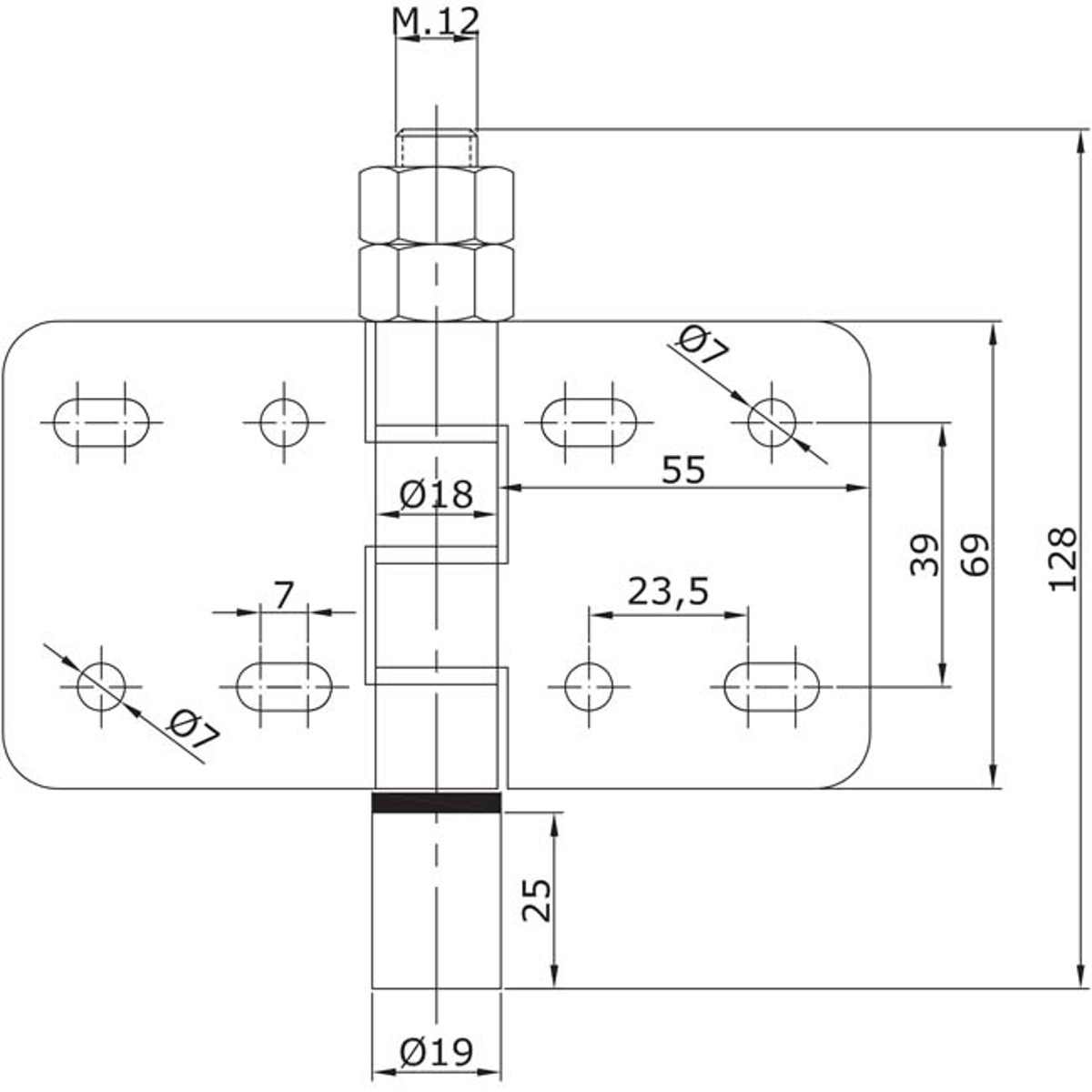

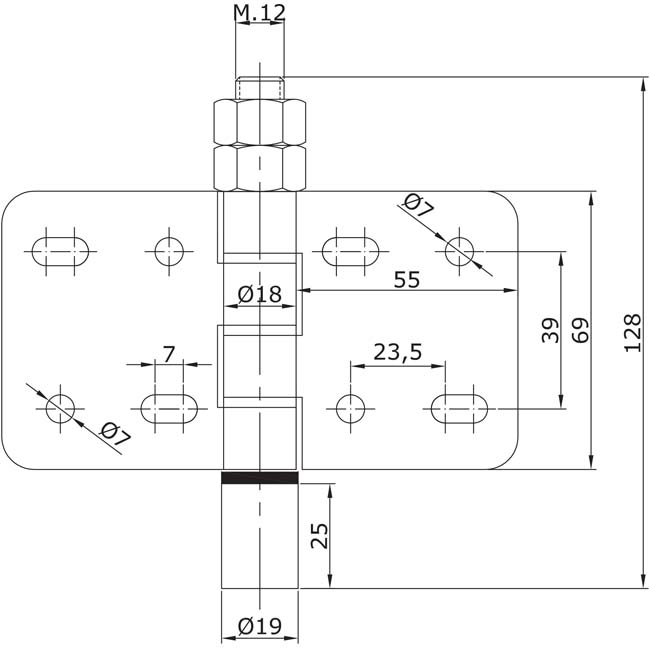

• Dimensions
  • Plate height: 69mm
  • Plate width: 55mm
  • Plate thickness: 3mm
  • Overall height: 128mm
  • Overall width: 128mm
