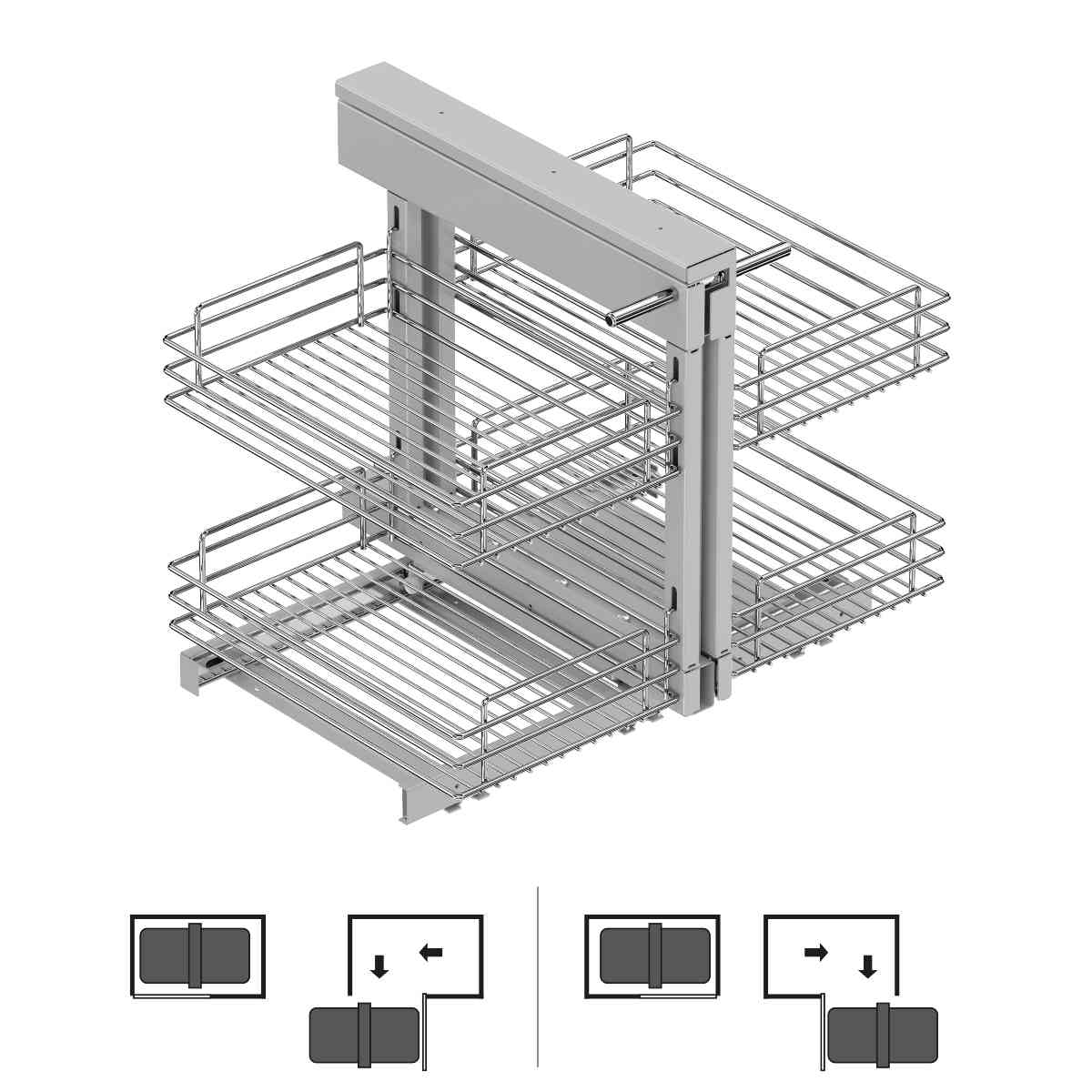

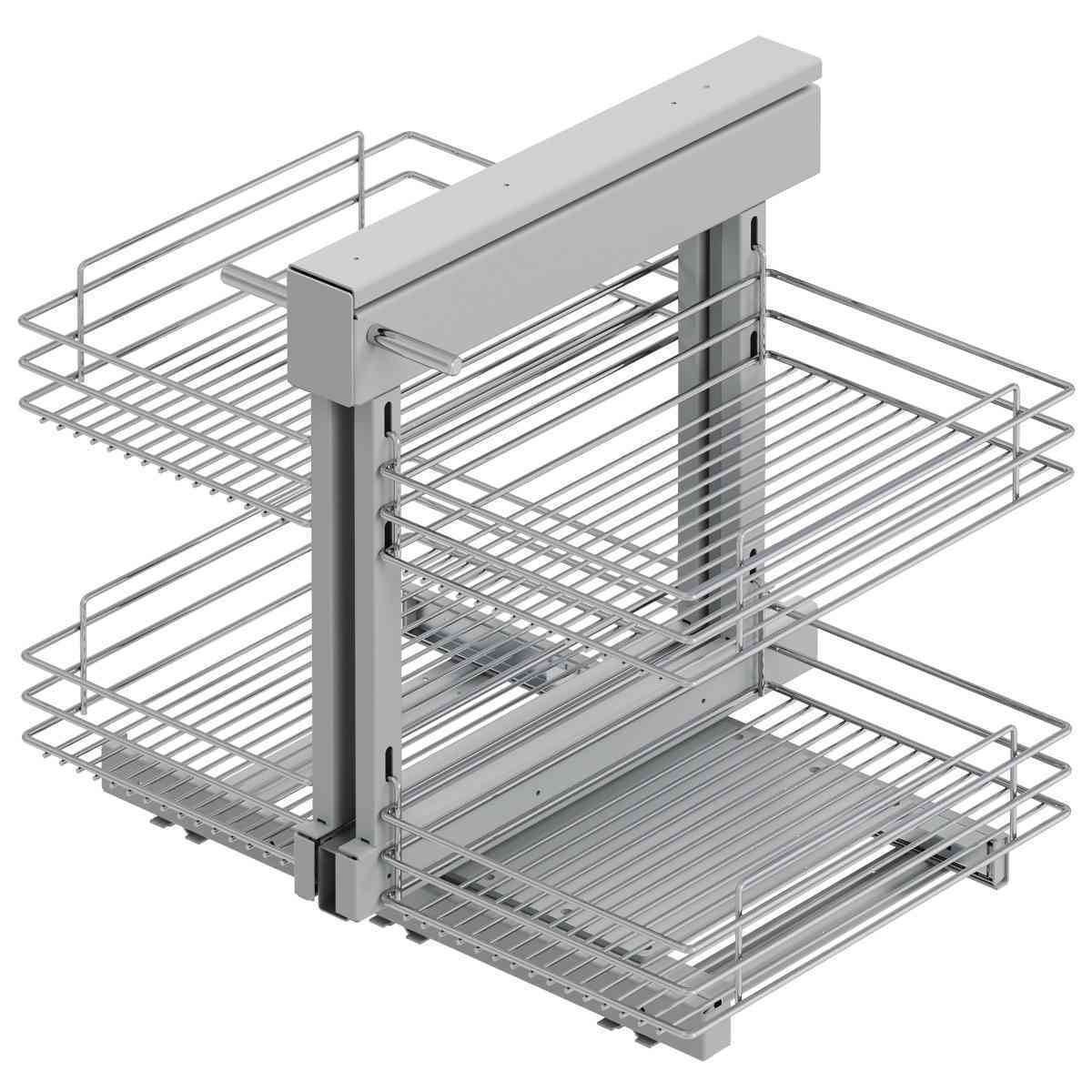

Suprastar Corner Optimiser Unit For 900mm Corner Cabinet. Now With Universal Frame Meaning That It Can Be Fitted In A Left Handed Cabinet And In A Right Handed Cabinet. Suprastar Is Made Out Of High Quality Steel.
- For use in an 900mm cabinet
- The system has a soft-close

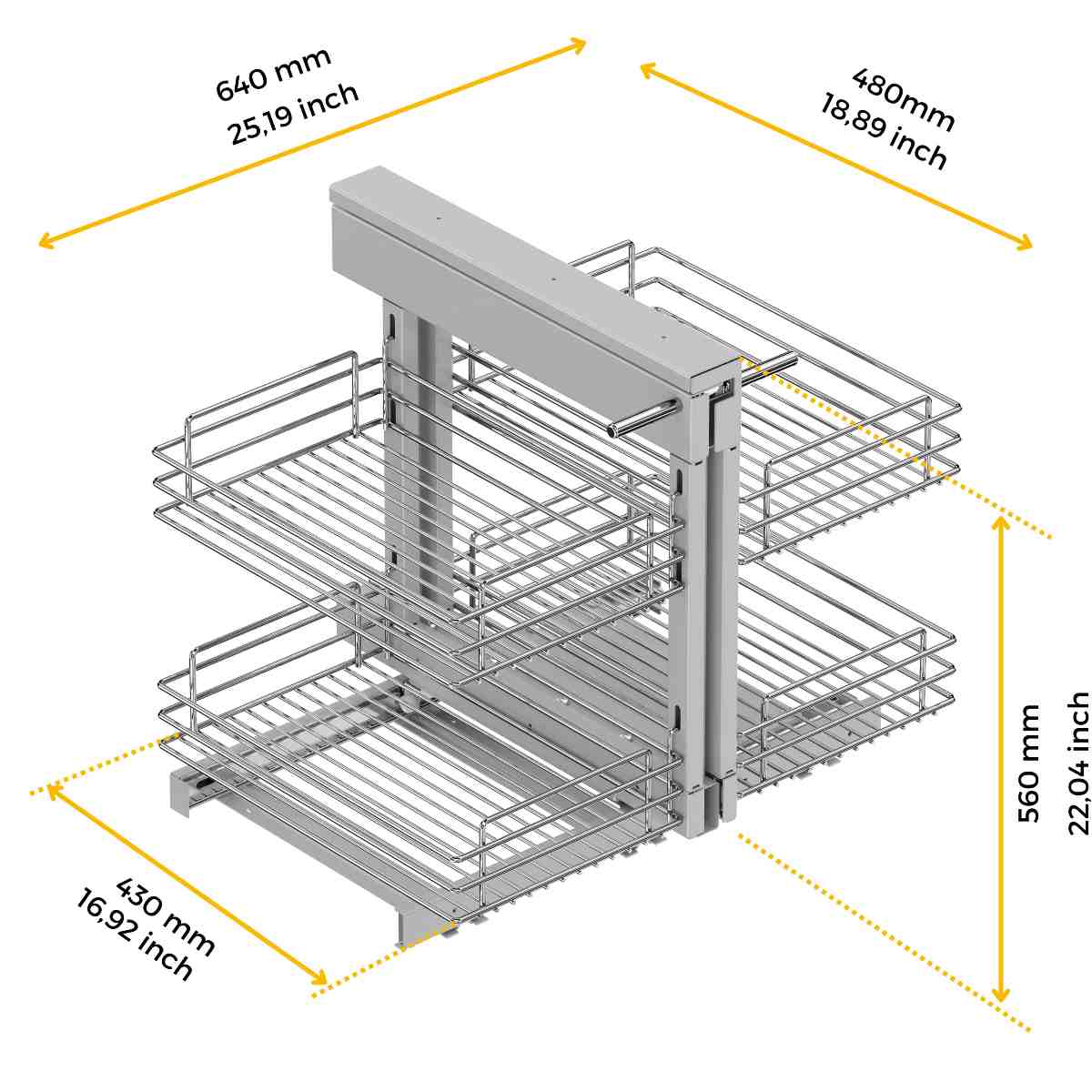

- Measurments:
- Depth: 510mm
- Width: 700mm
- Height: 560mm
- Maximum load per basket: 7.5kg
- Made out of steel
- Chrome plated
- Grey painted steel
- Left or right-handed
- Minimum internal depth: 516mm
- Minimum internal width: 450mm
- Minimum internal length: 720mm
A Set Contains:
- 1 x horizontal Frame
- 1 x vertical Frame
- 4 x steel baskets
- Set of screws
Magic Corners
Closing Mechanism:
Soft Close

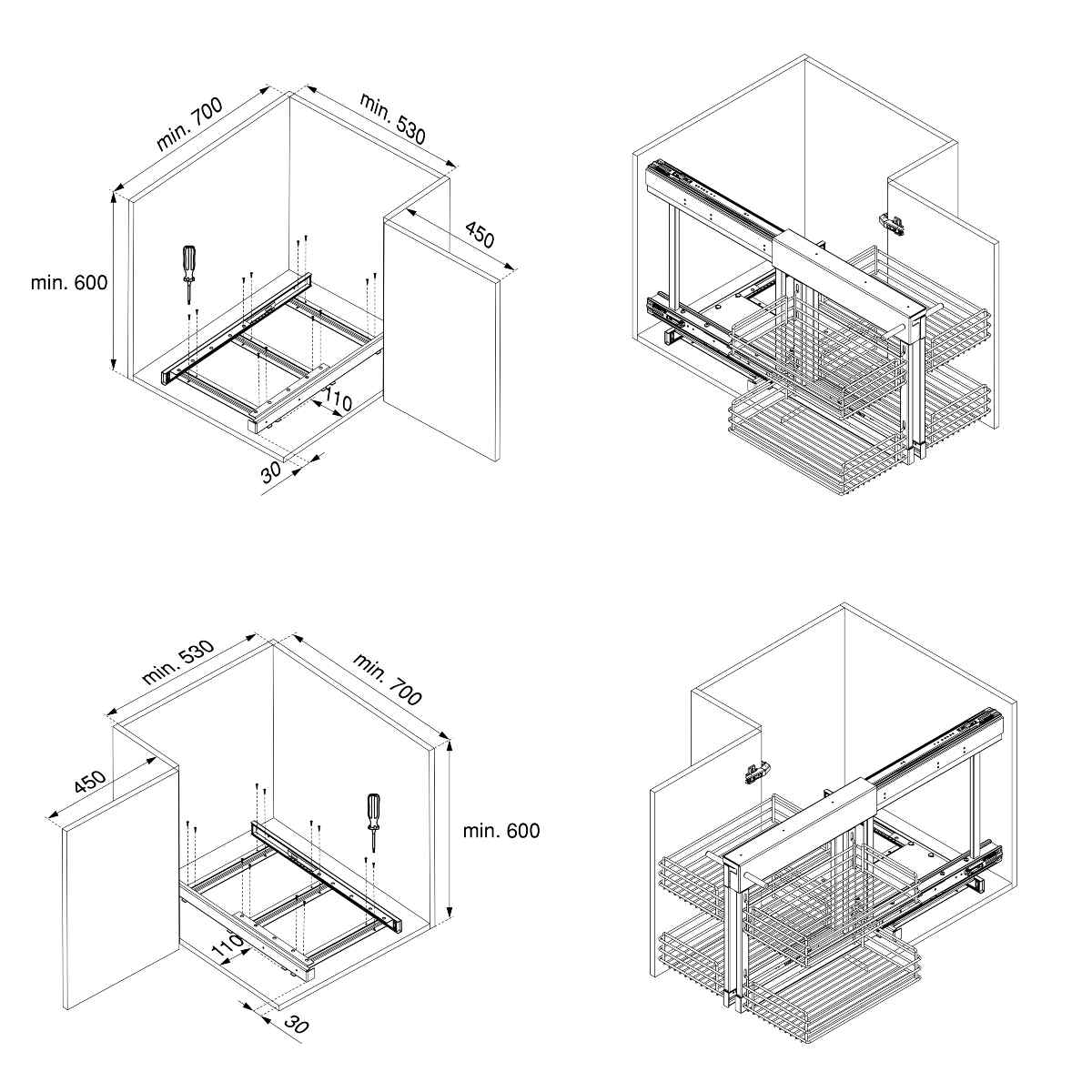

Minimum Internal Cabinet Depth
:
Measured at the narrowest point of the cabinet between centre post and back panel.
System have to operate without any obstructions.
If depth of the cabinet is insufficient there are amendments to the cabinet that might be done:
- moving back panel further back
- removing centre post (corner post) and mounting doors on 190 degree hinges
- mounting door to the basket if possible
516mm
Product short Name:
Supra Corner Unit
System Type:
Magic Corner
Type of baskets:
- Steel Wire Baskets
