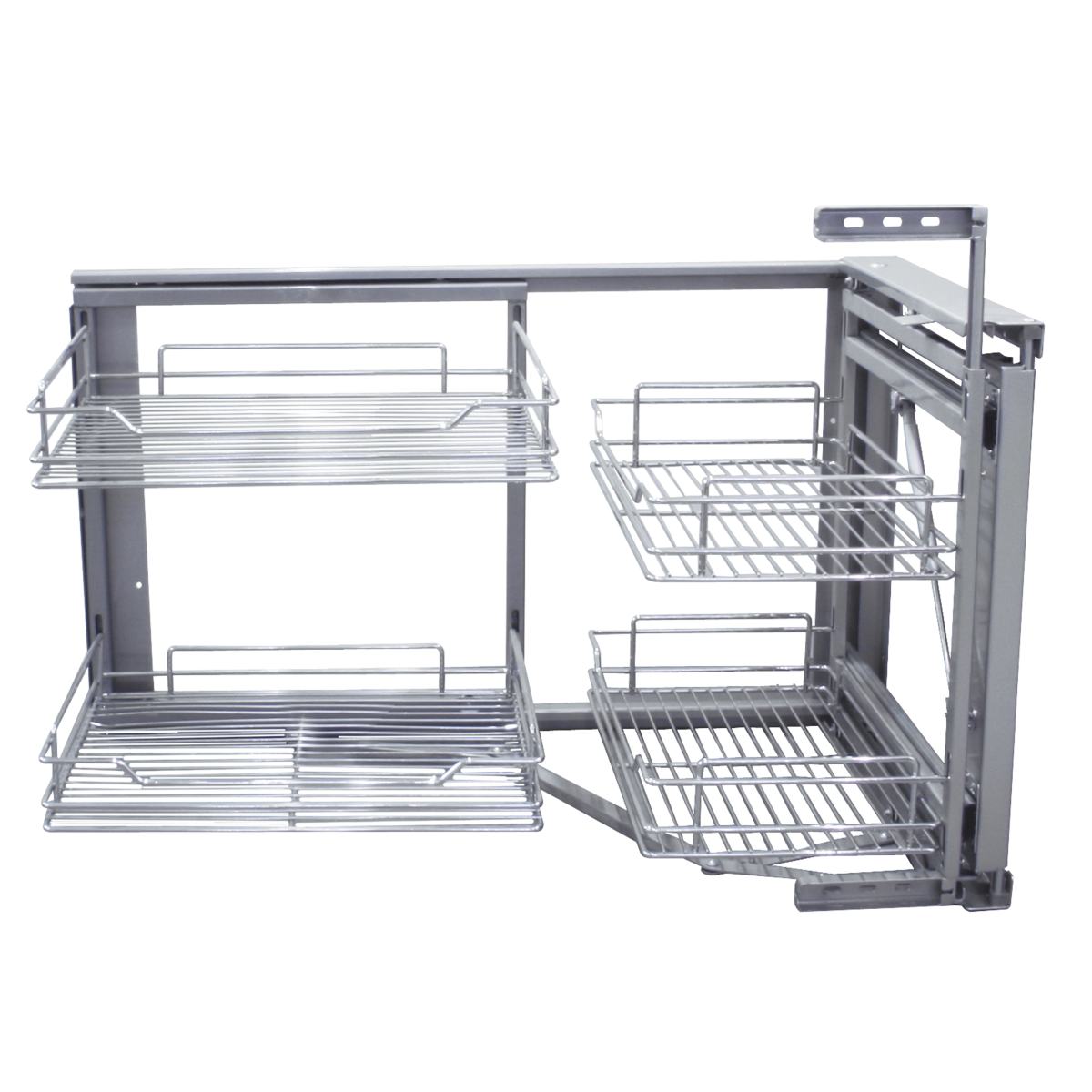

- System designed to make the most of the space available in corner modules.
- Suitable for left or right opening doors.
- Structure in steel painted grey with 4 chrome plated baskets.
- Load up to 20 kg.
- Includes automatic soft-close.

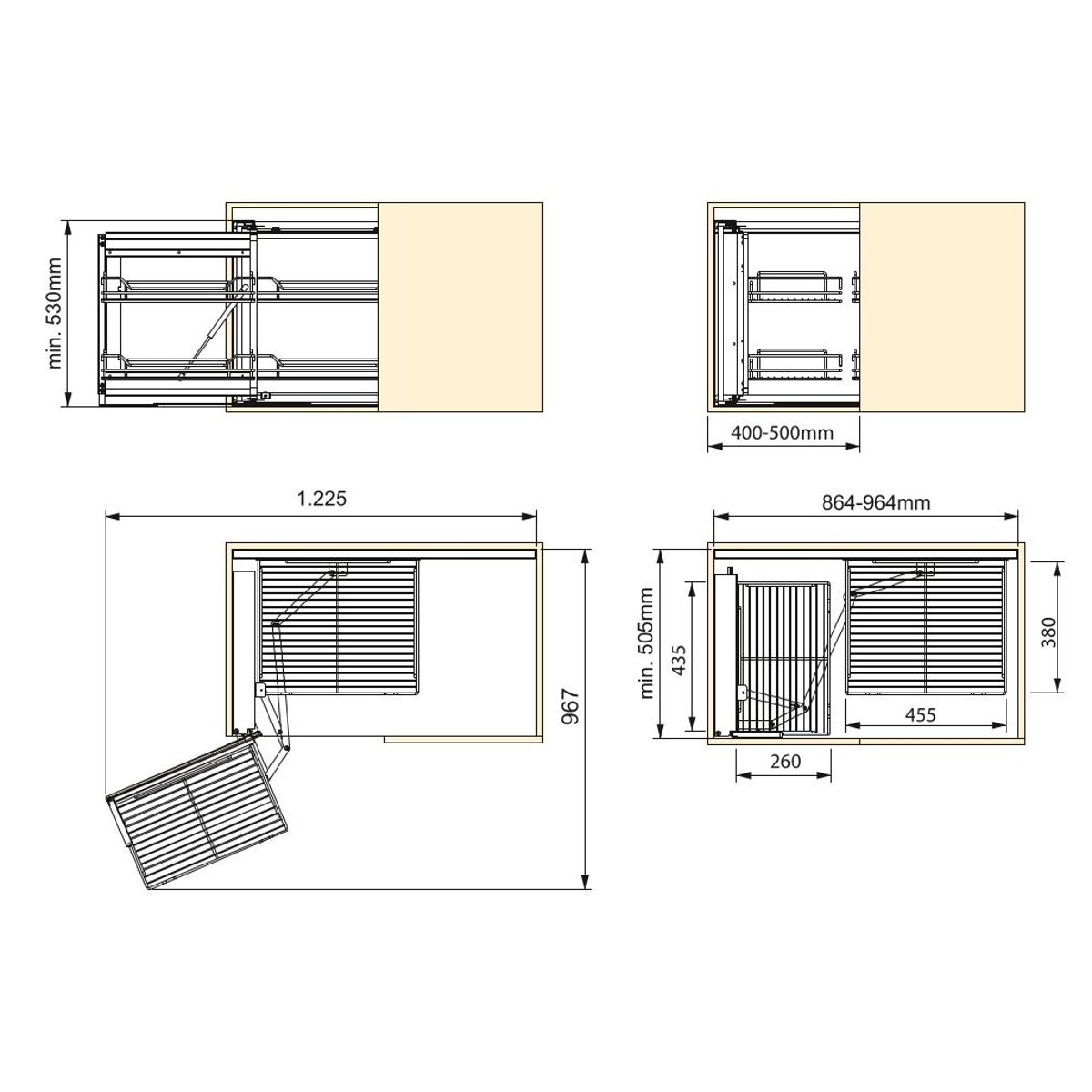

- Minimum module depth 505 mm.
- Minimum door width 400 mm.
- Suitable for interior cabinet width from 864 to 964 mm (900 & 1000 Cabinet)
- Three dimensional door adjustment.
- Easy and quick to install.
Measured at the narrowest point of the cabinet between centre post and back panel.
System have to operate without any obstructions.
If depth of the cabinet is insufficient there are amendments to the cabinet that might be done:
- moving back panel further back
- removing centre post (corner post) and mounting doors on 190 degree hinges
- mounting door to the basket if possible
- Chrome Linear Wire
