Sportub Folding Door Gear For 20kg Panels

8122-001
Price from: £250.03inc VAT
+

Complete sliding door set for panels up to 20kg. Great solution for bi-fold use in industrial or agricultural applications. Separate additional elements of the system available in 'related products' below.

  • Made in France
  • Track length: 3000mm
  • Perfect for external use
  • Made out of galvanised steel
  • Minimum door thickness: 23mm
  • Maximum weight per panel: 20kg
  • Technical information provided in technical docs
  • To work out door height measure from top of the track to the bottom and take away 52mm
  • When using the 4 door configuration please make sure the last door is 17mm wider than the 3 others
  • This kit allows 2 or 4 doors sliding to one side (if you'd like a different configuration please do not hesitate to contact us)

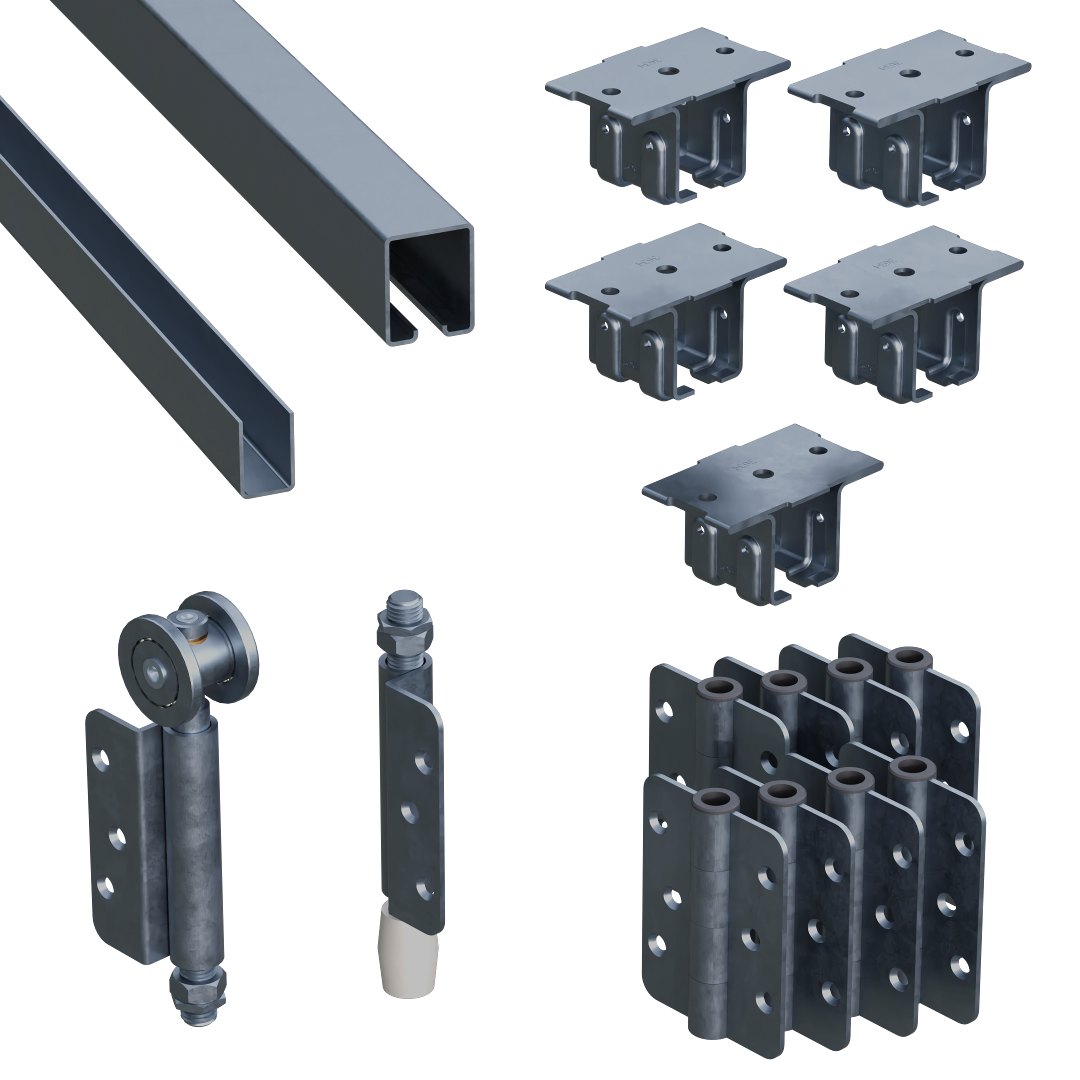

Kit contents:

  • 2 door ceiling mounted

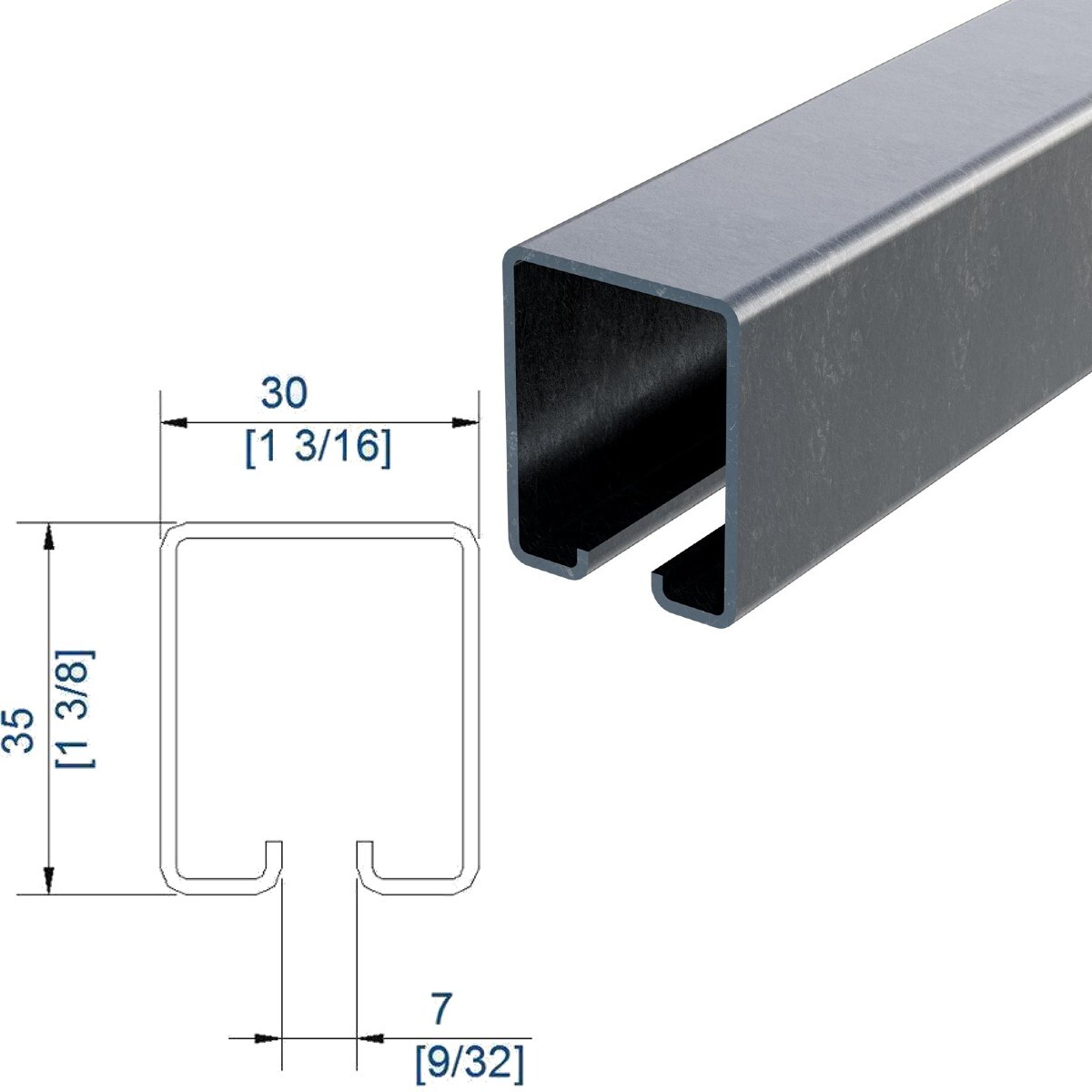

    • 1 x top track 3000mm

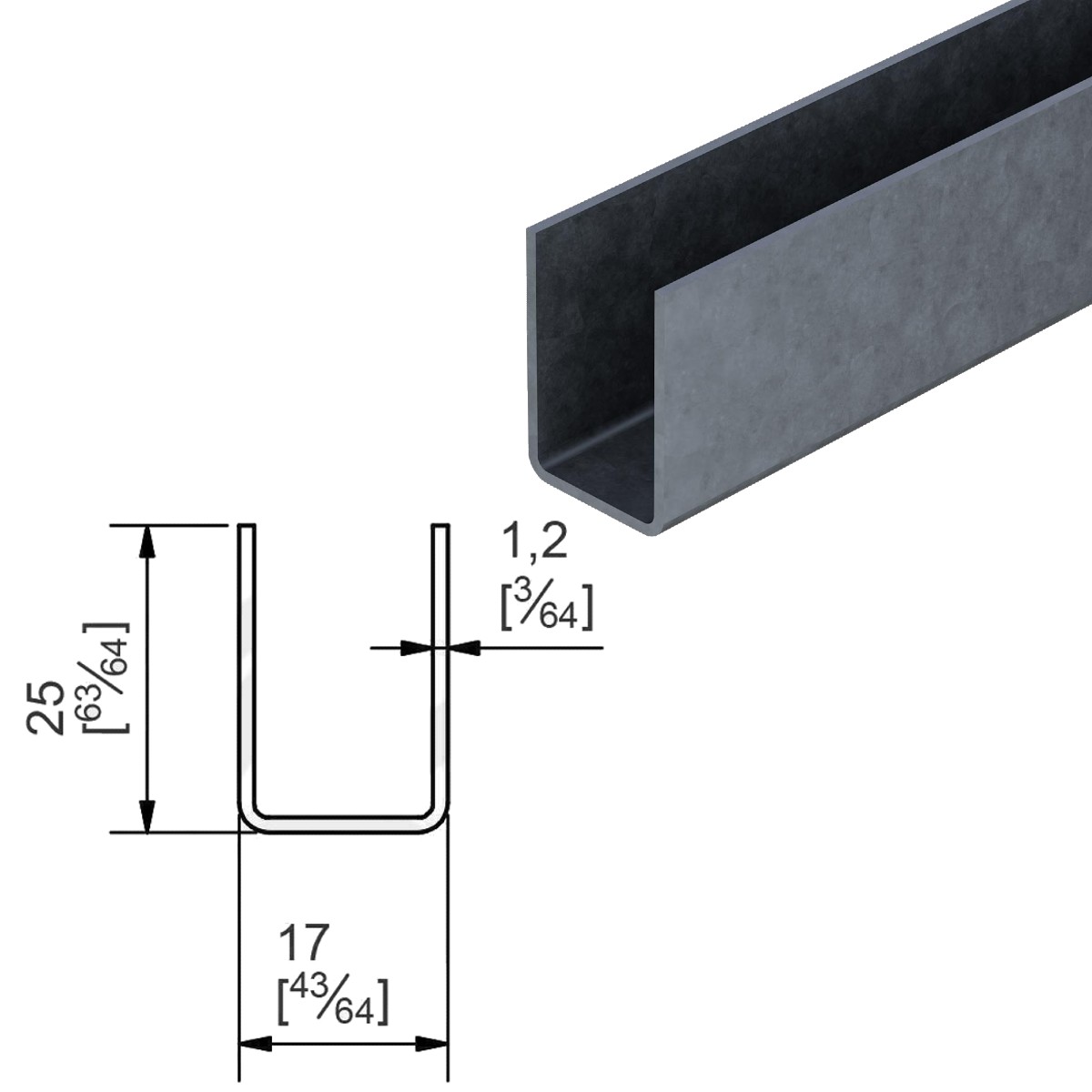

    • 1 x bottom track 3000mm

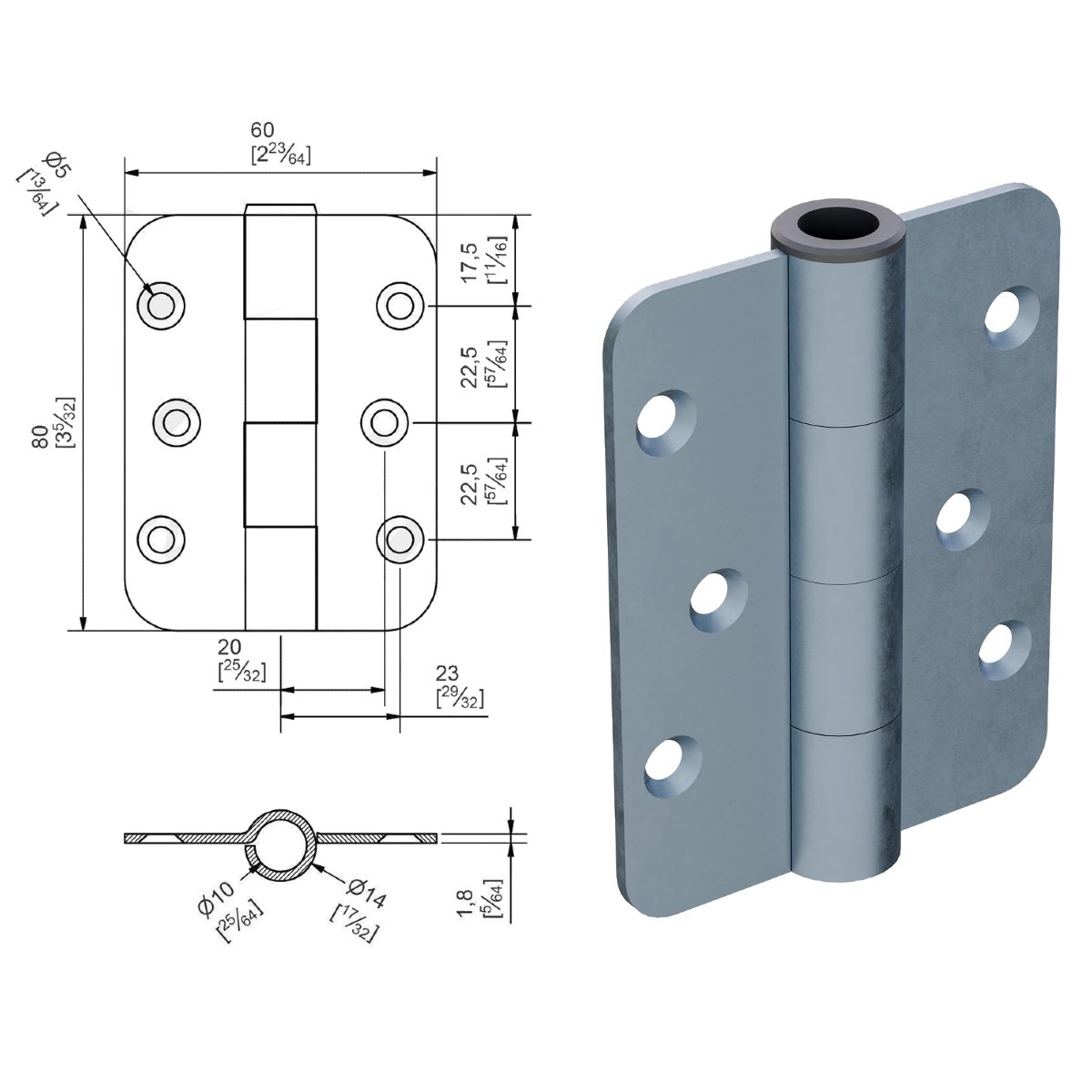

    • 8 x butt hinge

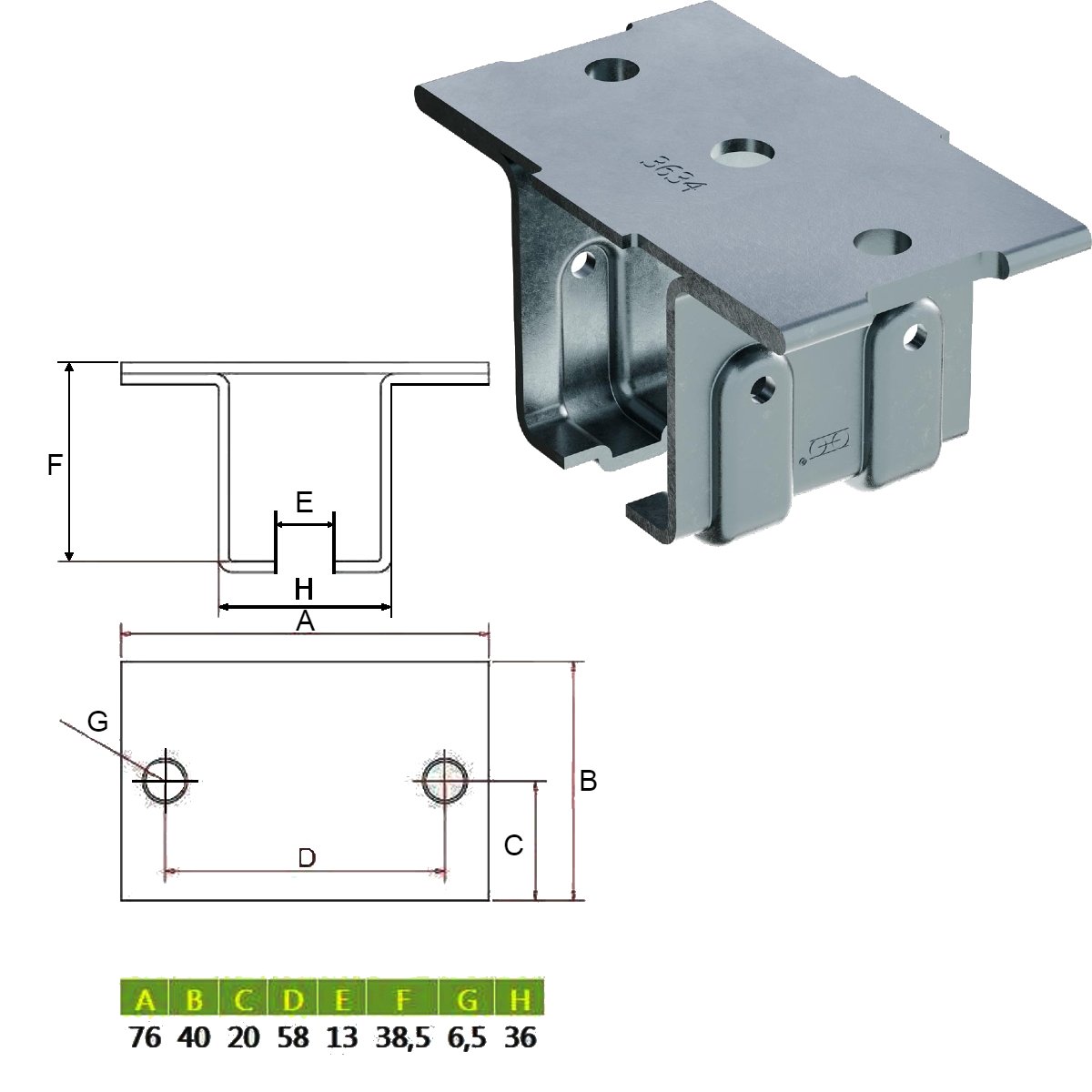

    • 5 x ceiling bracket

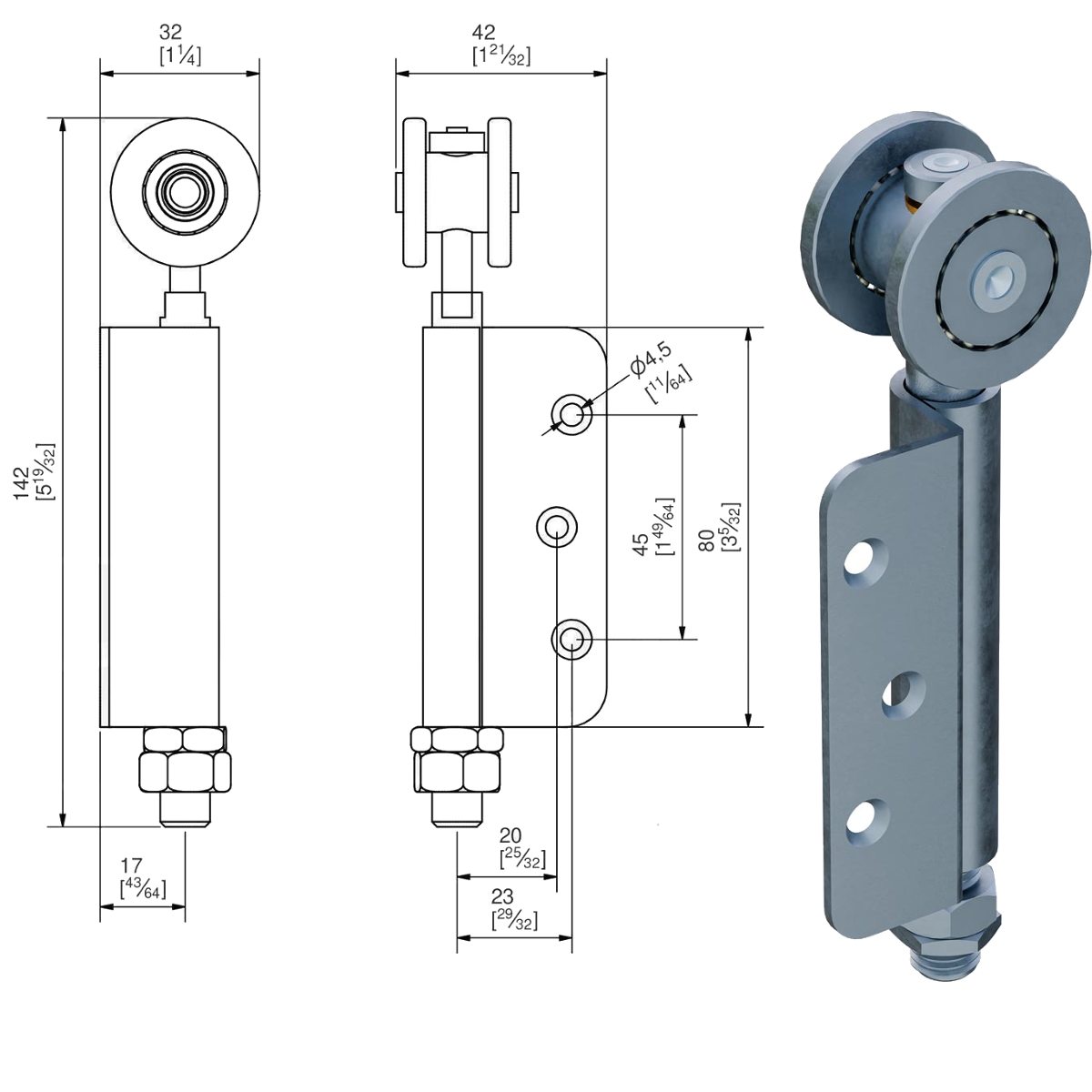

    • 1 x end trolley with hinge
    • 1 x end bottom guide
  • 2 door wall mounted
    • 1 x top track 3000mm
    • 1 x bottom track 3000mm
    • 8 x butt hinge
    • 5 x wall bracket
    • 1 x end trolley with hinge
    • 1 x end bottom guide
  • 4 door ceiling mounted
    • 1 x top track 3000mm
    • 1 x bottom track 3000mm
    • 14 x butt hinge
    • 5 x ceiling bracket
    • 1 x end trolley with hinge
    • 1 x end bottom guide

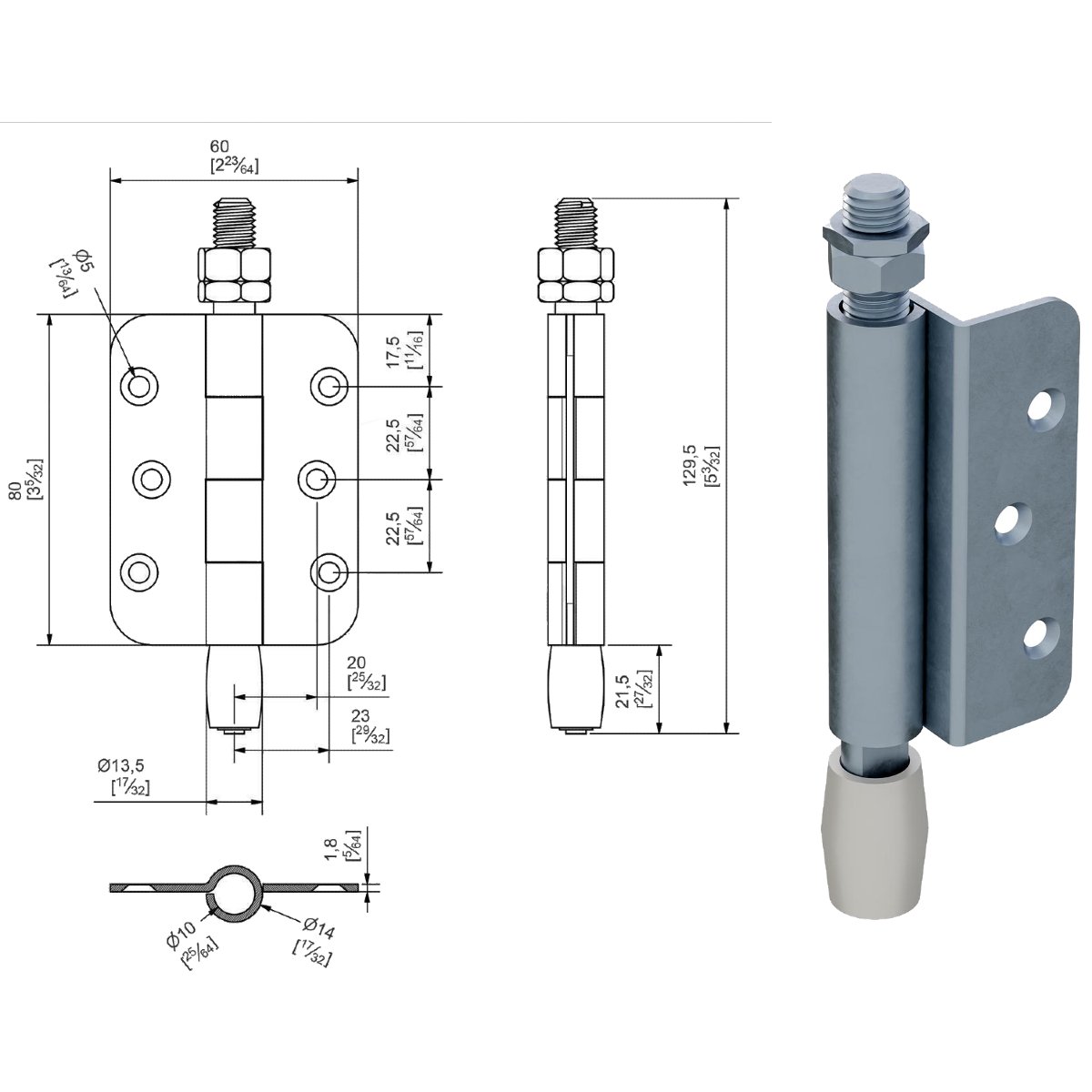

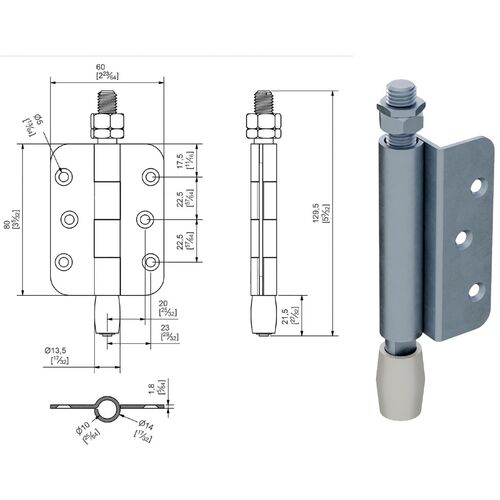

    • 1 x hinge with bottom guide
    • 1 x trolley with hinge
  • 4 door wall mounted
    • 1 x top track 3000mm
    • 1 x bottom track 3000mm
    • 14 x butt hinge
    • 5 x wall bracket
    • 1 x end trolley with hinge
    • 1 x end bottom guide
    • 1 x hinge with bottom guide
    • 1 x trolley with hinge

Sportub Folding Gear

Amount Of Doors:
2
Version:
Ceiling Mounted
