Hercules Plus Bi-folding door system track set

Mon - Fri 9:00am - 5:00pm 03450043748

HomeSliding Door GearBi Folding Door TracksHercules PlusHercules Plus Bi-folding System

1 of 1

Browse by category

Sliding Door Gear

Wardrobe Storage

Kitchen Cabinet Storage

Drawer Runners

Cabinet Hinges and Fittings

LED Lighting

Bio Fireplaces

Good to know

Order this product by phone
Call us now at 0345 004 3748

Free Delivery
UK Mainland on orders over £100 (excl. VAT)* (*see our FAQ)

Technical questions?
Feel free to contact us for advice

My account

Sign inorRegister

Description
Extras
Technical Docs
Video
Features
Reviews
Q&A

Bi-folding internal sliding door gear available in 2 doors configuration. Hercules bi folding door kit is sold as a set including aluminium tracks and all accessories to easily install folding doors. No need for bottom track!

reliable system for interior doors,
for wooden and MDF doors,
two folding doors,
ceiling mounted track,
multiple track lengths,
max individual door weight - 25kg or 40 kg

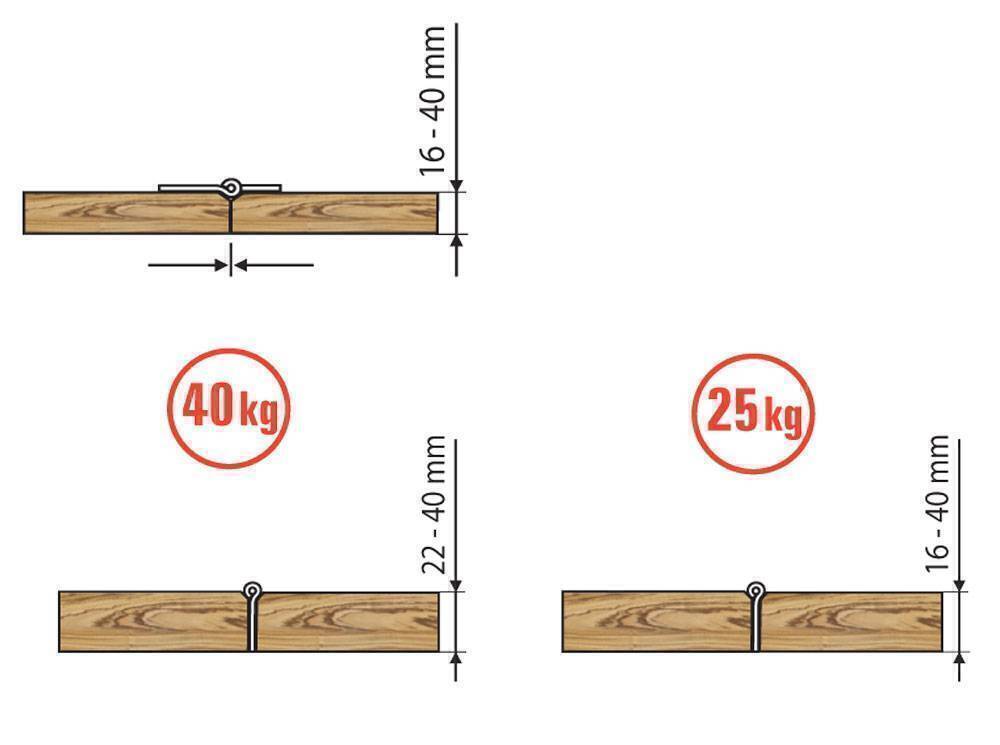

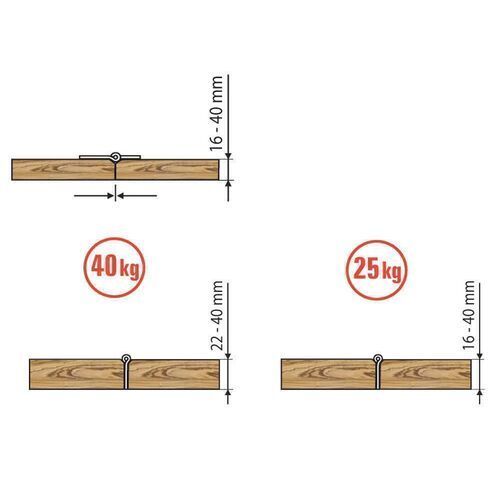

door thickness 18-40 mm,
No need for bottom track/guide as system is designed to provide support for up to 40kg per door
Tracks can be easily cut down to required length

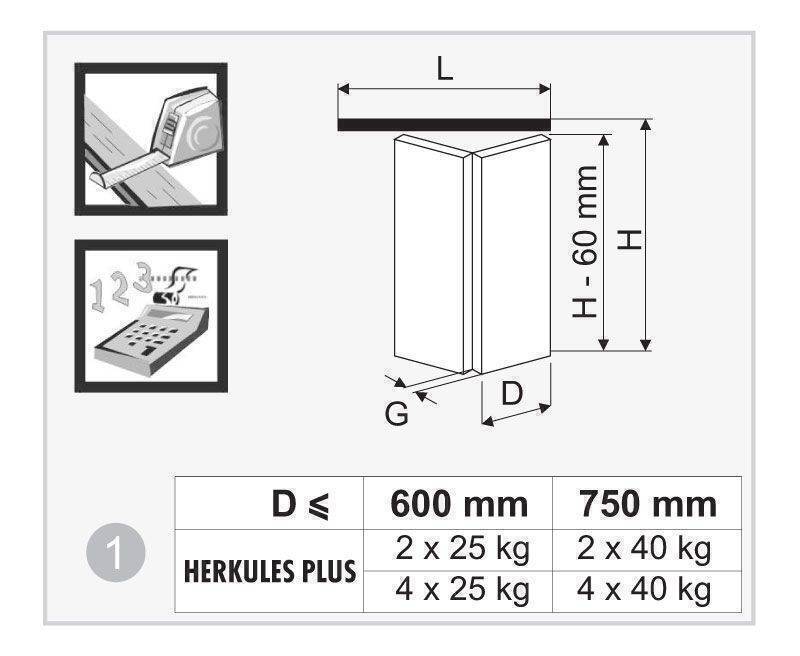

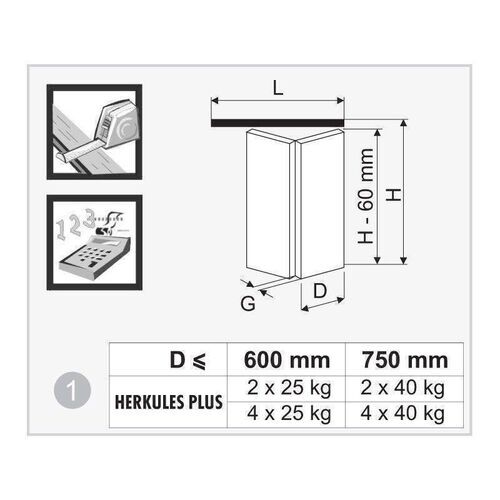

Please note: It is not recommended to exceed 600mm individual door width for 25kg and 750mm width for 40 kg version.

Contents of complete set:

Aluminium track
Carriages
Carrier plates
Stopper(s)
Mounting Screws
Hinges
Installation instructions

Please note doors are not included.

Assembly guide (586 Kb)

Sliding Systems

Dedicated for:

Folding Doors
Room Dividing Doors
Wardrobe Doors

(?)

Included accessories for:

2 doors
4 doors

(?)

Maximum Door Weight:

40kg

Product short Name:

Hercules Plus

System type:

Bi-Folding Doors

(?)

Track Length:

1200mm
1500mm
1800mm
2000mm
2400mm

Angie Driscoll 13/02/2017, 12:33

Excelllent product. Have used the Hercules for a Bifold door for the kitchen and then the plus system for outside for a BBQ area.
Works well and far superior product to others on the market.
Service and postage is quite and very helpful team running the business. thank you very much will definately recommend Buller to my friends.

Write a review

Can this system be used for 3 doors either side? (6 in total)

Asked by Paul Reid | 11/10/2018, 10:48 | 1 answer(s)

Can the track be cut down to suit door size?

Asked by Laurie | 19/06/2018, 10:41 | 1 answer(s)

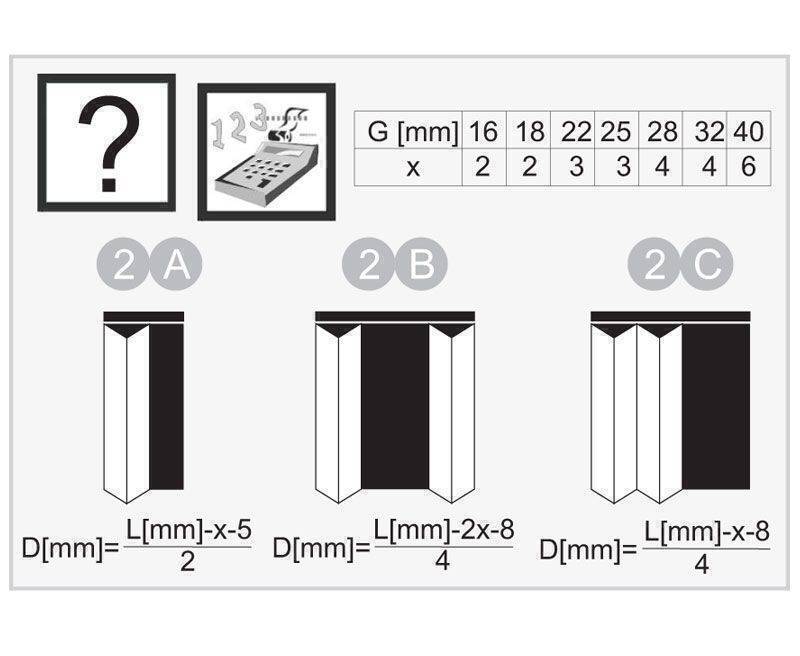

On the technical drawings, under step 2 - there is a table on the top right of the page which is obviously relevant to the door width. Please can you advise how I use this calculation in the build, as it is not clear?

Asked by James Addy | 29/01/2018, 14:11 | 1 answer(s)

The doors I want to use are 43mm thick. Obviously the end pivot point would need a bit more space for clearance, and when folded, they would take up a little more space. Is this okay, or are there any other issues to be aware of?

Asked by James Addy | 21/01/2018, 08:50 | 1 answer(s)

Could a 4 door system be attached on one side, and then a single (normal) door hinged for general use be fixed on the other side? And if yes, is there some flush locking systems to 'bolt' the bi-fold doors in place when the panels are closed?

Asked by James Addy | 18/01/2018, 21:11 | 1 answer(s)

Can I fit a 4 door system to one side, and then a 2 door system to the other?

Asked by James Addy | 18/01/2018, 21:09 | 1 answer(s)

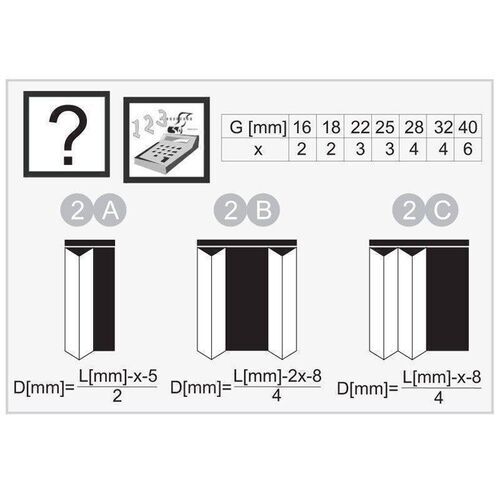

I have bought 3 sets of Herkule Plus 40 kg I am going to build 6 panel door attached to one side only How I have to calculate width of each panel? Could you explain what x variable means in reality on pic. 2A 2B 2C ? I think it is gap from side wall to side of hte door. Am I right ? And if so why x changes with thikness of the panels How constant 5 on pic 2A is calculated? How constant 8 on pic 2B and 2C is calculated? Thanks beforehand

Asked by Zurab Bokuchava | 06/06/2017, 17:05 | 1 answer(s)

can the Hercules plus bi-fold system be used with 3 doors?.

Asked by Michael Leggett | 25/02/2017, 17:31 | 1 answer(s)

Does a 4-door set includes fixings to allow a 2 x 2-door system where each pair of doors pulls to the outside? If not, what is the right hardware to achieve this?

Asked by Jo | 21/12/2016, 15:01 | 1 answer(s)

Hi, Can I recess the top mounting rail into the top of the frame so that the door then fits flush with no gap? Thanks

Asked by Stuart Horwood | 03/10/2016, 13:59 | 1 answer(s)

What is the thinnest door thickness that can be used? The instructions suggest 16mm from the table indicating dimensions "G" and "x". Will the hinges fit a door as thin as this? or would they need to be face fixed rather than into the sides of the door?

Asked by matt | 03/10/2016, 13:38 | 1 answer(s)

The instructions suggest that if you want the door to butt up against each other when closed, the hinges should be mounted on the outside face. Is there any reason you should not recess the hinges into the edge of one door, so they close flush still?

Asked by Simon | 18/03/2016, 08:45 | 1 answer(s)

Can the doors only open to the left when facing them, or can they open either way?

Asked by Maurice | 21/11/2015, 12:01 | 1 answer(s)

My door is 2040 High, what height should my opening be to accommodate the track . Alternatively can I fix the rail to the wall and if so what gap would there be between the wall and the door (door is 40mm) Thanks

Asked by Richard Leonard | 29/08/2015, 11:03 | 1 answer(s)

is it possible to cut the track down to suit a 27" opening

Asked by jan | 20/03/2015, 09:36 | 1 answer(s)

I assume max width of opening is limited by track size - eg 2.40m

Asked by Richard Jones | 03/03/2015, 12:17 | 1 answer(s)
