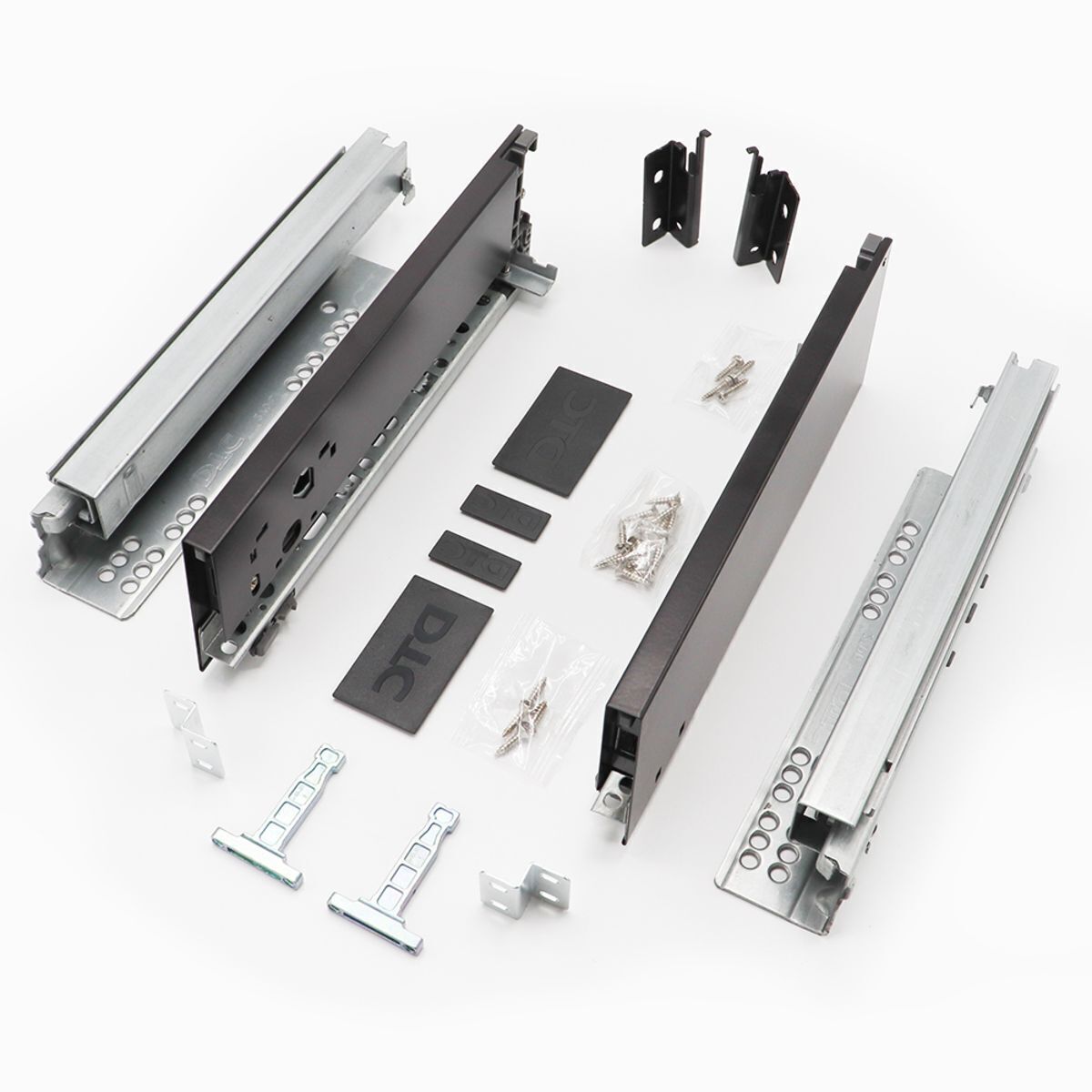

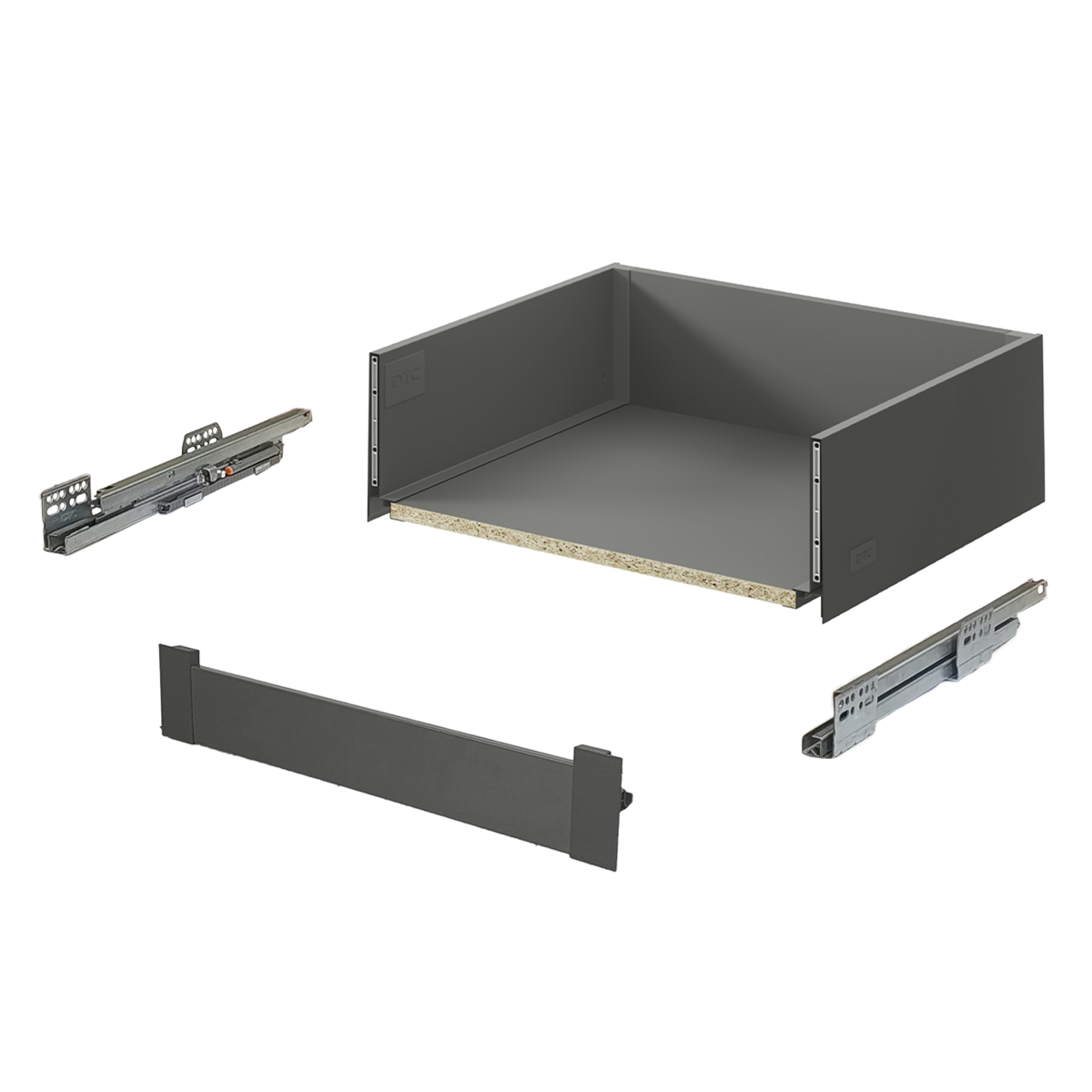

The 95mm Dragon Pro drawer kit is a complete, pre-assembled internal drawer solution with an integrated front, meaning it’s designed to sit behind an external cabinet door rather than be used as a visible drawer front. Suitable for kitchens, wardrobes, bedrooms, pantry units and commercial applications, it’s made from a combination of steel and MFC for strength and durability, with slim side walls to maximise usable internal space. With a width range of 300–1000mm, it suits most standard UK cabinet sizes, and comes with full extension, soft-close undermounted runners rated to 40kg for smooth, reliable everyday use.
- Colour: dark grey
- Lifetime warranty

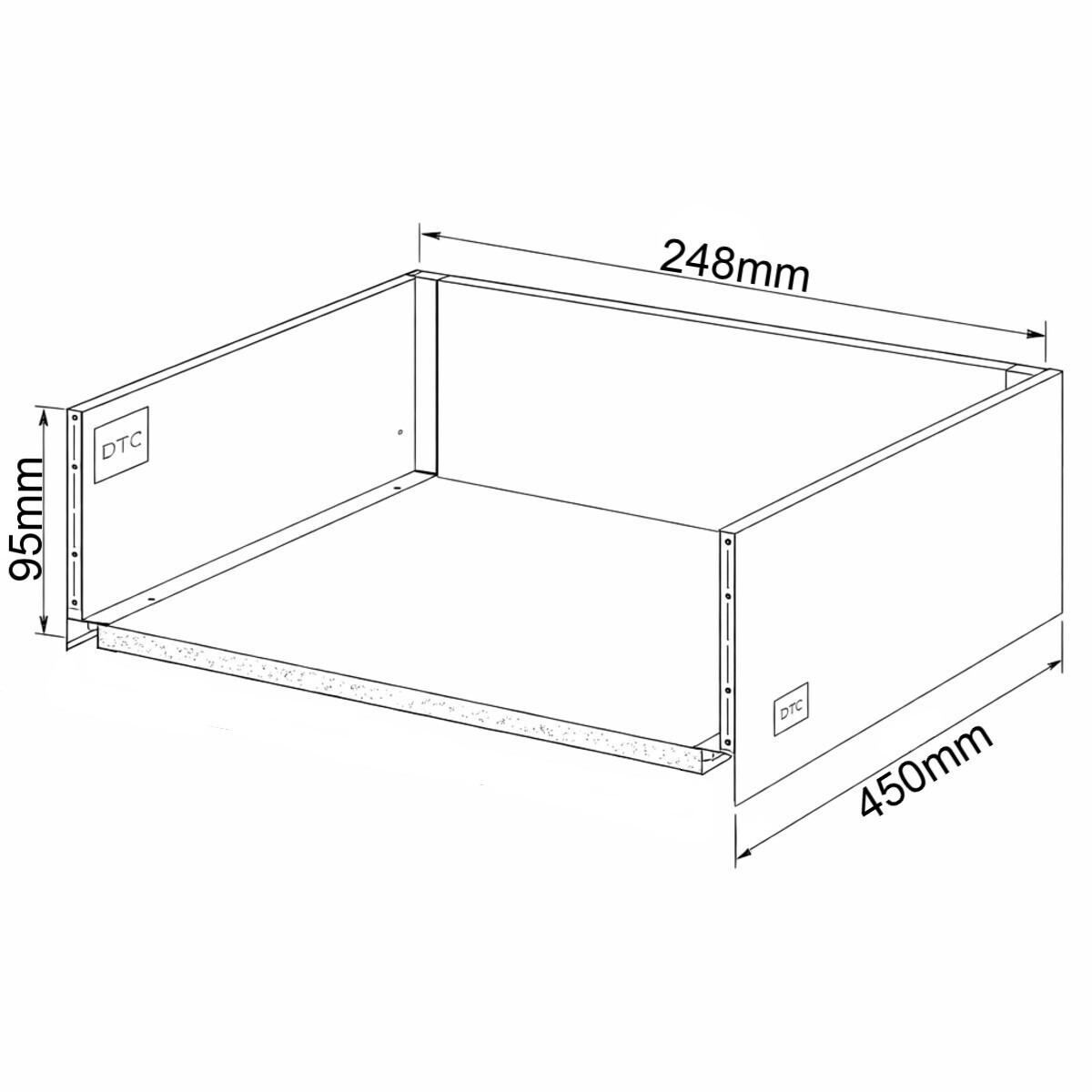

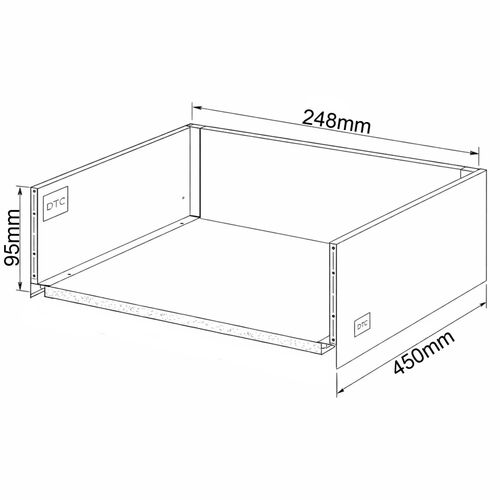

- Drawer height: 95mm
- Drawer depth: 450mm
- Installation height: 110mm
- Suitable for 18mm carcasses

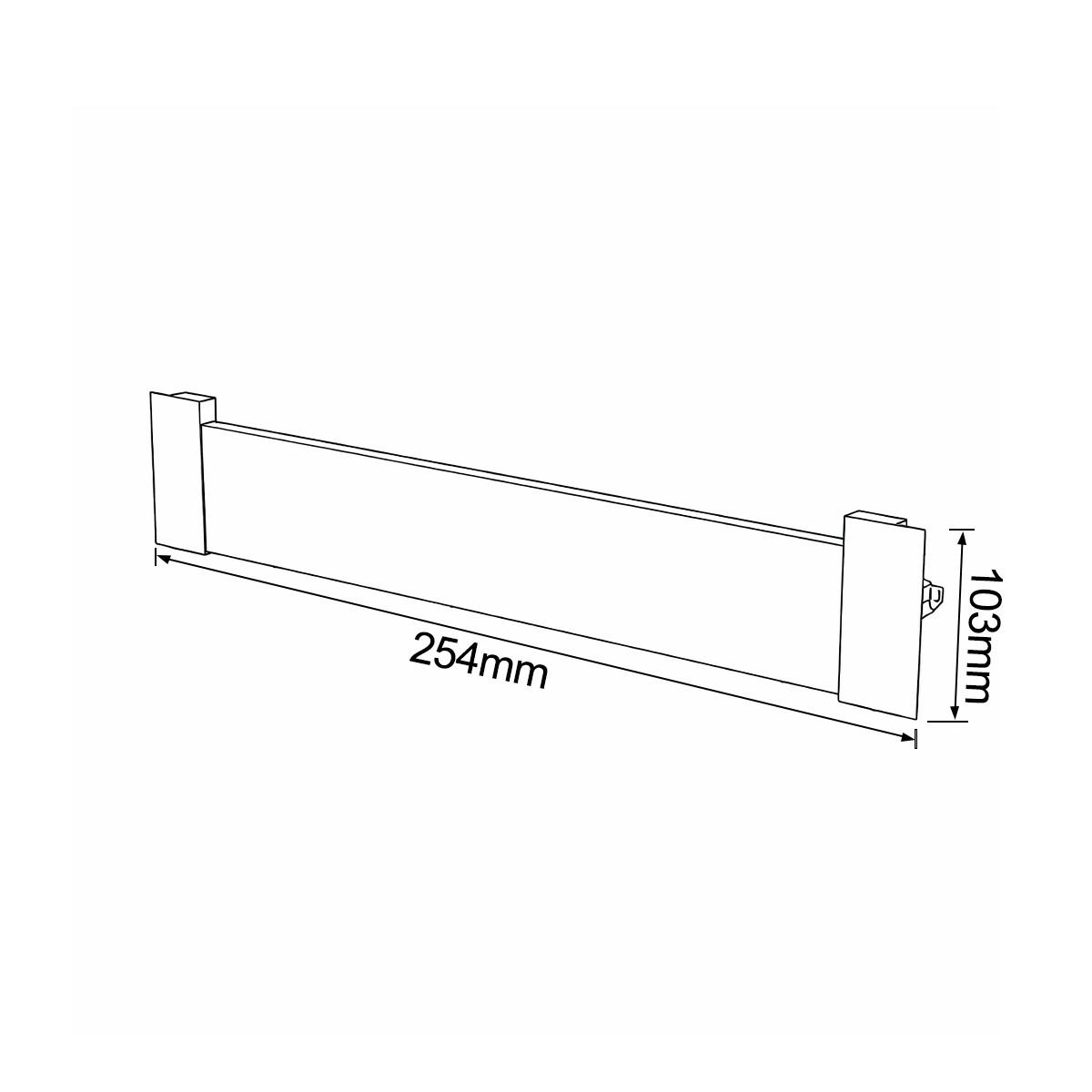

- Drawer front height: 103mm
- Minimum internal depth: 453mm
- Cabinet width range: 300-1000mm
- Maximum load capacity: supports up to 40kg
- Backs and bases made out of: melamine-faced chipboard (MFC)
- Built-in soft close: prevents slamming and ensures quiet operation
- Full extension DTC runners: allow complete access to the contents of a drawer
| External Cabinet Width | Internal Cabinet Width Required |
|---|---|
| 300mm | 264mm |
| 400mm | 364mm |
| 500mm | 464mm |
| 600mm | 564mm |
| 800mm | 764mm |
| 900mm | 864mm |
| 1000mm | 964mm |
