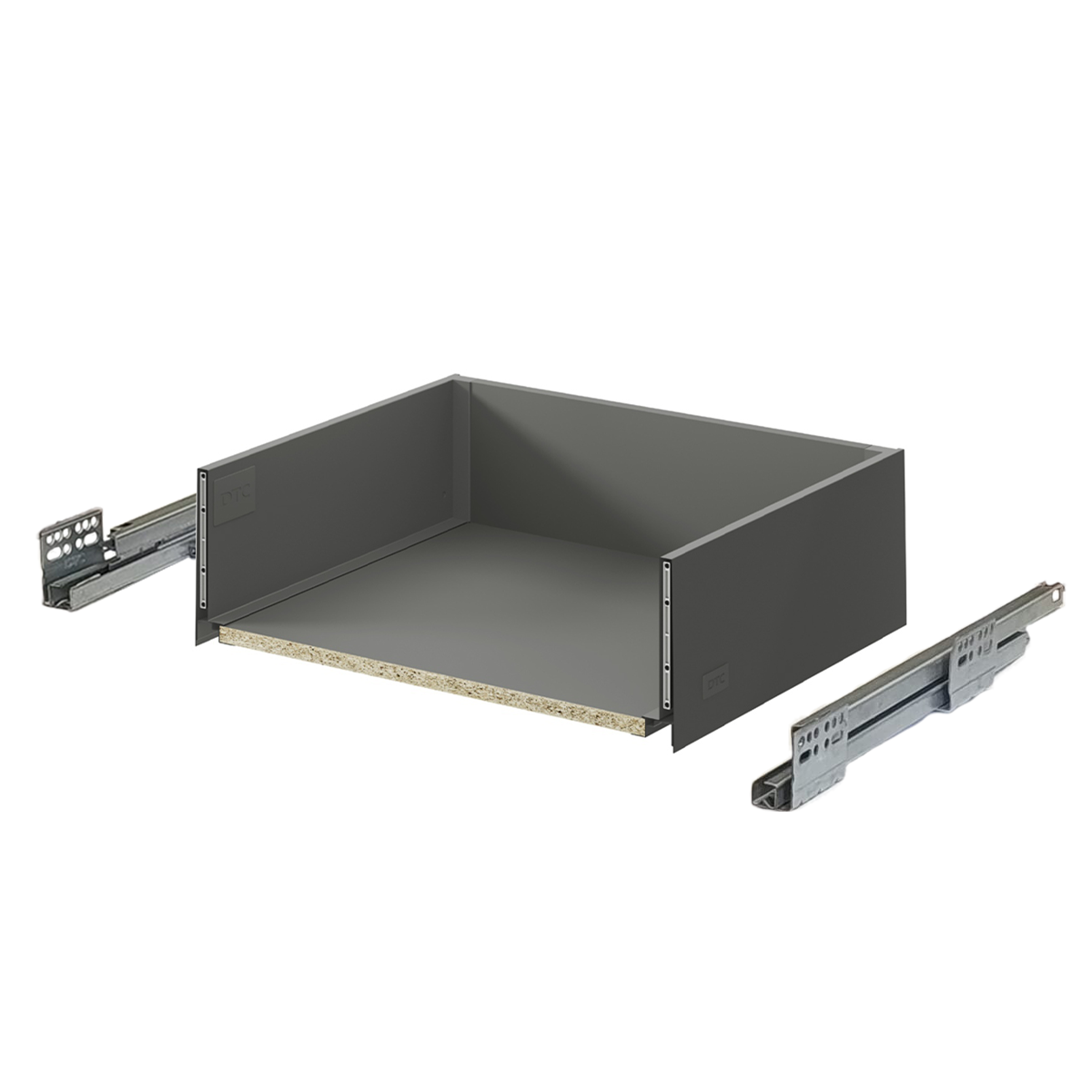

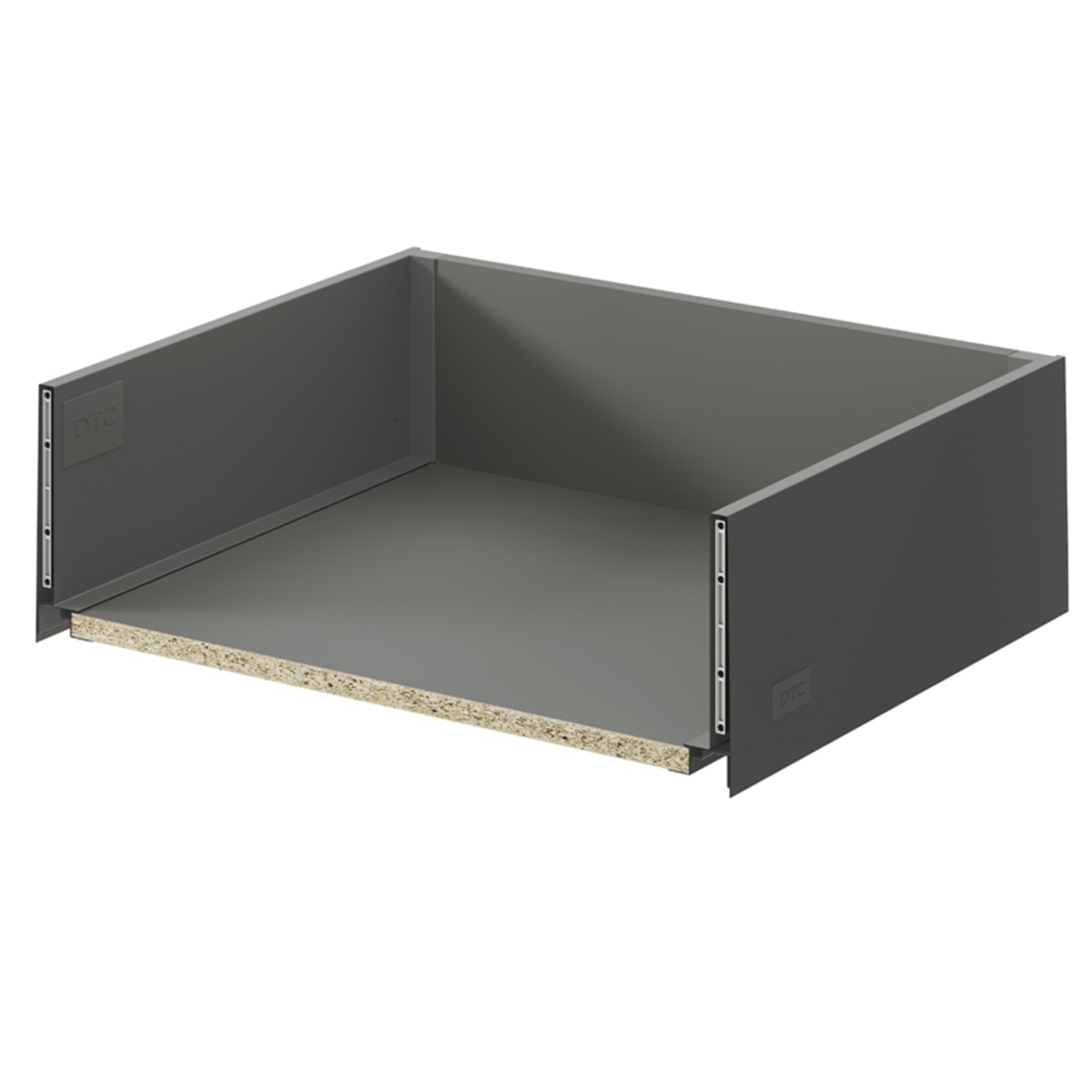

The assembled drawer box 95mm Dragon Pro is designed primarily for modern kitchen cabinets but is also used in wardrobes, bedrooms, pantry units and commercial furniture applications. Made from steel and MFC, supplied with full extension soft close slides with a load capacity of 40kg, provides a strong structure, smooth/effortless opening and closing and long-term durability. Due to slimline side walls and undermounted slides, the drawer provides ample storage maximizing the internal cabinet space.
- Colour: dark grey
- Lifetime warranty

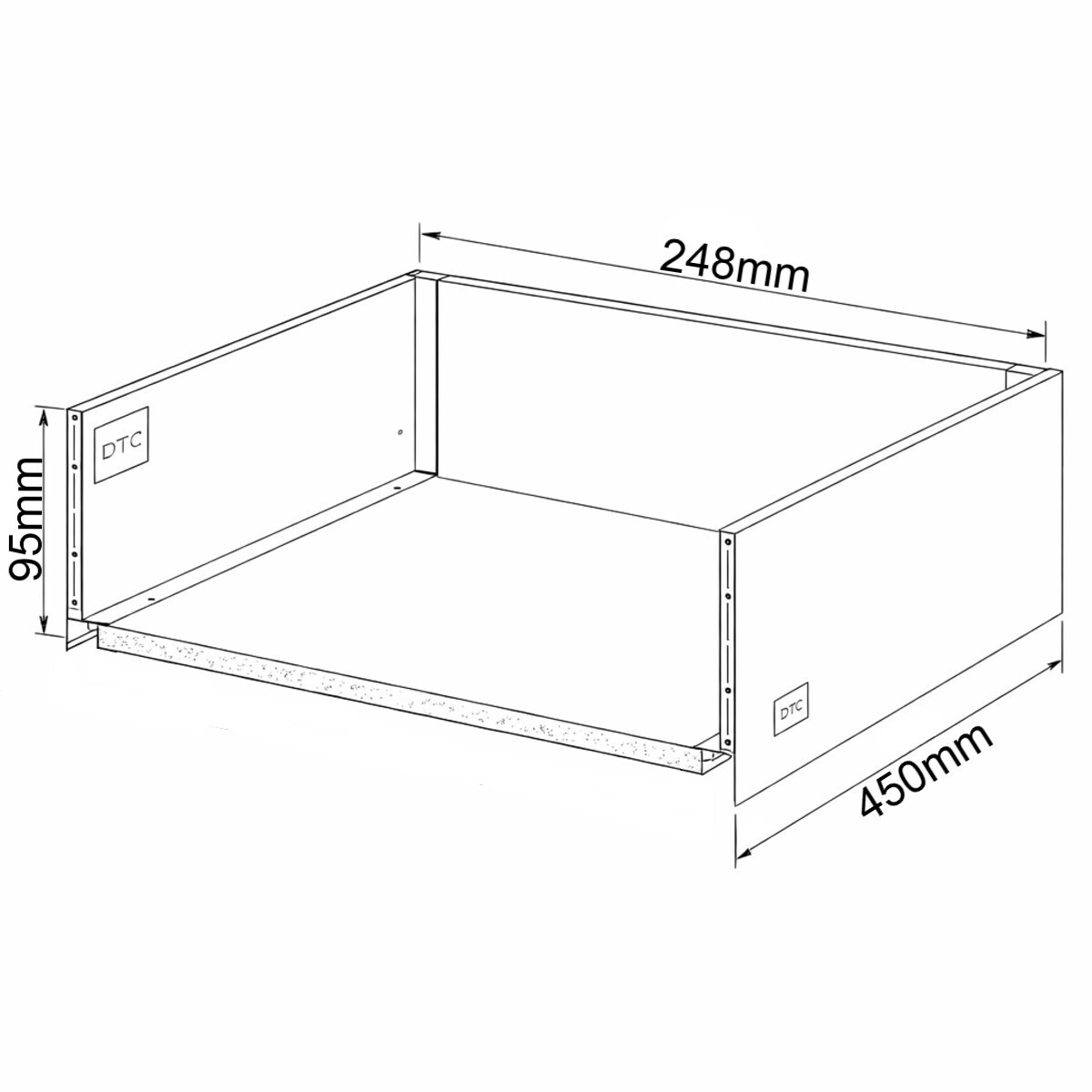

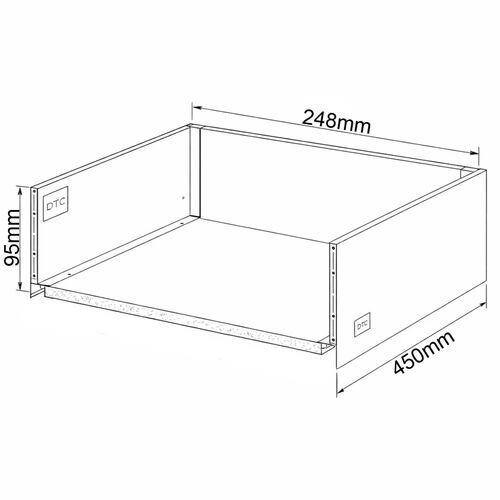

- Drawer height: 95mm
- Drawer depth: 450mm
- Installation height: 110mm
- Suitable for 18mm carcasses
- Minimum internal depth: 453mm
- Cabinet width range: 300-1200mm
- Maximum load capacity: supports up to 40kg
- Backs and bases made out of: melamine-faced chipboard (MFC)
- Built-in soft close: prevents slamming and ensures quiet operation
- Full extension DTC runners: allow complete access to the contents of a drawer
| External Cabinet Width | Internal Cabinet Width Required |
|---|---|
| 300mm | 264mm |
| 400mm | 364mm |
| 450mm | 414mm |
| 500mm | 464mm |
| 600mm | 564mm |
| 800mm | 764mm |
| 900mm | 864mm |
| 1000mm | 964mm |
| 1200mm | 1164mm |
Drawers
To Suit Cabinet Width:
300mm
