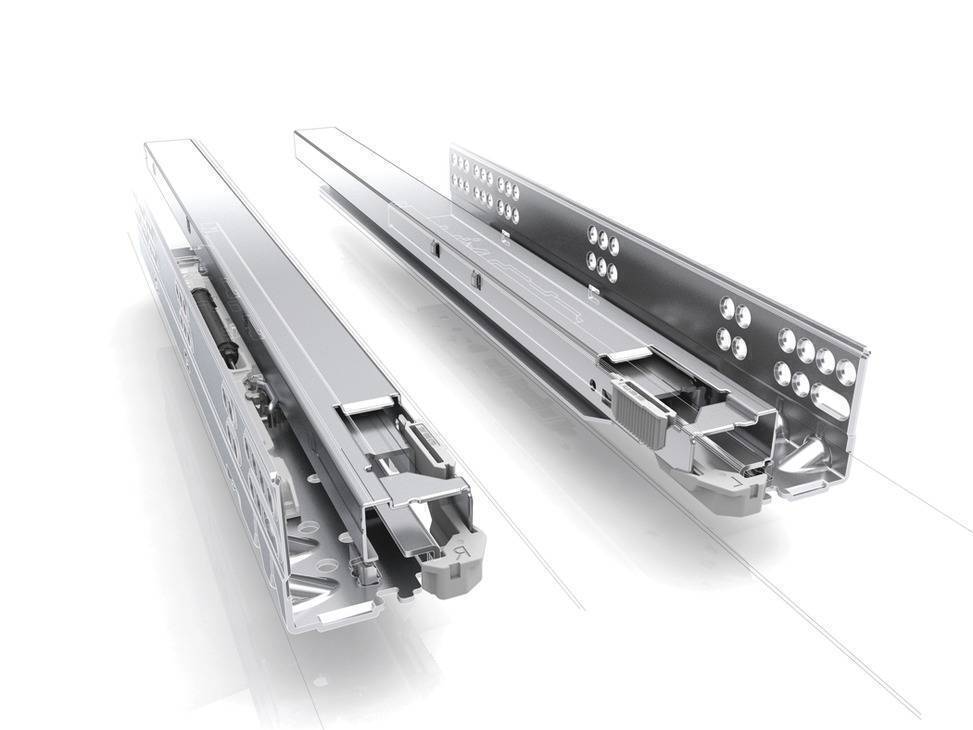

Grass Concealed Dynapro Drawer Runners 70kg - Soft-Close/Push To Open (Maximum 16mm Drawer Sides)

1590-001
Price from: £98.26inc VAT
+

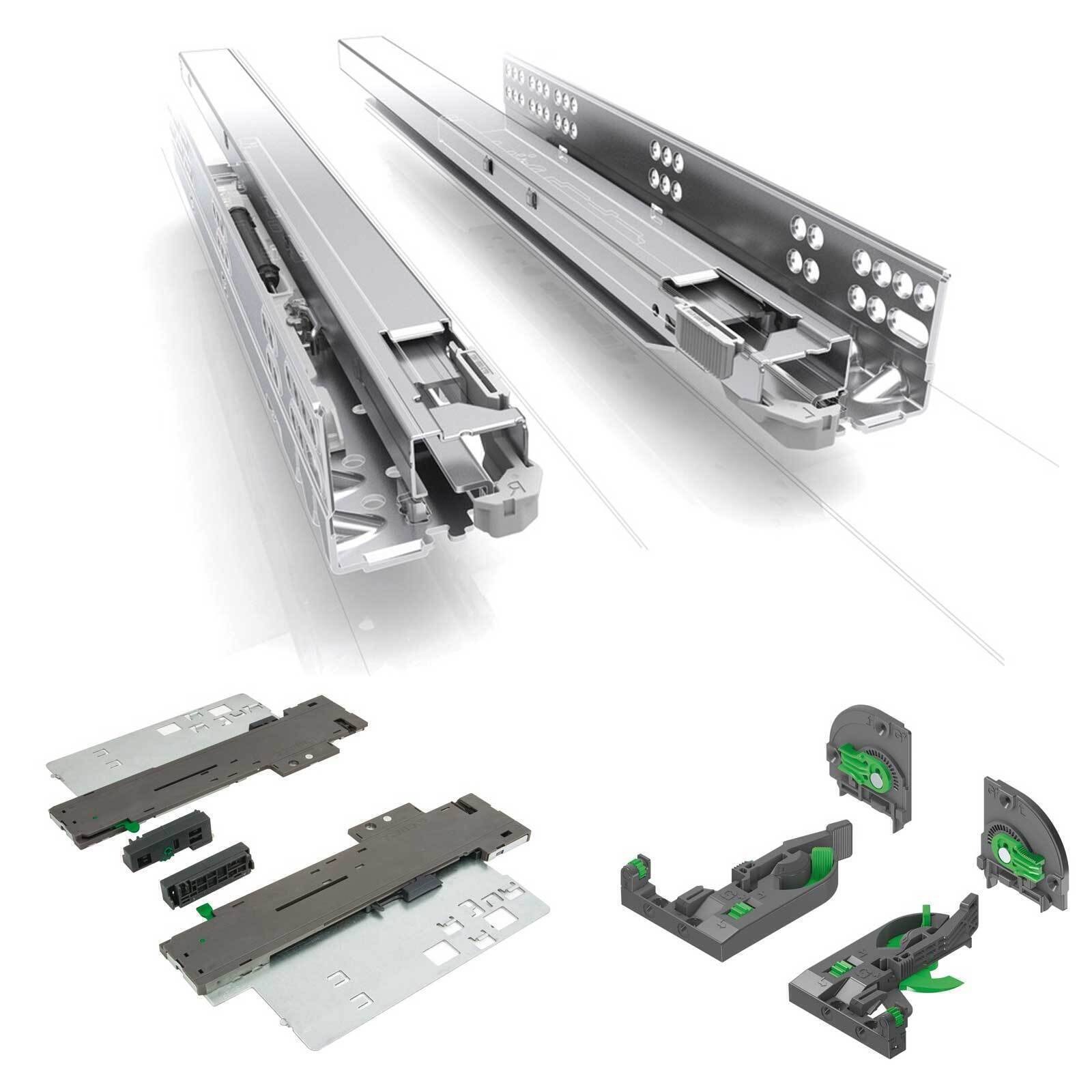

New Grass concealed drawer slides for wooden drawers. Now with Soft Close and Touch release function. Improved liquid soft close provides you with effortless opening and closing action and 4D adjustment allows to align the drawer precisely without use of any tools. Push to open attachments have 3 different weight settings which allows to adjust everything to provide smooth and easy operation.

Set contains:

  • Pair of runners with 50kg or 70kg weight rating
    • 450-650mm slides take weight up to 70 kg
    • 700-750mm slides take weight up to 50 kg

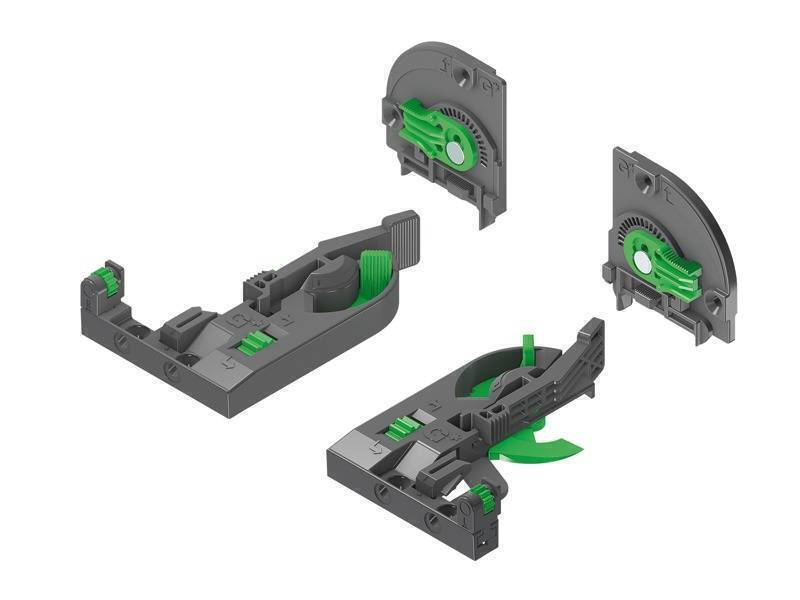

  • 1x pair 4D fixing clips

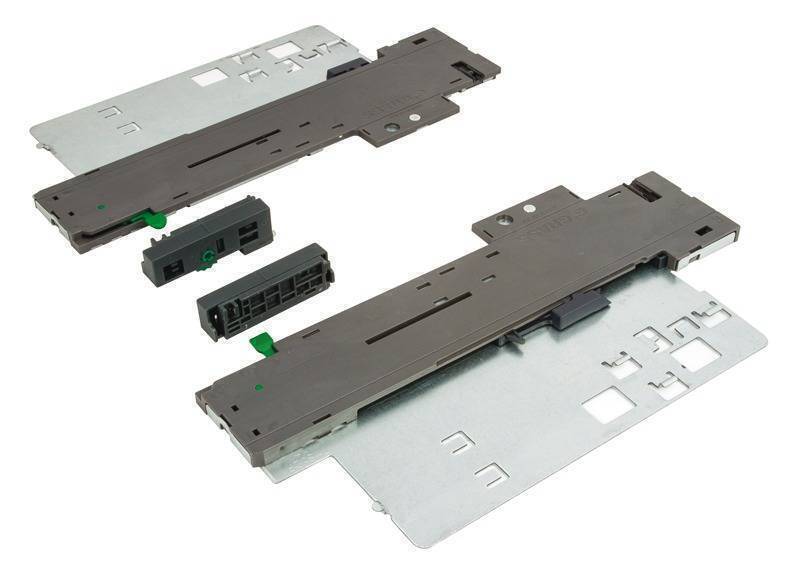

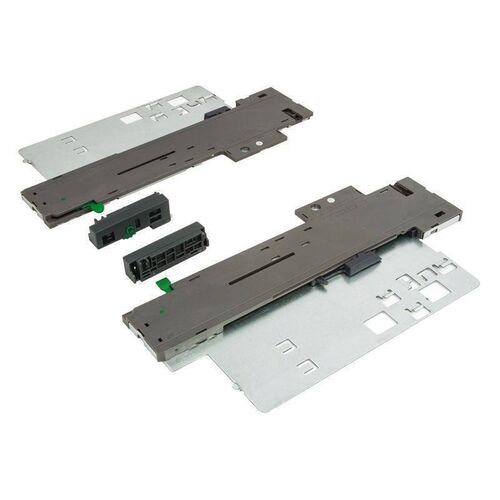

  • 1x Tipmatic set

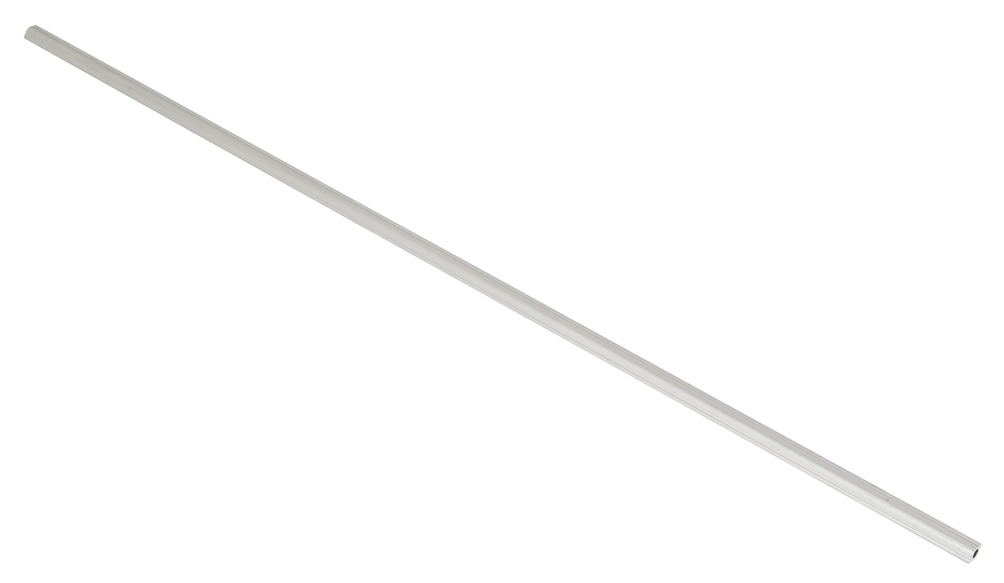

  • 1x Synchronised bar

Features:

  • Supplied in lengths 450-750mm
  • Mounted under the drawer
  • 70kg carrying capacity
  • With integrated liquid Soft-close®

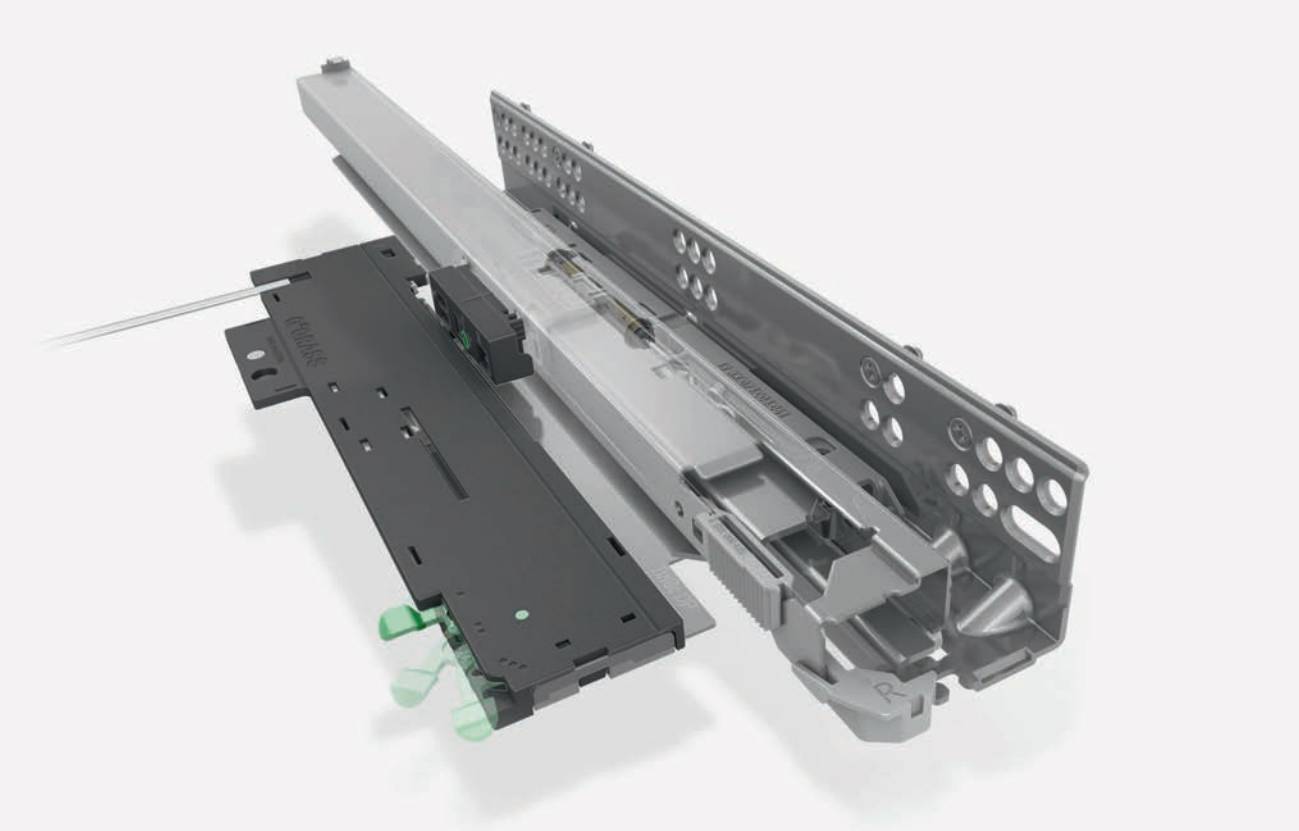

  • Push to open mechanism with three operating levels - Tipmatic
  • Continuous self-locking of the drawer when pushed onto the drawer
  • Integrated height adjustment +3.5 mm without tools

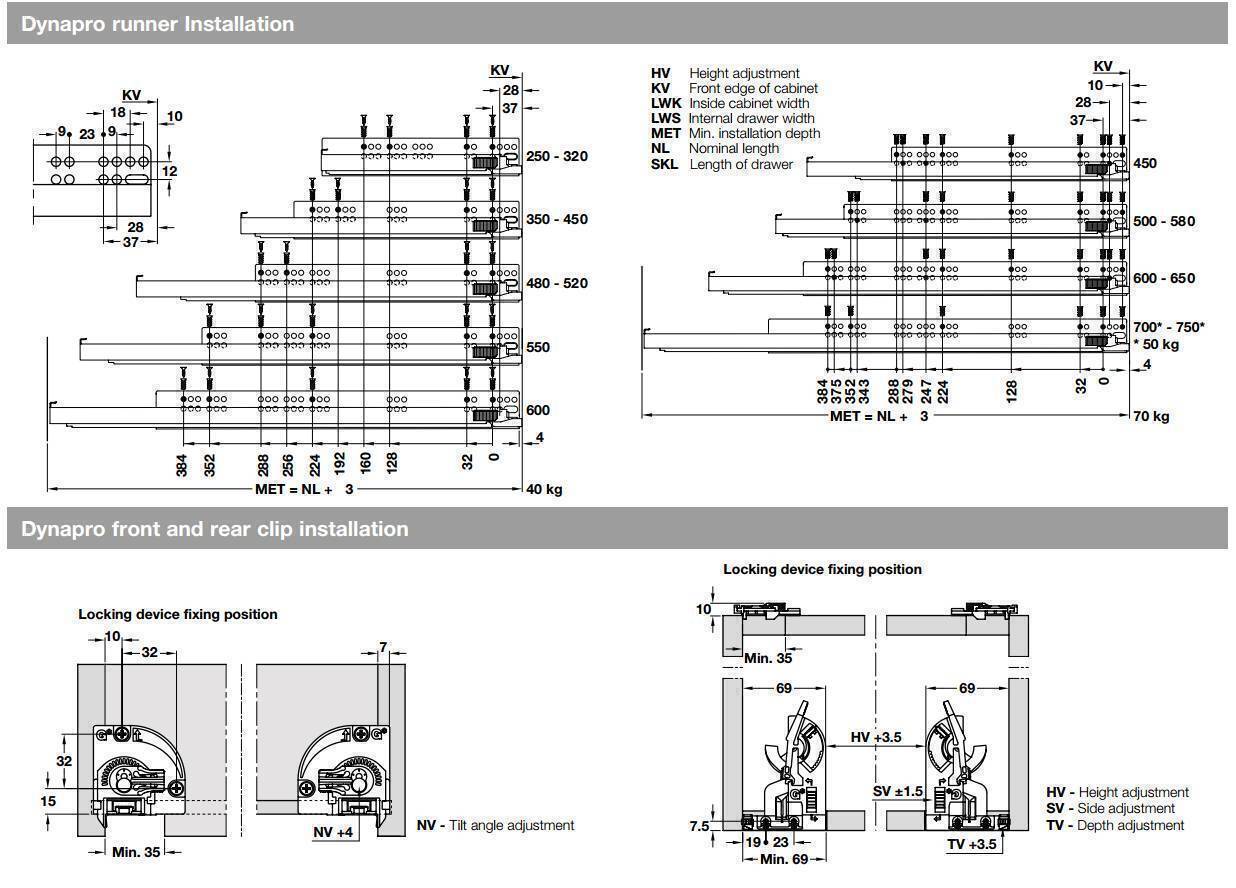

  • Adjustment adaptor for side adjustment ±1.5 mm, tilt adjustment +4 mm, depth adjustment +3.5mm without tools
  • 32 mm drilling pattern
  • Zinc-plated steel
  • Jigs available, more information on request
  • Full extension
Length:
450mm (70kg)
Runner Type :
Concealed Full Extension

Drawer Runners

Closing Mechanism:
Soft Close
Runner Size :
  • 450mm
  • 500mm
  • 550mm
  • 600mm
  • 650mm
  • 700mm
  • 750mm
Weight Rating:
60kg
