Grass Concealed Dynapro Drawer Runners 40kg - Soft Close/Push to Open (for maximum 16mm drawer sides)

1589-001
Price from: £86.08inc VAT
+

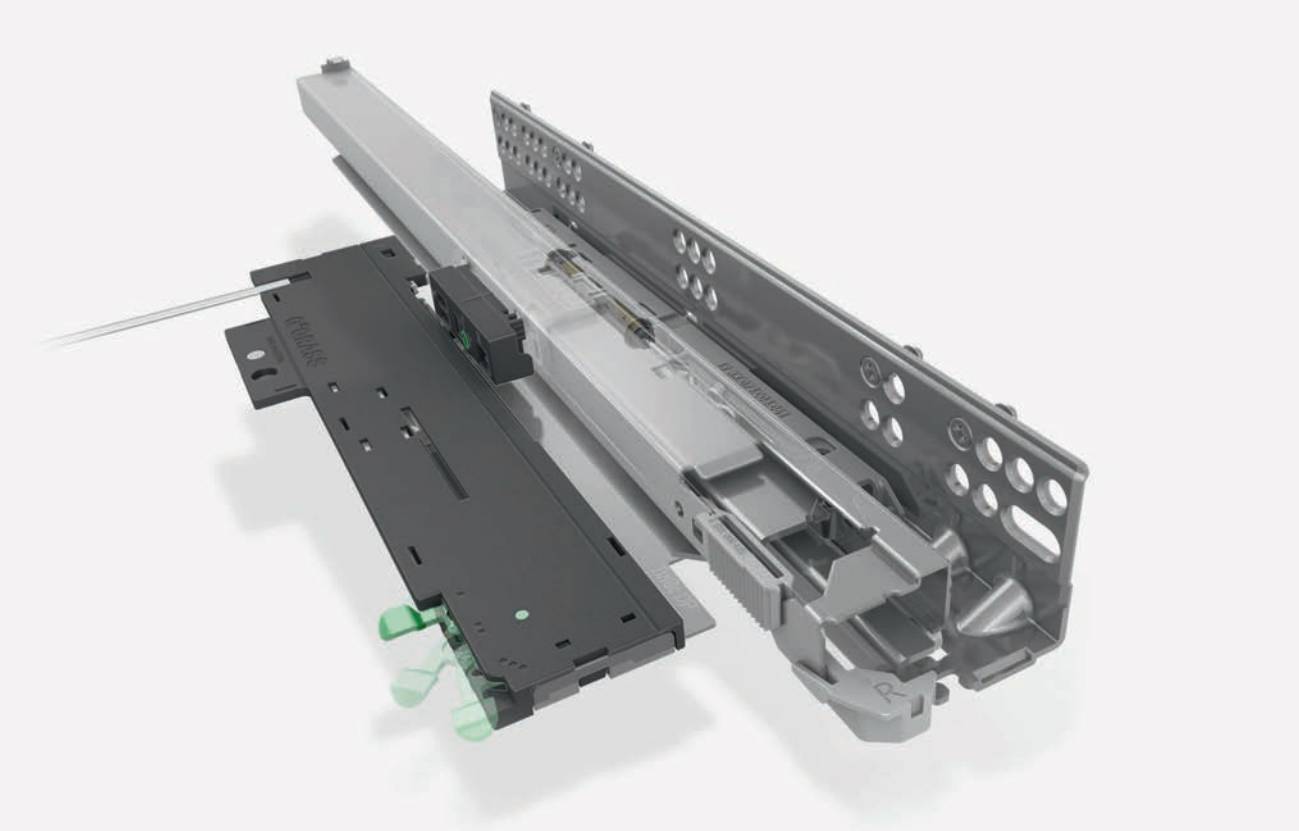

New Grass concealed drawer slides for wooden drawers. Now with Soft Close and Push to Open function. Improved liquid soft close provides you with effortless opening and closing action and 4D adjustment allows to align the drawer precisely without use of any tools. Push to open attachments have 3 different weight settings which allows to adjust everything to provide smooth and easy operation.

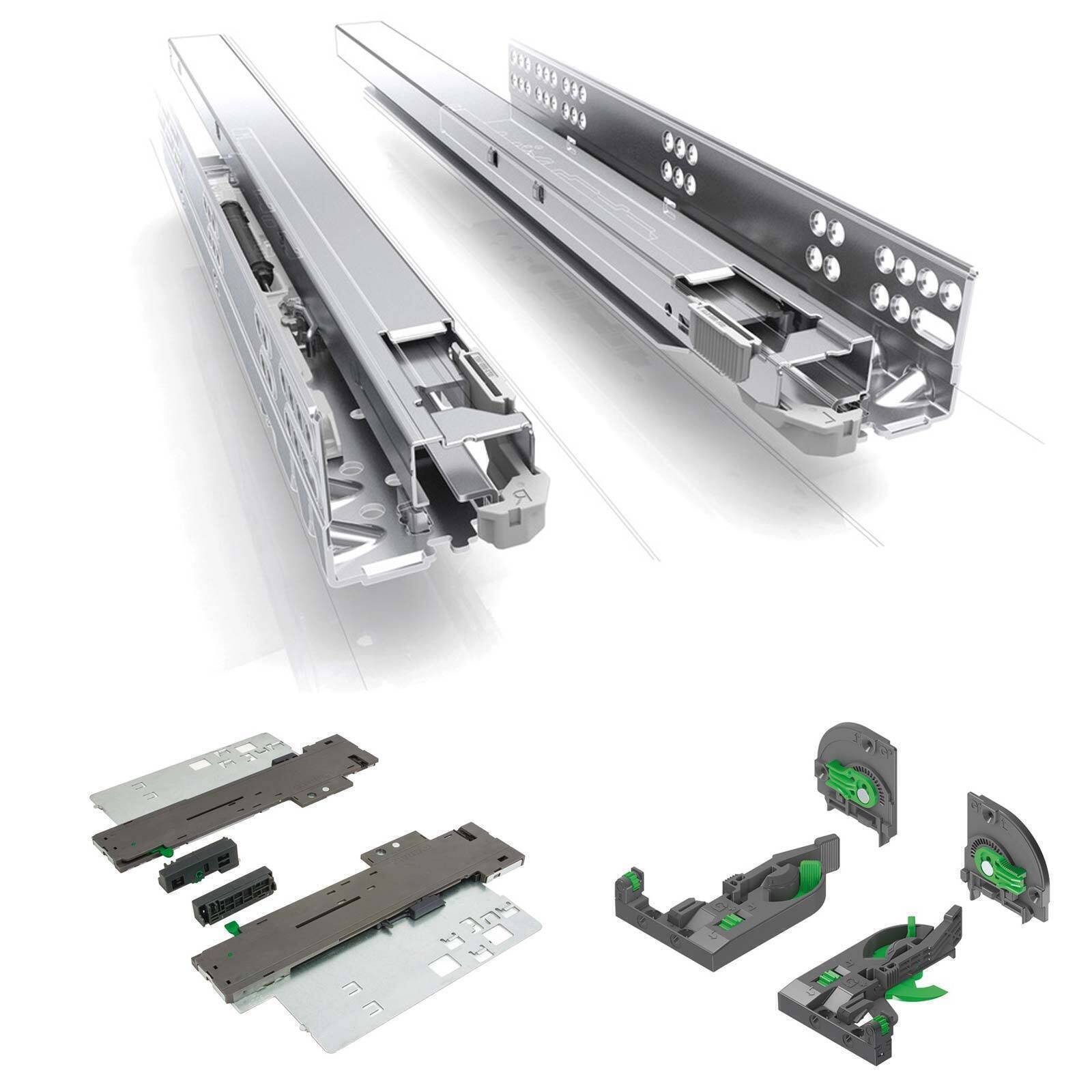

Set contains:

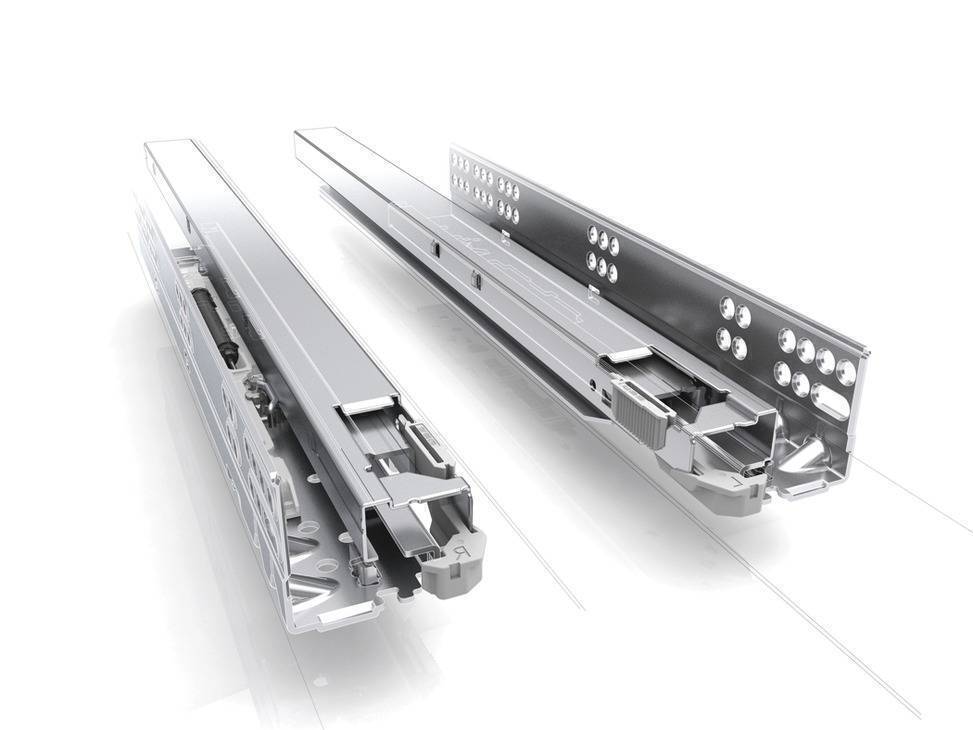

  • 1 pair of runners

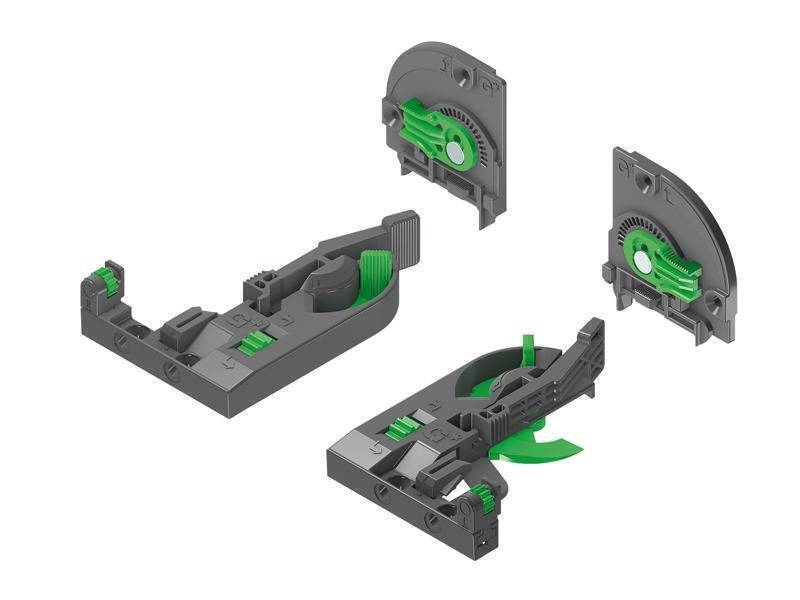

  • Front fixing clips
  • Rear fixing clips

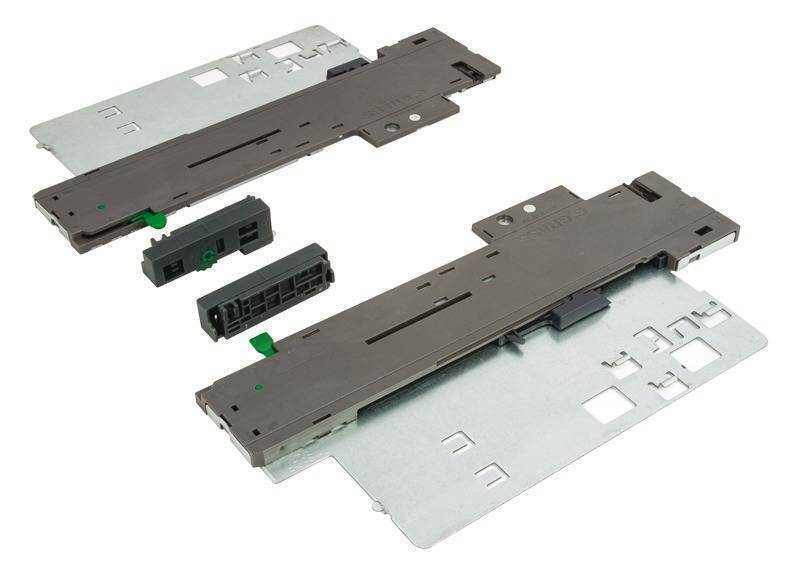

  • 2 Push to open attachment
  • Runners connecting bar

Features:

  • Available in sizes 270-550mm
  • Mounted under the drawer
  • 40 kg carrying capacity
  • With integrated liquid Soft-close® for extra smoothness
  • Push to open mechanism with three operating levels
  • Continuous self locking of drawer when pushed onto the drawer

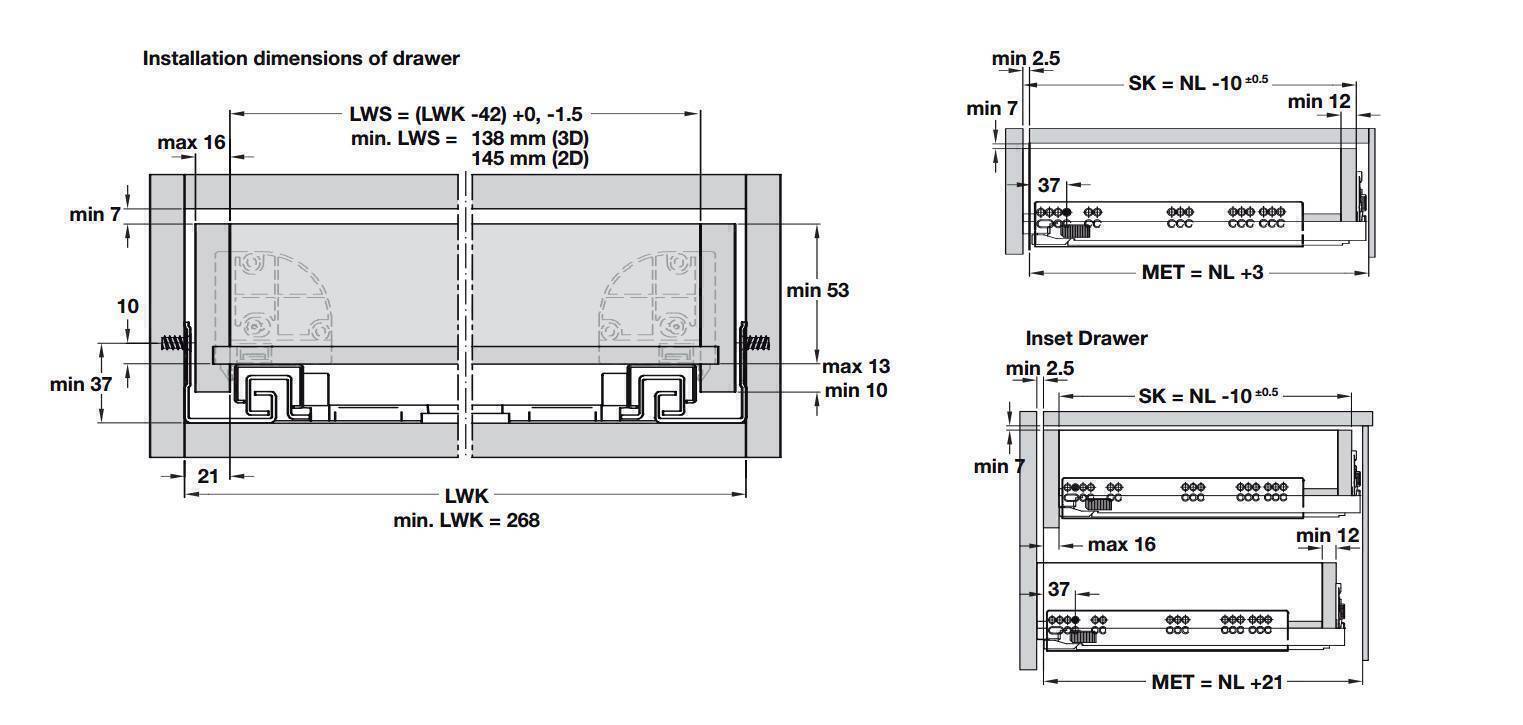

  • 4D dimensional adjustment without use of any tools - vertical tilt, side to side, depth and height
  • Zinc-plated steel

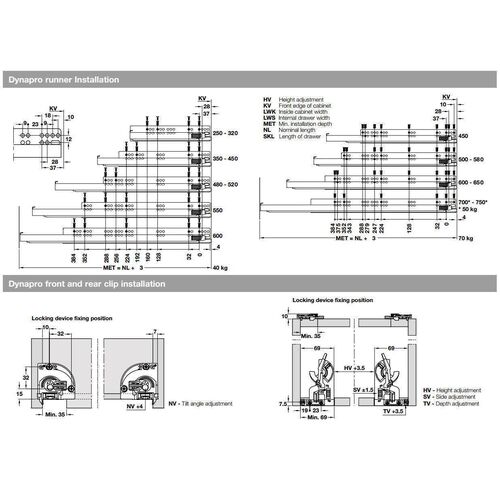

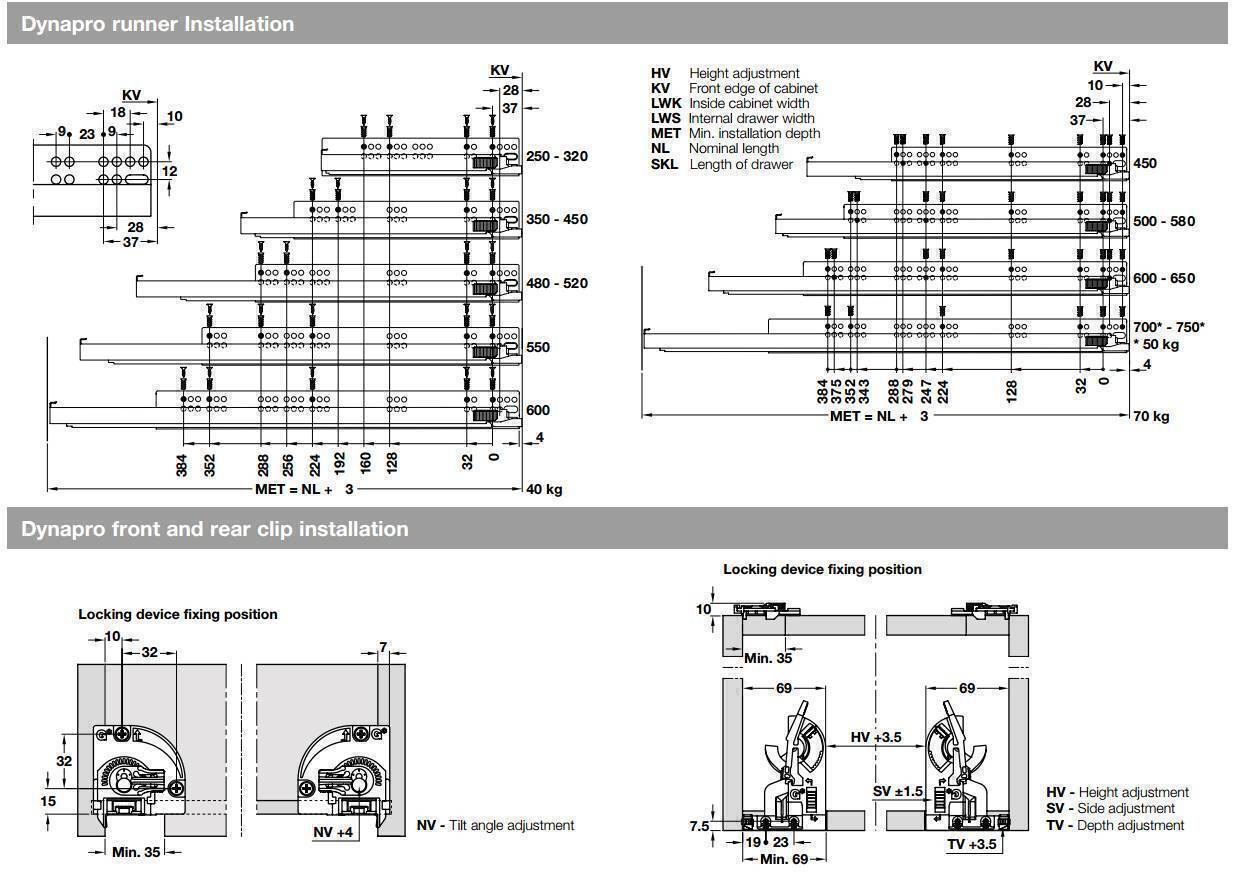

  • Jigs available, more information on request
  • Supplied with front and rear fixing clips
Length:
270mm
Runner Type :
Concealed Full Extension

Drawer Runners

Closing Mechanism:
Soft Close
Runner Size :
  • 270mm
  • 300mm
  • 350mm
  • 400mm
  • 450mm
  • 500mm
  • 550mm
Weight Rating:
40kg
