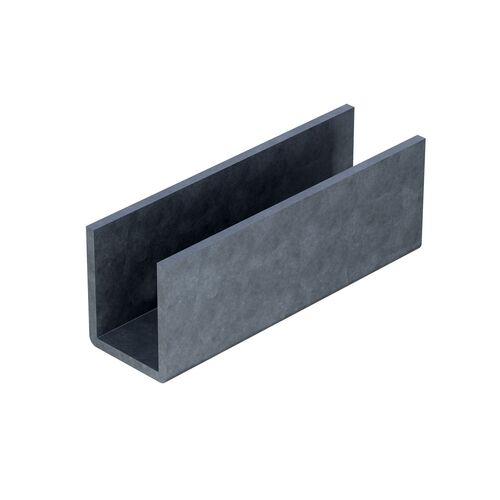

Bottom Channel Joining Bracket (1109M)

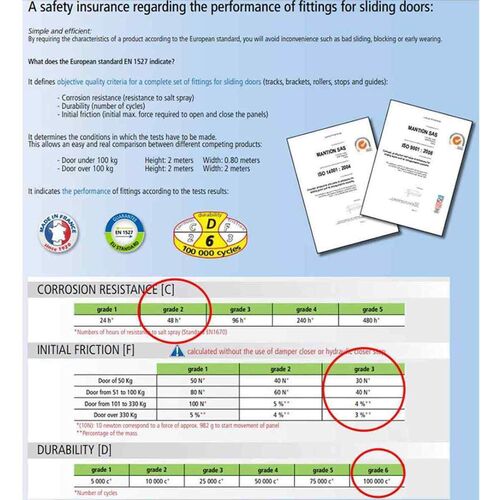

Bottom Channel Joining Bracket To Connect Multiple 1109 Channels Which Allows The Doors To Be Guided And Stops Any Type Of In-Balances 25mm x 17mm x 2000/3000mm. All Sportub Components Are Manufactured To EN1527 Standard. All Tracks Are Coated With Magnesium Zinc (Without Chromium) In Order To Preserve All The Qualities To All Weather Conditions. They Have Up To 800h Resistance To Salt Spray And Red Rust.

• Can be used for sliding and folding doors
• The bottom guide is not included - see related products
• Made from galvanised steel
• Can be incorporated into the doors or into the floor
• Ideal for commercial applications and heavy doors

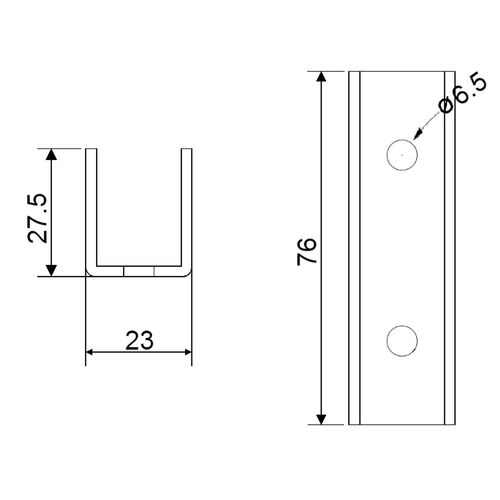

• All technical drawings and DWG models are available in the 'technical docs' tab.

See the technical sheet for more info
