Bottom Channel (1109)

0989-001
from: £14.40
(£12.00 EX VAT)

Please, select one

+

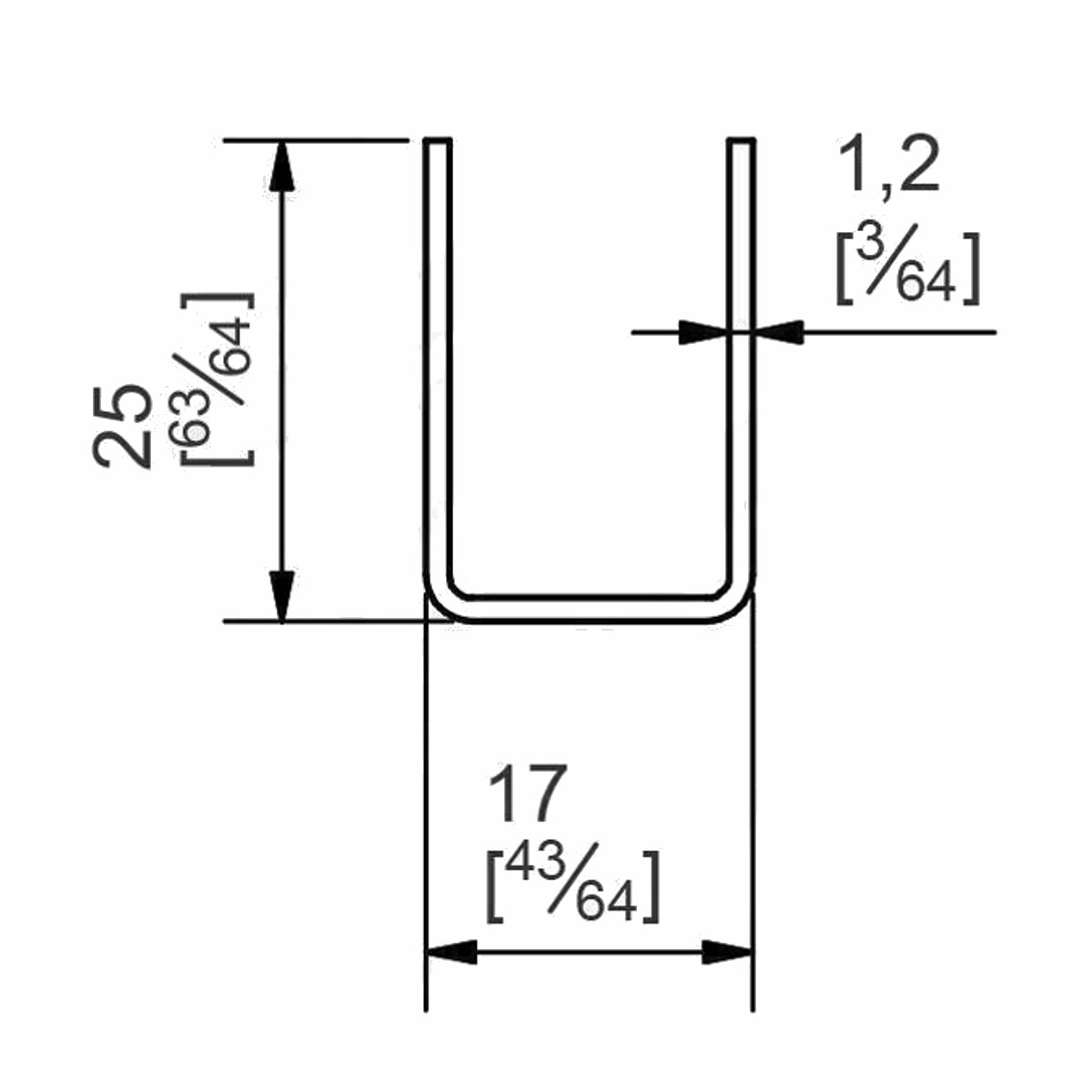

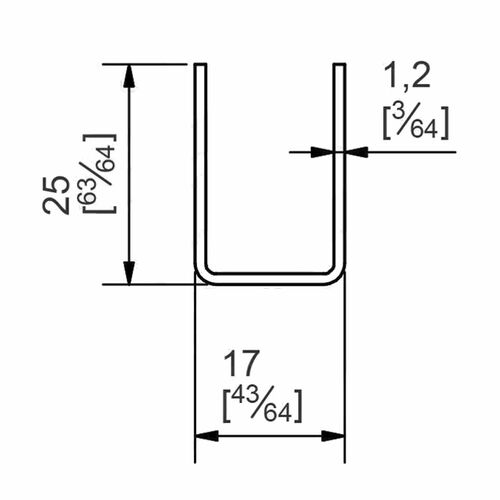

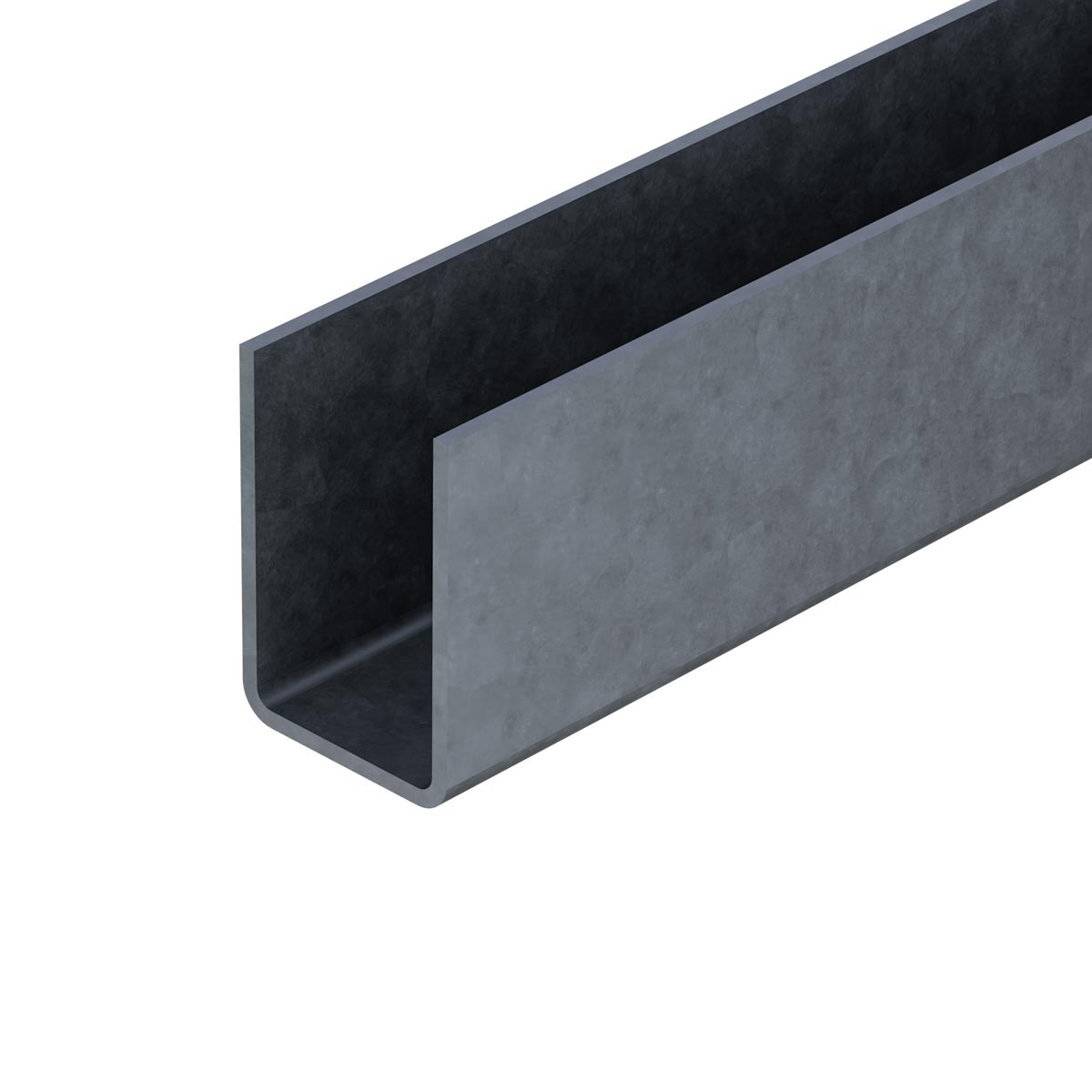

Bottom Channel 25 x 17 x 2000/3000 mm

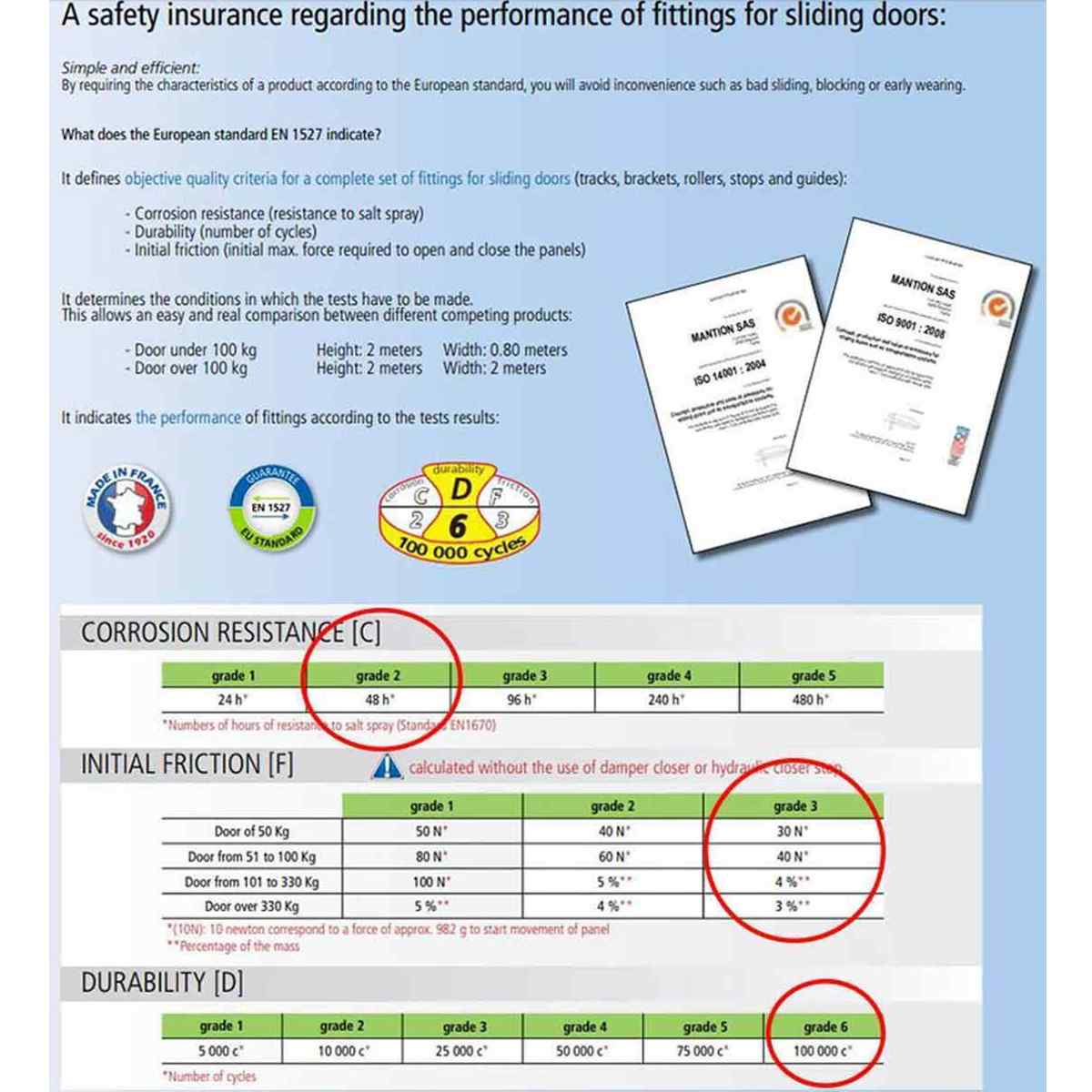

All Sportub components are manufactured to EN1527 standard. All tracks are coated with magnesium zinc (without chromium) in order to preserve all the qualities to all weather conditions. They have up to 800 h resistance to salt spray and red rust.

  • Can be used for sliding and folding doors
  • Bottom guide is not included - see related products
  • Made from galvanised steel

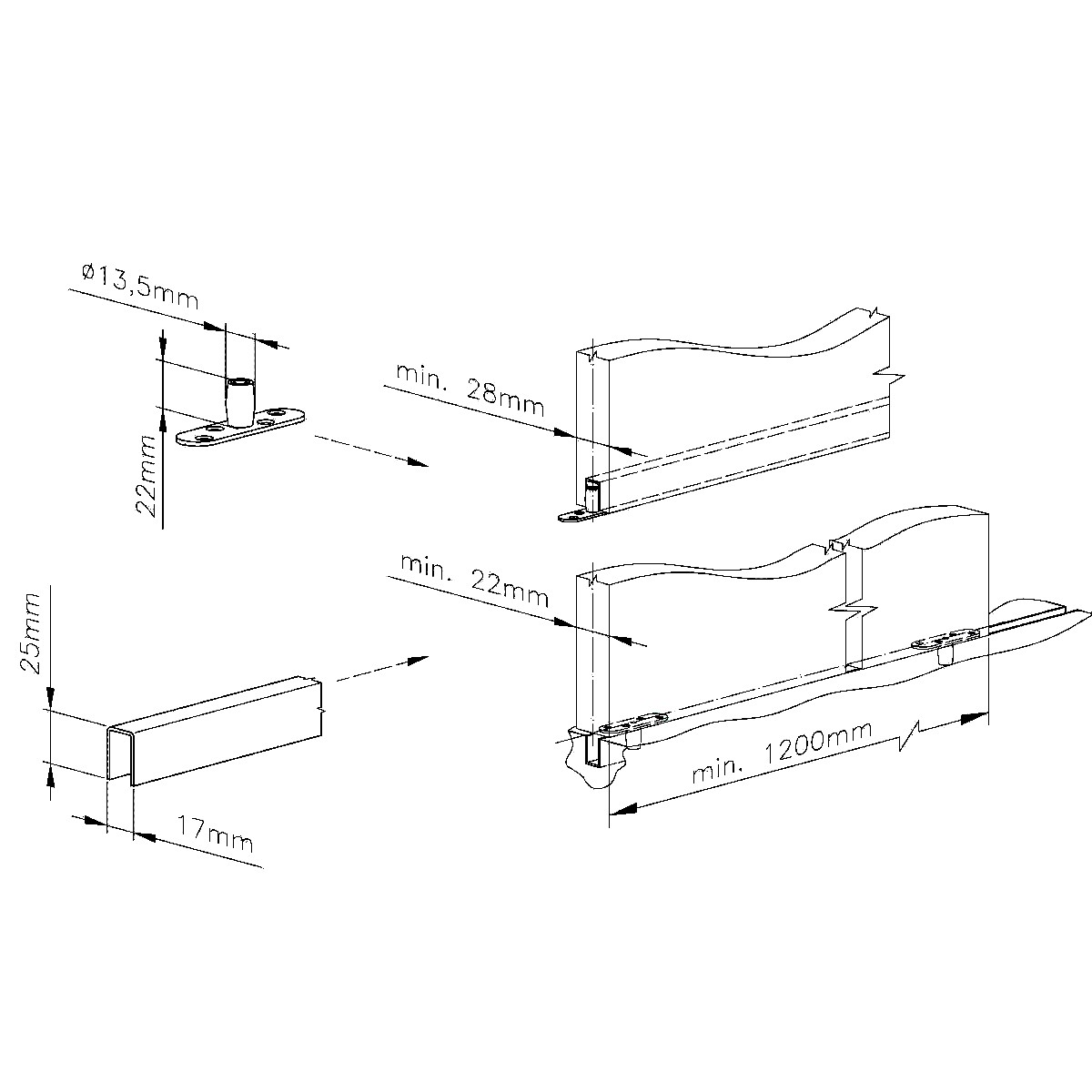

  • Can be incorporated in the doors or into the floor
  • Ideal for commercial applications and heavy doors
  • All technical drawings and DWG models available in 'Technical Docs' tab.

See technical sheet for more info

0990-001
Price: £5.99 (£4.99 EX VAT)

> Dedicated for Sportub 80kg kit and accessories
> To work with 1109 Bottom Channel
> 20mm x 74mm x 21mm

+

DWG Model (1109_300.dwg, 197 Kb) [Download]

PDF Technical Spec (1109_300.pdf, 55 Kb) [Download]

Sliding Systems

Additional Accessories:
  • Optional Accessories
Dedicated for:
  • Industrial Doors
Track Length :
  • 2000mm
